wood cutting machine Radial Arm Saw for furniture

Product Overview

Description

Introduction of wood cutting machine Radial Arm Saw for furniture

1.  Universal Radial Arm rocker saw  is suitable for vertical and horizontal sawing of wood, glue, aluminum alloy and other materials.

2. Sawing and cutting requirements for different angles are completely satisfied, with high precision, low noise and long-term stable performance.

3. The whole machine has a beautiful line shape, and the guide rail has a special dust-cleaning device to keep the guide rail clean.

4. The machine angle is fixed by screws, which is easy to disassemble and easy to transport.

5. With control handle, the control is more flexible and convenient. The scale is moved back and forth with the saw wheel. The saw wheel swings the scale from side to side with a blade guard.

6 Spindle rotation is more flexible and convenient. Adjustable rotation can meet the needs of different angles of sawing. It can rotate the support rod left and right to horizontally shrink the support rod.



Parameter of wood cutting machine Radial Arm Saw for furniture



Model	MJ640	MJ930	MJ2336	MJ2338
Saw blade diameter	350/360mm	350mm/360mm	350mm	350mm
Maximum sawing length or width	640mm	930mm	640mm	800mm
Maximum blade thickness	120mm
Rock-arm revolving angle	45°(each at left or right)
Main spindle level revolving angle	360°
Main Spindle speed	2860r/min	2860r/min	2860r/min	2860r/min
Motor power	2.2kw(3HP)/3kw(4HP)
Voltage	220V/380V
Dimension	1100*1030*1600mm 1300*1030*1600mm 1100*1030*1600mm 1100*1030*1600mm
Weight	258kg	288kg	150kg	160kg
MJ2236 and MJ2338 is new light type, function is same.

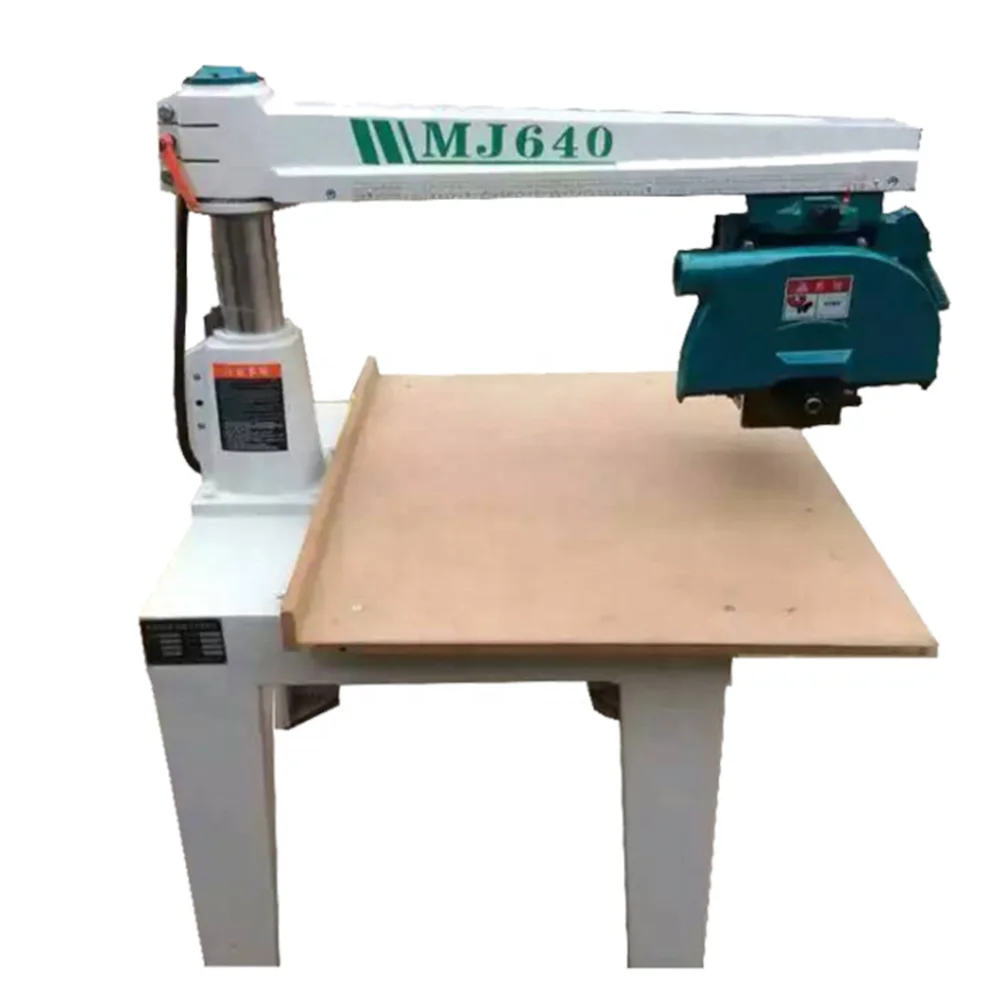

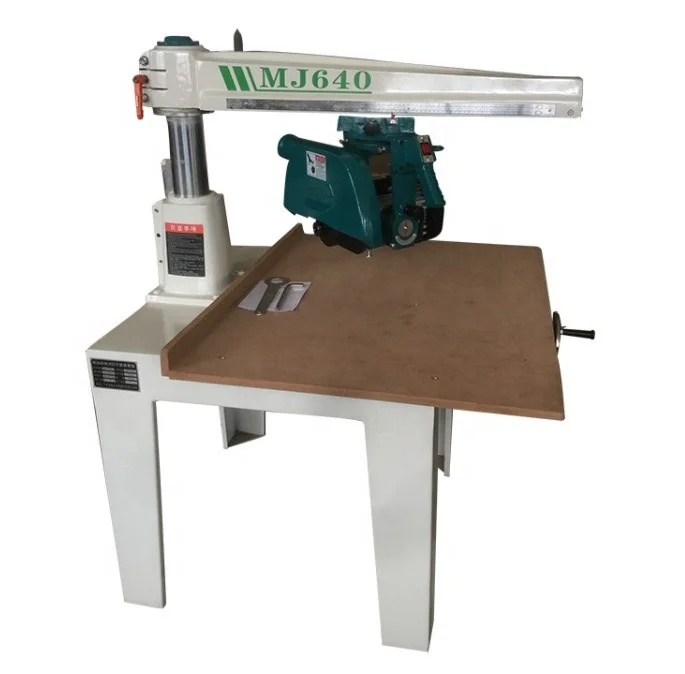

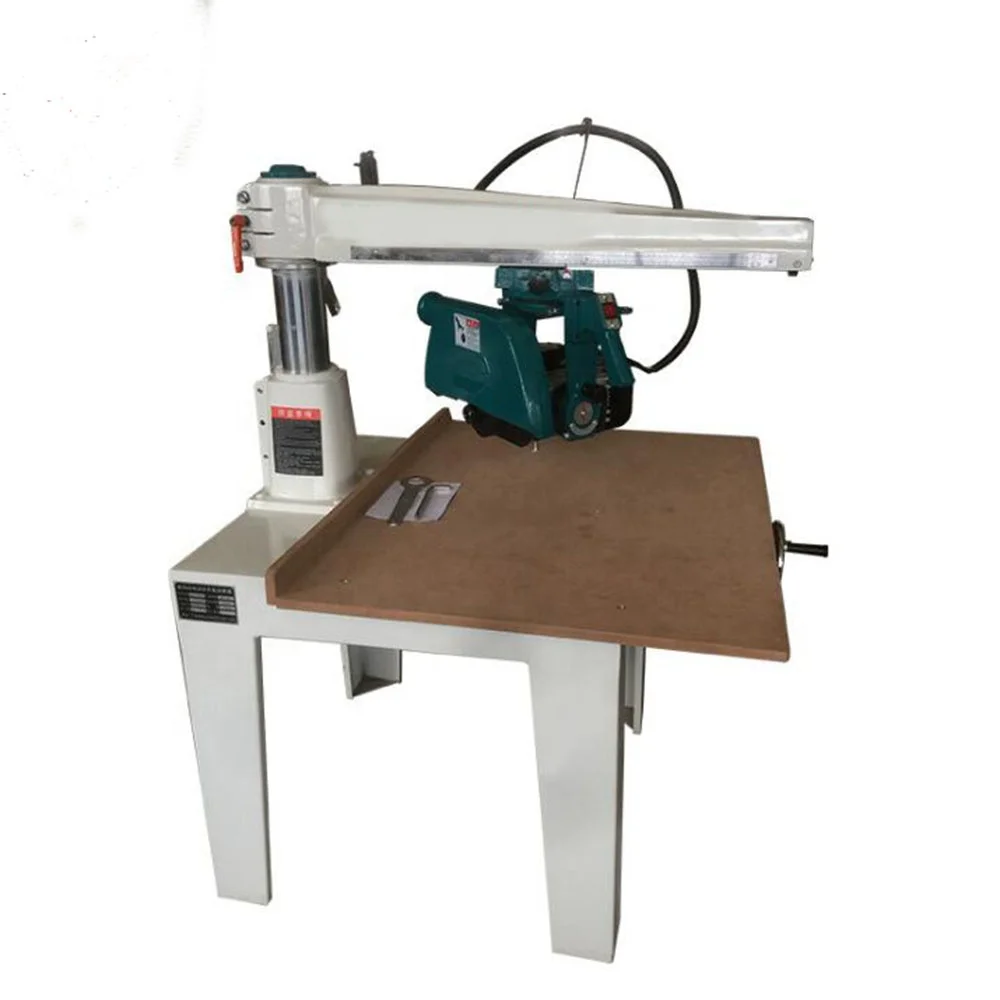

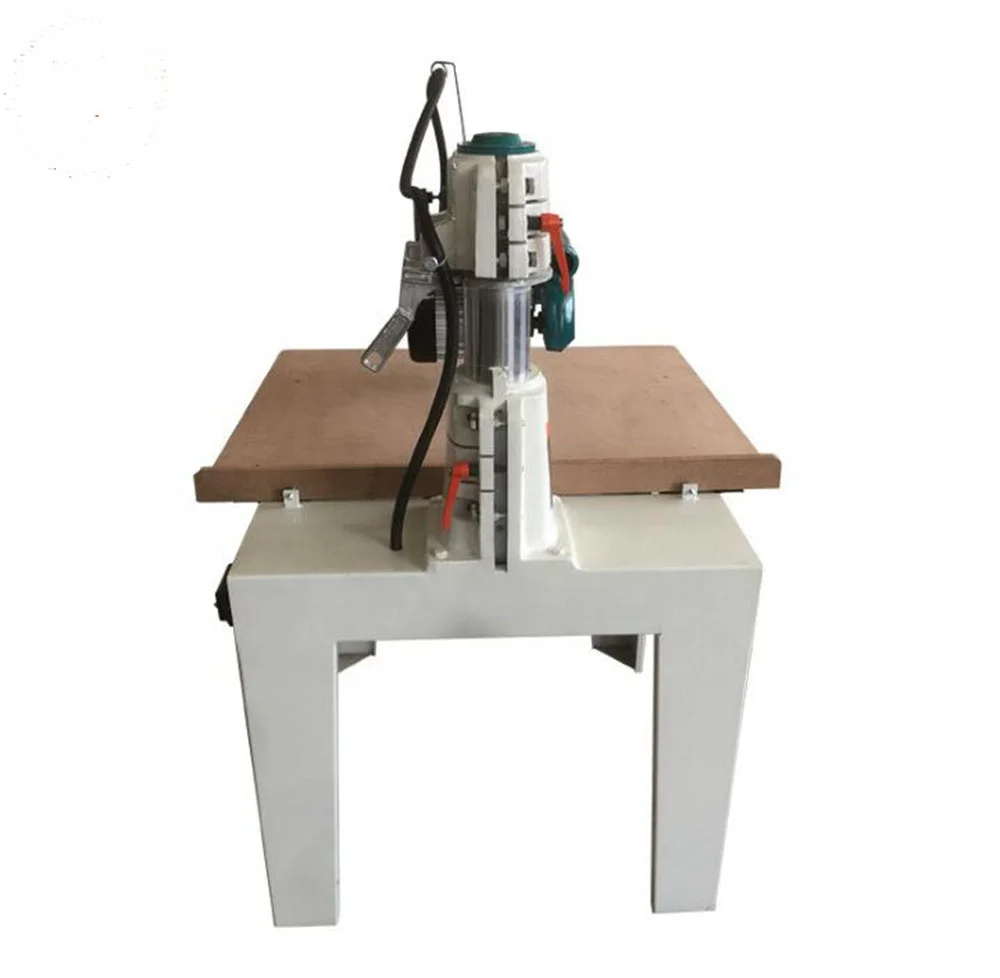

Photo of wood cutting machine Radial Arm Saw for furniture



Shandong Aichener Machinery Co., Ltd. mainly supply woodworking thicknesser, flat planer, Multi-functional combination planer,sander machine, polish machine, wood router and miller, band saw, slide table saw, simple or precision panel saw, scroll saw, circular saw ,Woodworking edge banding machine,Rocker saw,Drilling machine, wood engraving machine, splicing machine, finger joint machine, sharpening machine,Log peeling saw,etc , widely used in Logs, solid wood panels, splice panels, plywood and sandwish wood, warm welcomed by Lumber mill and furniture processing plant,highly valued by woodworking enthusiasts.
