4G network hd portable cloud camera
1. With LCD display, it can display the status of 4G, WIFI, bluetooth and GPS in real time
2. And battery power, etc.
3. Magnesium alloy casing for lighter weight and IP66 protection
4. Support 3G, 4G, WIFI, Bluetooth, GPS, Beidou positioning
5. Can be equipped with dual TF card, dual 4G mode, larger storage capacity, more stable network
6. Lithium battery power supply, working for more than 8 hours
7. The magnet chuck is installed quickly and can be disassembled at any time

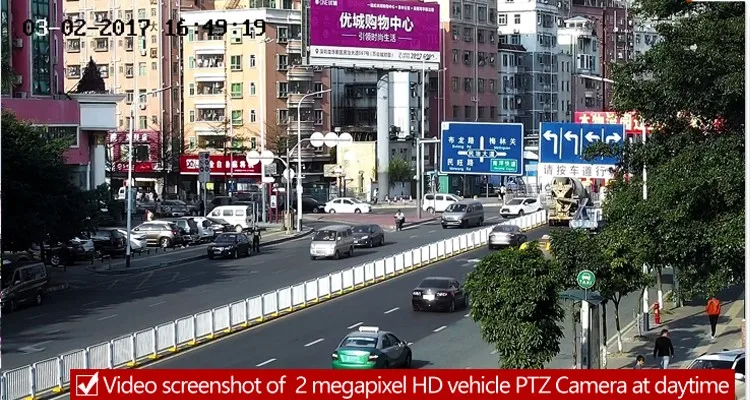

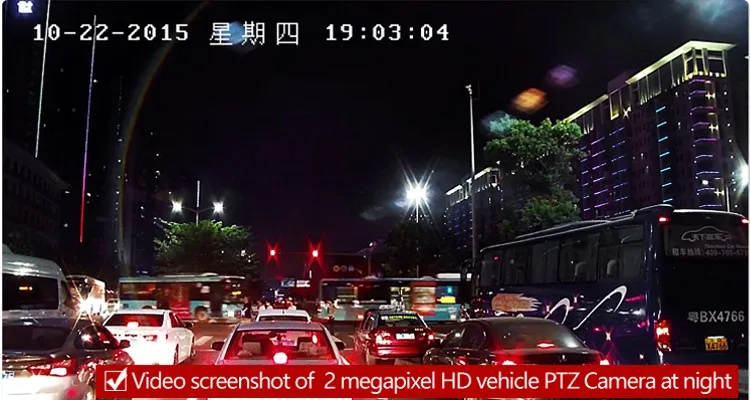

8. High definition image quality, 1080P, 2 megapixels
9. High performance h. 264 video encoding (supports High Profile)
10. Two-way voice intercom via bluetooth
11. Support GB28181
12. Level 360 - degree rotating in a row, vertical - 15 ° ~ 90 °
13. Level of manual speed of up to 120 ° / S, vertical manual speed up to 10 ° / S
14. Preset bits: 255
15. The infrared range can reach 80 meters
16. Anti-fall design, high safety performance
17. It is suitable for emergency disposal and quick control

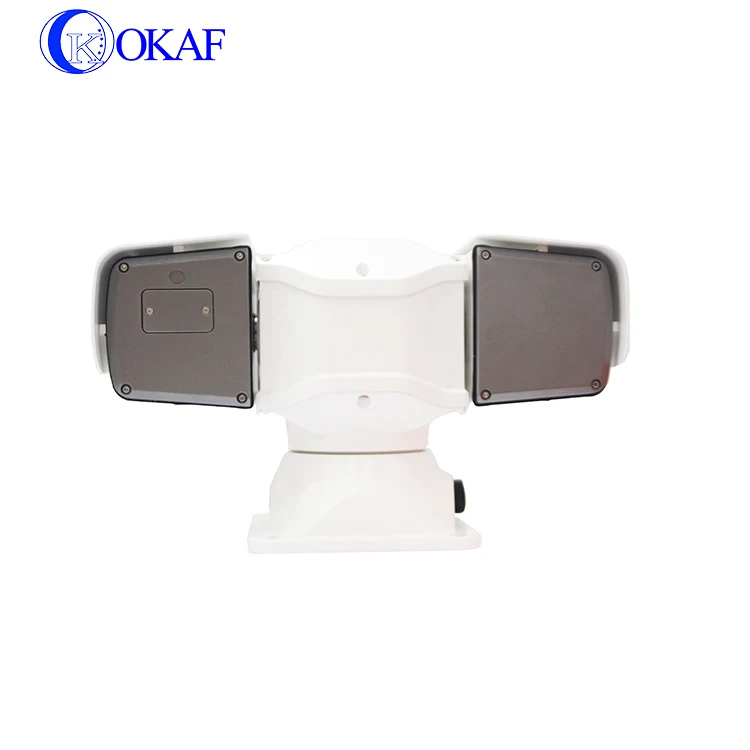

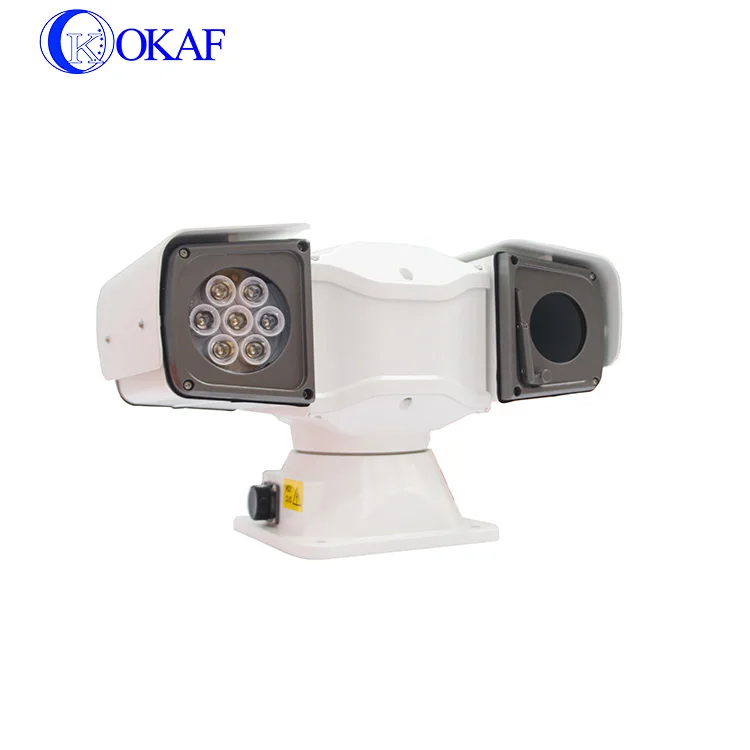

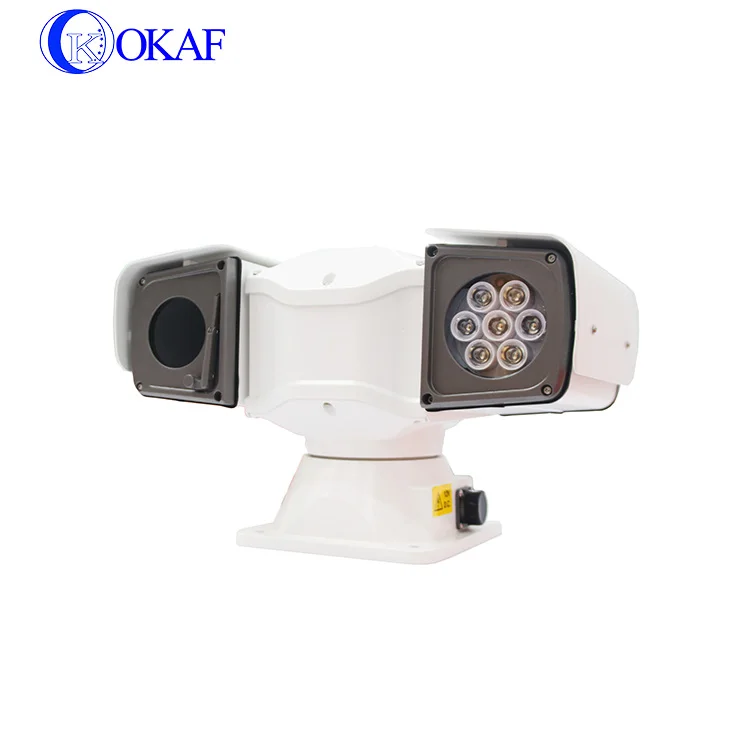

Performance of cradle head: | |
Horizontal preset bit speed | 100°/S |
Vertical preset bit speed | 60°/S |
Horizontal manual control speed | 0°—60°/S |
Vertical manual control speed | 0°—40°/S |
Horizontal Angle | 360 ° unlimited rotation |
The vertical Angle | -90°—+90° |
Preset bit accuracy | ±0.1° |
Preset point | 256 preset positions and 8 inspection tracks |
The function of windscreen wiper | support |
Infrared distance | Two sets of night vision lenses for 100 meters |
The control mode | RS485, built-in PELCO D/P protocol, optional baud rate from 2400Bps to 19200Bps |
Relative humidity | Less than 90% |
Protection grade | IP66 |
Working temperature | -35°C—+55°C |
The power consumption | DC10.8-DC18V |
Impact resistance requirement | ≥4G |
The function of windscreen wiper | support |
installation | Multiple installation options are available depending on the application environment |
Weight | 7kg |
Network parameters: | |
Video compression standard | H.265/H.264 |
Compressed output bit rate | 32kbps-12Mbps |
Audio compression standard | G.722.1,G.711-a law,G.711-u law,MP2L2,G.726,AAC,PCM |
| Storage capabilities | Support micro SD |
| Intelligent alarm | Motion detection, occlusion alarm, memory full, memory error, audio anomaly detection, overstep detection, area intrusion detection |
| Support agreement | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x, QoS,HTTPS,IPv6 (SIP,SRTP,optional) |






Shenzhen Okaf Technology Co.,Ltd was established in 2005. It is a high-tech enterprise specialized in researching & developing, producing and selling CCTV vehicle surveillance products. It is one of the most professional vehicle surveillance system developer & manufacturer in China nowadays.
Our main products applying to public security departments are vehicle system such as: vehicle PTZ camera, 4G deployment dome camera, vehicle mobile lifter, telescopic mast, pneumatic telescopic mast light tower, vehicle alarm lamp, dynamic forensics system, highway patrol and rescue system, fire emergency rescue system, urban management law enforcement system, mobile commanding system, operation commanding system etc.

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer the solve way for you.
Q1: What is your minimun order quantity?
Our minimum order quantity is 1 pc each model.
Q2: What is your payment method?
We accept T/T(Telegraphic Transfer), Western Union or Paypal.
Q3: What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4: Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
Q5: How do you make our business long-term and good relationships?
We keep good quality and competitive price to ensure our customers benefit;
We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q6: Do you accept OEM/ODM?
Yes! If you have OEM or ODM plans, highly welcome to negotiate with our sales person, we guaranteed products quality and pretty competitive prices.
