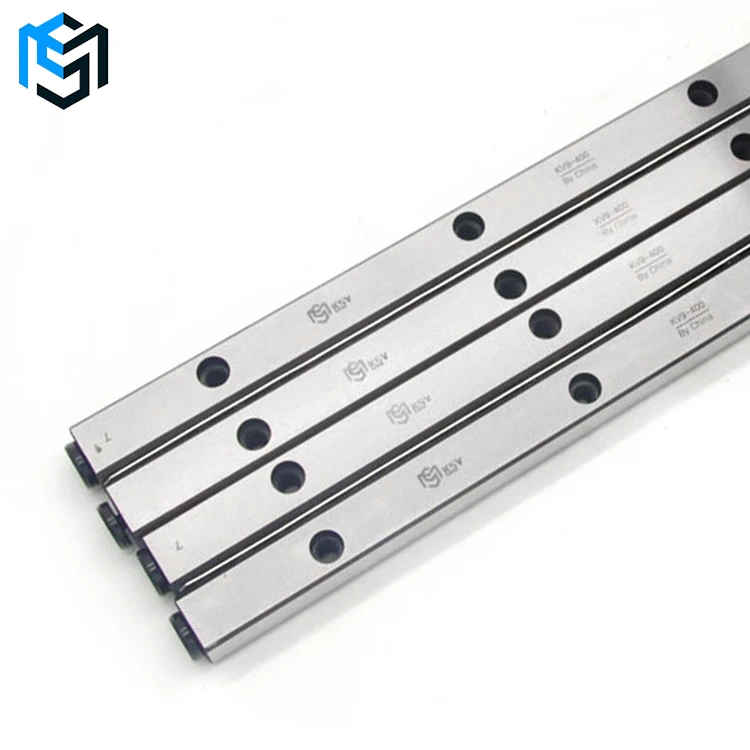

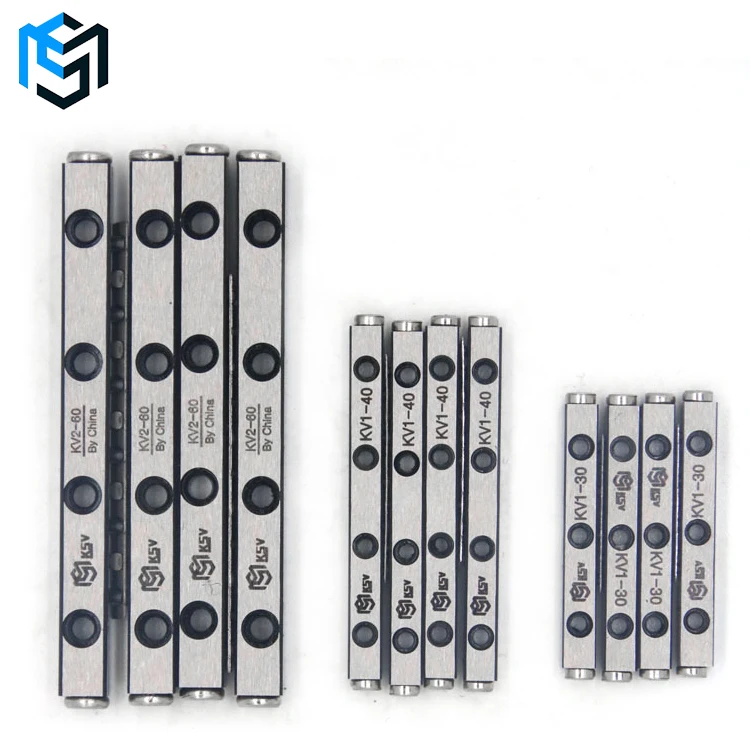

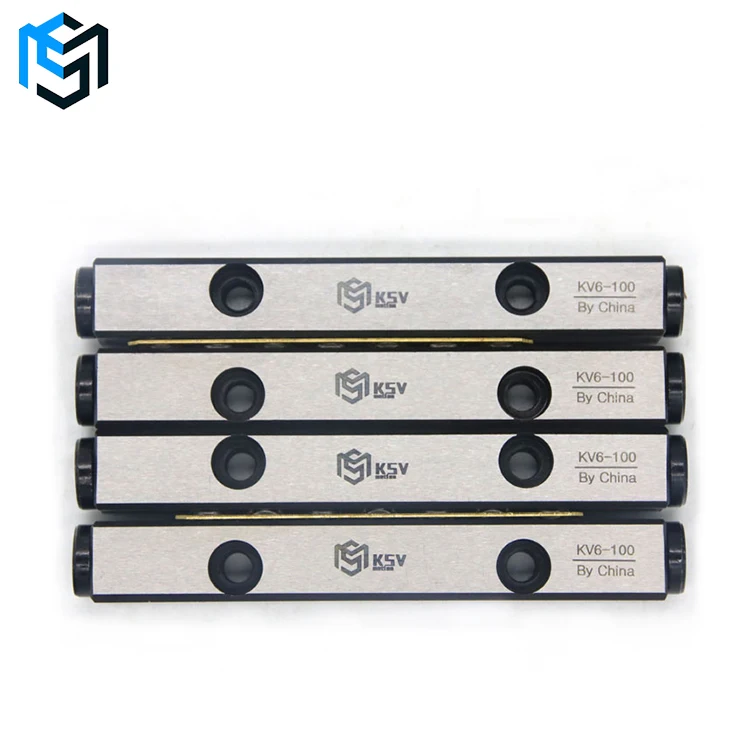

10 years professional guide rail KSV MOTION Heavy Load Low Noise precision Cross roller guide Rail

Product Overview

Description

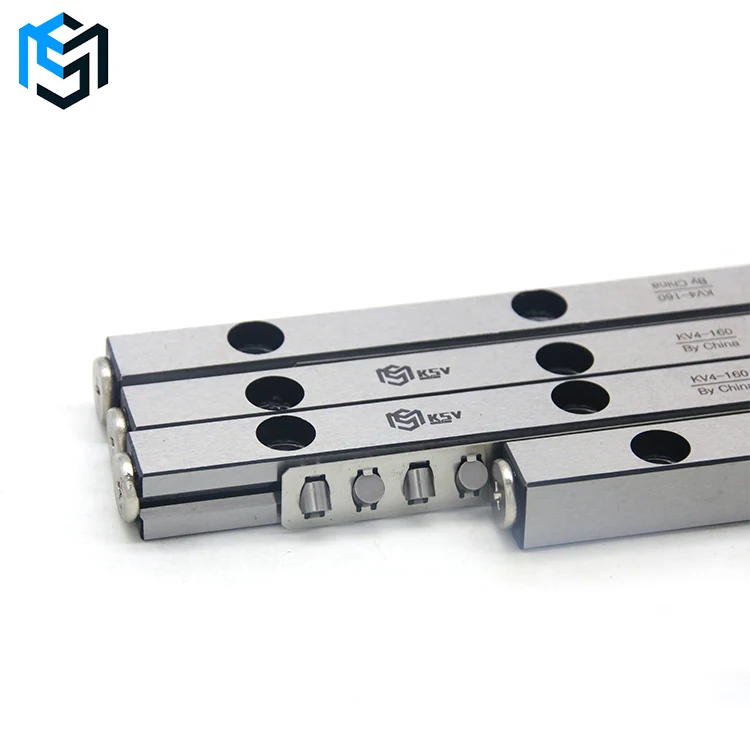

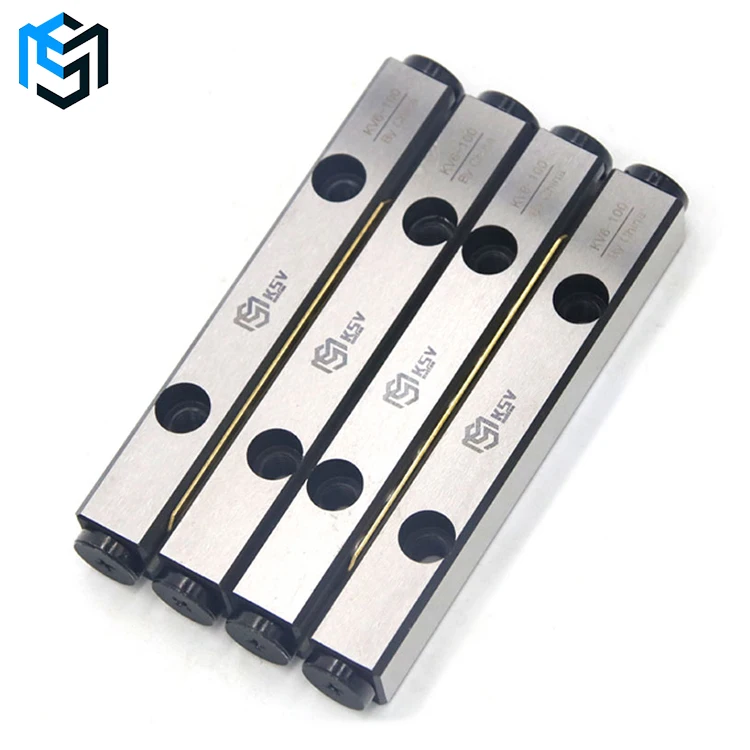

Product Name	KSV MOTION Cross roller guide
Material	CGr15 Steel Bearing Steel
Advantage	High precision, low wear, high speed movement, high load, easy assembly, interchangeability, simple construction
Long service life and high rigidity	Utilizing the unique roller retention method, the effective contact length of the roller is increased by 1.7 times compared with the conventional product, and since the pitch interval of the roller is shortened, the number of rollers is increased, and the rigidity is increased by 2 times, and the rigidity can be obtained. 6 times the life. Therefore, it is possible to sufficiently consider the design of the vibration and the impact which are likely to occur in the linear motion portion.
Smooth motion	In the cross roller guide, each roller is held by the cage, and since the roller bag in the cage is in surface contact with the roller, it has good lubricating oil retention, so wear is small, and smooth rolling motion can be obtained.
High corrosion resistance	The cross roller guide series also offers a stainless steel version with excellent corrosion resistance.
Applications	CNC Machine Tools,Electronic Equipment,Automation Equipment,Laser Equipment, Medical  Equipment (CT),Lathe,Horizontal Miling Machine,Planer,Shearing Machine Etc.



Product Features
In the cross rail, the roller holders in which the precision rollers are combined with each other are used in combination with the 90° V-shaped groove rolling surface provided on the dedicated rail. By assembling the two rows of roller guides in parallel, the rail system can withstand loads in four directions. Further, since the preload can be applied to the cross roller guide rail, a sliding mechanism having no gap and high rigidity and a light movement can be obtained.
The cross roller guide rail is widely used in precision equipment such as office equipment and its external equipment, various measuring instruments, printed circuit board drilling machines, or slider parts of optical measuring equipment, optical tables, operating mechanisms, X-ray devices, and the like.
