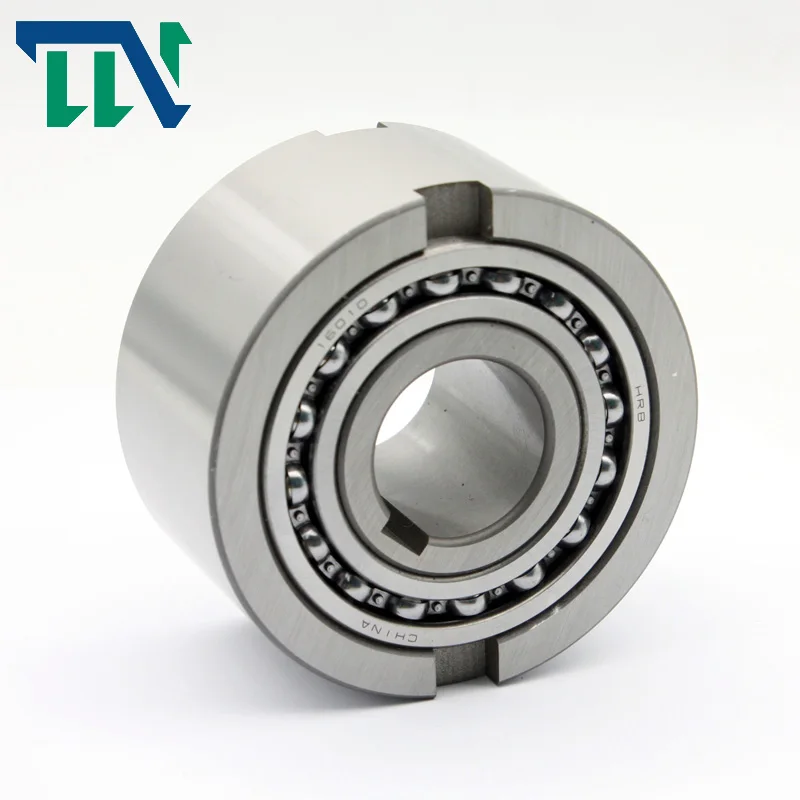

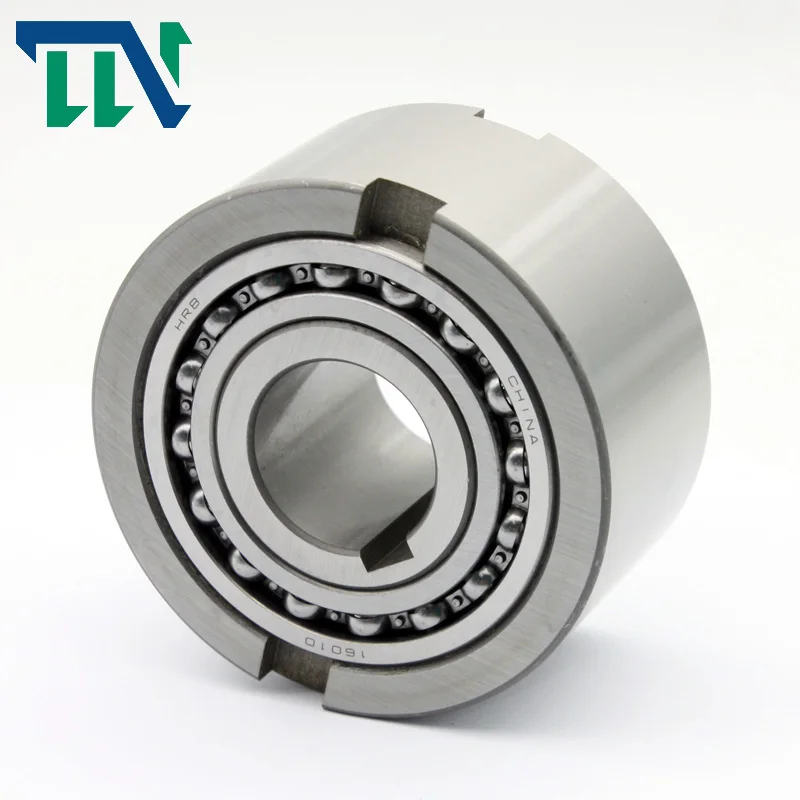

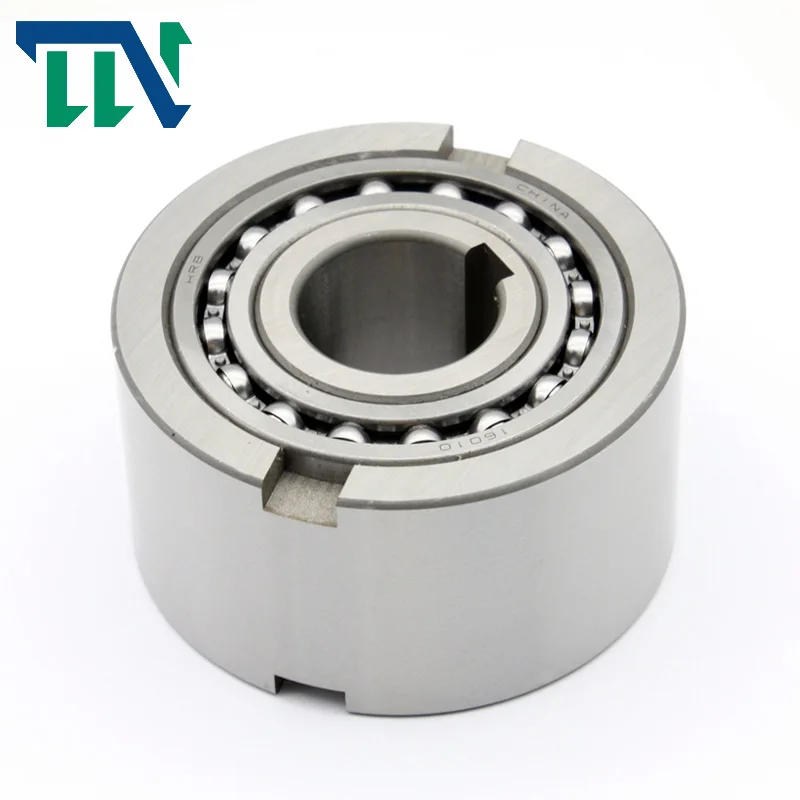

NFR130 односторонний роликовый подшипник, свободный подшипник, сцепление, Новинка (62122056207)

Share on:


Price:90,00 $ - 115,00 $
Price in USD:Details

Quantity:


Product Overview

Description





Product Description


PRODUCT DESCRIPTION


Technical Datas





































Item NFR
Material GCr15
Bore dia. 8-130 mm
Outer dia. 37-300 mm
Width 20-180 mm
Torque capacity 20-34750 N.m
Weight 0.1-68 kg
Package Carton box, wooden box or as your   requirements




Brief Introduction


Type NFR is a bearing supported roller type freewheel without any sealing. Lubrication and sealing must be provided by the installation. Standard lubrication is oil.


Size 8 to 20 units use steel on steel bearing support from the inner race. Above size 25, two 160.. series ball bearings are used, giving a higher overrunning speed capacity. A typical arrangement is shown overleaf.


The inner race is keyed to the shaft. The outer race has a positive n6 tolerance to give a press fit in a housing to H7. Additional side notches provide for positive torque transmission.The housing must be strong enough to not expand after assembly.







Dimensions and Capacities

































































































































































































































































































































TypeSize Overrunning speeds
Bearing
BearingDimension (mm)Weight
kg
 NFR
(ANR-ANG)
dH7
mm
TKN1
Nm
Nimax2)
min-1
Namax3)
min-1
 Dn6D2D4LItbH11rr1
82010001000*37203020 3611.50.1
122010001000*37203020 3611.50.1
1578850850*47263730 3.571.51.50.3
20188650650*62375236 3.58220.6
252502100360016008**804068400.2492.521.2
305001700320016009**904575480.25122..521.8
356631550300016010**1005080531.26132.52.52.4
4011001150260016011**1105590632.271532.53.3
4515001000240016012**1206095632.271632.54
502375800215016014**13070110802.78.5173.535.7
552550750200016015**14075115804.29183.536.5
604250650190016016**15080125953.29183.53.58.9
705875550175016018**170901401101.19203.53.513.5
8010000500160016021**190105160125092043.519
9017250450145016024**2151201801400.611.5244427.2
10079625350125016028**2601402101502.614.5284444.5
13034750250100016032**300160240180217.5325568




Mounting Example







Product Display







Production Flow







Packaging & Shipping


2packing










Certifications






Company Information






FAQ


FAQ


Q: Why do we choose your company?


A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.


Q: What is the delivery time?


A: For small quality or samll size of clutches, we can deliver upon receiving advance.


     For large quantity or large size, we have to produce 10-15 working days.


Q: Can you supply with sample clutch?


     Of course! We can provide with a sample to your checking quality.


Q: What is the warranty period of the clutches?


     One-year Guarantee.
