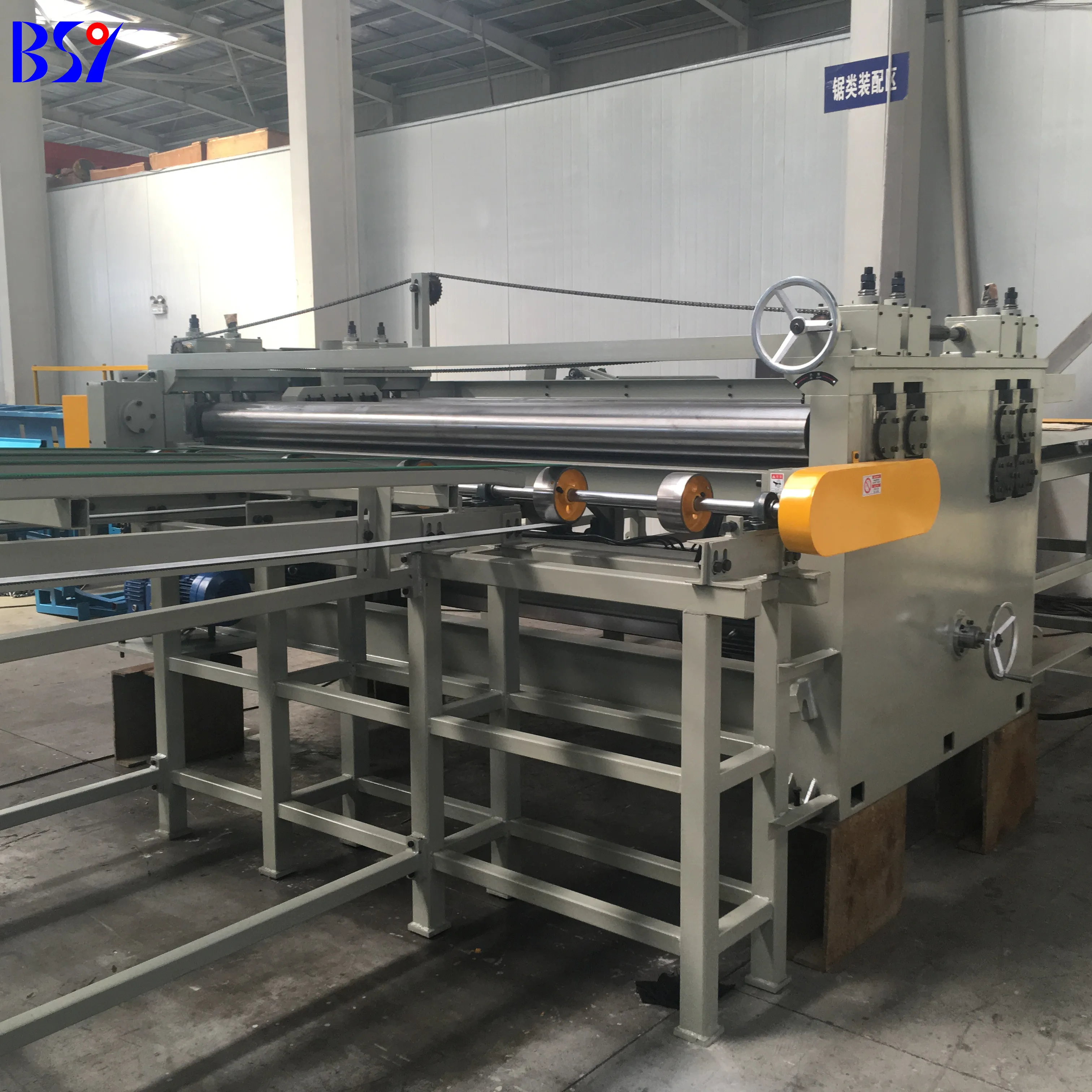

Automatic plywood edge trimming machine/plywood cutting machine

Product Overview

Description

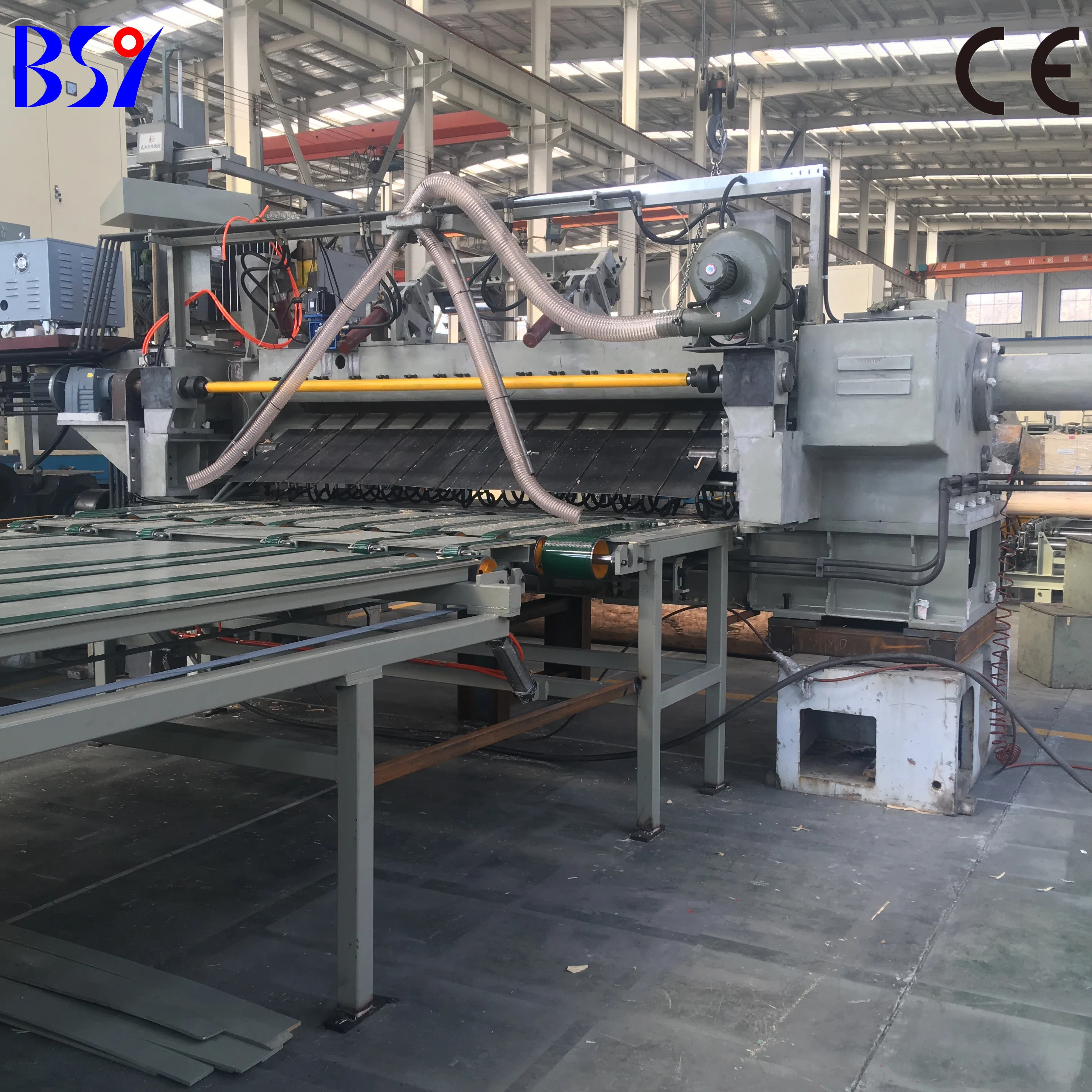

Automatic plywood edge trimming saw machine



Product Application:



Automatic Wood Sawing Machine is suitable for Sawing the board to the needed size.

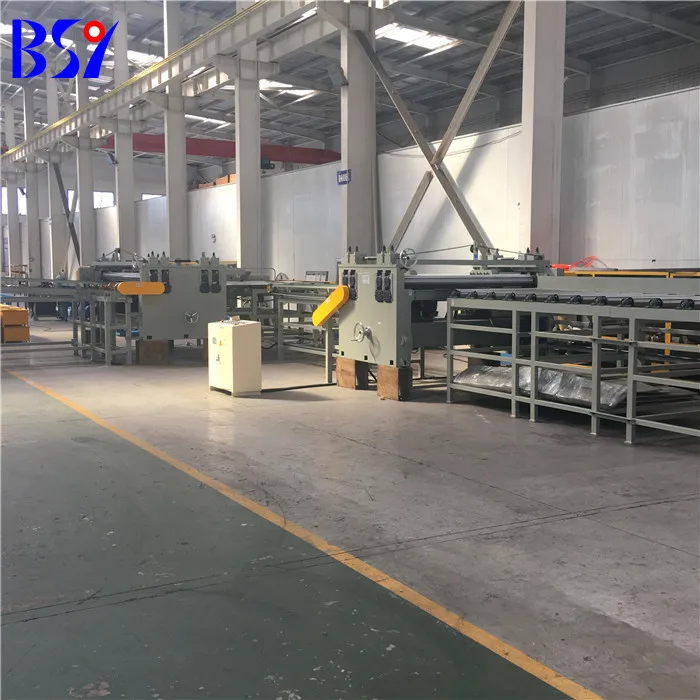

This machine is sawing and sanding production line. It is used to saw the edge of plywood  and then finish sanding  the face of plywood.



Technical Data:

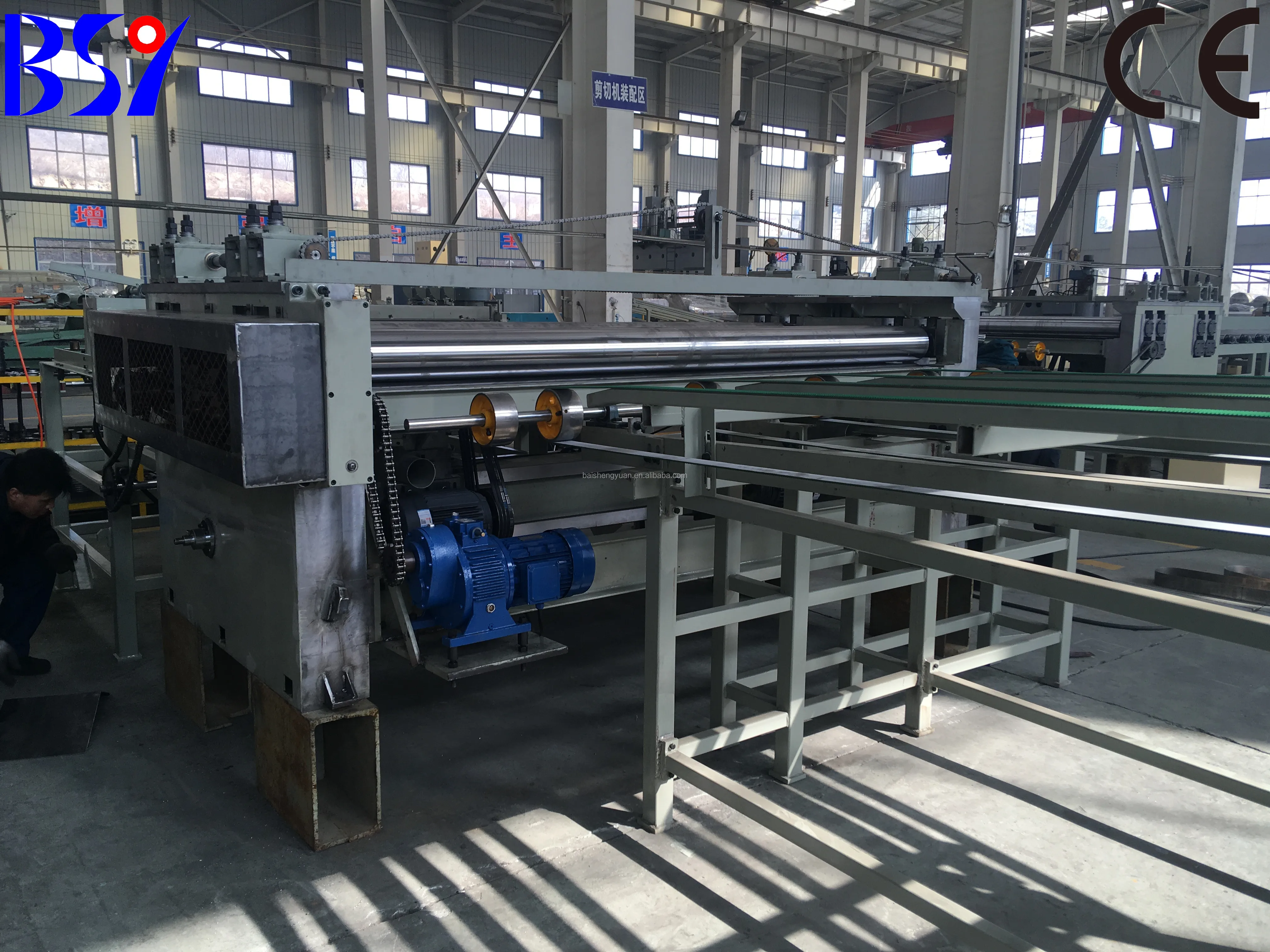

Model	Lengthways Saw Trimming Machine
Edge sawing size	915-1220mm
Cutting thickness	30mm
Saw blade diameter	∅305mm
Blade speed	6900rpm
Feeding speed	15-70m/min
Saw motor	7.5kw/2
Feeding motor	MBW-40-Y4-C5

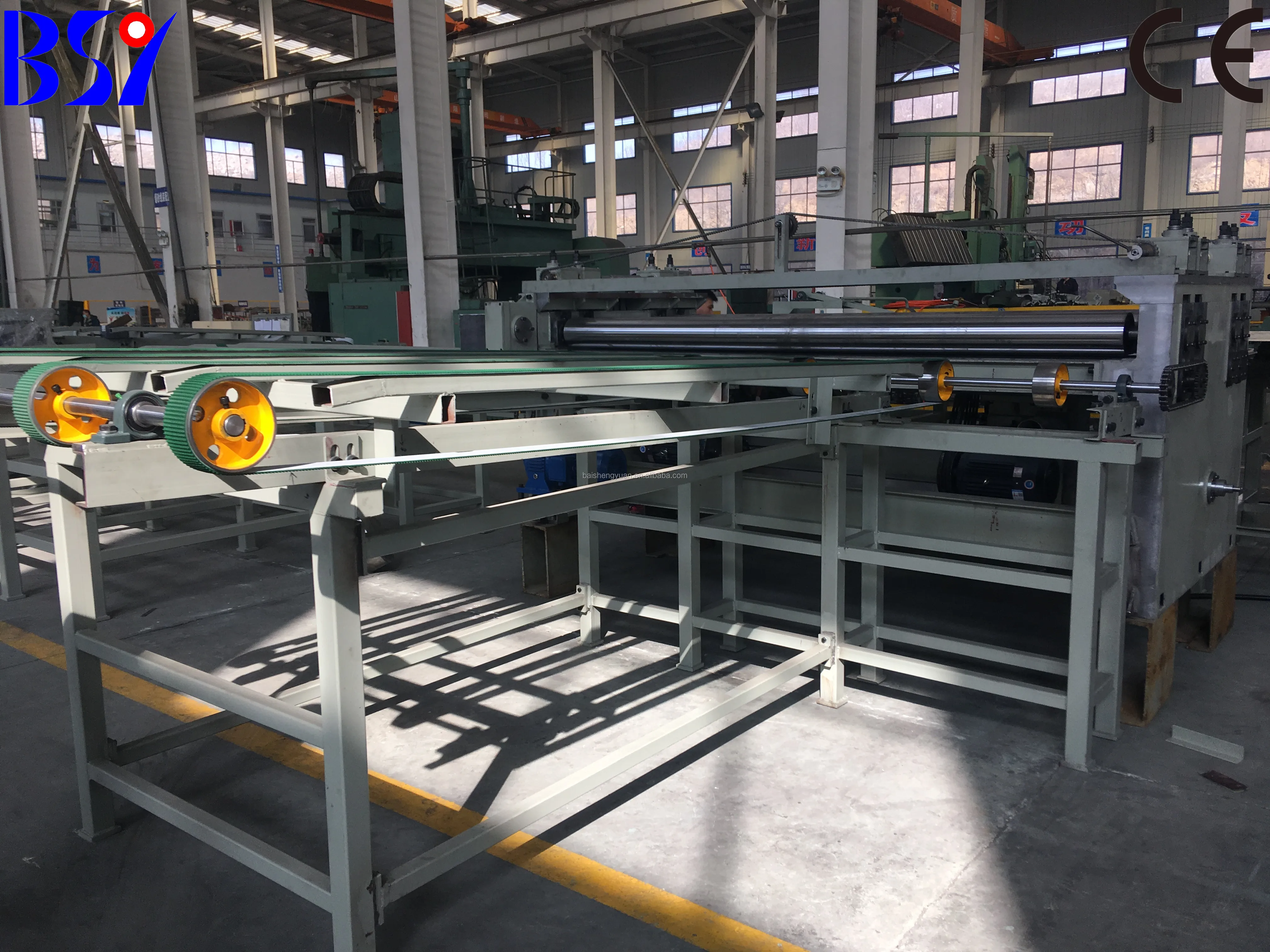

Model	Widthways saw discharge conveyor
Conveyor speed	15-70m/min
Conveyor width	915-1220mm
Transmission mode	Drive by saw

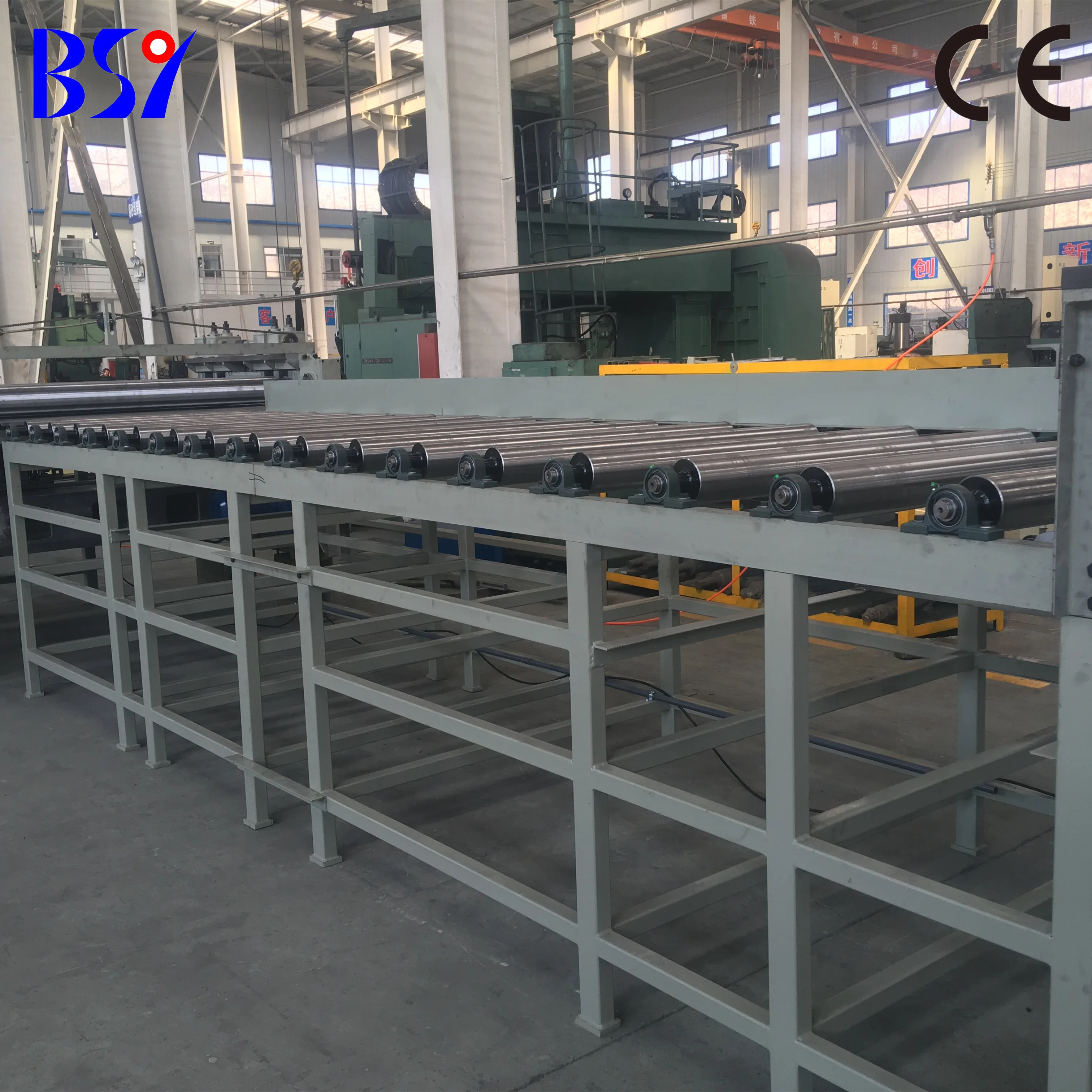

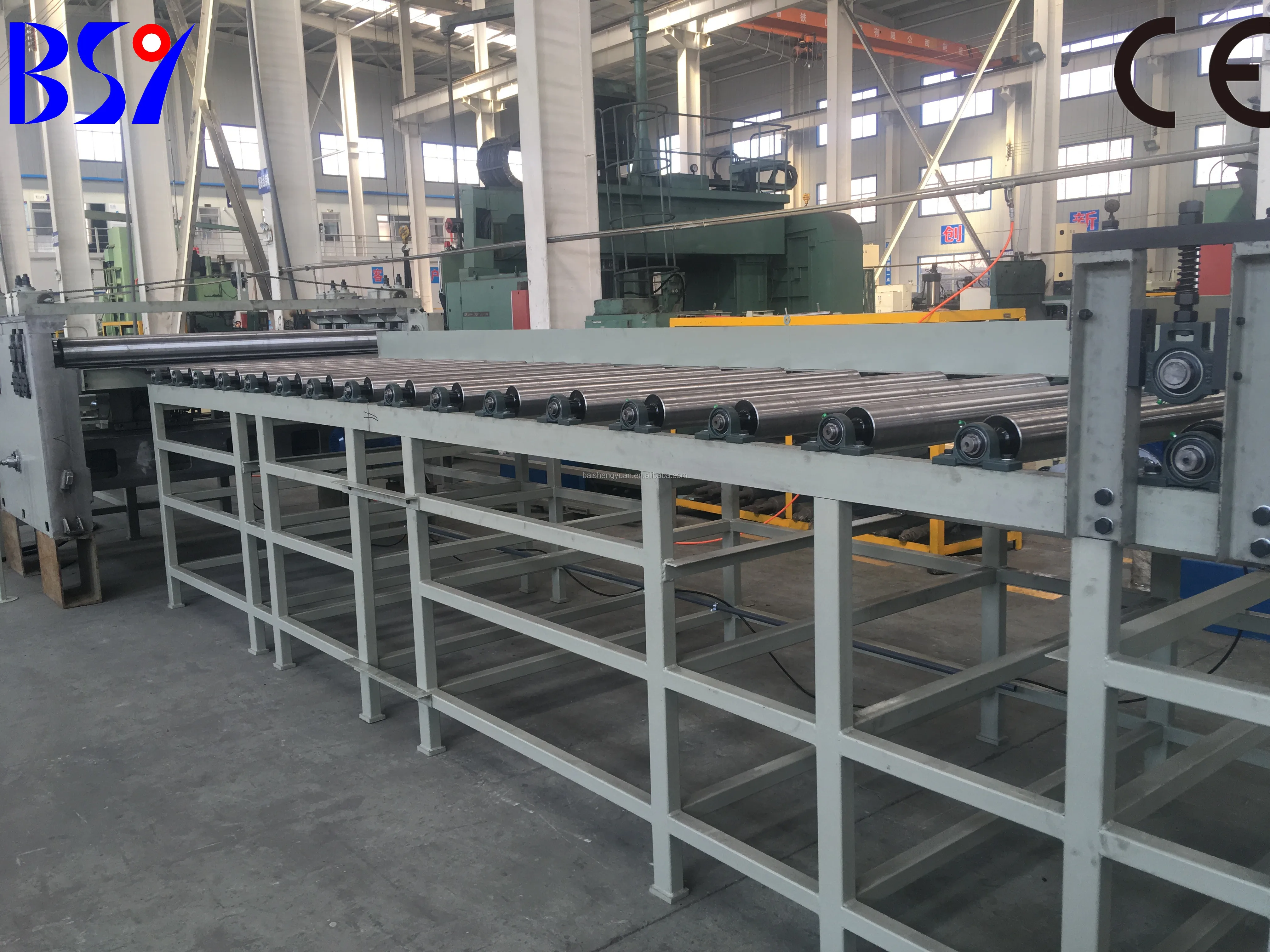

Model	Turning Conveyor Machine
Lengthways roller speed	25.37-71.03m/min
Widthways chains speed	23.84-66.75m/min
Vertical roller	Drive by lenthways saw feeding conveyor
Widthwise chains transmission	Drive by electromagnetic clutch





Advantage:



1. Faults Display fitted (sanding paper right and left deviation, inadequate air pressure, emergency knob, over thickness work piece). It’s easy to judge basic equipment trouble. Faults emergency stop adopts automatically descend protection facility, the panel surface won’t be damaged from emergency stop.



2.Conveyor speed adjusted by stepless speed control (frequency controller is optional), easy adjusting. It can be adjusted as per the work piece in processing to improve sanding quality.



3.Conveyor use marble material, its shape won’t be changed because of temperature.

Precision and grinding duration is higher than steel conveyor.



4.The safety device: On the control panel has an emergency stop button (latching), left and right side in the sand shelf containing two photoelectric switch; relay pressure in low pressure pneumatic system operation, equipped with disc brakes on the motor pulley to parking brake to ensure rapid emergency occurs.







About us:

SHANDONG BAISHENGYUAN GROUP CO.,LTD

1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.

2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.

3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your requirement.

4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.



Any questions,please feel free contact with us:
