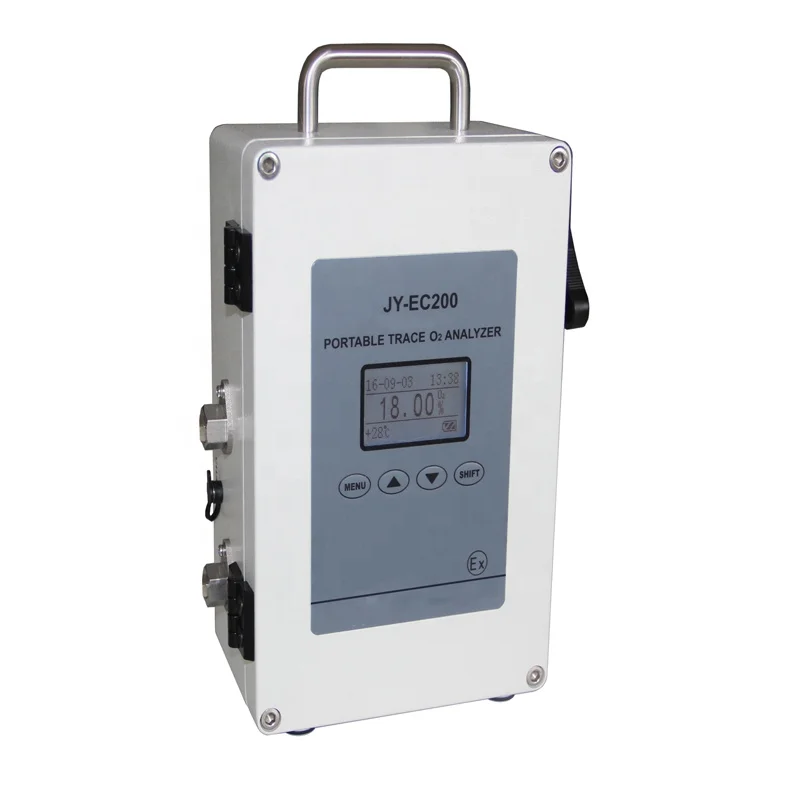

Electrochemistry Fuel Cell Principle Portable Micro Oxygen O2 Gas Analyzer
- Category: >>>
- Supplier: Zhengzhou Tainuo Film Materials Co. Ltd.
Share on (62122222292):
Product Overview
Description
Electrochemistry Fuel Cell Principle Portable Micro Oxygen O2 Gas Analyzer
Product Description
Features
LCD display, intuitive display, easy to operate;
Using imported fuel cell oxygen sensor, it has fast response, high measurement accuracy, good linearity, long calibration period, weak acid resistance and weak alkali resistance.
Automatic temperature compensation function to reduce the error caused by temperature change on the measurement;
Any point calibration within the entire range, no need for multi-point calibration, making calibration easy and convenient;
Simple operation, long service life and easy maintenance;
Continuous use for more than 60 days after fully charging (without U disk).
Application
It is applied to the online measurement of hydrogen content in the ammonia decomposition and protective atmosphere equipment and the hydrogen content of the welding and cutting ratio in the explosion-proof grade Ex ia IIC T4; on-line monitoring of trace hydrogen content in the hydrogenation purification nitrogen generator.
Technical Parameters
Measuring Principle | Fuel Cell |
Display Mode | 128×64 lattice LCD |
Measuring Range | 0 ~ 10/100/1000ppm, 0 ~ 25.00% O2 (different ranges are available: constant or micro) |
Measuring Accuracy | 0 ~ 1000ppm /1.00% / 25.00%≤±1%FS 0 ~ 100ppm≤±2%FS 0 ~ 10ppm≤±5%FS |
Repeatability | ≤±1%FS |
Response Time | T90≤60S |
Output interface | Charging port, USB interface |
Environment Temperature | -10 ~ +50℃ |
Environment humidity | <80%RH |
Sample Gas Temperature | 0 ~ 40℃ |
Sampling Method | Access type |
Sample Gas Flow | 600 ~ 800ml/min |
Sample Gas Pressure | 0.05Mpa≤ Inlet gauge pressure ≤0.35Mpa, stable pressure atmosphere |
Background gas | N2 or inert gas, reducing gas and hydrocarbon mixture, etc |
Service Life | >24 months (Under normal use conditions) |
Explosion-proof grade | Exib IIC T4 |
Weight | 3.6Kg |
Gas circuit interface | NPT 1/8 internal thread |
Battery Capacity | 4.2V/4400mA |
Power supply | AC100~240V 50/60Hz |
Installation method | Portable |
