Big excavator mounted hydraulic rock spliter for sale
- Category: Rock Splitter >>>
- Supplier: Shanxi Wanzejinda Machinery Manufacturer Co. Ltd.
Share on (62122658847):
Product Overview
Description
Product Description
Product Application
With the largest splitters on the market, we can satisfy any productivity requirements when dealing with even the hardest possible rock. Our splitters are designed to be highly robust and reliable being built with high quality material and requiring minimal moving parts.
Our wedges are made out of forged and heat treated steel which makes them highly wear resistant and flexible. Additionally we have developed special grease which allows the wedges to withstand extremely high splitting forces.
Product card: yu gong ax

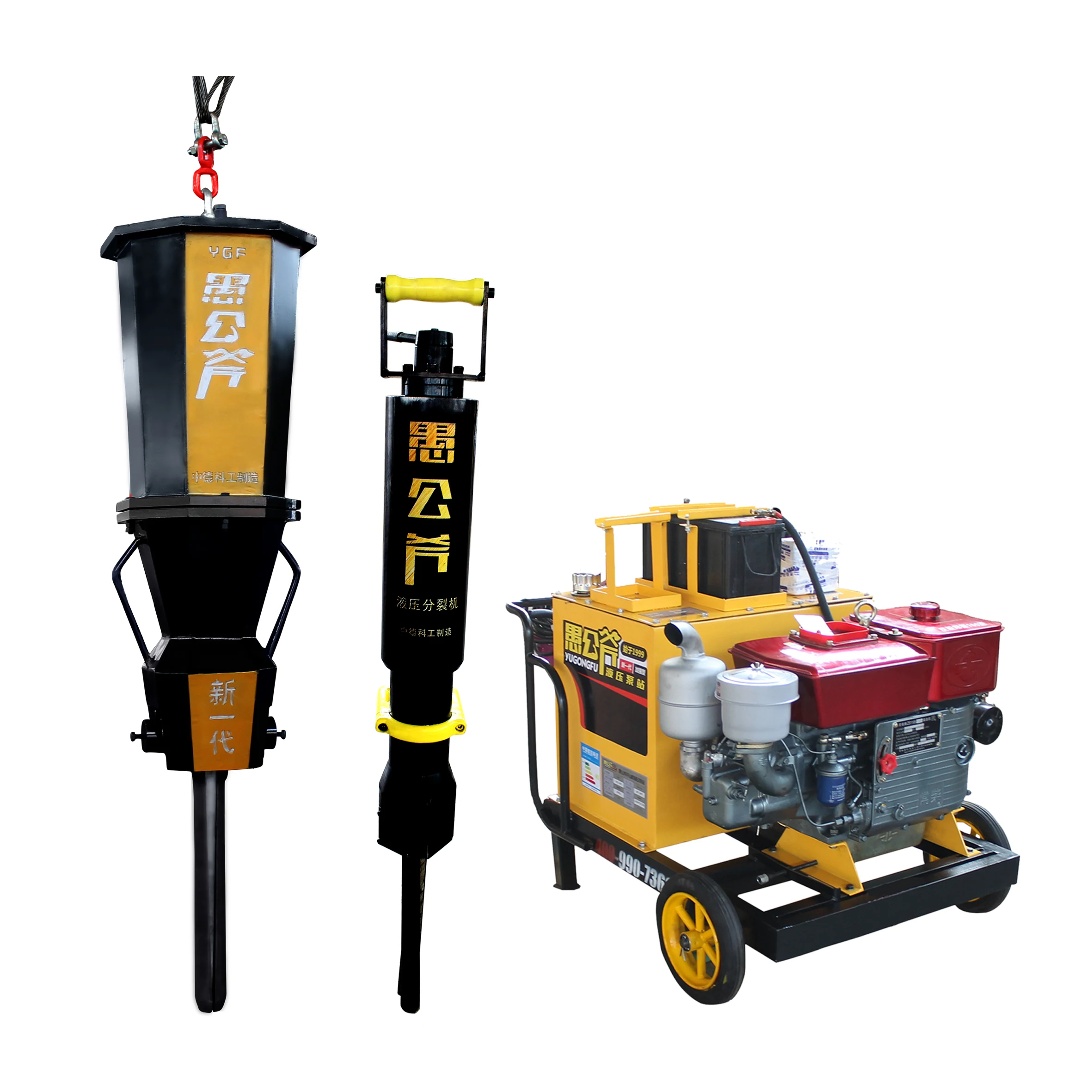

Product name: big force rock splitting machine
Model: YGF-5000
Splitting force: 5000 tons (currently in China);
Operating pressure: 60-100mpa;
Wedge diameter: 105 mm or 110mm; "Can be customized according to user requirements"
Effective length of wedge (wedge iron) : 1700mm;
Crack width: 40mm;
Drilling diameter: 110 holes
Hole spacing: 2.5-3 m
Row spacing of holes: 1.5-1.8m
Required drilling depth: 1550mm/1700mm;
Splitting speed: 40-50 seconds;
Product name: big force rock splitting machine
Model: YGF-5000
Splitting force: 5000 tons (currently in China);
Operating pressure: 60-100mpa;
Wedge diameter: 105 mm or 110mm; "Can be customized according to user requirements"
Effective length of wedge (wedge iron) : 1700mm;
Crack width: 40mm;
Drilling diameter: 110 holes
Hole spacing: 2.5-3 m
Row spacing of holes: 1.5-1.8m
Required drilling depth: 1550mm/1700mm;
Splitting speed: 40-50 seconds;
