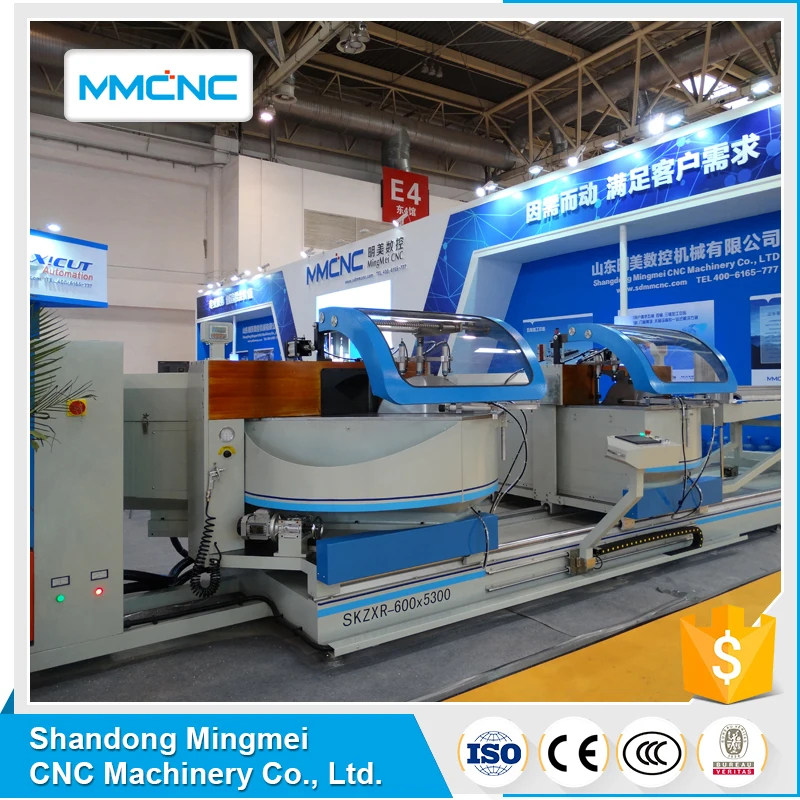

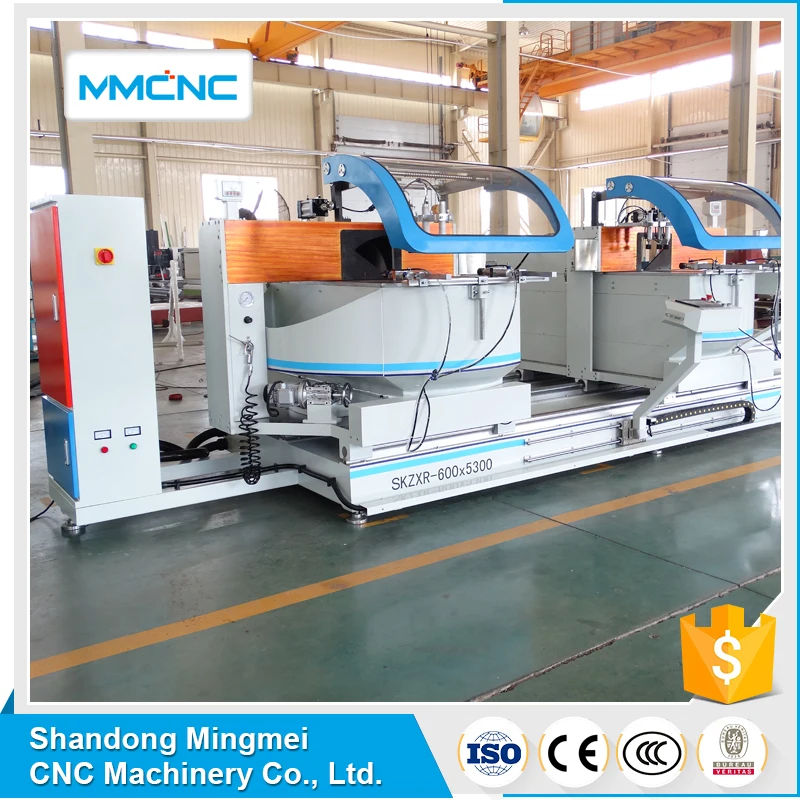

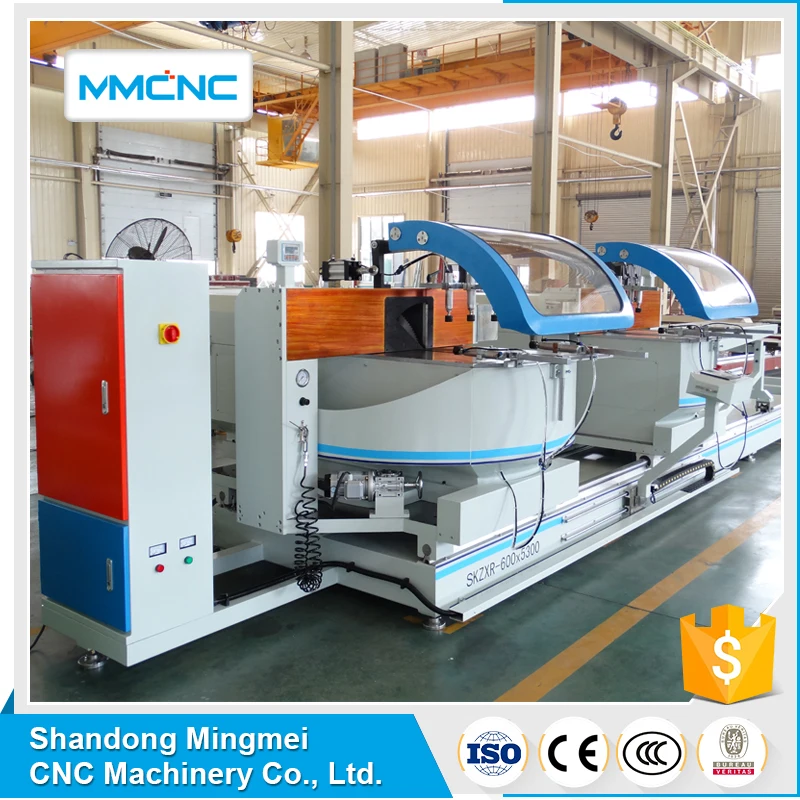

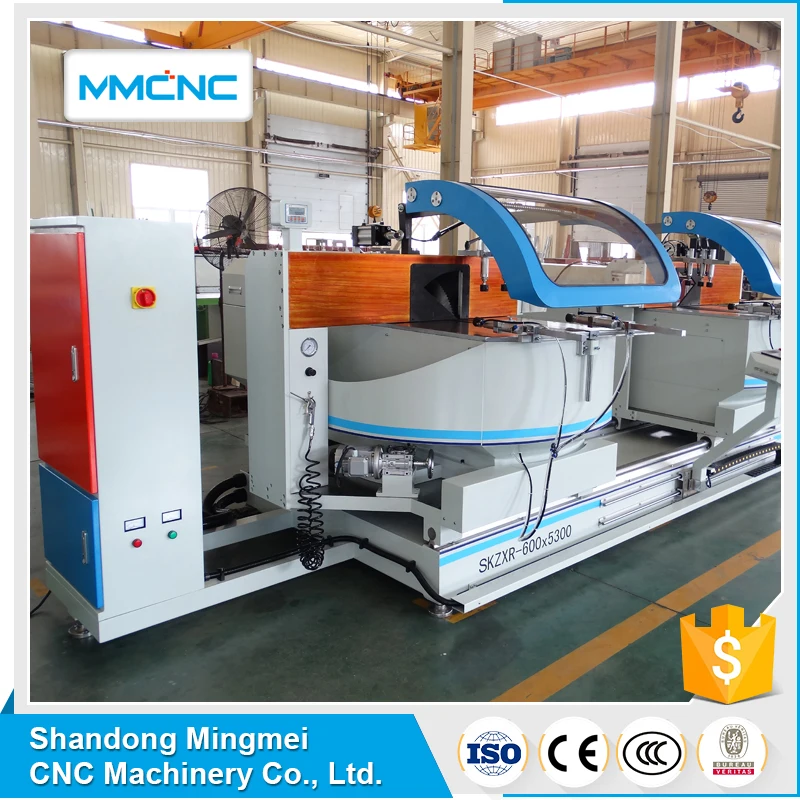

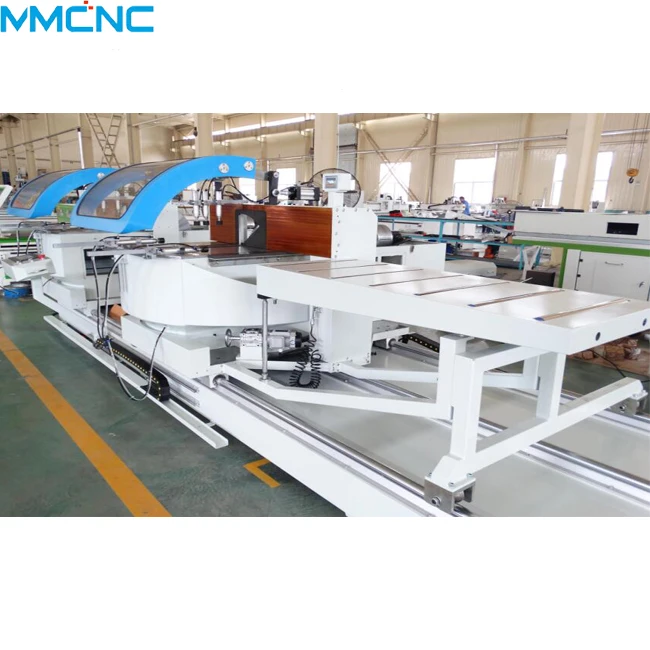

Aluminum Profile Big Double Head Cutting Saw with 600 Saw Blade
- Category: >>>
- Supplier: Shandong Mingmei Cnc Machinery Co. Ltd.
Share on (62122845901):
Product Overview
Description
Arbitrary Angle Double-head Cutting Saw CNC SKZXR-600x5300 for aluminum Facade
1.Main Features
1.It is designed to meet the development of modern aluminum curtain wall,aluminum template processing industry and radiator industry.
2.It is mainly used for processing of extra-wide aluminum profile,also can be used to process aluminum profile vertical end-face material-discharging.
3.Adopt servo motor to drive reducer,implement saw blade rotating positioning at any angel between 45°and 90°.
4.Two cutting heads can swing positioning at any angle between 45°and 90°.
5.Two cutting heads not only can work separately,moveable head feeding material continuously,fixed cutting head cutting circularly; but also can work simultaneously,can cut needed length and profile two ends angle at one time.
6.Hard alloy teeth cutting blade,high cutting speed,high produce efficiency,high process accuracy.
2. Technical Parameter
2.1 Power supply:3 phase 380V 50 Hz
2.2 Cutting head motor:2X3 KW
2.3 Working air pressure:0.5~0.8Mpa
2.4 Rotate speed:2800 r/min
2.5 Saw blade swing angle servo motor power:2X0.9KW
2.6 Cutting head horizontal move servo motor power:1.5 kw
2.7 Saw cutting length:max 5300mm
2.8 Saw cutting width and height:max 500X180 mm in 90°
2.9 Saw cutting height:max 210mm in 90°
3.0 Saw cutting angle blade 45°~90°arbitrary angle
3.1 Cutting head 45°~90°arbitrary angle
3.2 Cutting feed speed:stepless speed regulation 0~3m/min
3.3 Blade specification:φ600X4.4 Xφ30mm Z=120
3.4 Overall size: 7500x2450x1700mm
3.5 Weight:5000kg

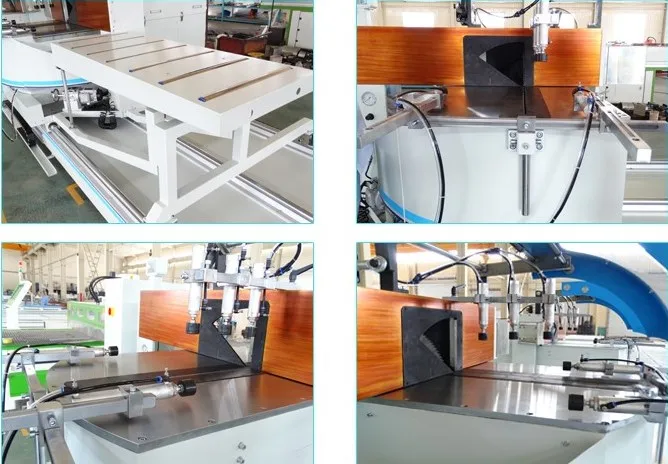

3.Detailed Photos
Contact Demi freely for further info:
