Sea sand washing equipment
- Category: >>>
- Supplier: Luoyang Longding Environmental Protection Technology Co. LtdLuoyang Ltd
Share on (62122845996):
Product Overview
Description
Product Description

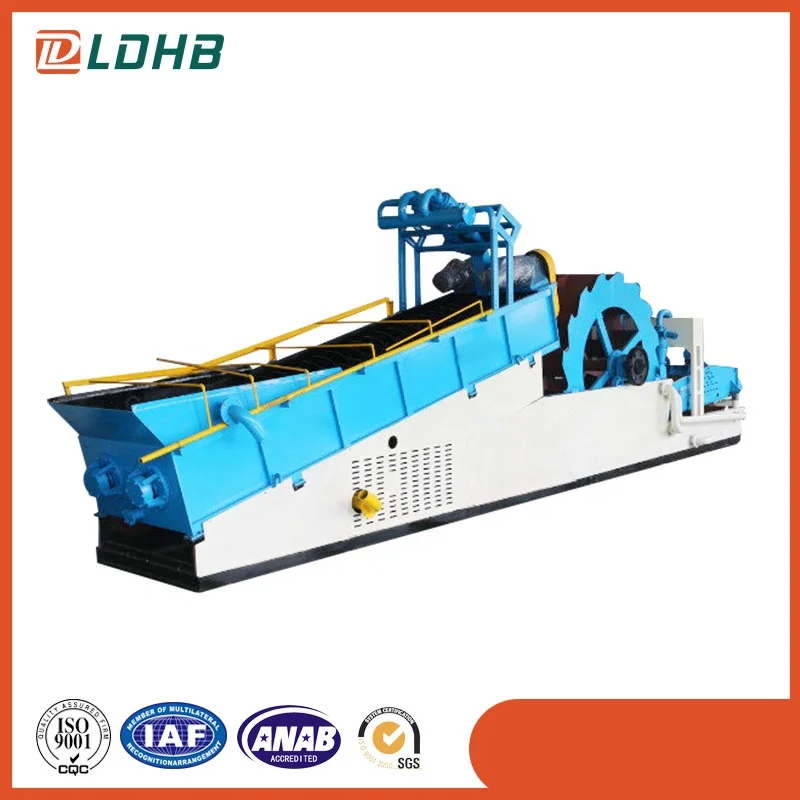

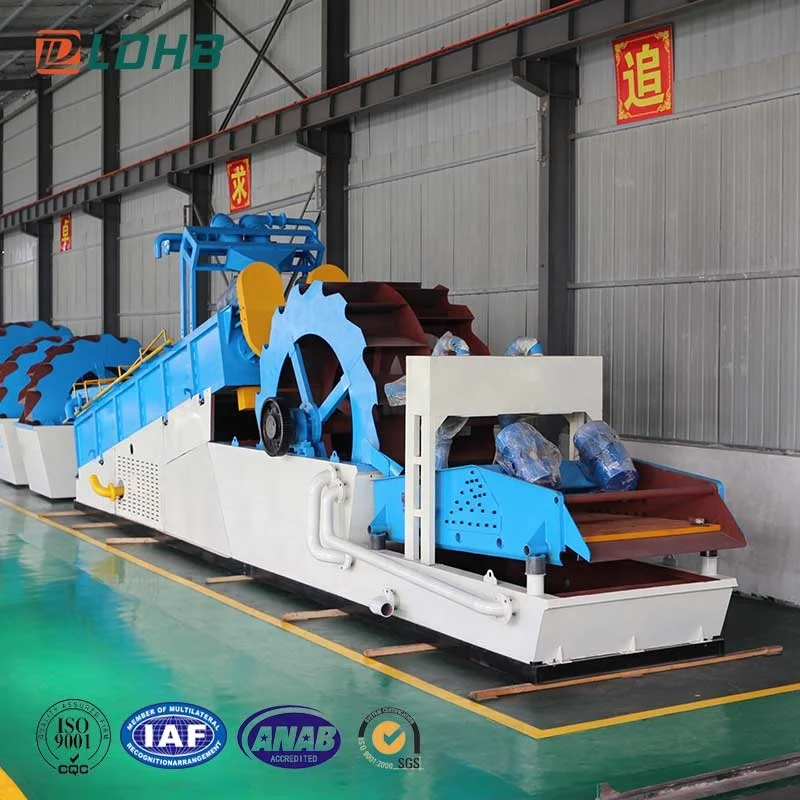

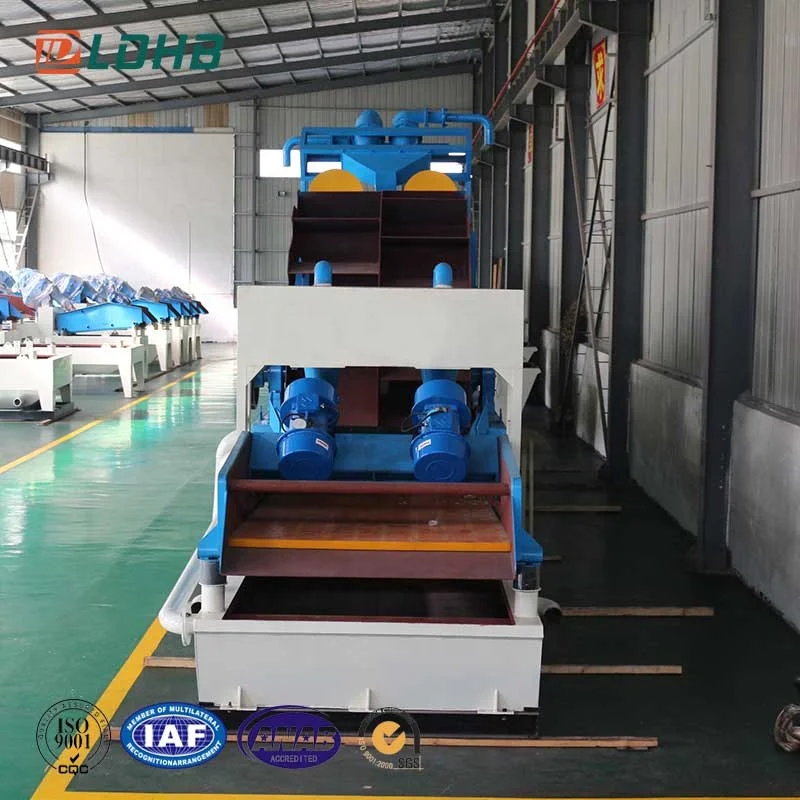

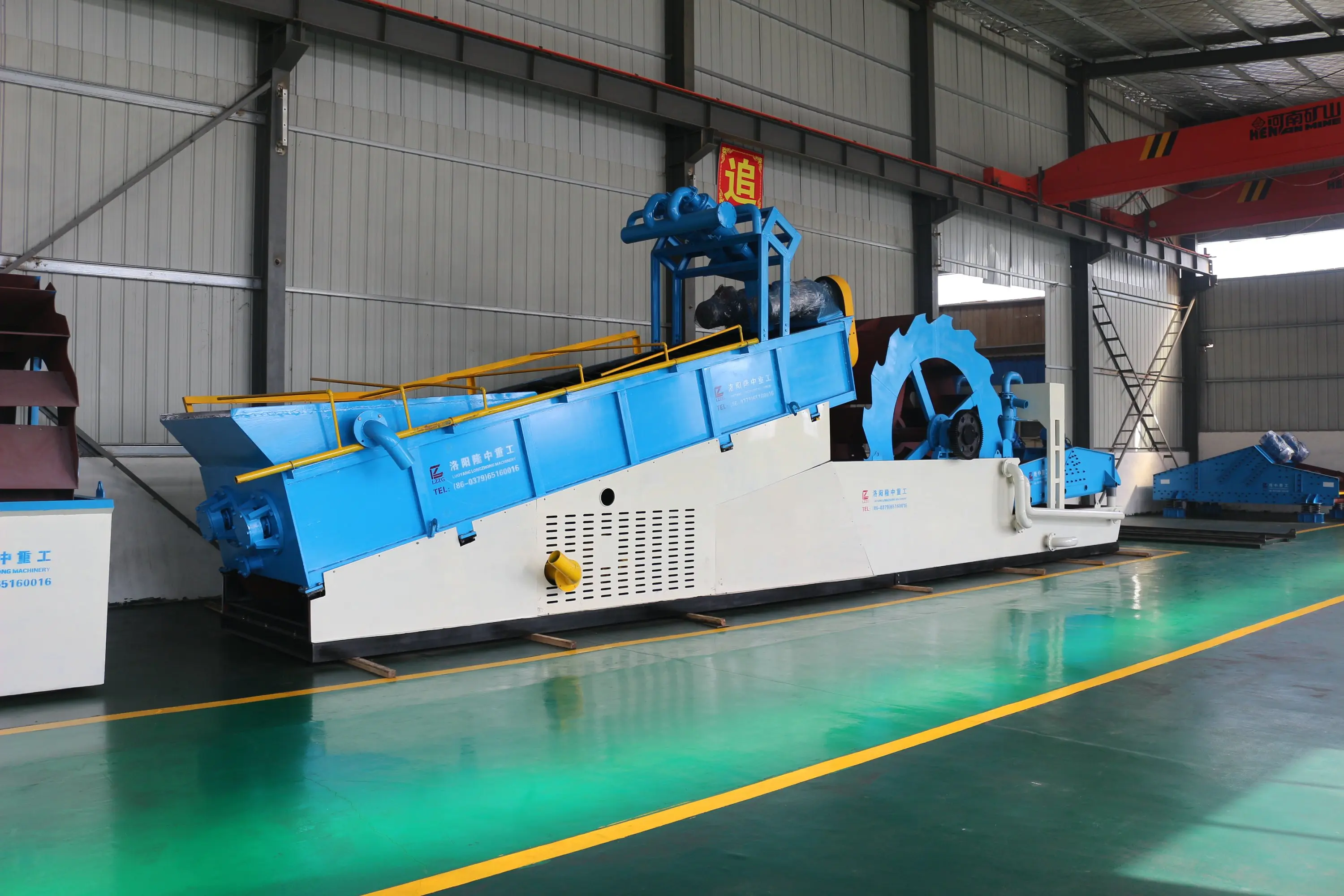

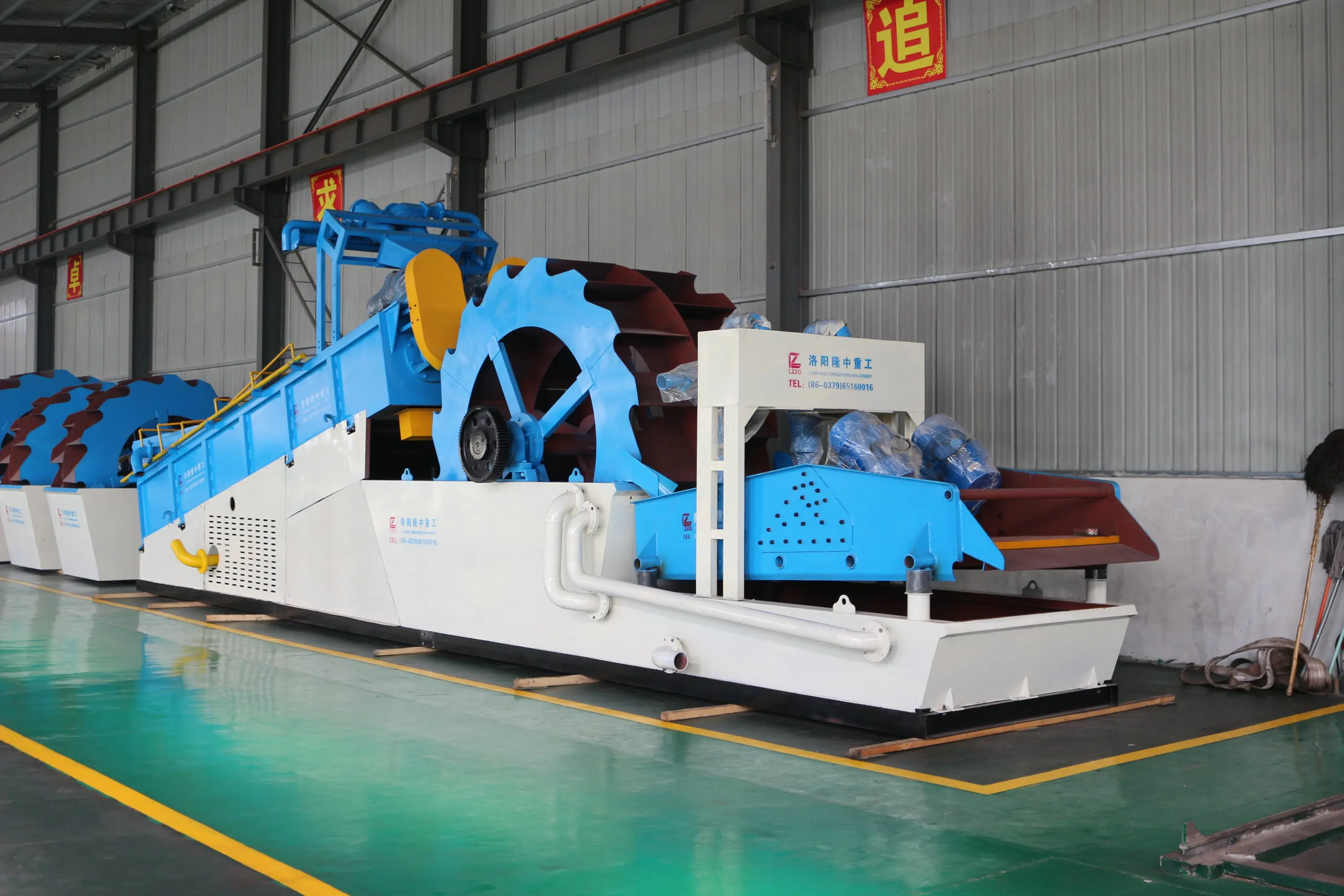

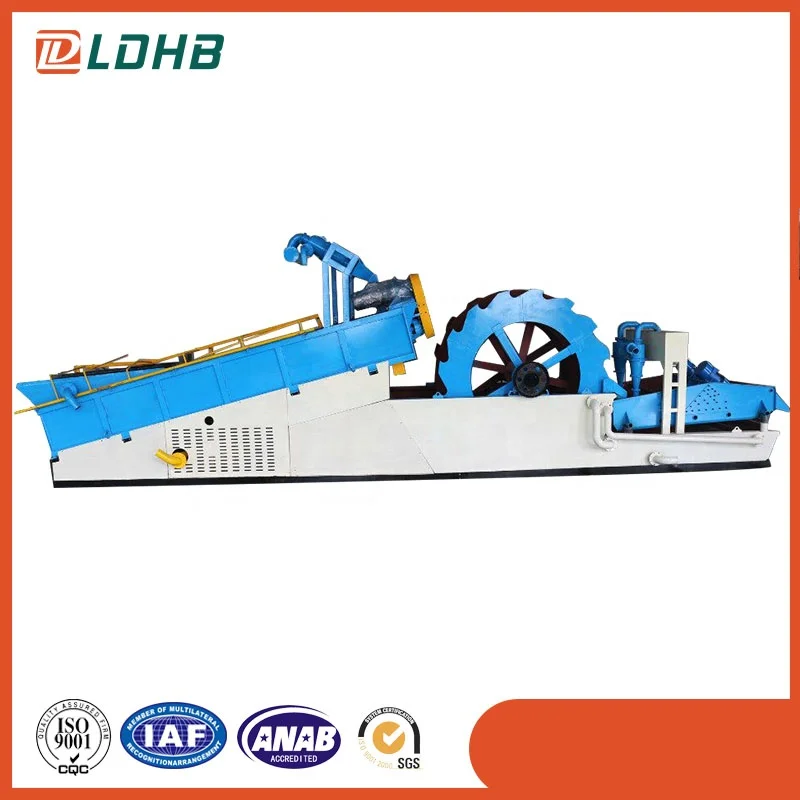

LDHB designed Modular Wash Plant
Modular wash plant as a representative equipment that combines multiple washing, coarse and fine materials concentrated dewatering, fine sand recycling and other functions in one equipment. It is applicable to sand and gravel plants, construction sites, hydropower dams, glass manufacturing, oil well development and other industries. Compared with the washing and recycling machine, it has been greatly improved in performance.
Working Principle
The qualified materials after classified by screening equipment flows into the screw sand washer through chute or pipeline. Sand and gravel are fully separated from impurities and mud through the fully cleaned, soaked and broken by screw mixer. Fine sand and muddy water are deposited in the tail of sand screw, and the fine sand is recovered through cyclone separator. Then the coarse and fine sand enters wheel sand washer machine at the same time for secondary cleaning to achieve complete separation of sediment. The coarse sand is lifted onto the high frequency dewatering sieve by impeller of wheel sand washer, the overflow muddy water flows into the dewatering screen water tank and concentrated by cyclone separator, and is dehydrated by the vibration of screen to finally realize the cleaning, recovery, dehydration and dry heap discharge of gravel.
Main Features
1. Energy energy saving and environmental protection are the major themes of multi-functional sand washers. Functions include sand washing, fine sand recovery, dehydration and de-sludge, concentration and classification, which can effectively remove sand impurities and obtain high quality sandstone proucts with clean and low water content.
2. Multiple functions, reasonable structure, easy operation.
Specification
Model | Feeding size (mm) | Capacity(t/h) | Screw dimension(mm) | Impeller dimension (mm) | Screen size (mm) | Power (kw) | Overall dimension (mm) |
DS40 | ≤10 | 20-40 | 760 | 1800X800 | 1200X2400 | 44.9 | 11900X5250X3880 |
DS60 | ≤10 | 30-60 | 920 | 2500X1200 | 1500X3000 | 51 | 14550X5560X4150 |
DS80 | ≤10 | 40-80 | 1120 | 3000X1600 | 1800X4200 | 95 | 16250X6200X3700 |
DS100 | ≤10 | 60-100 | 920X2 | 3000X1600 | 1800X4200 | 102.5 | 16250X6200X3700 |
DS150 | ≤10 | 100-150 | 1120X2 | 3600X2000 | 2400X4200 | 140.5 | 17450X6800X3700 |
DS200 | ≤10 | 120-200 | 1500X2 | 3600X2400 | 3000X4800 | 196 | 18000X7400X4600 |
DS250 | ≤10 | 160-250 | 1500X2 | 4200X3000 | 3600X6000 | 214 | 18580X8000X5200 |

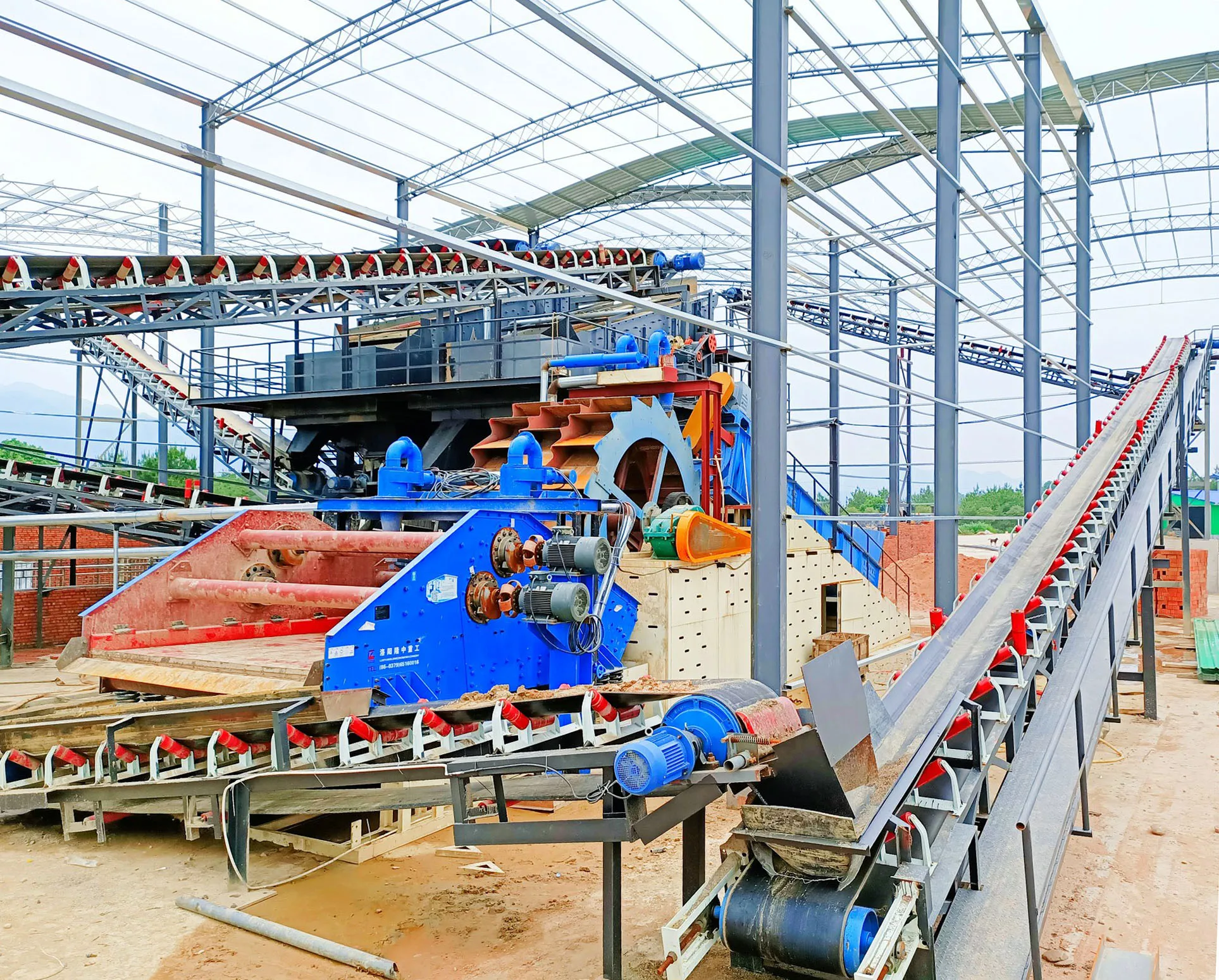

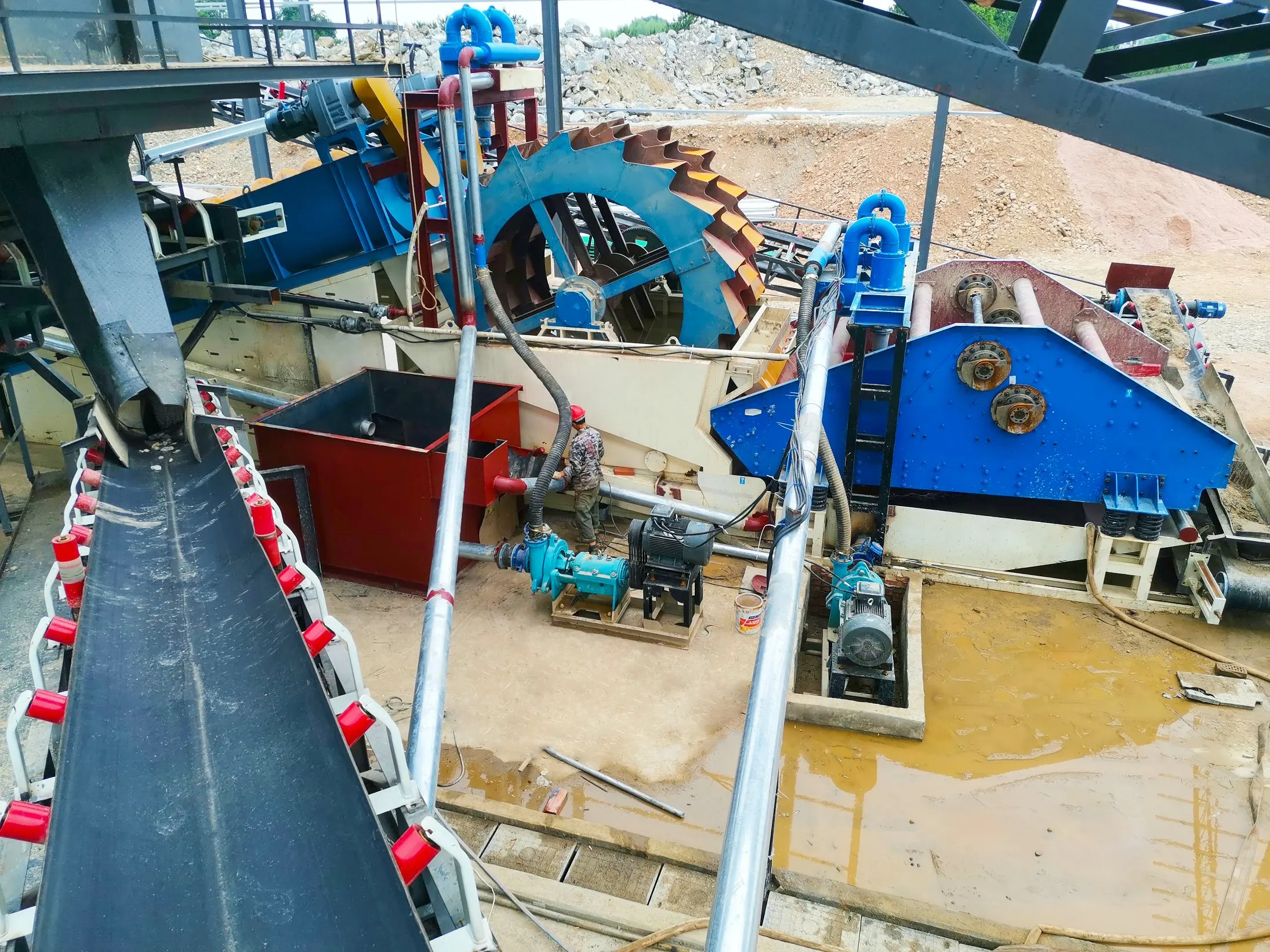

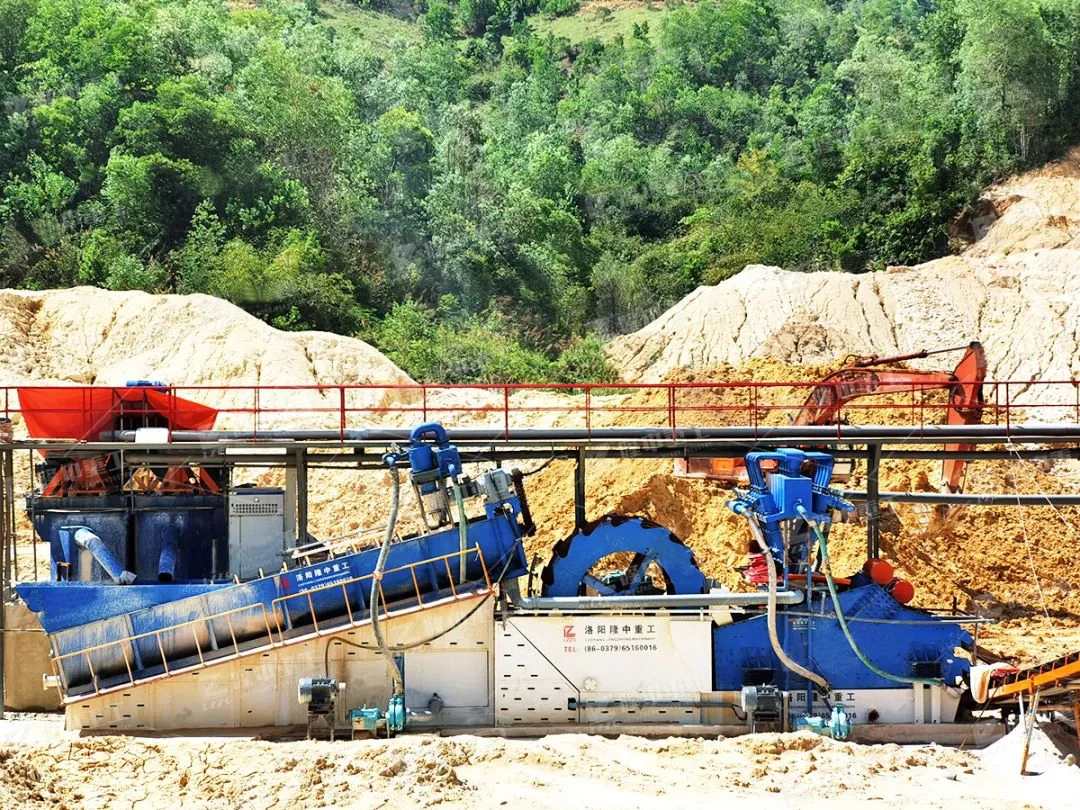

Working Site
Packing & Delivery
Packaging | ||
Model | DS100 | |
Size | 16250(L) * 6200 (W) * 3700 (H) | |
Weight | 18030KG | |
Packaging details | The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request. | |
Our Company
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* 24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.
