Elastomeric connectors with different Shore-Numbers (degree of hardness) for different screen sizes.
Inquiryto Jacob welcome!
SPECIFICATION
Items
Insulator
Conductor
Supporter
Test method
Main material
Silicone
Silicone
Silicone
-
Color
White
Black
Transparent
visual
Shore A hardness
55-65A
65-75A
35-45A
GB/T 531.1
Specific gravity
1.00-1.2g/cm3
1.00-1.20g/cm3
1.00-1.20g/cm3
-
Elongation at break
150-250%
150-200%
300-400%
GB/T528
Ensile strength
70-80kg/cm2
50-60kg/cm2
30-40kg/cm2
GB/T528
Volume resistance
≤1012Ω ·cm
≤6Ω ·cm
≤1012Ω ·cm
GB/T 1692
Mass loss
≤1.0%
-
Extract weight loss
≤3.5%
Isopropyl alcohol
extraction
Using condition
Temperature -25-100 ° C
humidity ≤ 95% RH
air pressure 86-106 kPa
-

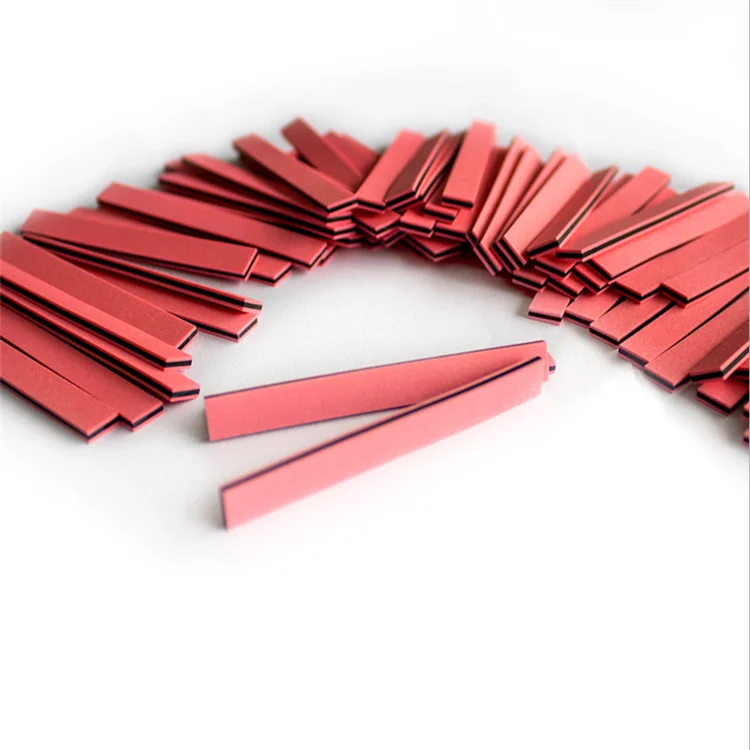

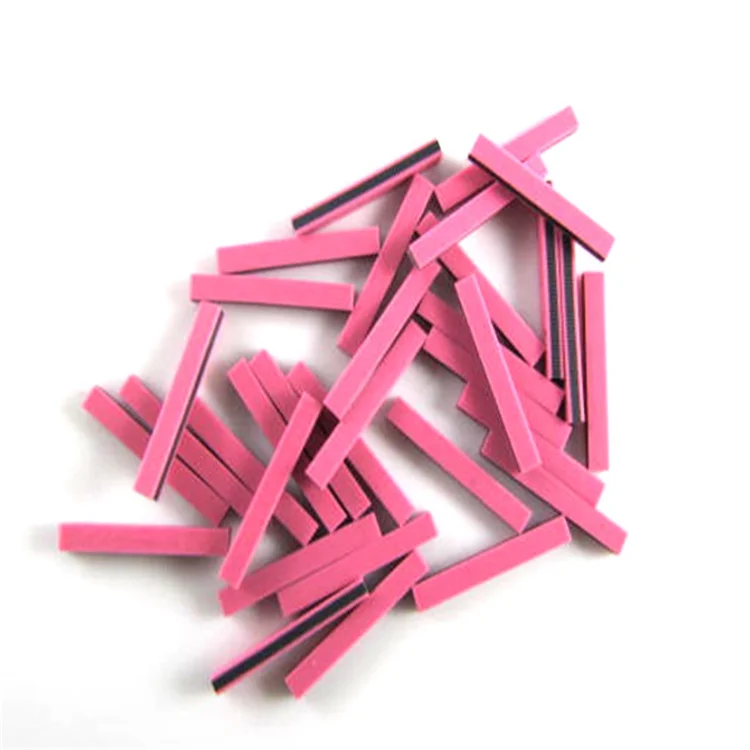

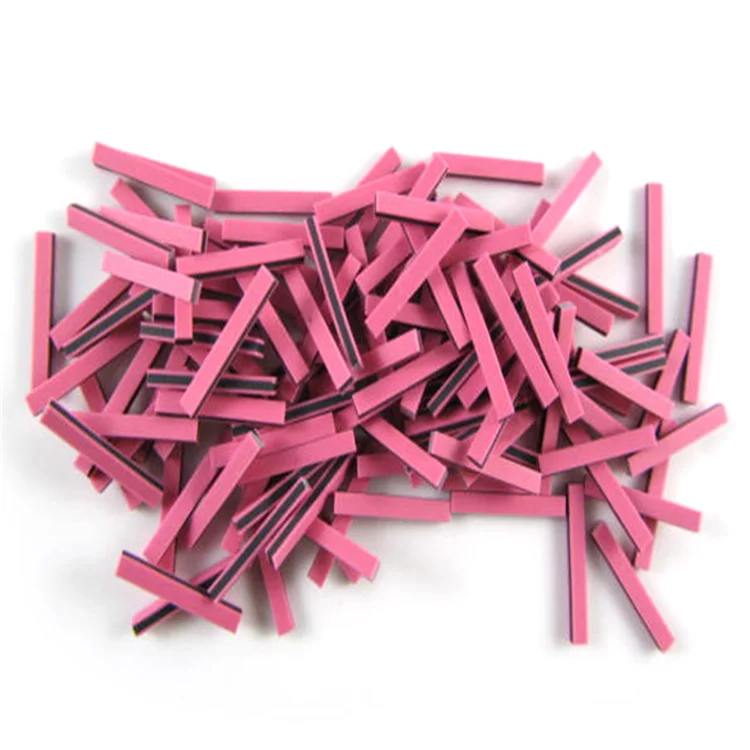

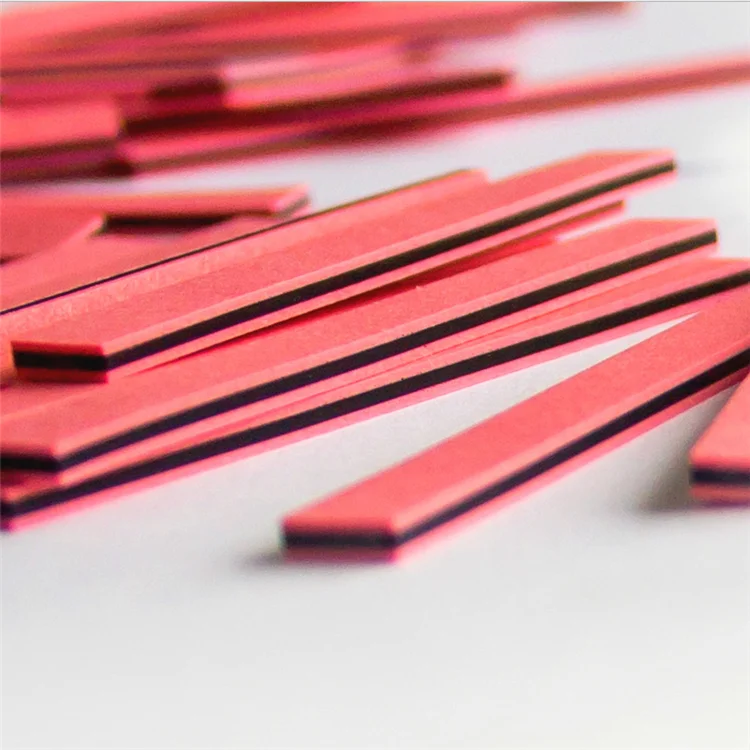

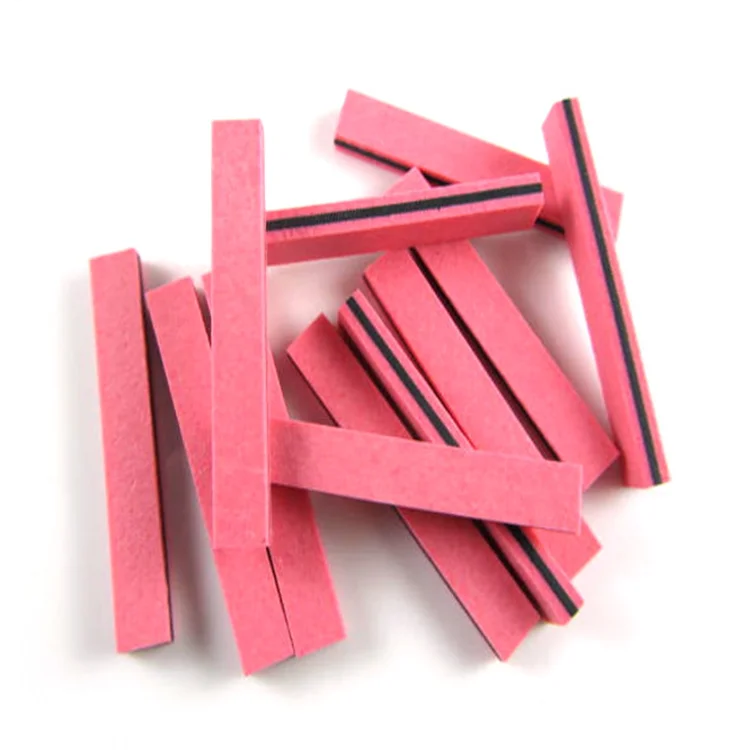

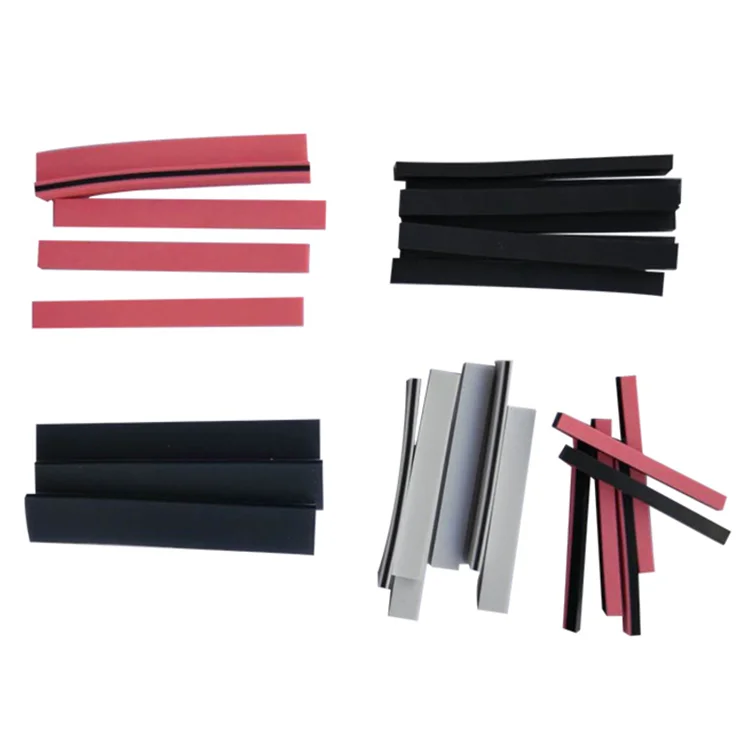

Conductive rubber connectors have alternating conductive and non-conductive layers, for two contacts areas PCB to LCD or PCB to PCB. Each type of connectors with or without outer support sections which would create the product flexibility. We offer high quality conductive connectors for customer different requirement.
Any color, any size we can make it for you!
Company Information
Certifications
SGS FDA LFGB Rohs IATF16949
ISO9001: 2015 international quality certification
ISO14001: 2015 international environmental certification
FAQ
Q: Are you a manufacturer?
A: Yes, we are a manufacturing and trading combo with our own molds and production lines.
Q: What about your service?
A: We provide one-series service: design, mold opening, production, quality control and
after-sales service.
Q: Can you produce the design drawings?
A: Yes, we have professional engineer team to design variety products.
Q: How about the sample?
A: Normally, sample is free without freight fee.
Q: How to know the quality?
A: Welcome to our factory to investigate, also we can provide samples for you to check
