ELP High Definition 2880P 5 50mm Varifocal Zoom HD Laptop Webcam Video Conference 13MP USB Camera CMOS IMX214 With Microphone
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (62122992530):
Product Overview
Description

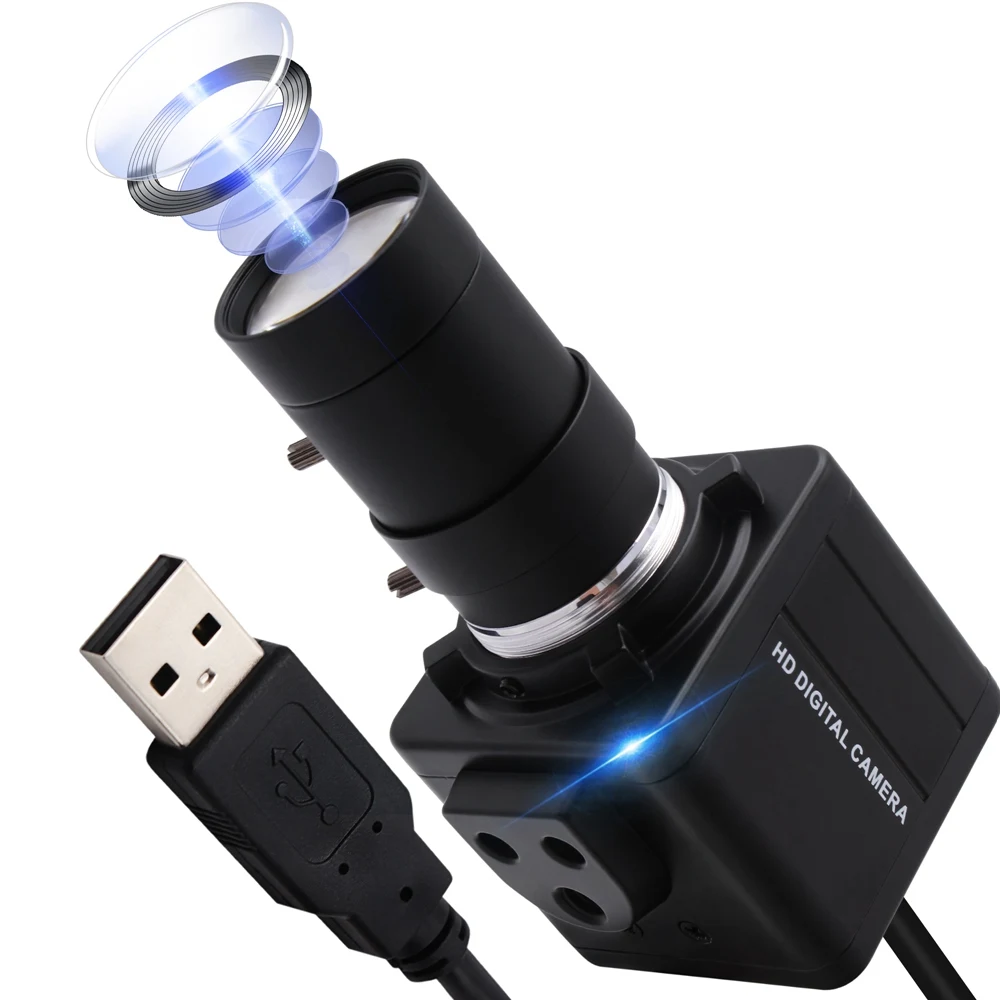

ELP High Definition 2880P 5-50mm Varifocal Zoom HD Laptop Webcam Video Conference 13MP USB Camera Sony IMX214 With Microphone
Product Description
Main Features
1) 13MP USB Camera max resolution 3840(H) *2880 (V)
Camera With Dual Microphone, support audio input
2) Advanced IMX214 (1/3 ) image sensor .

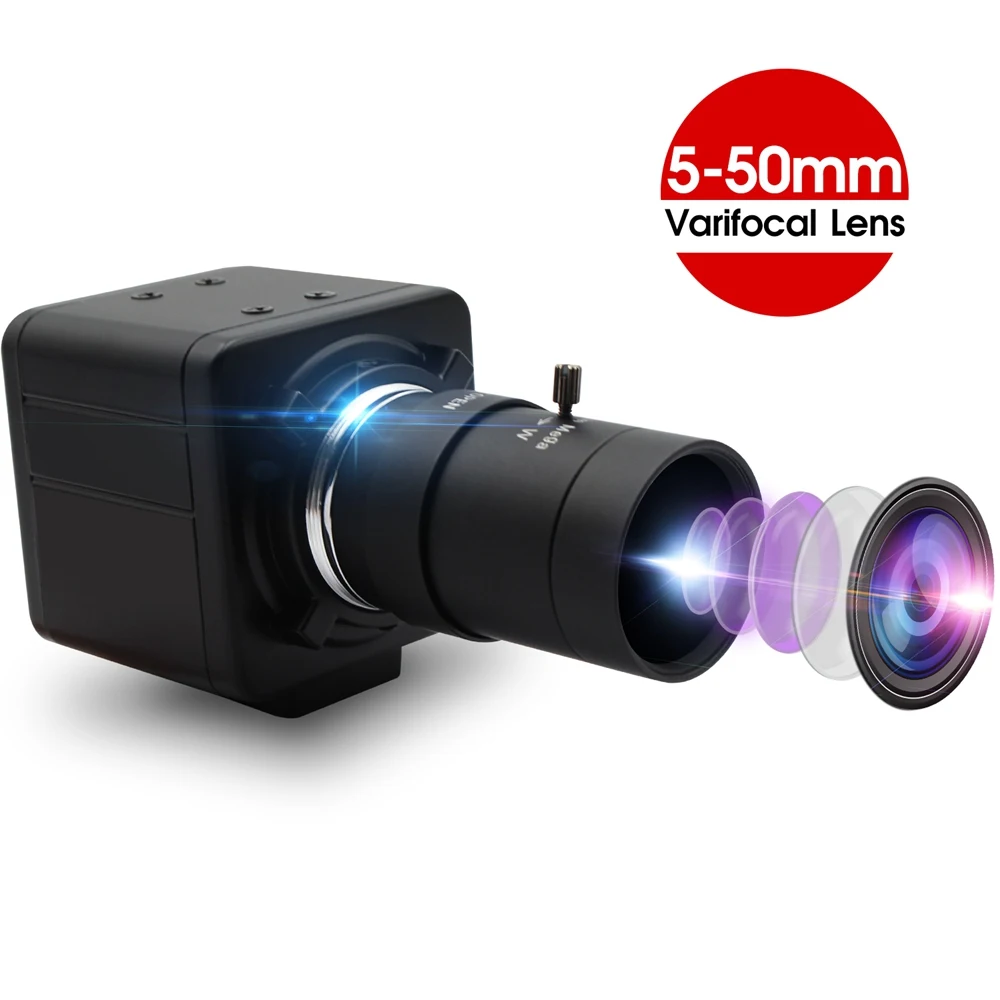

3) High quality 5-50mm varifocal lens, manual focus, zoom .

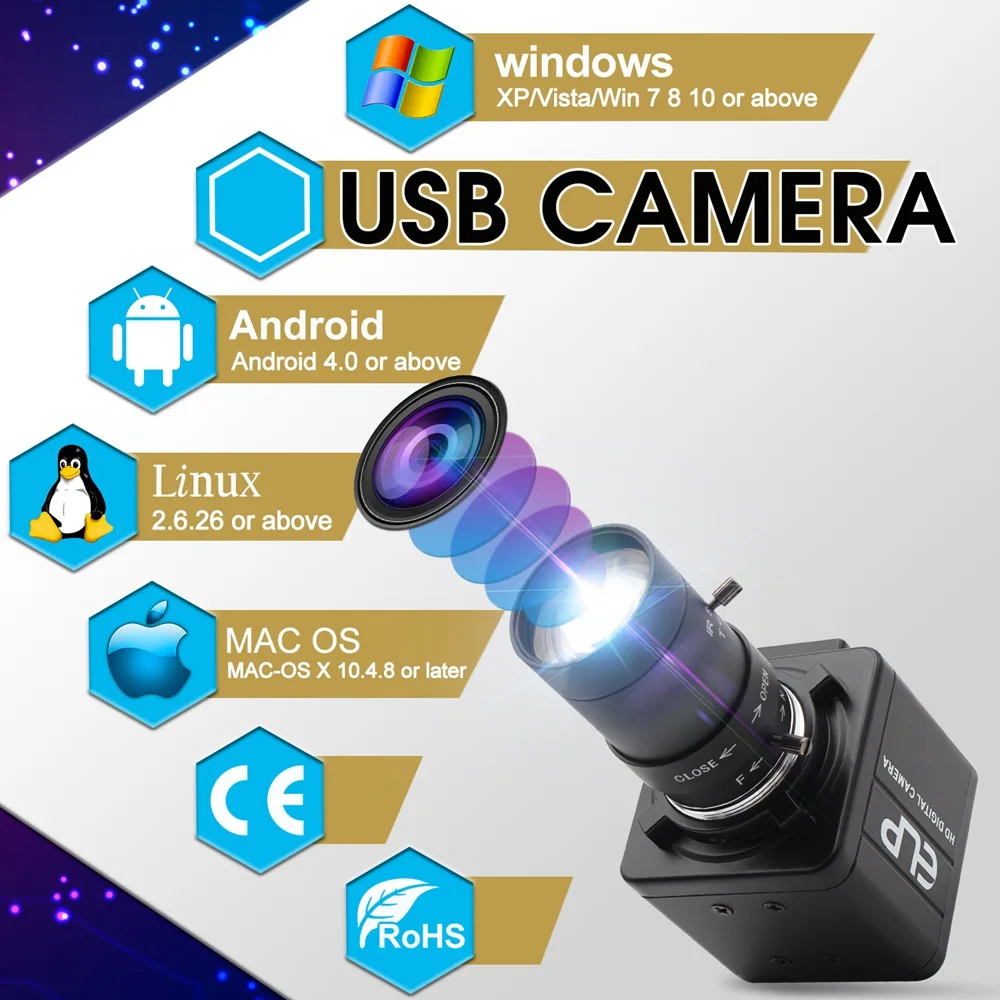

4) Support OS: Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
5) Compression : MJPEG&YUY2
6)with dual inbuilt microphone
Specifications
Module No. | ELP-USB13M02-MFV(5-50mm) |
Sensor | IMX214 (1/3 ) |
Max. Resolution | 3840(H) *2880 (V) |
Sensitivity | 1000mV/Lux-sec |
Image area | 6100µmx4524µm |
Maximum Image Transfer Rate | 3840x2880@10fps MJPEG/ 3264x2448@ 15fps MJPEG 3840x2160@ 15fps MJPEG / 2592x1944@ 20fps MJPEG 2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG 1920x1080@ 30fps MJPEG/ 1280x1024@30fps MJPEG 1280x960@30fps MJPEG/1280x720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG |
Focus | Manual focus |
Object distance | 8CM-100M |
Resolution | 1000LW/PH (Center) |
interface | USB 2.0 High Speed |
protocol | USB Video Class(UVC) |
S/N Ratio | 33dB |
Shutter | Rolling shutter/ frame exposure |
AGC/AEC/AWB/ABF | Auto |
Output Formats | YUYV/MJPEG |
Adjustable parameter | Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Focus |

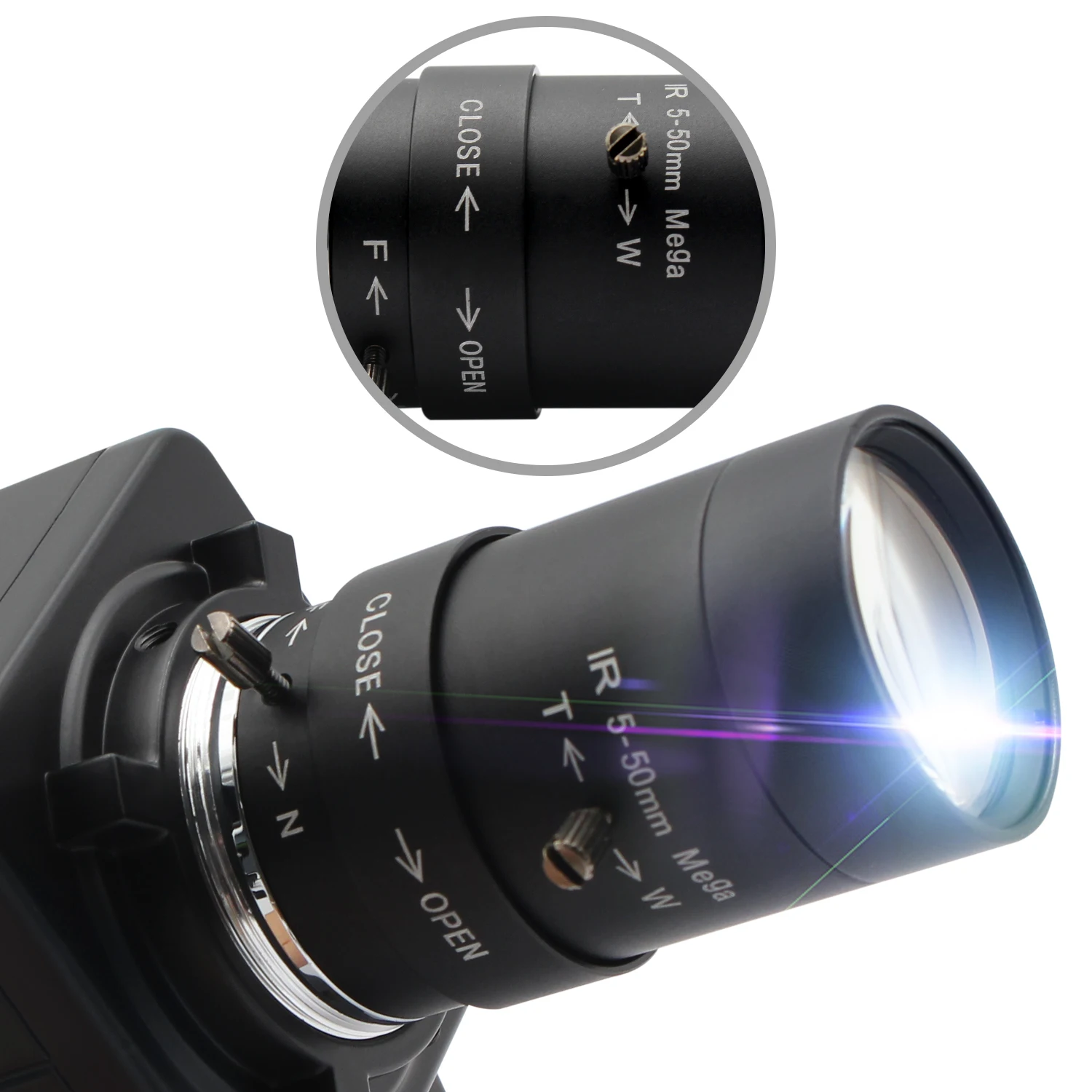

Lens Parameter | 5-50mm varifocal lens, support 10x zoom, manual focus .Optional 2.8-12mm |
LED board power connector | Support 2P-2.0mm socket |
Power supply | USB BUS POWER 4P-2.0mm socket |
Operating Voltage | DC5V |
Power consumption | 220mW |

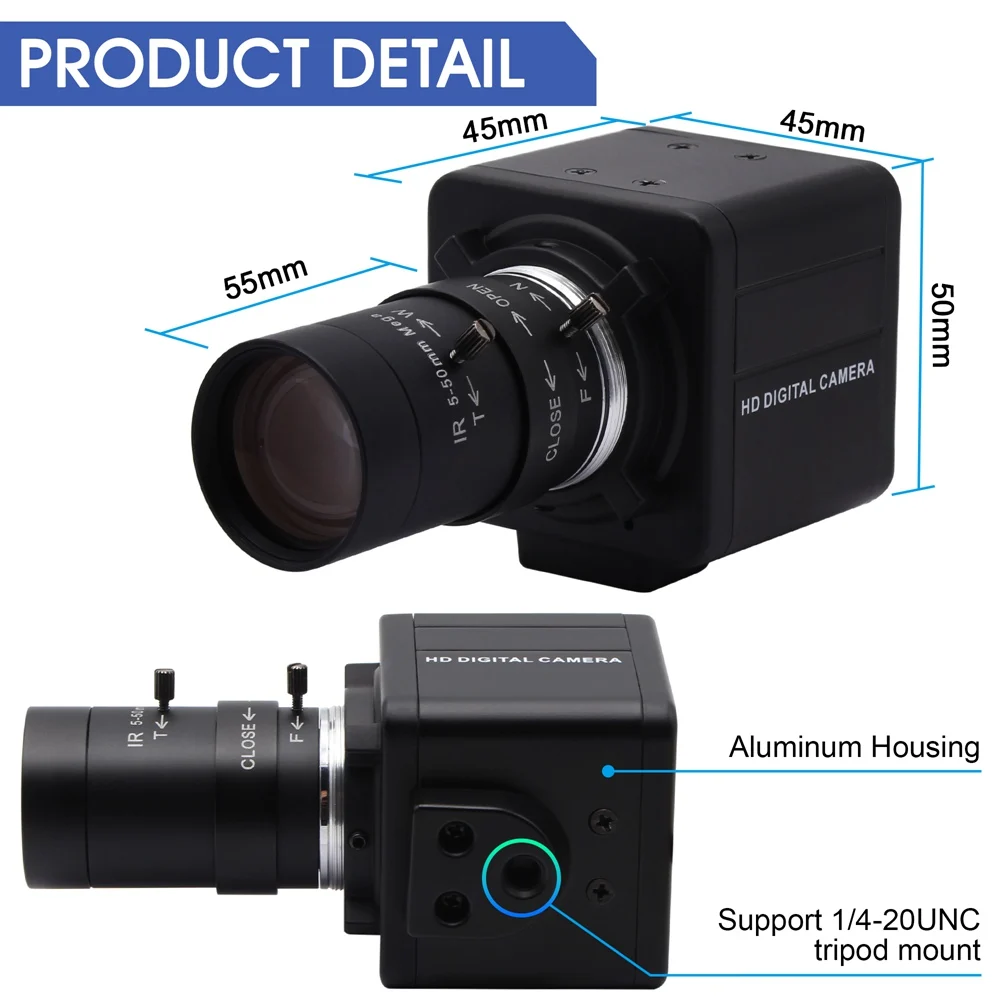

Module Size | 38mm × 38mm |
Temperature (Operation) | -20°C to 70°C |
Temperature (Stable Image) | 0°C to 60°C |
USB Cable | 1M |
Operating system request | Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |

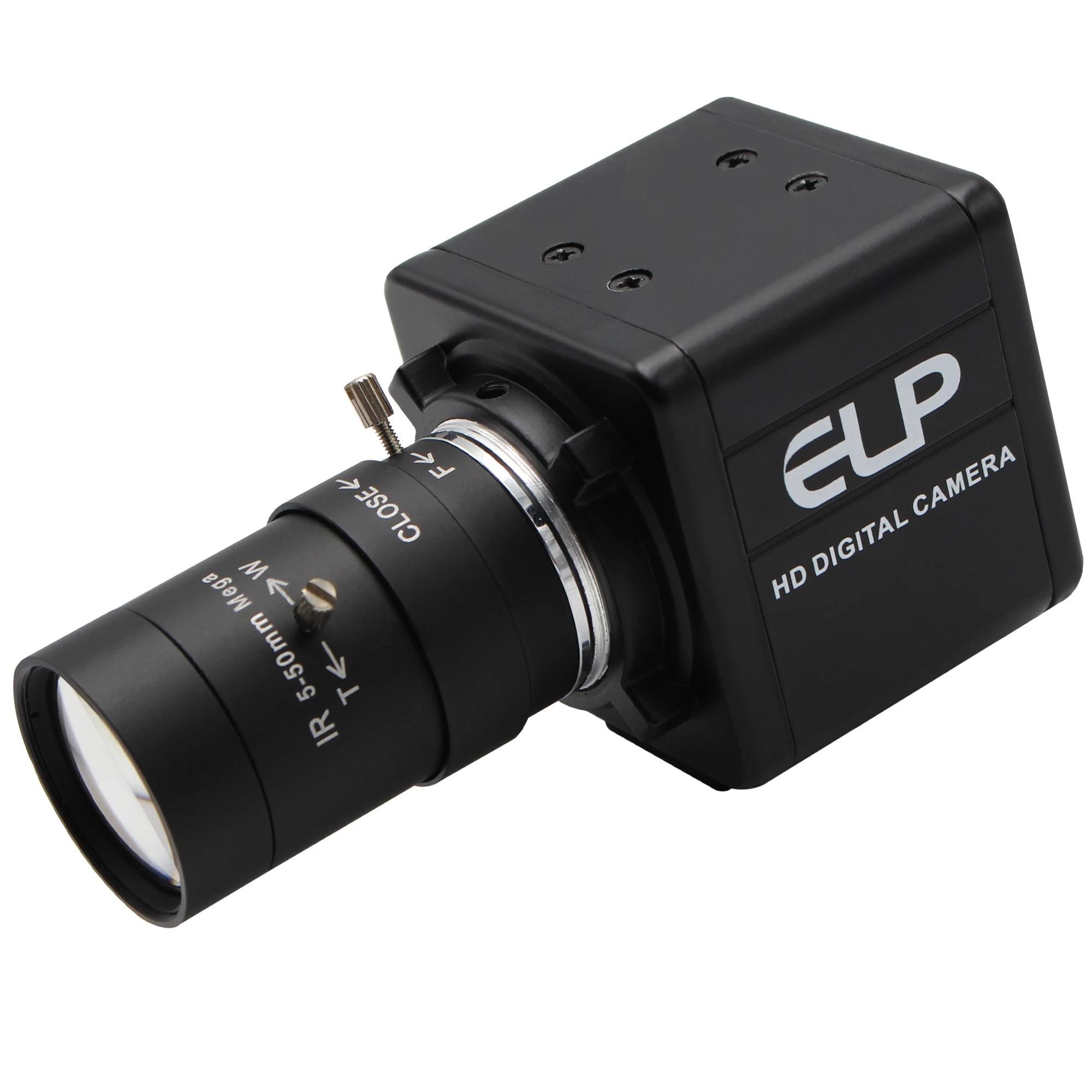

Camera Picture Display

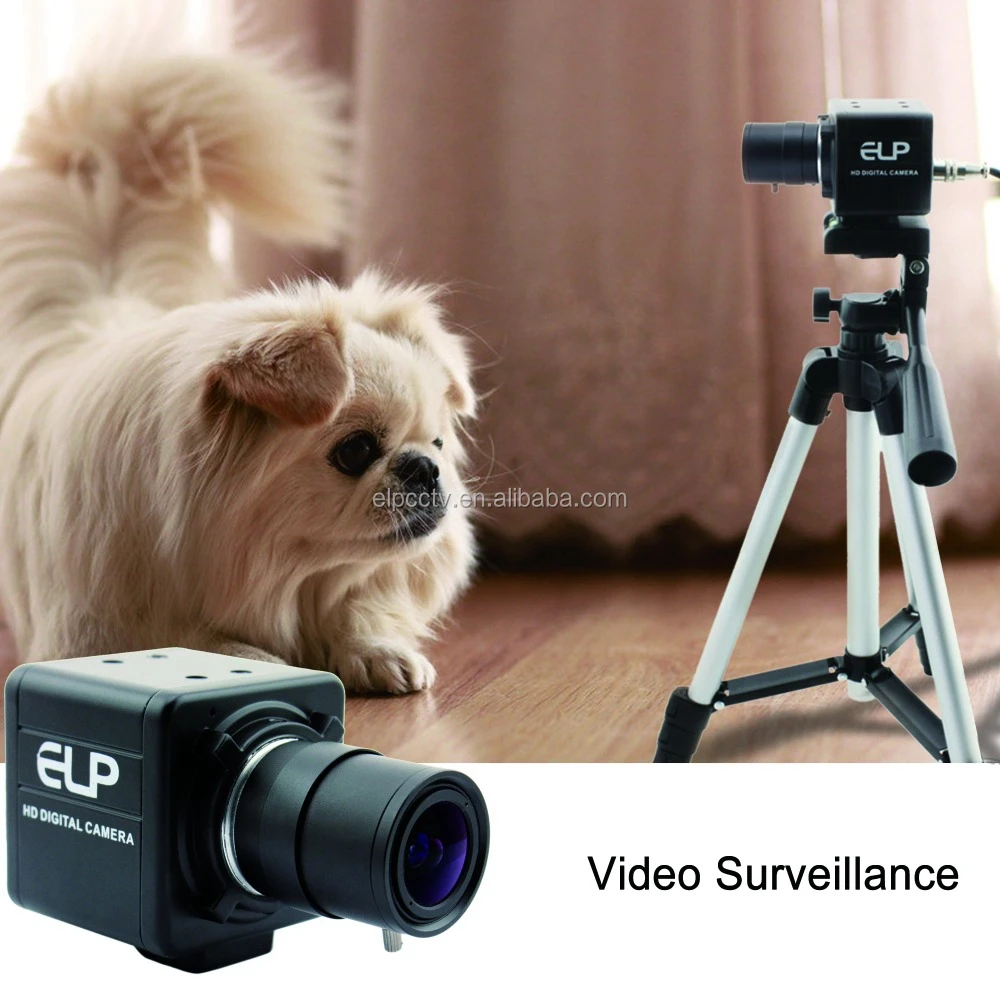

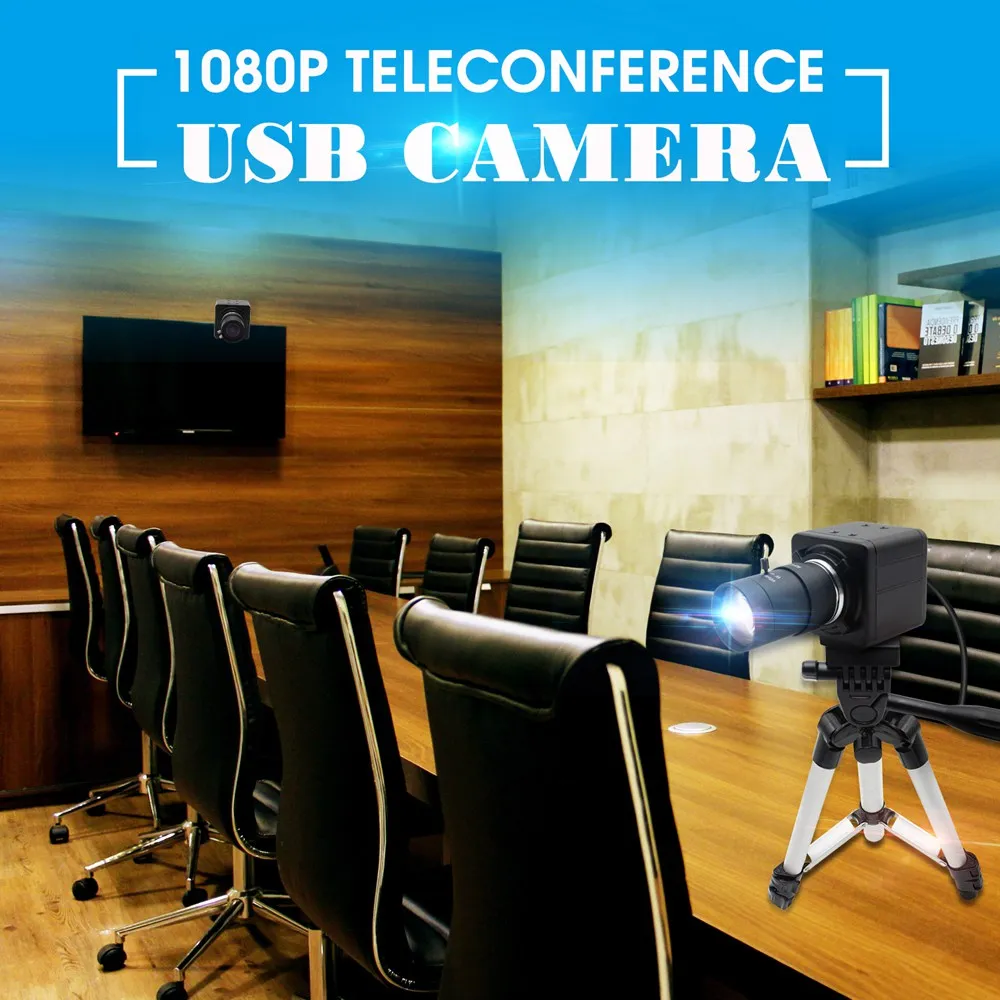

Applications
Related Products
USB3.0 Camera Module 2MP 120fps/260fps USB Camera
2MP H.264 Sony Low Light USB Camera 1.3MP Low Illumination USB Camera
2MP 1080P H.264 Audio USB Camera 1MP 720P Audio USB Camera
Auto Focus USB Camera 5MP Mini USB Camera Dual Lens USB Camera
3MP WDR USB Camera 8MP USB Camera VGA USB Camera
Face Detection USB Camera USB Camera With Enclosure IP Camera
Company Information
FAQ
*Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
*Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
*What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
*Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
*What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens. Autofocus, manual focus also offered.

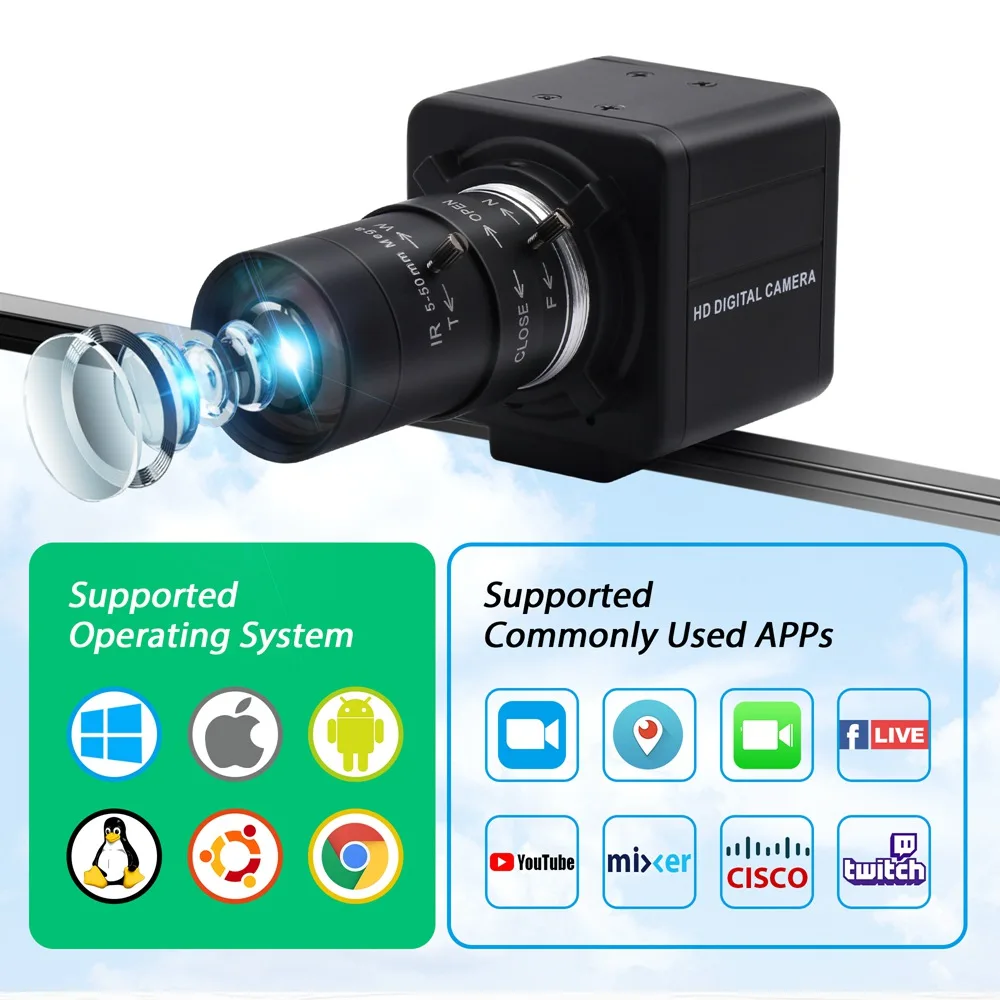

*What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
*What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
*Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.

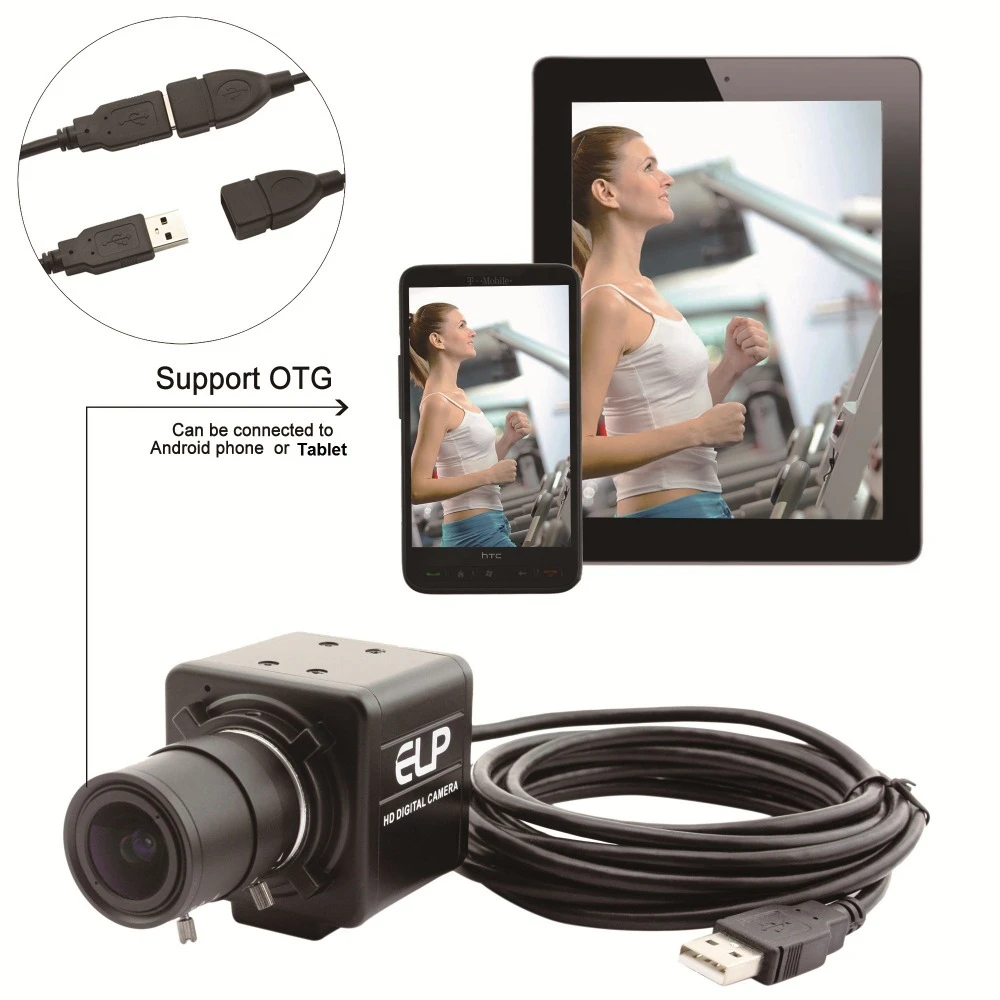

*Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
*Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
