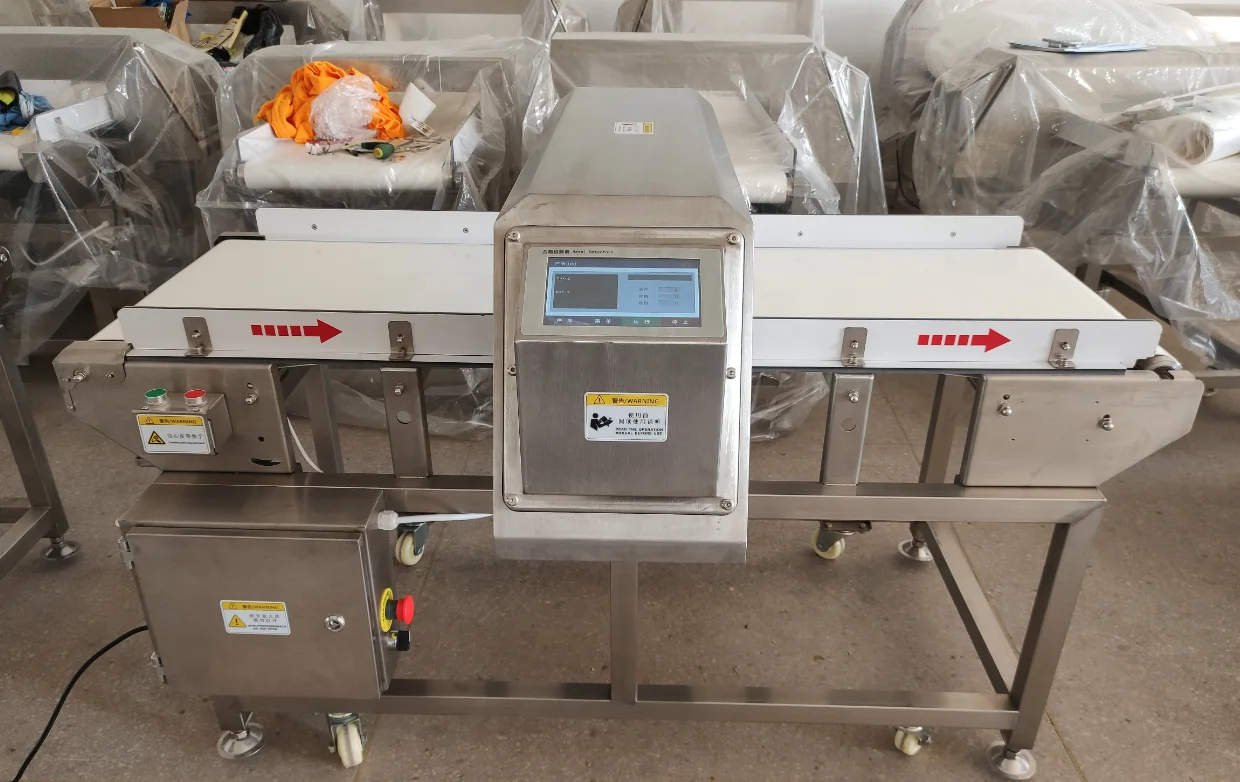

frozen crab meat metal detector/Gold Metal Detector Long Range Needle Belt Food Detector JZD 600

Share on (62123331010):


Price:$4,680.00

Quantity:


Product Overview

Description

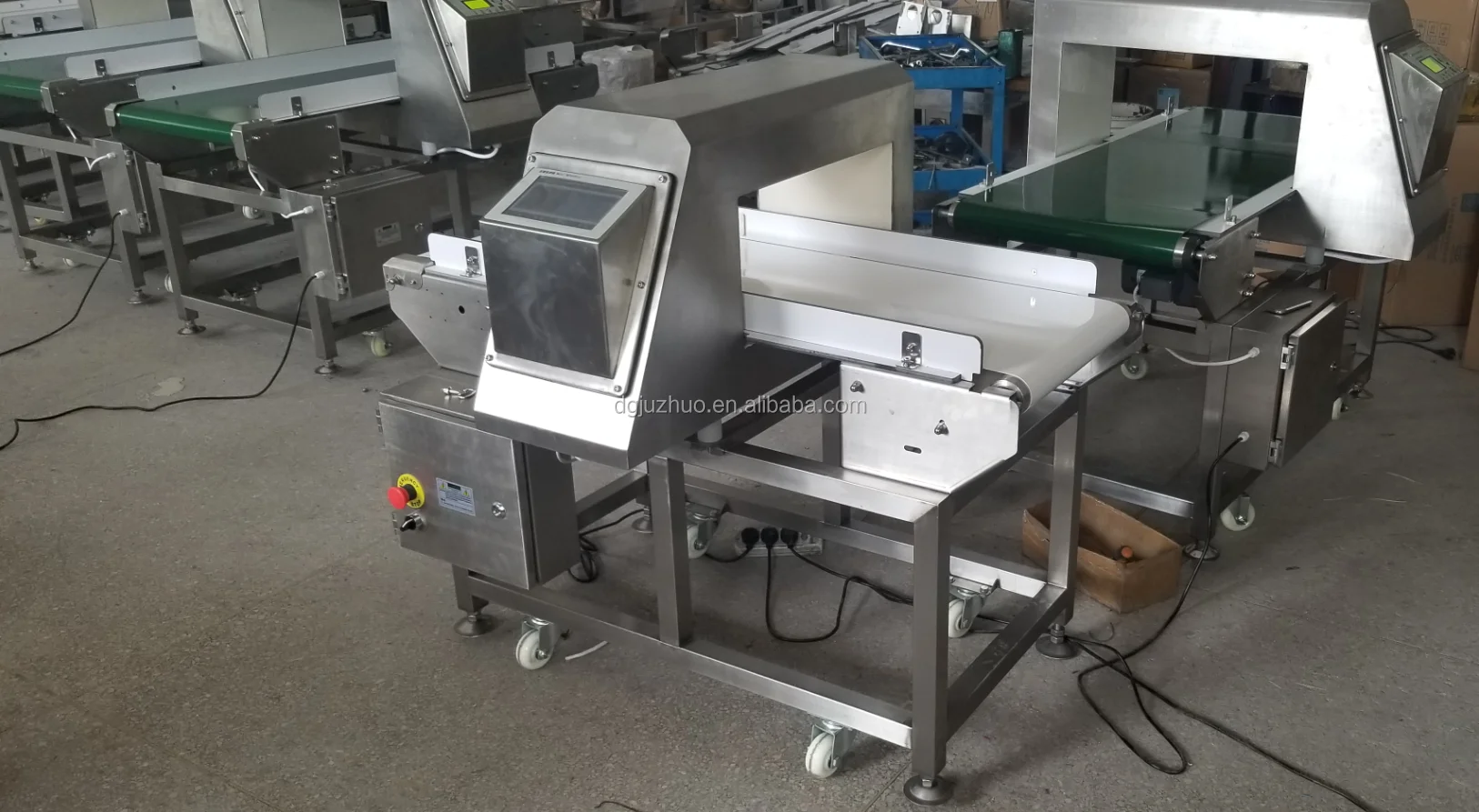

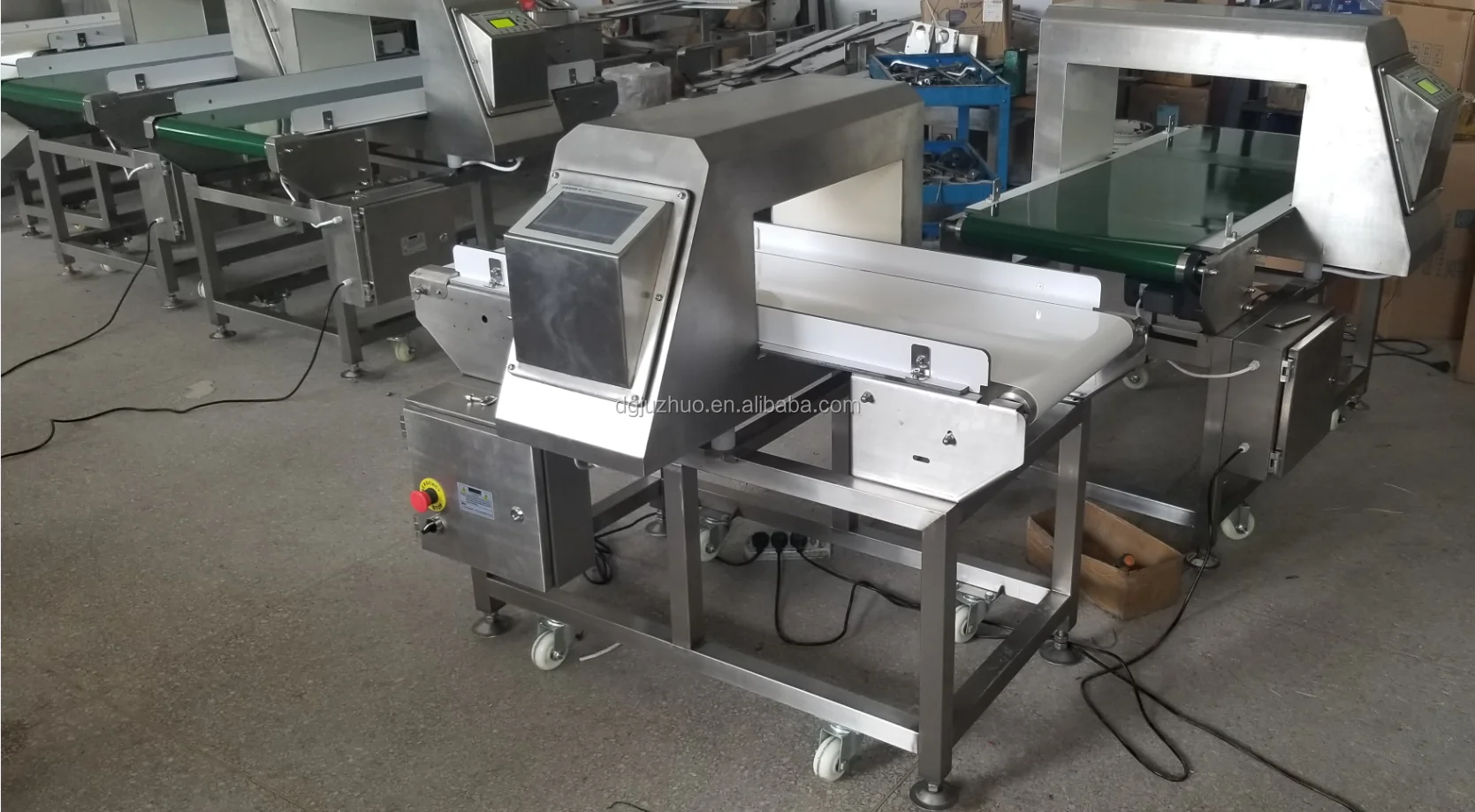

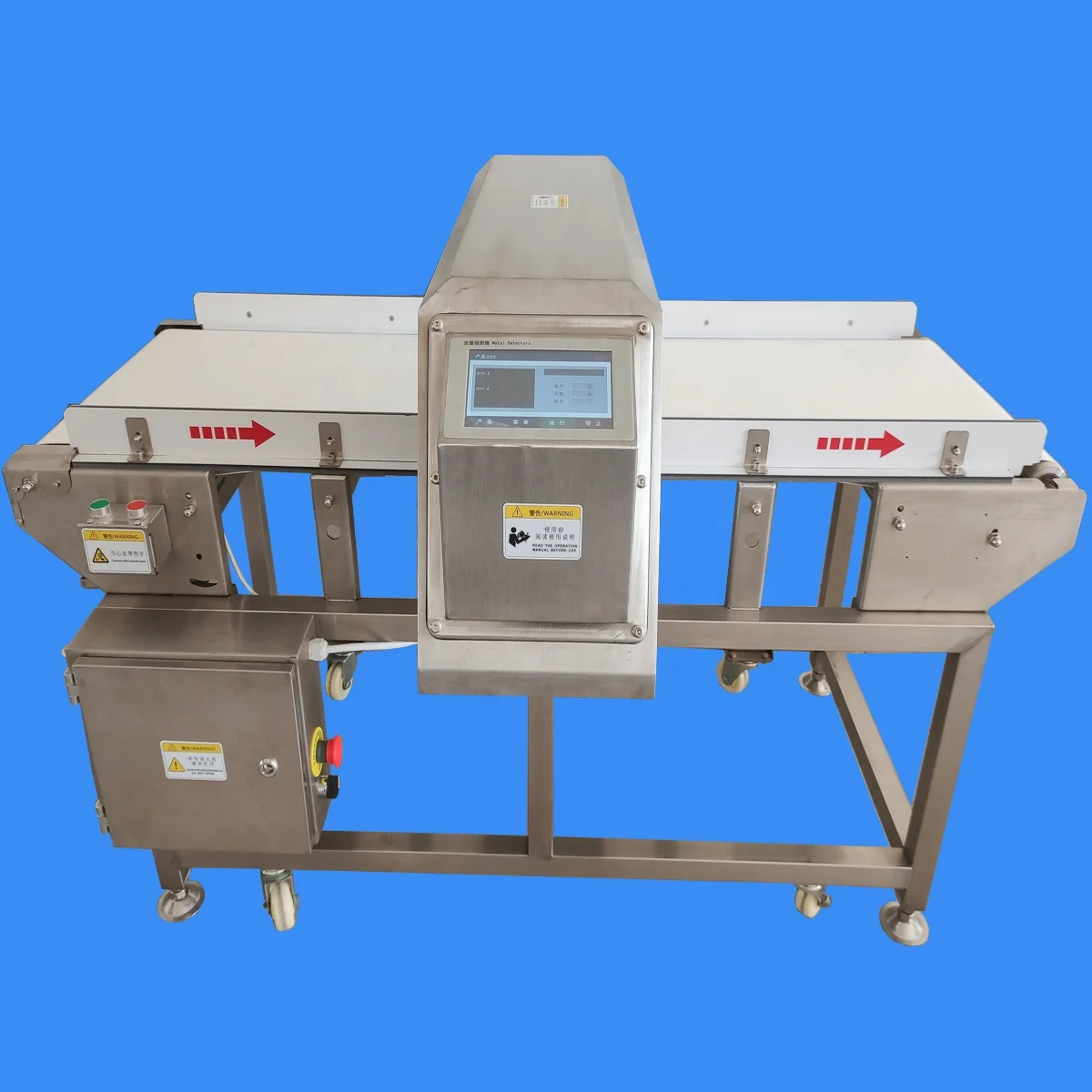

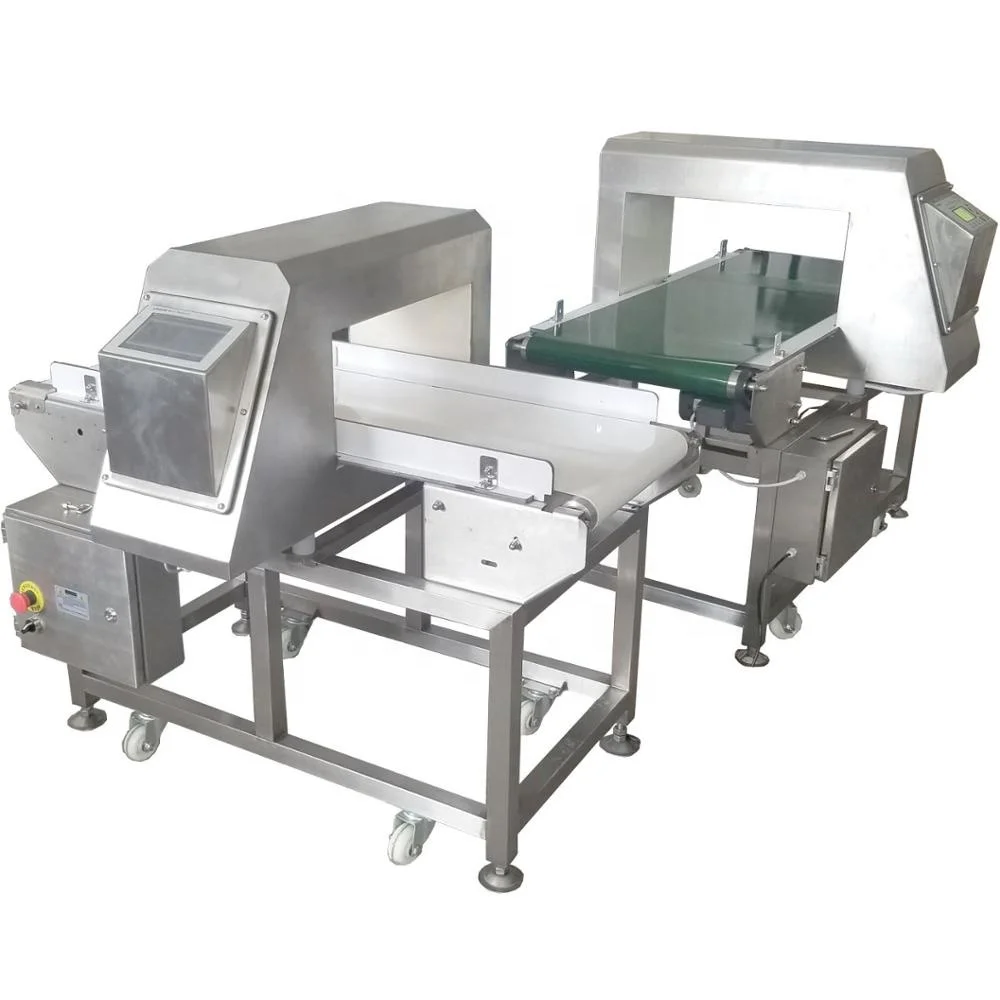

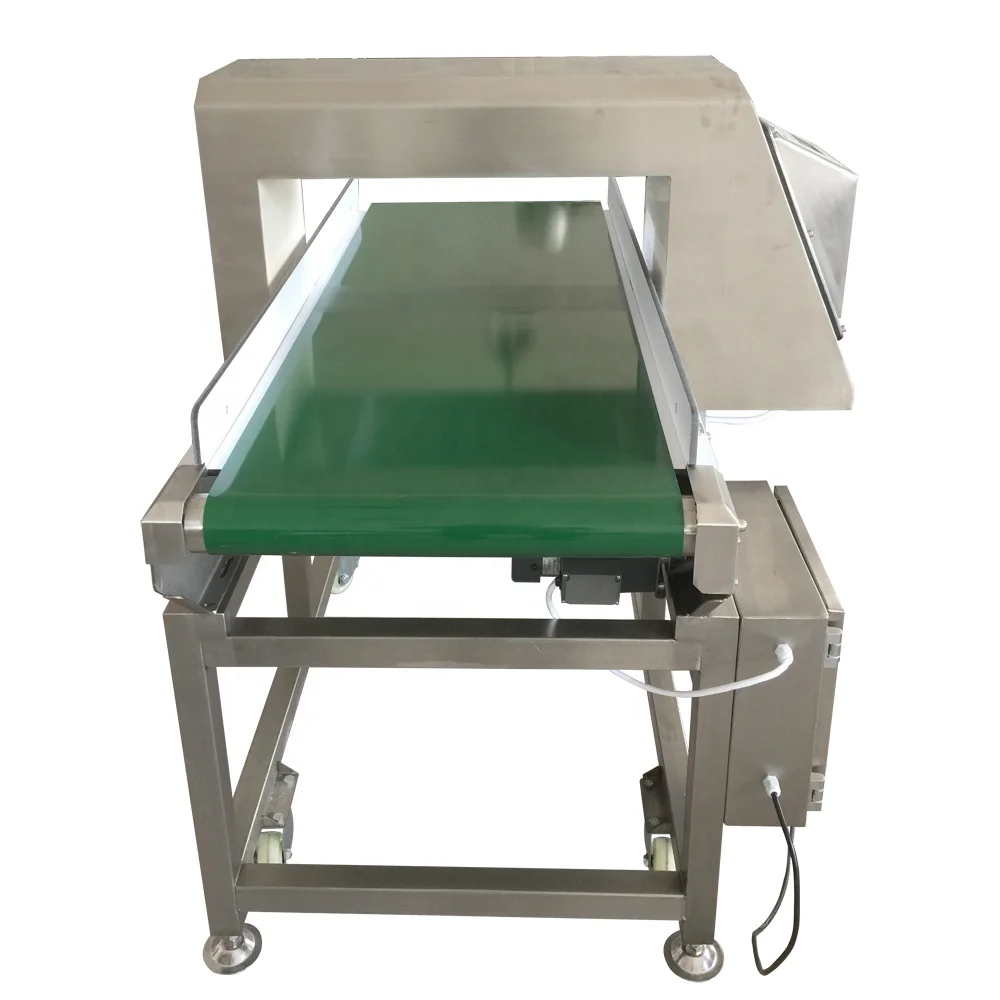

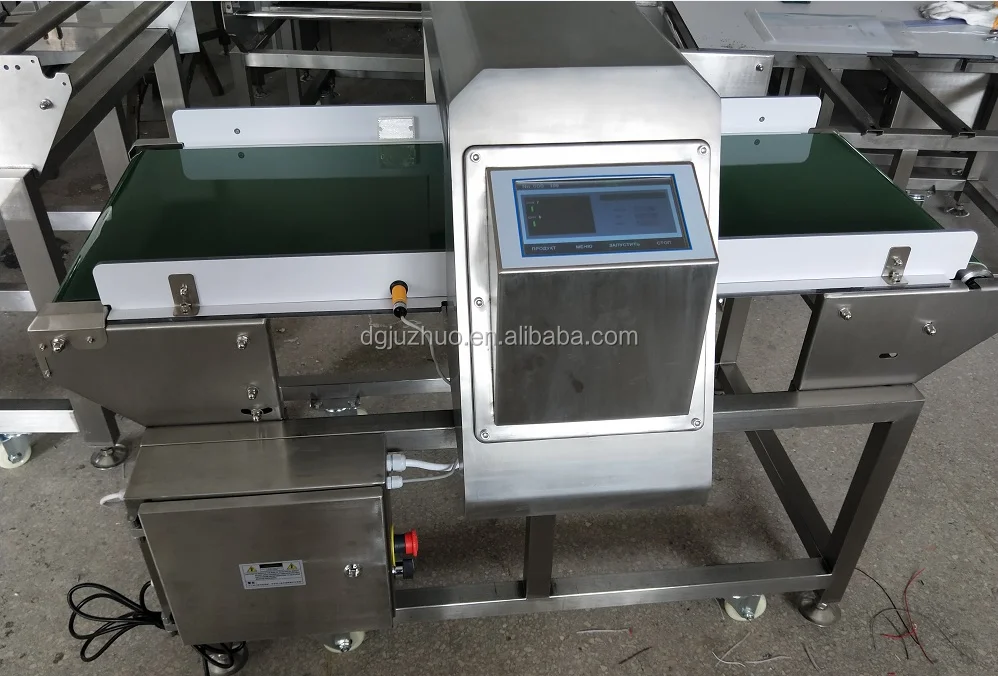

Frozen crab meat metal detector/Gold Metal Detector Long Range Needle Belt Food Detector JZD-600


Application


This kind of equipments can be used in the detection metal foreign bodys in food,medicine,food additives,spices,health products and other fields


Characteristics


         1. All made of SUS304 Stainless steel,anti-erosion and long life span


2. Multi-frequency detecting, self-analysis function, high sensitivity.

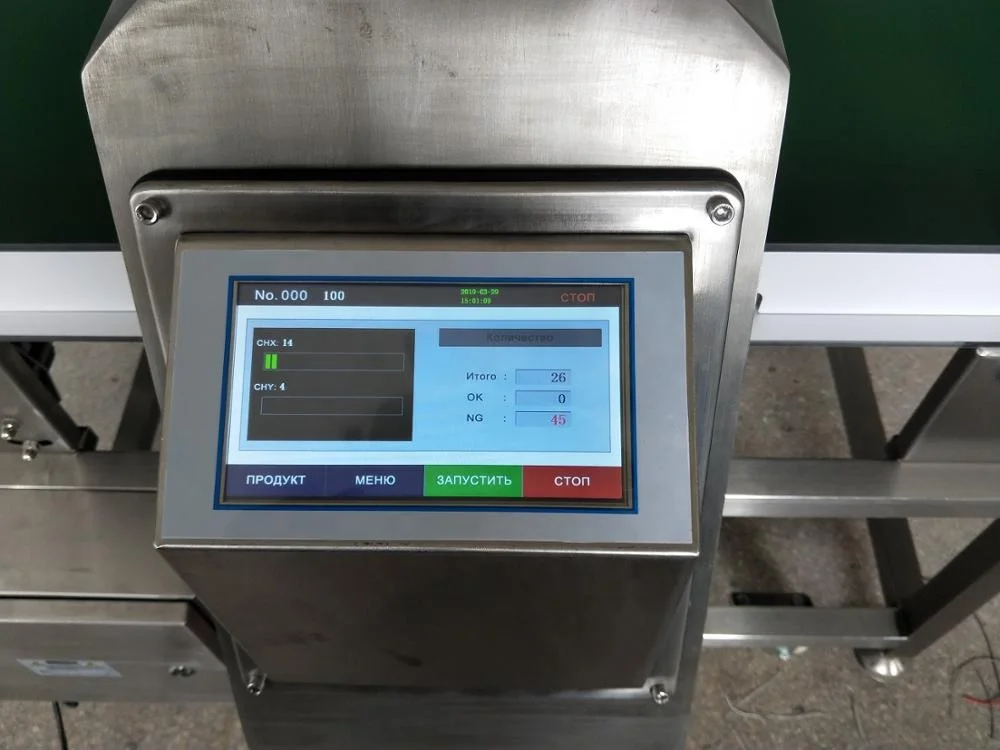

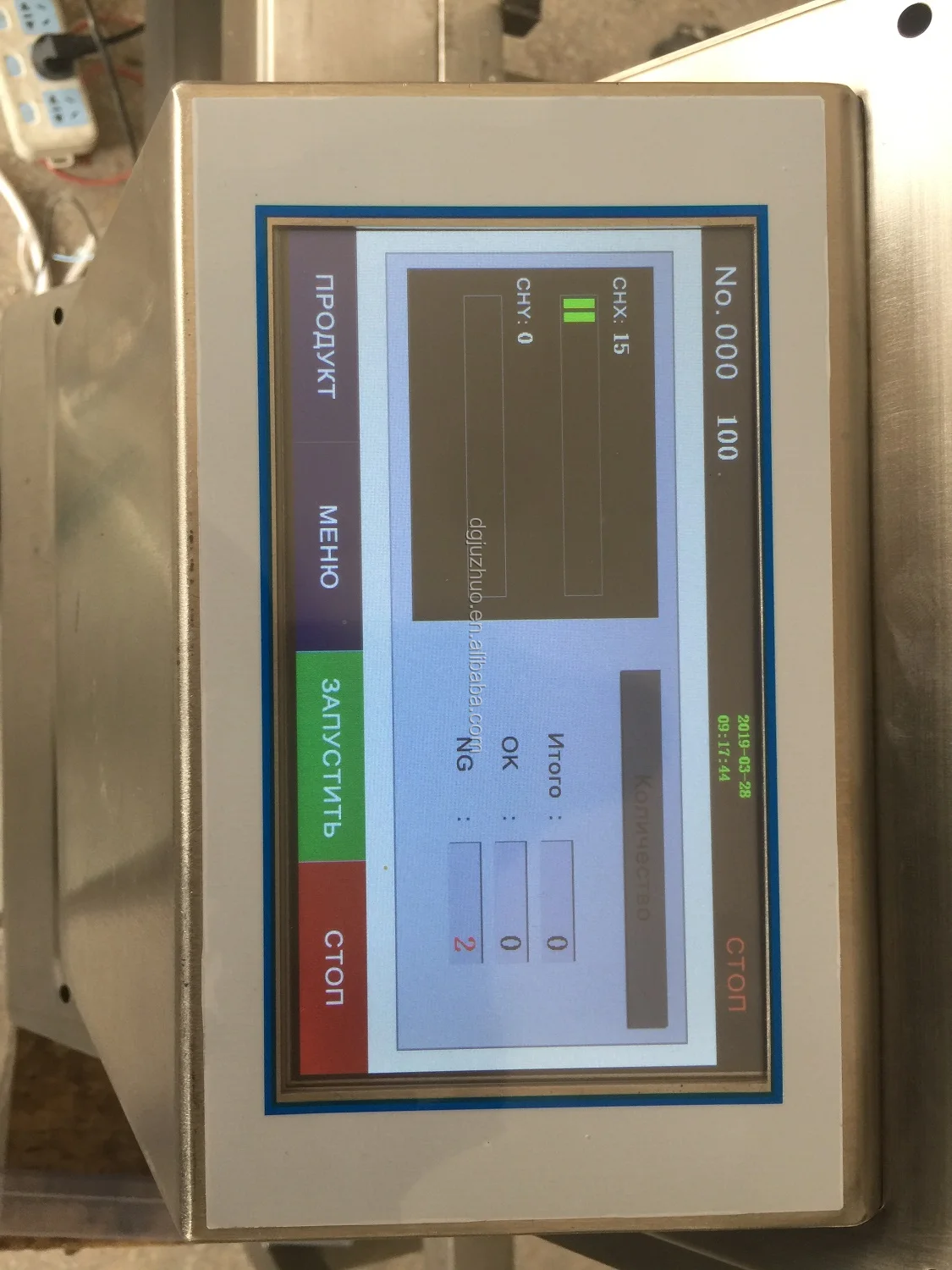

3. Colorful LCD touch screen , convenient user to operate


4. Can store about 100 product data, is suitable for a product line with volatile detecting products.


5. Dual channel detecting: one channel to detect FE and the other to detect non-ferrous metals.


6. Waterproof IP66 protection level,can be washed by high pressure water


7. Can stably work for a long time, with a special design that is suitable for a harsh production environment of strong vibration and high interference. And  the equipment won’t miss alarm even when you tap the probe.


8. The design of a succinctly detachable framework is easy for the operators to clean the equipment



Technical Parameters
















































































Model



JZD-600



The Width of inspection window (mm)



400(customized)



500(customization)



The Height of inspection(mm)



120



150



200



150



200



250



300







Detection Sensitivity



Fe(Φmm)



0.8



≥1.0



1.2



1.0



1.2



≥1.5



2.0







Non-Fe(Φmm)/SUS



≥1.5



≥2.0



≥2.5



≥2.0



≥2.5



≥3.0



≥3.5







  Alarm



alarm to stop transfer or reject setting



Raw material



SUS304



Normal machine size (mm)



1700(L)mm×910(W)mm×1000(H)mm(Based of normal size40*12cm)



Net Gross



330kg (based of normal size)



Electrical source (Power)



110V/220V/380V /440V 50Hz/60Hz (Power)90W



Conveyor speed



25-30m/min(customized)



Conveyor height



650mm±50mm (customized)



Noted:the above sensitivity judged by the machine without bearing any parts,the actual sensitivity have relation with nature and the temperature of the products etc,can install auto -rejection equipments according custom's requirements
