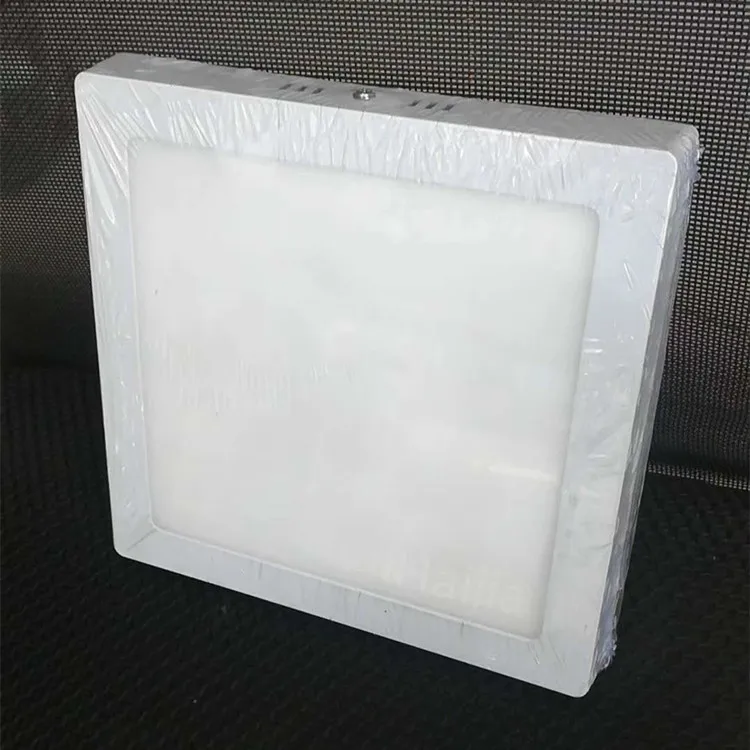

The price that makes you profitable newest design surface mounted or flush mounted Round and square led panel light

Product Overview

Description

       surface mounted led panel light

Technical Parameters

(Concealed installation)

Item No.     (watt)	Led chip	Surface diameter	Opening size	Thickness	Gross Weight (Round Shape)	Gross Weight (Square Shape)	Warranty
3W	2835	90mm	75mm	20mm	0.11kg	0.14kg	3 years
4W	2835	105mm	95mm	20mm	0.16kg	0.19kg	3 years
6W	2835	120mm	105mm	20mm	0.18kg	0.2kg	3 years
9W	2835	145mm	125mm	20mm	0.27kg	0.3kg	3 years
12W	2835	170mm	155mm	20mm	0.3kg	0.32kg	3 years
15W	2835	193mm	180mm	20mm	0.38kg	0.46kg	3 years
18W	2835	225mm	205mm	20mm	0.45kg	0.55kg	3 years
25W	2835	300mm	285mm	20mm	0.77kg	0.9kg	3 years



Square Shape & Round Shape are the same surface diameter (for example if it was 3W Square Shape , then the surface diameter is 90*90mm ) and the same opening size (opening size , if it was for 3W Square Shape, the opening size is : 75*75mm ).

Technical Parameters

( surface mounted)

Item No.( watt)	Led chip	Surface diameter	Thickness	Gross Weight (Round Shape)	Gross Weight (Square Shape)	Warranty
6W	2835	120mm	35mm	0.19kg	0.225kg	3 years
12W	2835	170mm	35mm	0.38kg	0.395kg	3 years
18W	2835	225mm	35mm	0.49kg	0.61kg	3 years
25W	2835	300mm	35mm	0.77kg	0.98kg	3 years

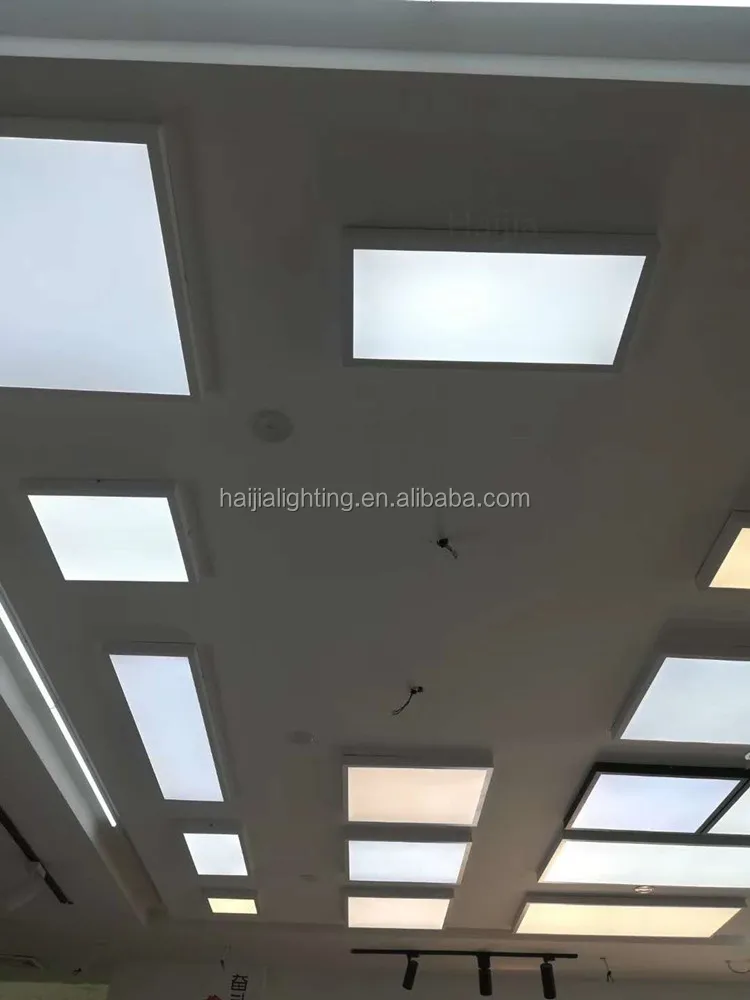

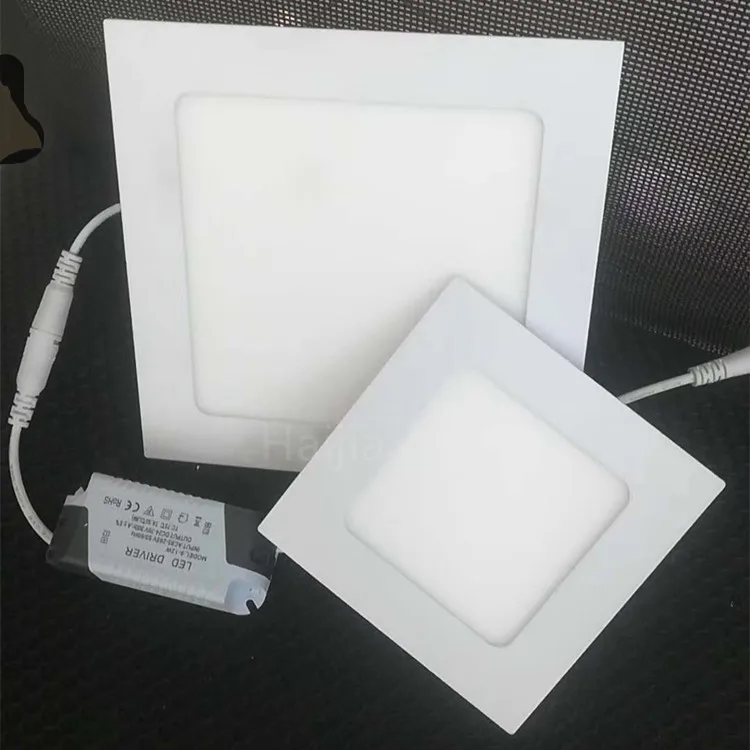

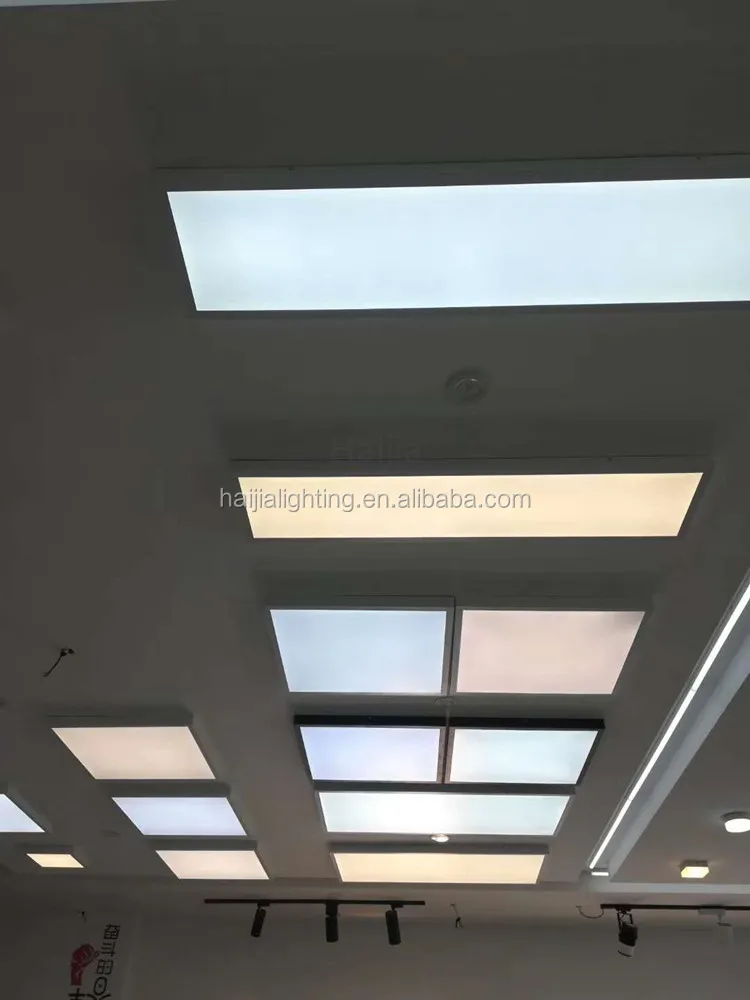

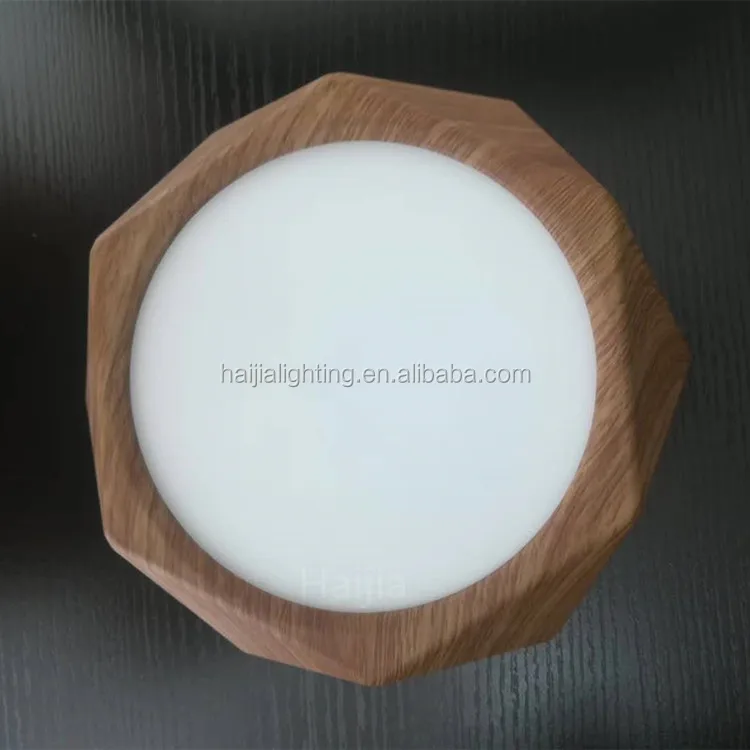

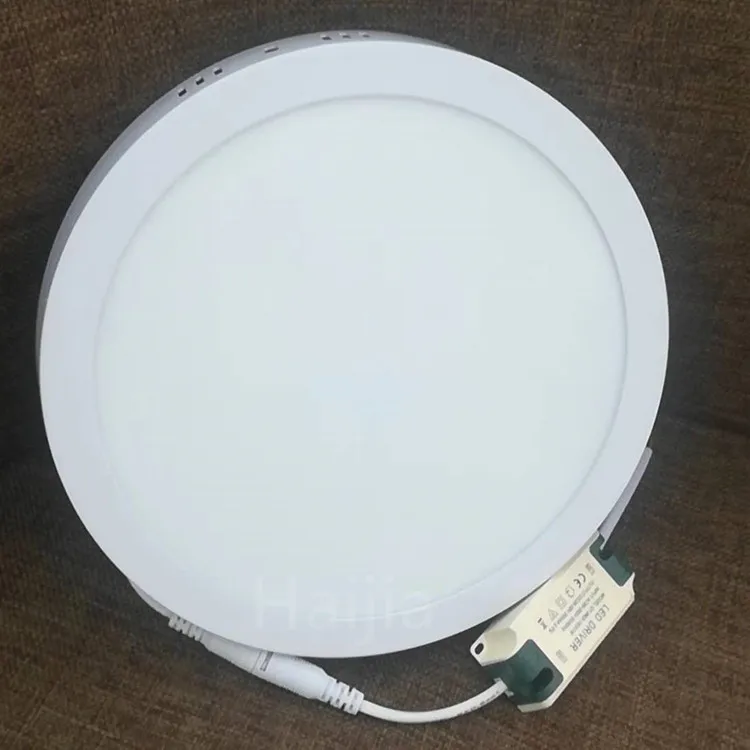

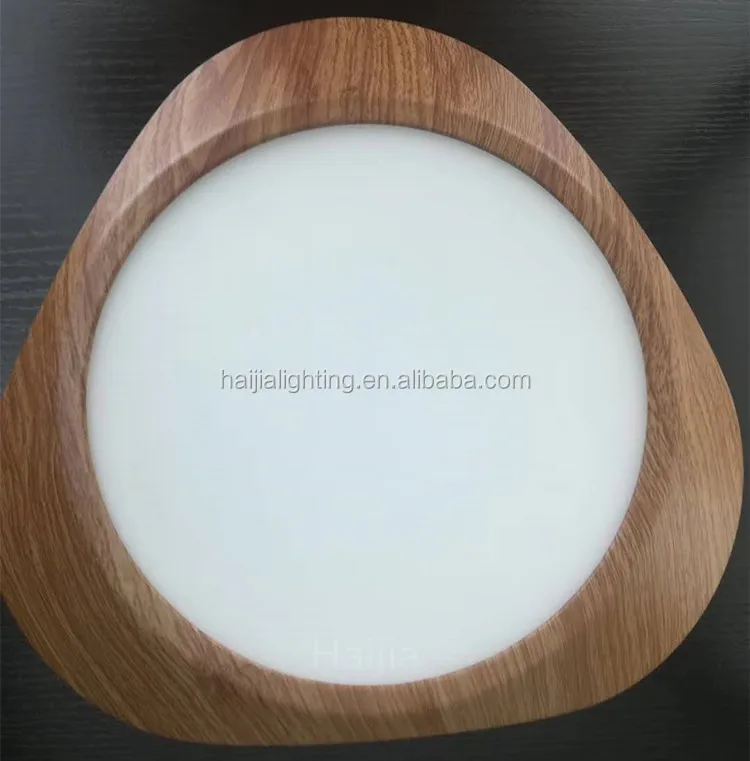

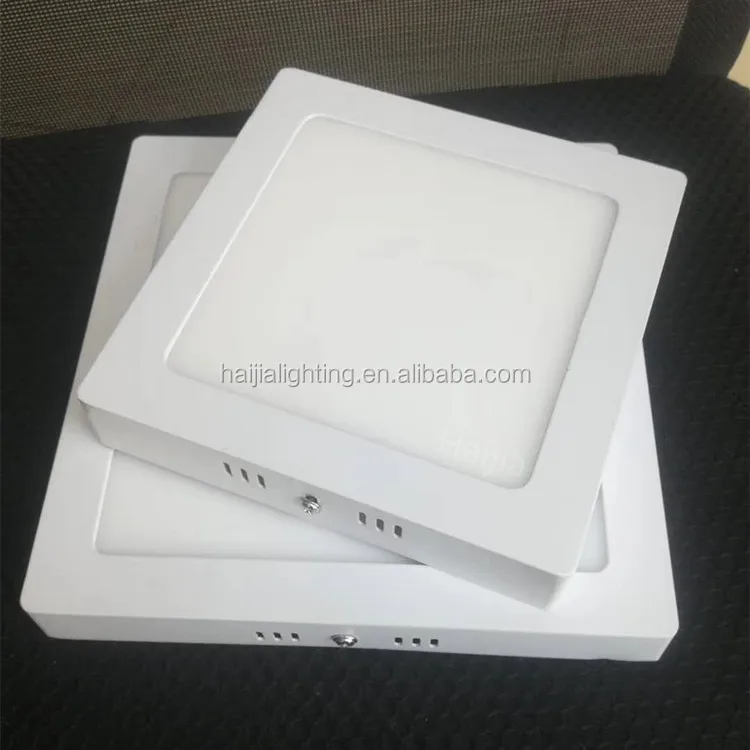

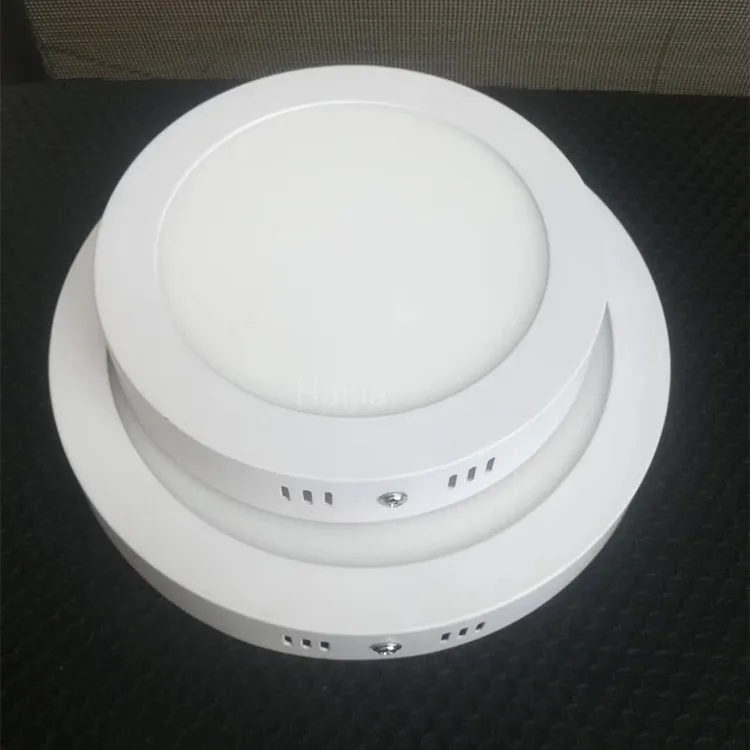

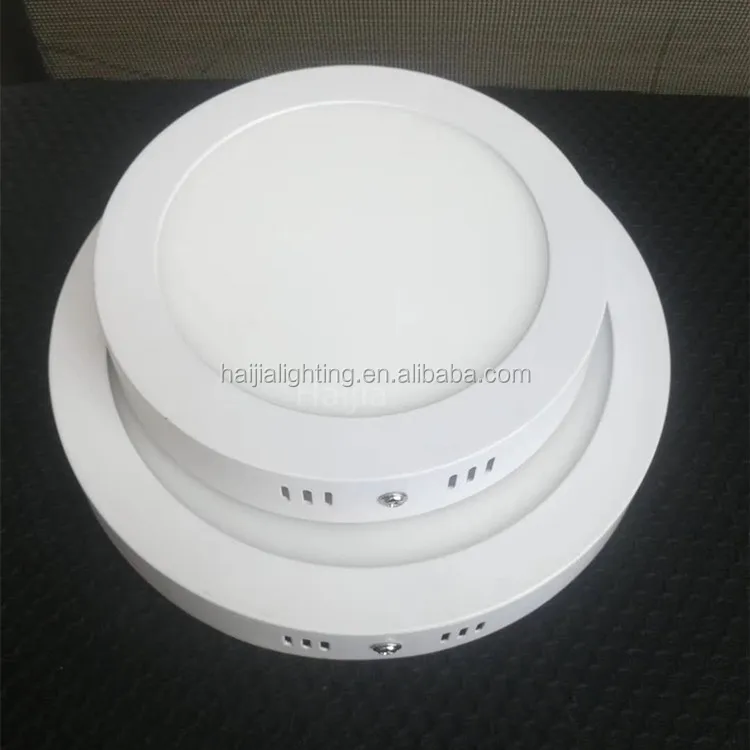

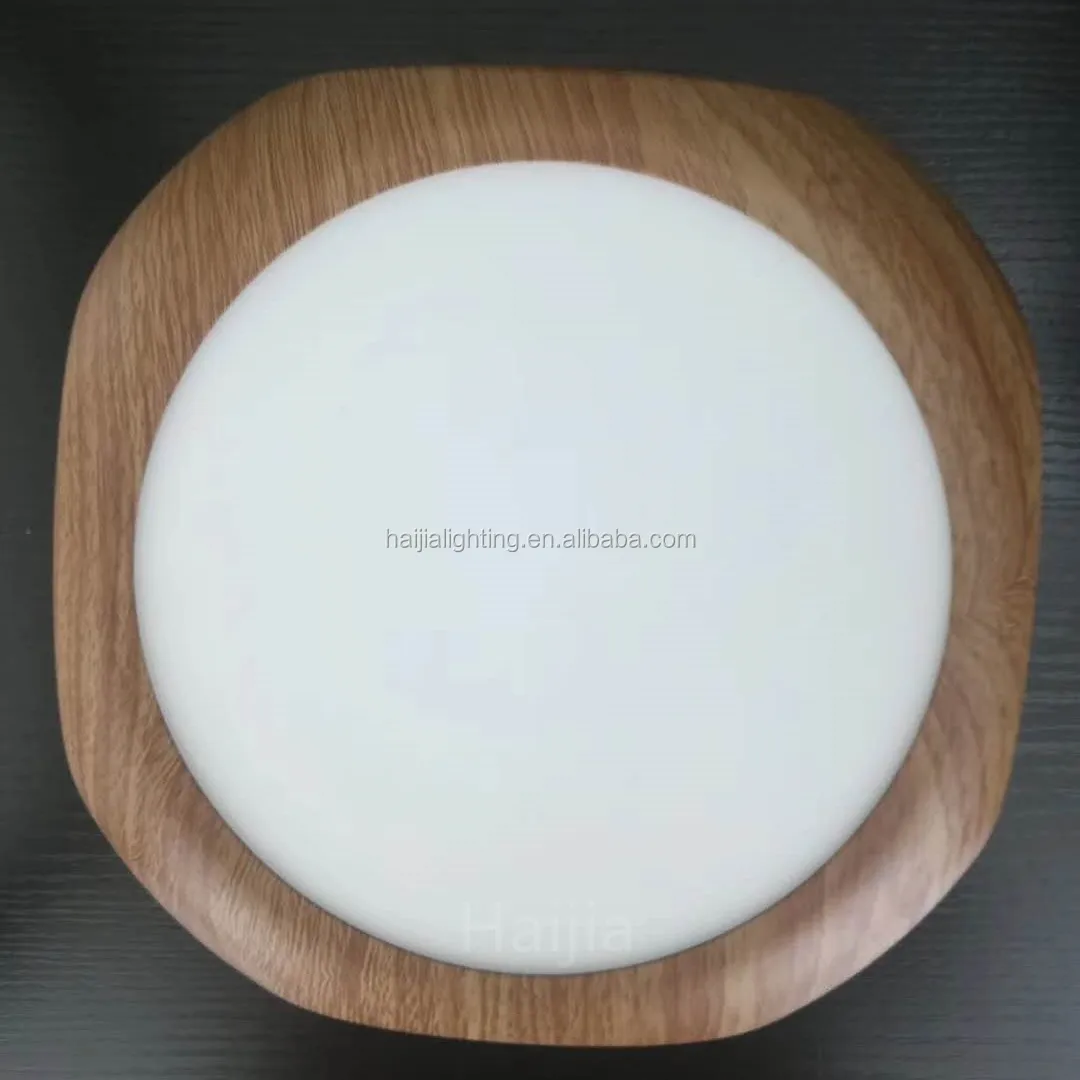

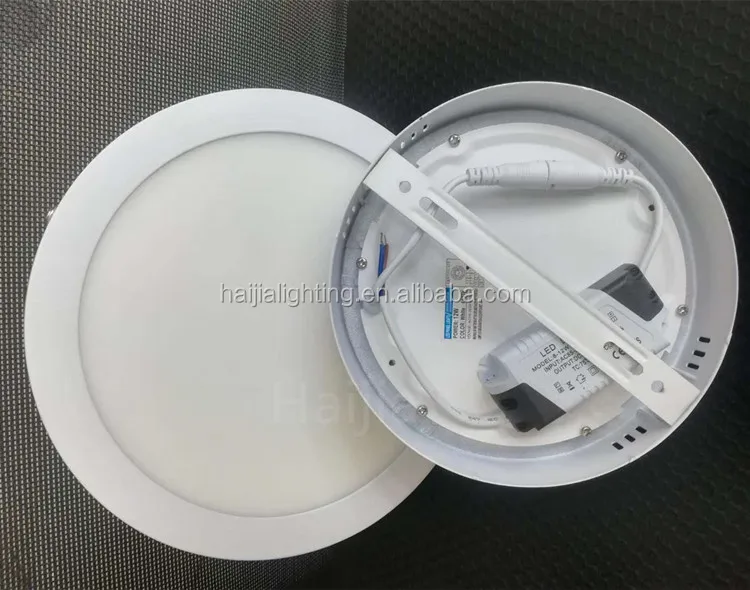

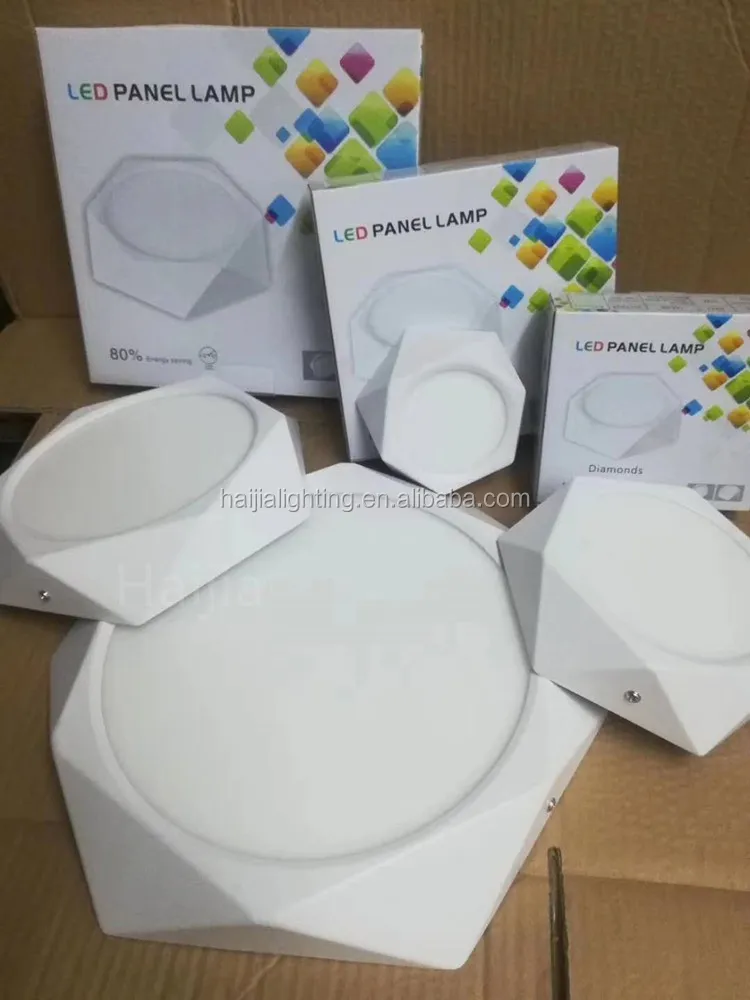

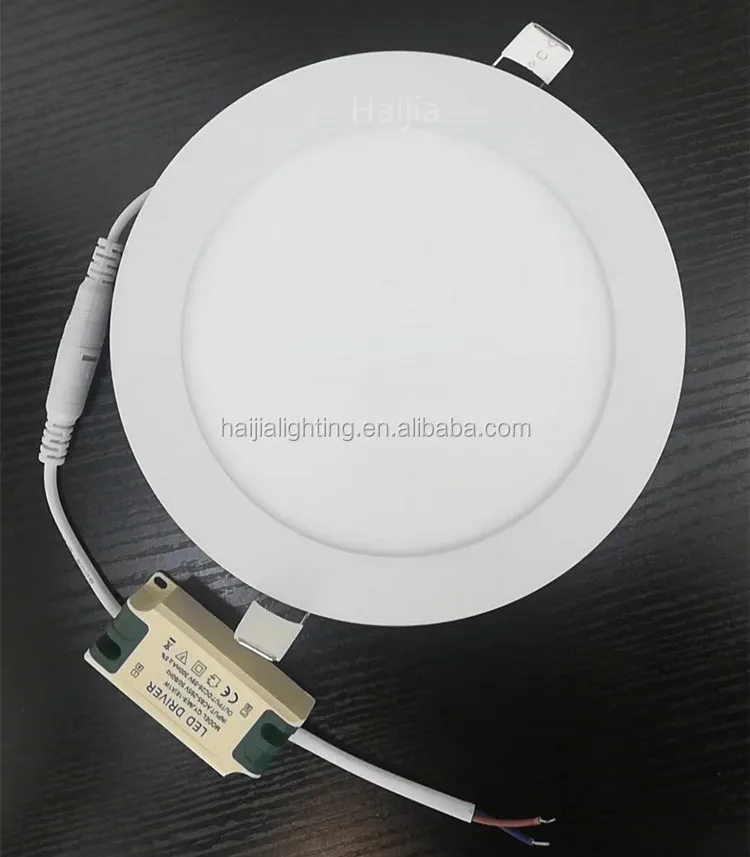

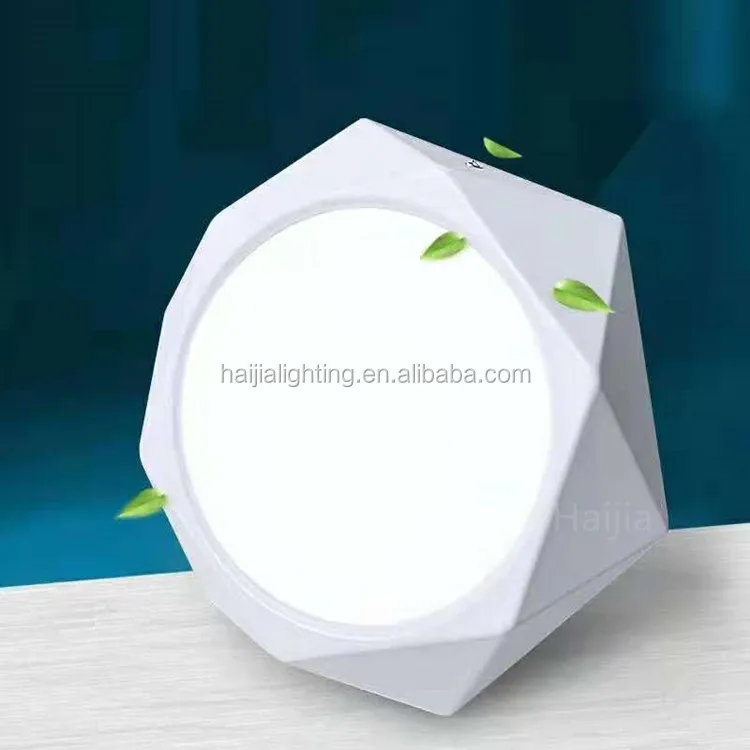

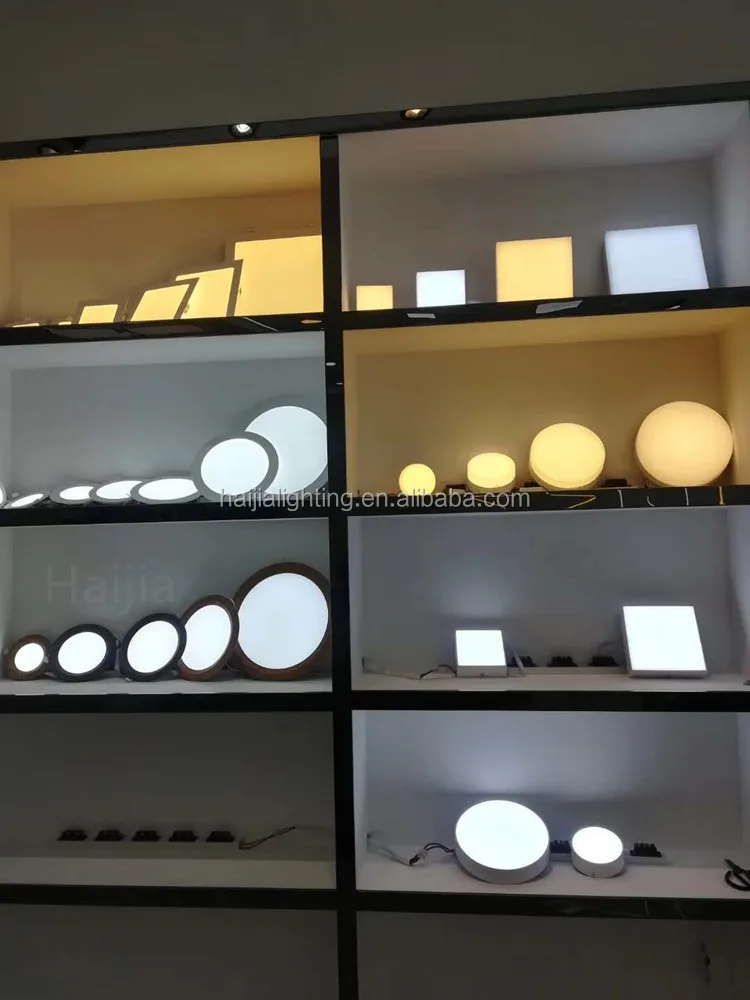

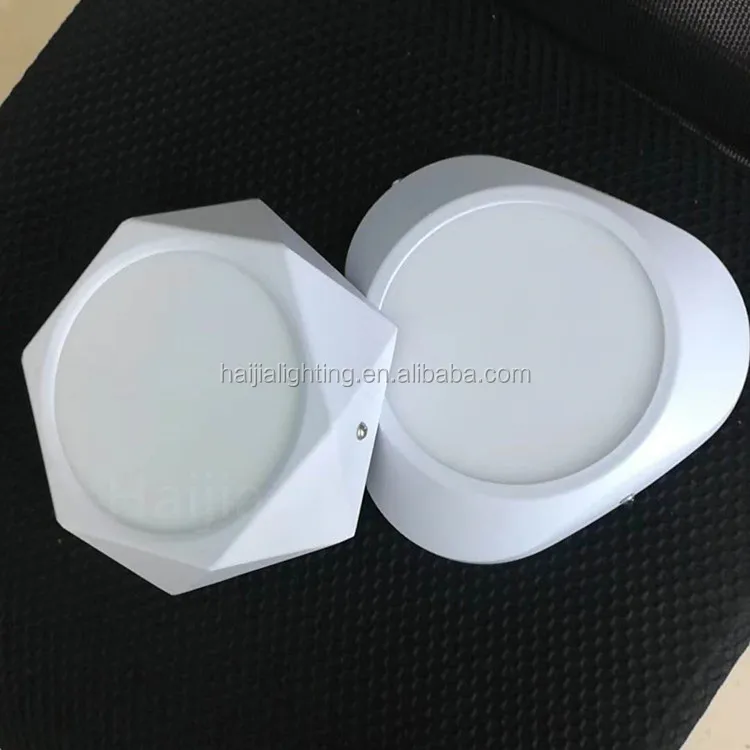

 led panel light photos





Do you have in stock  ?

Answer : Yes , within 3000 pcs can delivery in one day .

What is your MOQ ?

Answer : MOQ : 1 pcs .

Can i get a free sample for testing ?

Answer : Yes .

What certifications do you have for your led panel lights ?

Answer : CE and RoHS



Can you put my logo on the lights or the box ?

Answer : Yes we can .
