Kitchen Towel and Toilet Tissue Paper Cutting Making Machine
- Category: >>>
- Supplier: Liuzhou Fexik Intelligent Equipment Co. Ltd.
Share on (62123630894):
Product Overview
Description
Product Description
Kitchen Towel and Toilet Tissue Paper Cutting Making Machine
Product Application:

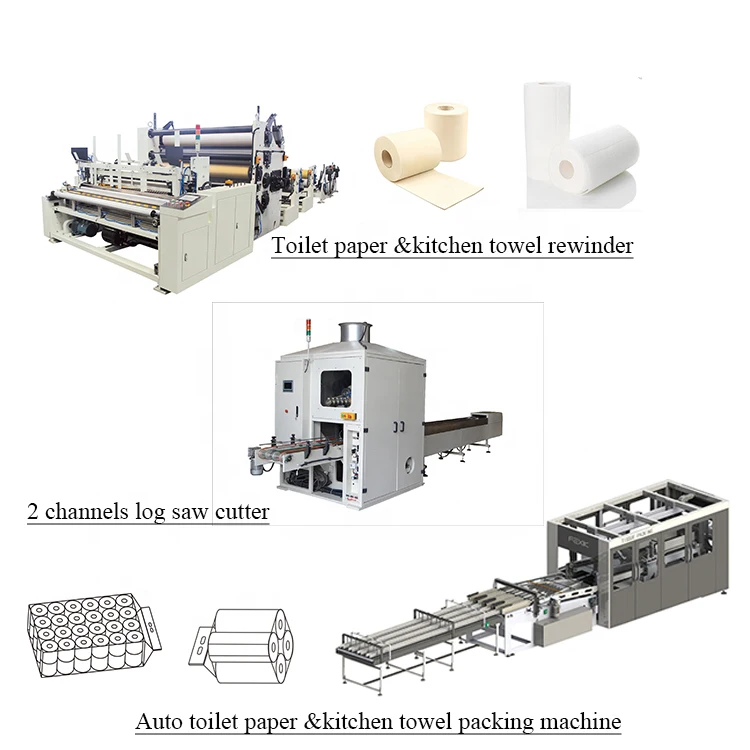

This is the Complete production line for toilet paper and kitchen towel. From the rewinding machine, cutting machine to packing machine.
This equipment is adjustable to meet the requested finished product of toilet paper and kitchen towel. This model is the ideal equipment for paper making factory and paper converting factory.

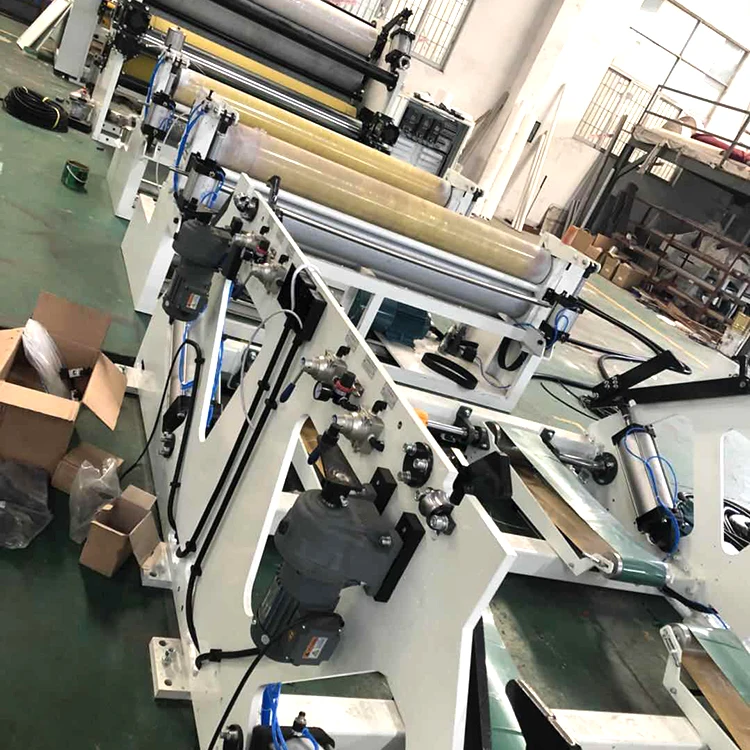

Automatic Rewinding machine

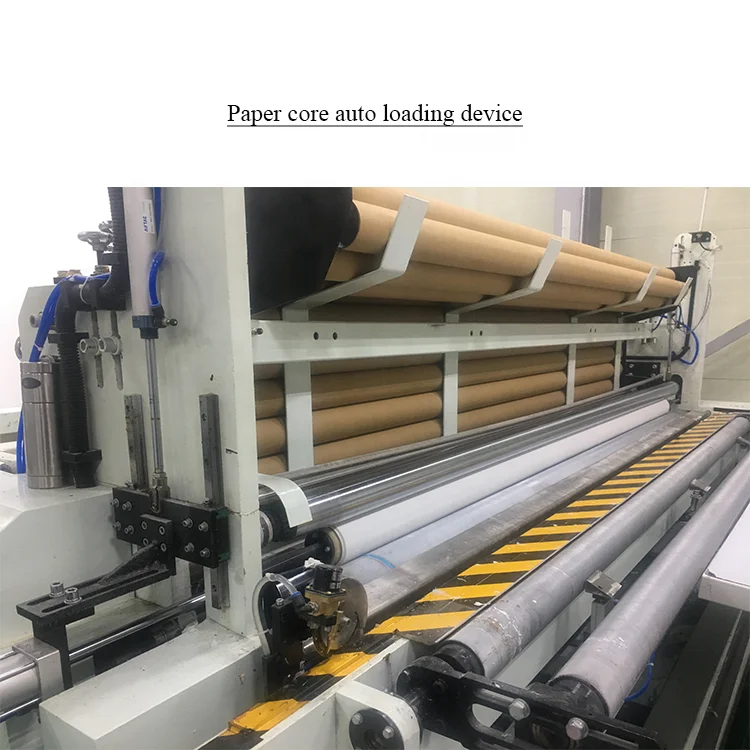

1. When the core unit can not detect core or core will use up, the machine will alarm to tell operator or workers to put some cores on the core bracket.
2. Degree of tightness can be adjusted while a log is rewinding.It can produce different degree of tightness in one log.
3. When a log is rewinding,the next core is ready.
4. When the finished log come to tail sealer, trimming, glue spraying and sealing can be finished at the same time.
5. Embossing unit and glue lamination,edge embossing unit,printing system is order by customer.
Model | 1400/1500/1800/2000/2800/2900/3000mm |
Jumbo roll width | 1350/1450/1750/1930/2150/2750/2850/2950mm |
Jumbo roll diameter | ≤ 1200mm (other size to be specified) |
Jumbo roll core size | Dia:76mm (other size to be specified) |
Finished roll diameter | Dia:60-130mm(Tightness is adjustable) |
Finished roll core diameter | Dia:32-50mm |
Perforation width | Standard size:110mm(Adjustable) |
Perforation | 4 PCS sprial upper perforation knives,improve the durability |
Rewind type | Automatic rewinding machine |
Parameter set | Touch Screen HMI |
Rewind system | With core and coreless integrated |
Control system | Siemens PLC,inverter,etc. |
Machine speed | 200-250m/min |
Backstand | 1-4 ply (to be confirm by client), independent drive |
Edge embossing unit | Steel to steel |

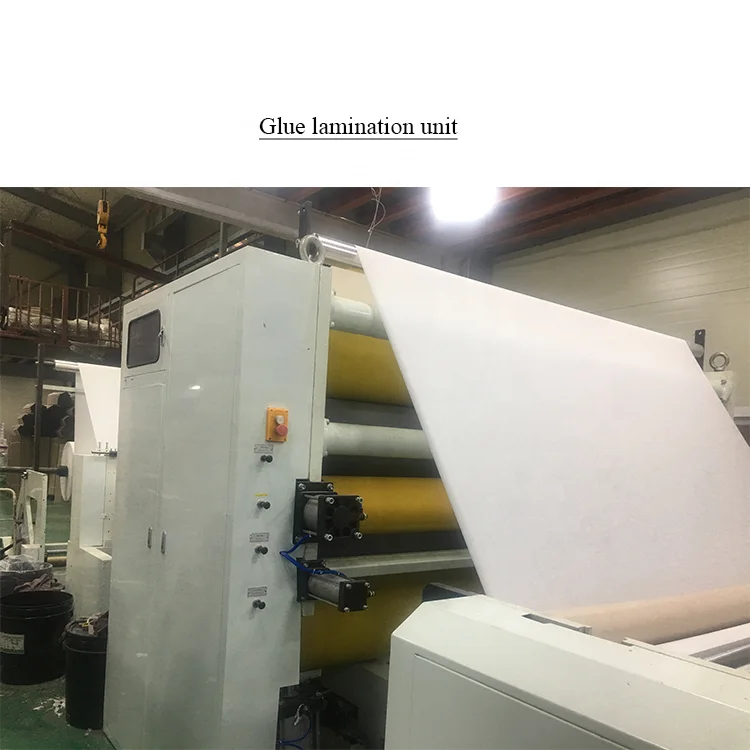

Glue Lamination unit | Available (to be confirm by client) |

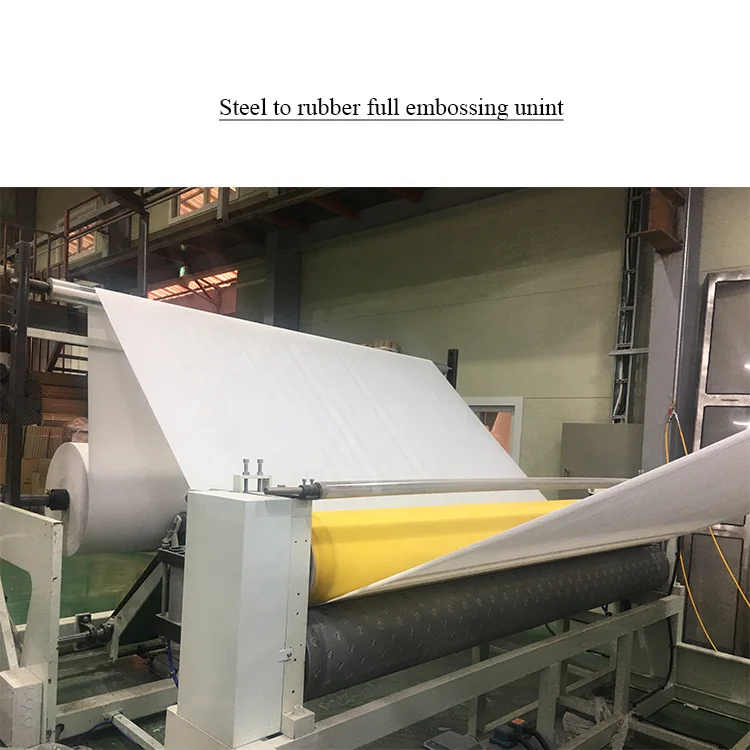

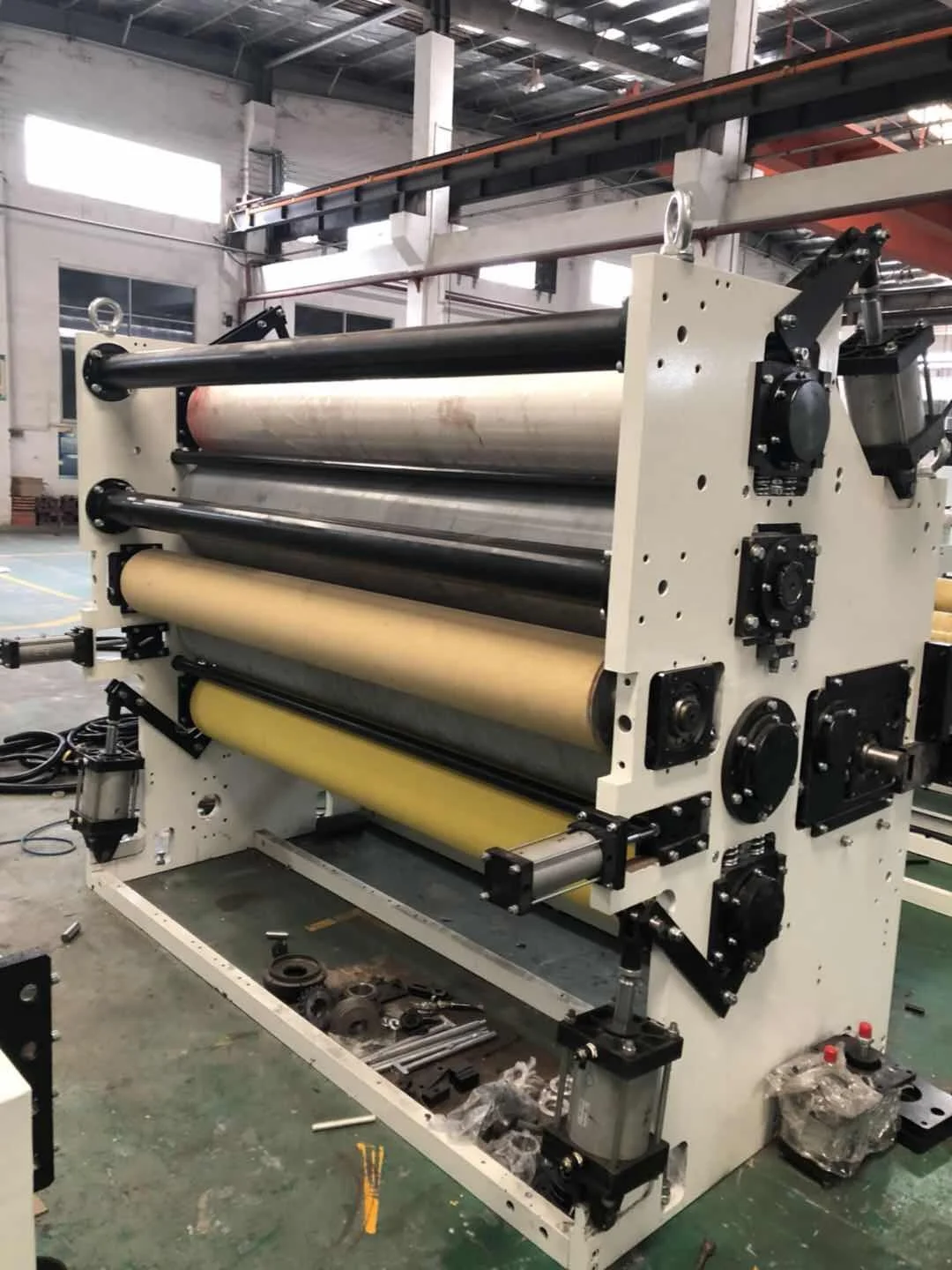

Embossing unit | Steel to steel, steel to rubber (to be confirm by client) |

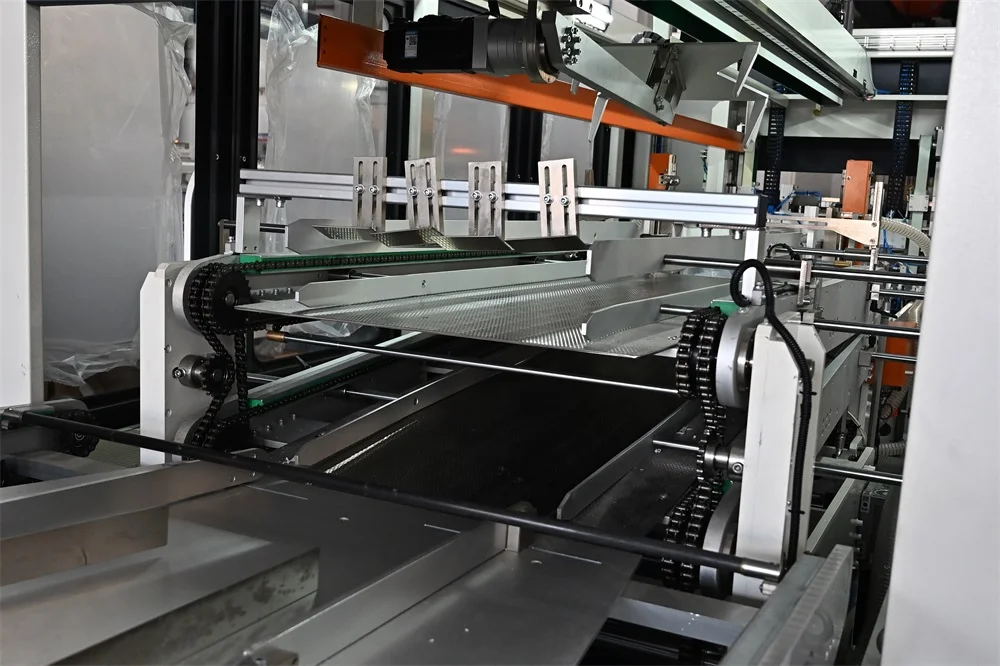

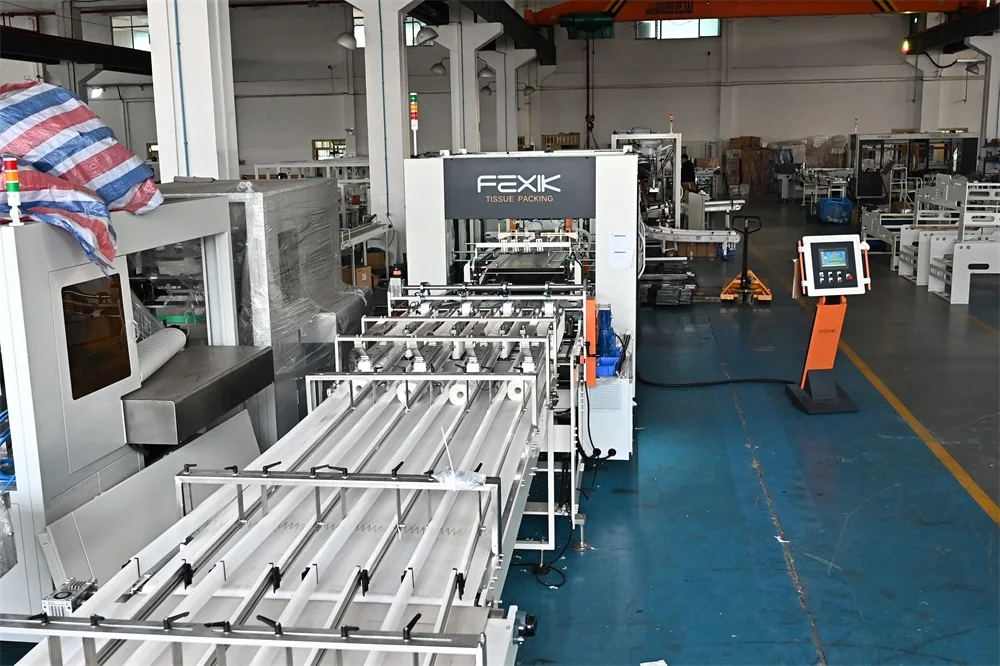

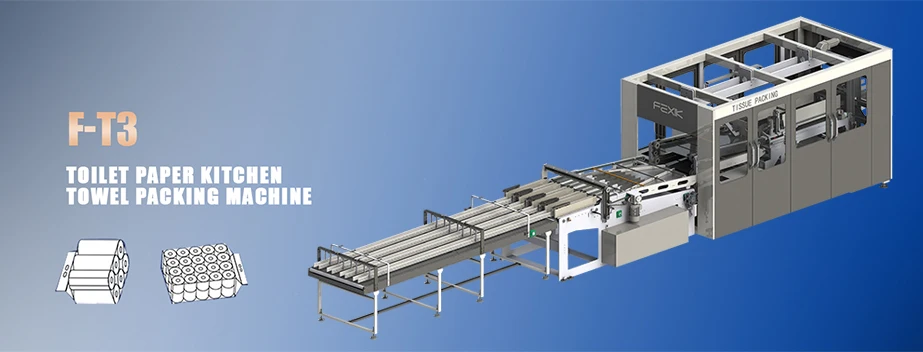

F-T3AL Toilet paper and kitchen towel wrapping machine
Features
Main Features:
2) Adopting automatic servo control system, all motions and functions are fully controlled by 19 independent servo axis.
3) Humanized HMI assists the operation of machine and conversion of speed and configurations. Alternative options for many packaging configurations show on HMI.
4) The innovative design of the heat-sealing system makes the heating uniform and stable, to ensure the bag sealing in great quality.
5) The use of motor adjustment is convenient and quick. Format changing is extremely easy and fast.
6) A new and better bags loading and opening system is designed for the packaging machine to ensure that the operation speed can be achieved more than 25 bags/min or more when packaging a large configuration. The cost of machine maintenance is very low, and the machine is small, occupying less area.
items | technical parameters |
Size range bag | Max.L720×W480×H300mm |

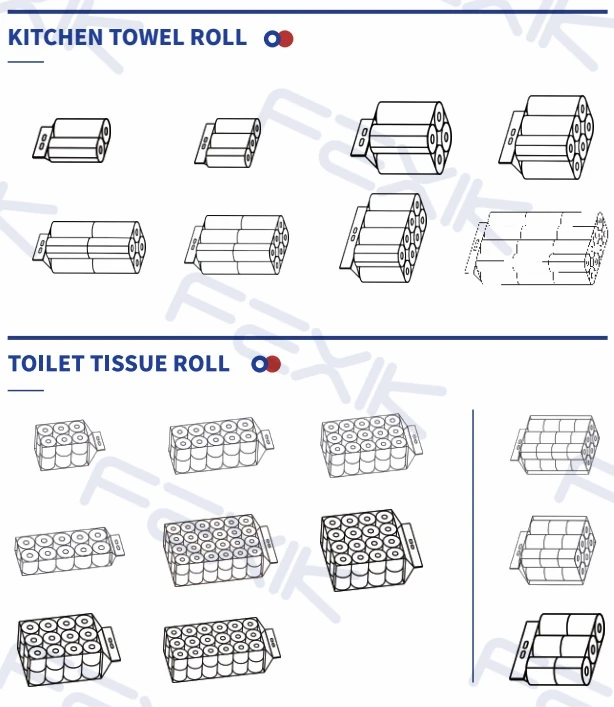

Packing specifications | Toilet tissue roll:2-48rolls Kitchen towel roll:2-16rolls |
Packing arrangement | Horizontal packing |
Set packing speed | 25bags/min |
Stable packaging speed | 5-18bags/min |
Packing film | PE precast bag |
Tatal power supply | 14KW |
Mini air pressure requirement | 5Mpa |
Power supply | 380V 50HZ |
Weight | 3500KG |
Outline dimension | L3900×W1600×H2200mm |
Packing & Delivery
Packaging:
• Cover with plastic film.
• Packed with wood tray or wood case, it depends on the machine model.
Delivery terms:
• 30% with the order as down-payment.
• 70% after machine completion, but before shipment.
• Will finished manufacturing in 60days after received the down-payment.
Our Service
Pre-Sales Service
* Solutions provide services
* Sample testing support
* View our Factory
After-Sales Service
* One year warranty
* Training how to install and use the machine
* Engineers available to do machinery service overseas
Related Products:

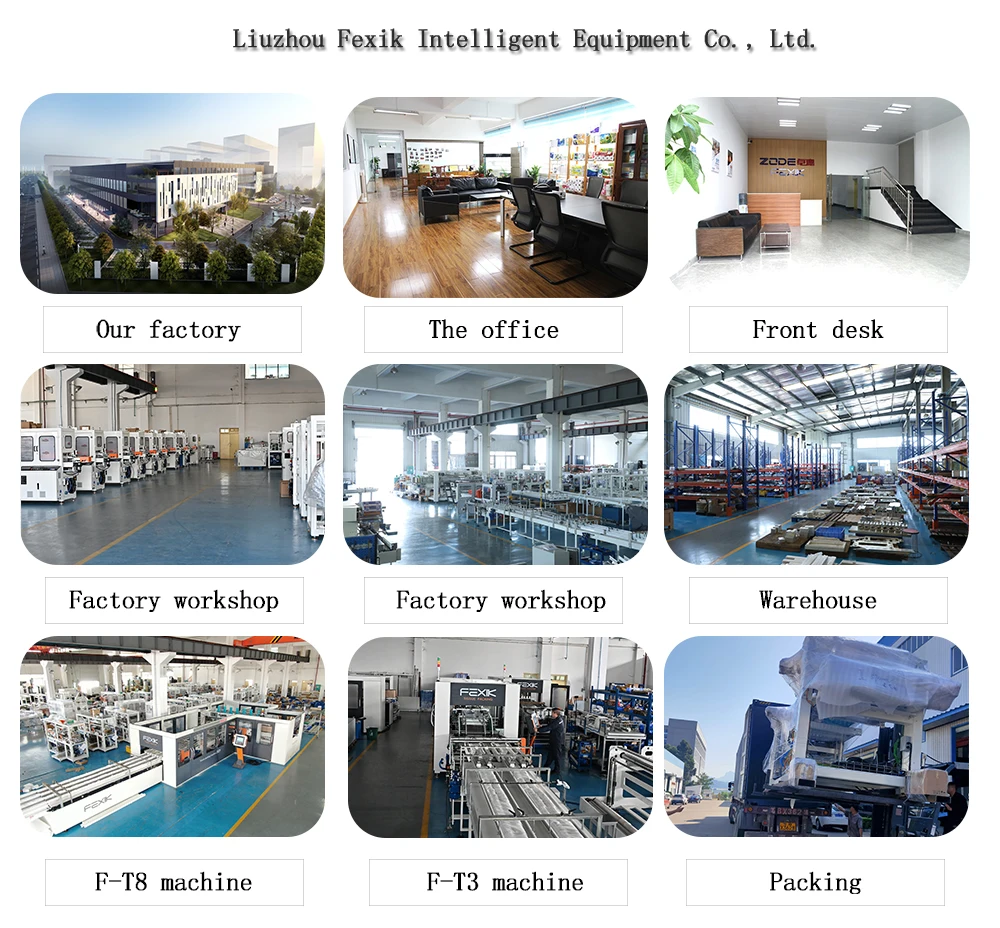

Our company
Liuzhou Fexik Intelligent Equipment Co., Ltd.
Liuzhou Fexik Intelligent Equipment Co., Ltd is a a professional high technology company. As a leading manufacturer and exporter of tissue paper machinery in China. Serve the facial tissue converting and packing production line, toilet tissue and kitchen towel rewinding and packing production line, hand towel folding and packing production line around the world. Our main market is Europe and America, Middle East, South America.
Fexik Machinery had passed international certification I S O 9 0 0 1 and several national invention patents, with full independent intellectual property rights. Our strength is our powerful research and development team that can rapidly customize unique solutions to meet the ever-changing market demands and special requirements from customers. We can provide solutions to customers from products choosing, designing, installing and training. From upfront engineering to ongoing technical support, our designs are focused on meeting the regulations of human and product safety as well as the environment in every market that we serve.
Certifications
Exhibition
We have been attended many exhibitions all over the world, such as Tissue world in Milan, Miami, Turkey, and Egypt.
FAQ
Customer Care !
Q1.How does your factory do regarding quality control?
A1: We control the quality from very beginning.All products process to be detailed. There is also independent QC team who has full time control the production quality.
Q2.Do you offer guarantee for the machine?
A2: Yes, we offer 12 months guarantee for the machine.
Q3.Can you offer the OEM for us?
A3: We welcome you to be OEM client and we are willing to discuss all the details and requirements with you before we issue a formal plan.
Q4.Why choose us?
A4: We focus on tissue paper processing machinery manufacturing for more than 6 years. We establish cooperative relationship with big company and sale out many machines all over the world. Providing excellent quality reasonable price and best service always is our mission.
