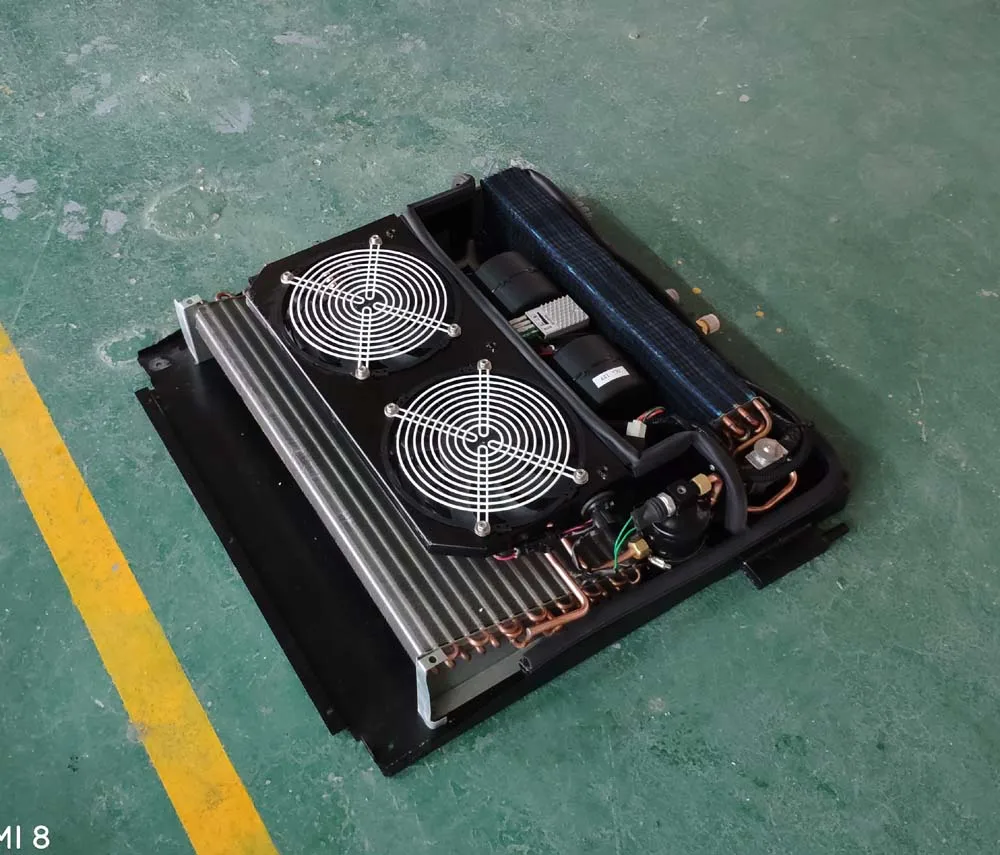

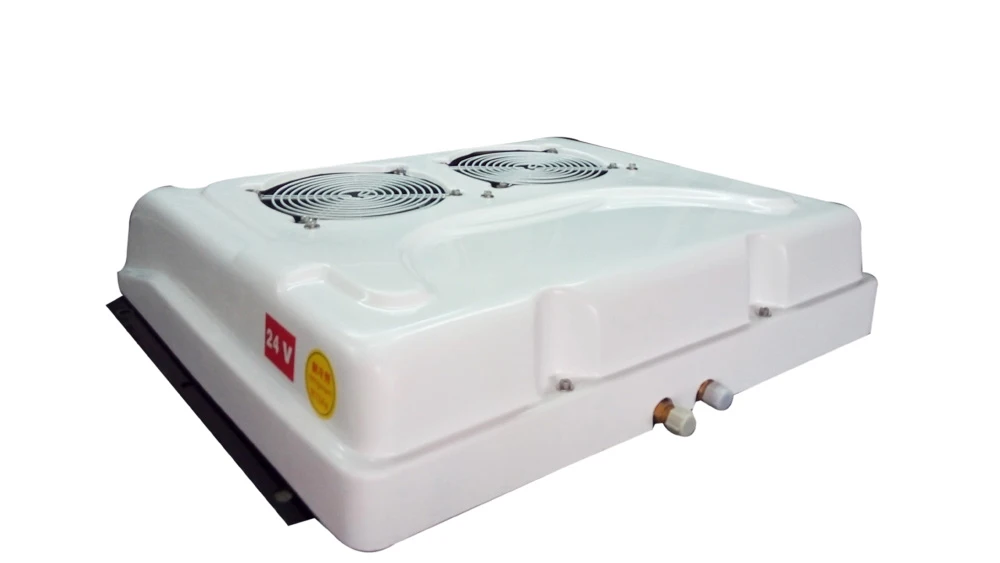

van roof air conditioner suit most current models of popular van and truck.
12 and 24 volt operation
Condenser: Copper tube & fin
Evaporator: Copper tube & fin
Sight glass Indicator
Mechanical thermostats
Dual safety pressure switch
Quite Evaporator single Blower
High Flow Condenser fans x 2
Powder coated steel construction frame
Fiberglass top cover 3mm
| Model | AC05 | |
| Cooling capacity | 5000W(17000Btu/h-4300Kcal/h) | |
| Type | Roof mounted , one body unit | |
| Refrigerant | R134a | |
Compressor | Model | 12/24 volt dc powered |
| Displacement | 36cc/r | |
| Evaporator | Type | Copper tube&Aluminum fins |
| Blower type | Double Axle centrifugal flow | |
| Blower output | 850m³/h | |
| Blower quantity | 1 | |
| Condenser | Type | Copper tube&Aluminum fins |
| Fan type | Axial flow | |
| Fan quantity | 2 | |
| Fan output | 680m³/h | |
| voltage | DC 12V /24V | |
| weight | 32kgs | |
| Overall dimension | 755mm*745mm*190mm | |
| Total current | 12V/70A, 24V/35A | |
| Applying vehicle | truck , tractor , forklift , general macinery ,etc | |



1. We will reply you for your inquiry in 24 hours.
2. Sample order .
3. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

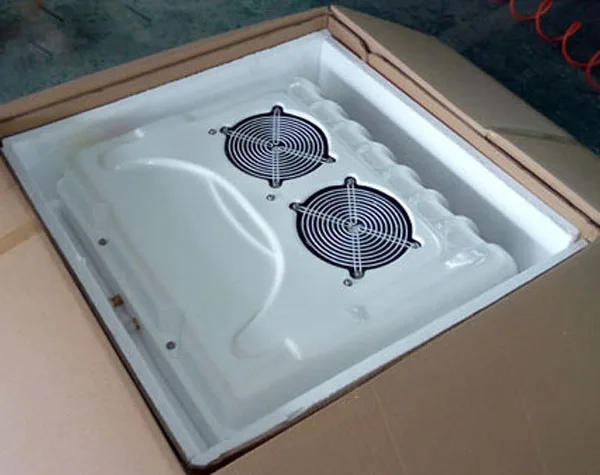

Q1. What is your terms of packing?
