Automatic woodworking 3300mm 3d cnc control panel saw machine
- Category: >>>
- Supplier: Qingdao O.B.T Manufacture Co. Ltd.
Share on (62123955162):
Product Overview
Description
Welcome to OBT, I hope you can pick the right product, you can see a working video of our product first. follow us to visit our product and company

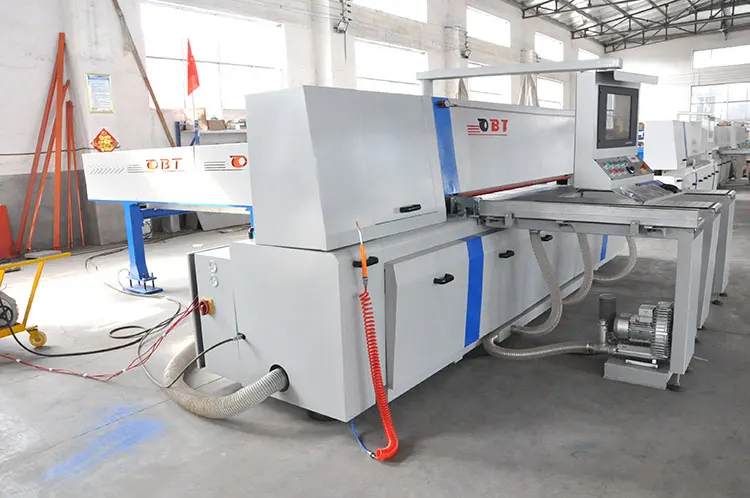

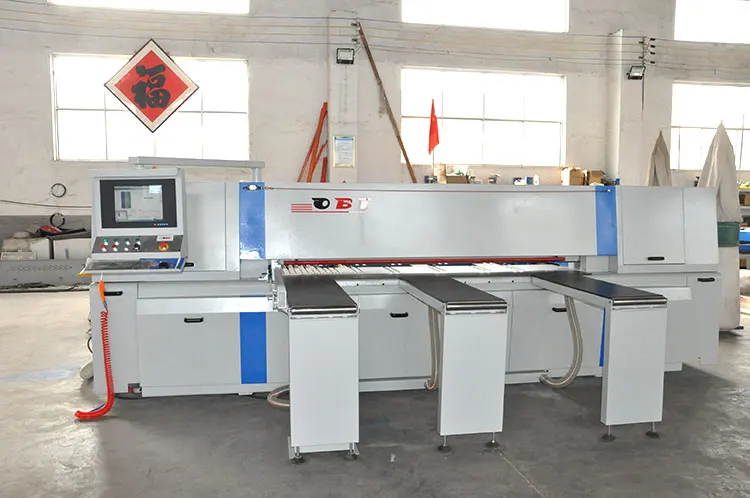

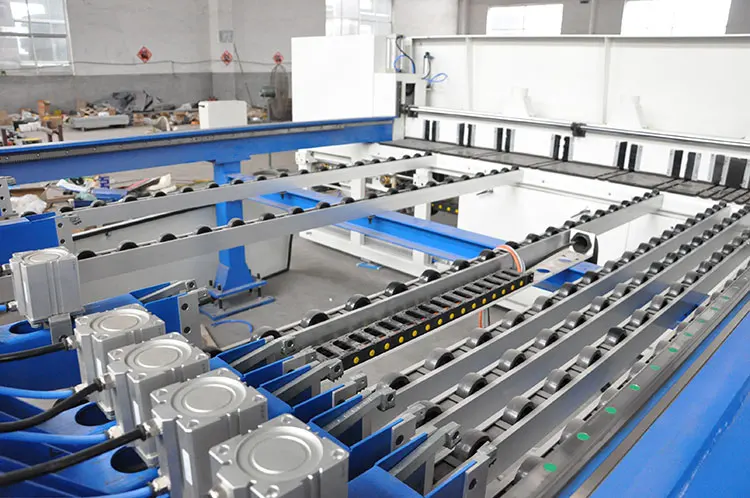

Picture and specifications
| Model | OBT330B |
| Max.cutting length | 2680mm |
| Max.cutting width | 2680mm |
| Max.height of blade | 90mm Intellingent lifting |
| Main saw blade | 400x4.4x75x72T |
| Scoring saw blade | 160x4.4/5.4x45x24T |
| Forward speed of saw carriage | 5-80m/min |
| Backward speed of saw carriage | (can reach)80m/min |
| Forward speed of PRF program fence | 0-80m/min |
| Backward speed of PRF program fence | (can reach)80m/min |
| Motor power of main saw shaft | 15kw |
| Motor power of scoring saw shaft | 2.2kw |
| Voltage | 380V/50Hz |
| Working table's height | 920mm |
| Number of PRF program fence | 7pcs |
| Air floating table | 3pcs |

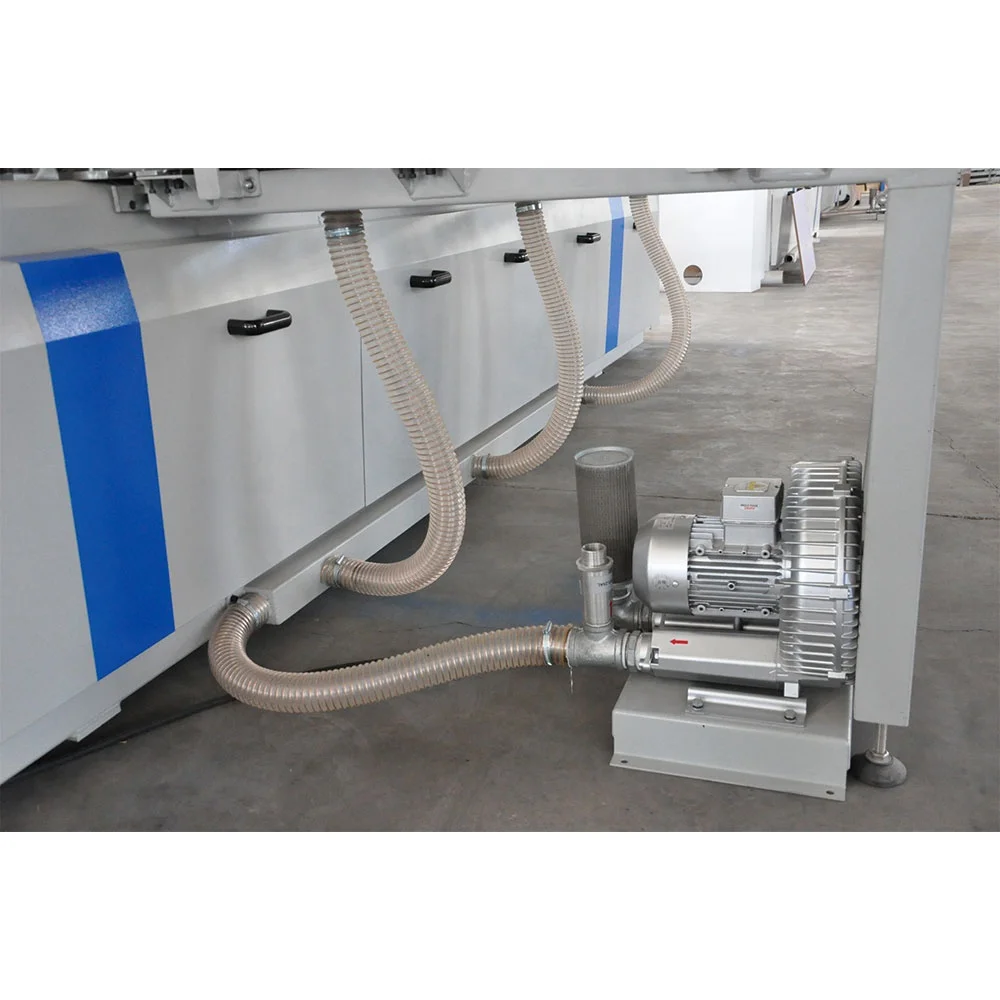

| High pressure blower of air floating table | 2.2kw |
| Air compression | 6bar |
| Air capacity | 150L/min |
| Min.speed of dust collection | 26m/sec |
| Negative pressure(at least) | 1200pa |
| Input air capacity for dust collection | 4400m³ /h |
| Diameter of dust collecting holes | 125 x 2pcs/ 100 x 2pcs |
| Floor area | 5000x6000mm |
| Weight | 4500kg |

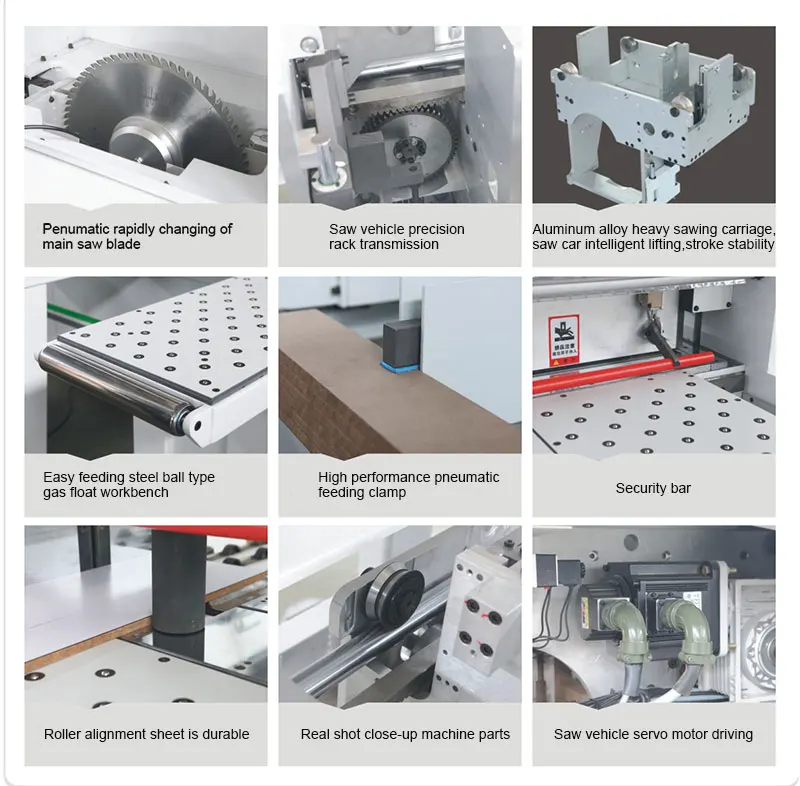

What are the characteristics of our products compared to other products?

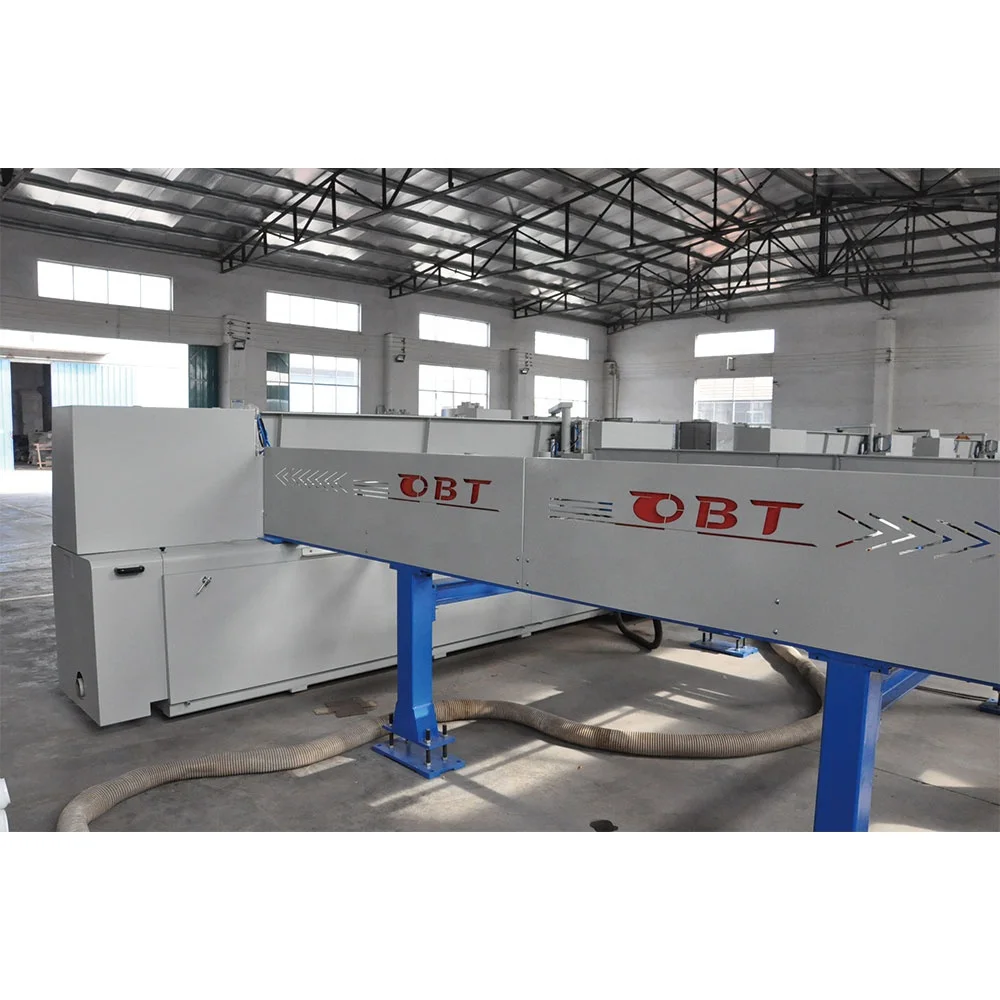

1.Adopted rear feeding panel,reduce manual feeding time.We're the one of three suppliers that capables of technology in China.
2.Compared to other suppliers,our CNC saw machine controlled by two motors,more precision and high-performance.
3.Optimization software optional,that developed for increasing the utilization rate of cutting panels.

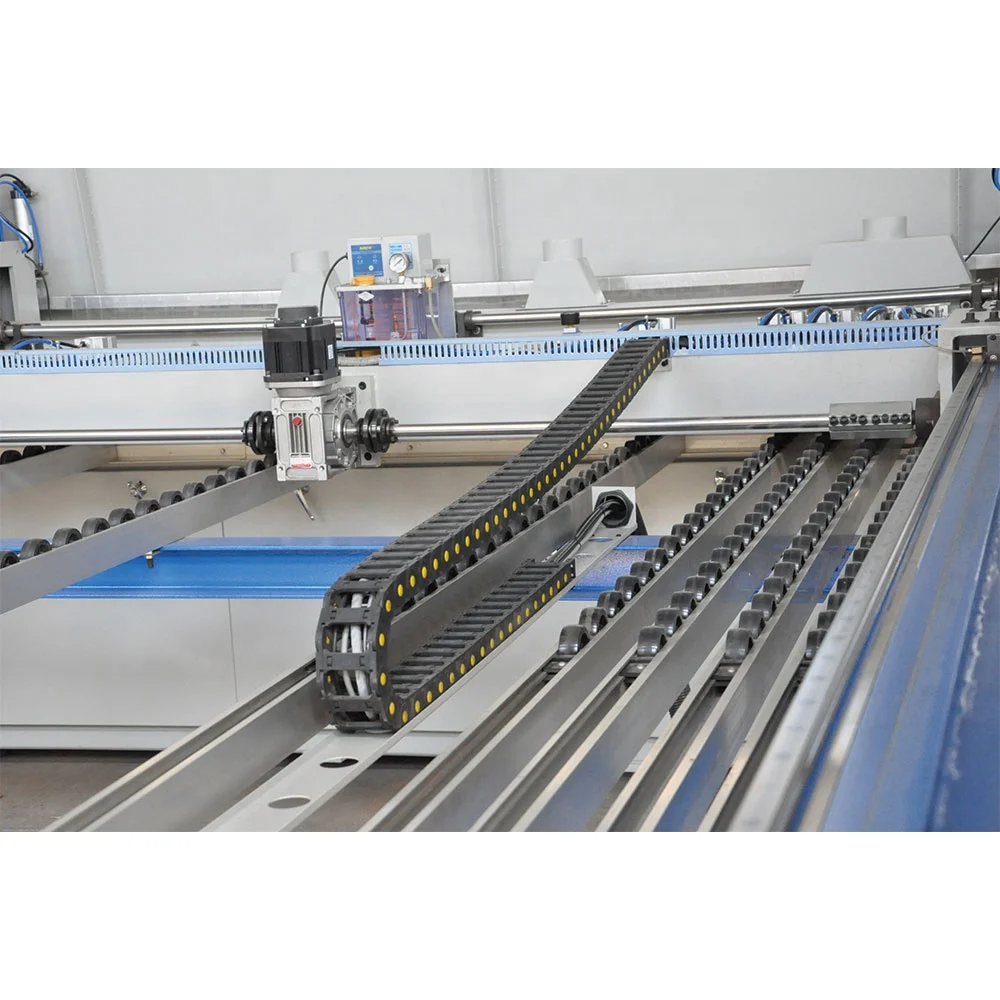

4.Adopted Servo control and rack&pinion mechanism transmission,ensure drive smooth.
5.Adjustable function to rise the work performance,through automatic control the saw track,reduce empty track,that based on sawing length.
6.Saw carrier with aluminum-titaninum alloy material,ensure anti-corrosion and light weight higher strength.
7.Saw blade assembling with air drive,more convenient and safe.
8.Automatic adjustable lift for saw blade,depends on the thickness of panel,more smart and save energy.
9.Table with chromed treatment,prevent panel scratching.

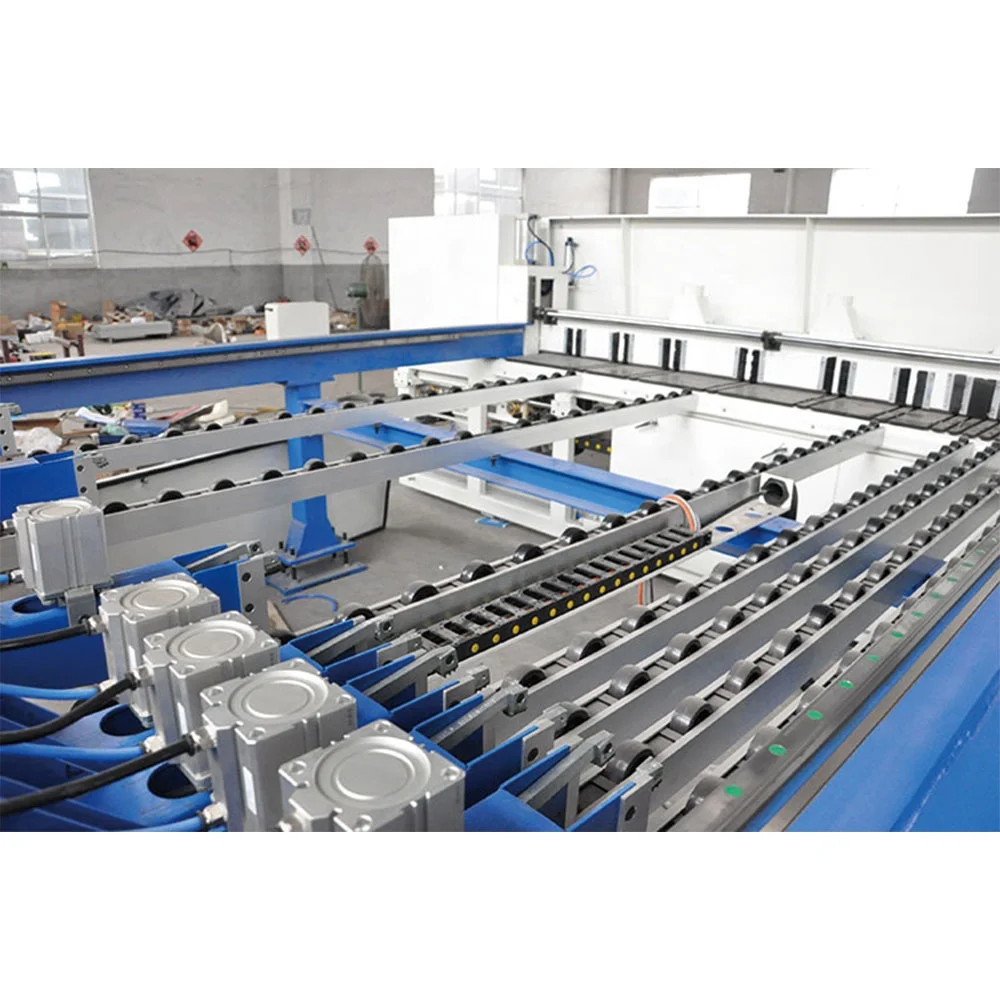

10.Do panel run smooth,set up two wheel conveyed.
Learn more detail
Application
Solid wood panels,fibreboard,particel board,MDF and other panel furniture edge. Edge of thr PVC, Polyester,melamine ,wood and so on
Our company and factory
Win the future with O.B.T:
OBT Manufacture CO., LTD is founded in 1997 in Qingdao China, as one of the leading companies in the woodworking machinery industry, O.B.T are able to offer comprehensive woodworking machinery solution for various clients, the main products include CNC saw, CNC router, edge banding machine, sliding panel saw, sanding machine, etc.
Abiding by the Corporate philosophy superior quality, reasonable price and perfect after-sales service, relying on exquisite research and manufacturing technology, we O.B.T provide the safest productions for our clients to help them develop the market.
O.B.T has got ISO9001 international system certificate and CE security certificate and supplied our best productions and service to South-east Asia, Europe, South America, Australia and Africa market successfully, and has won wide acclaim from customers.
In the future, O. B. T Group will constant adhering to the business philosophy of people-oriented, customer first, make persistent efforts to strengthen product development and take the advantage of group superiority, with the latest technology and perfect quality, we would develop the international market vigorously to provide a one-stop comprehensive solution to our client.
Our certificate
Our customer
What kind of service can we provide you?
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
We are alibaba gold supplier,we joined alibaba assurance to make sure the buyer's benefit.Don't worry about any problems.
At last ,Kindly Call or Email us today to discuss what can we do for you ! TKS~~
