iBeehive easy installation ISO certificated flatpack container house prefab for sale
- Category: >>>
- Supplier: Ibeehive Technology Co. Ltd.
Share on (62124007953):
Product Overview
Description

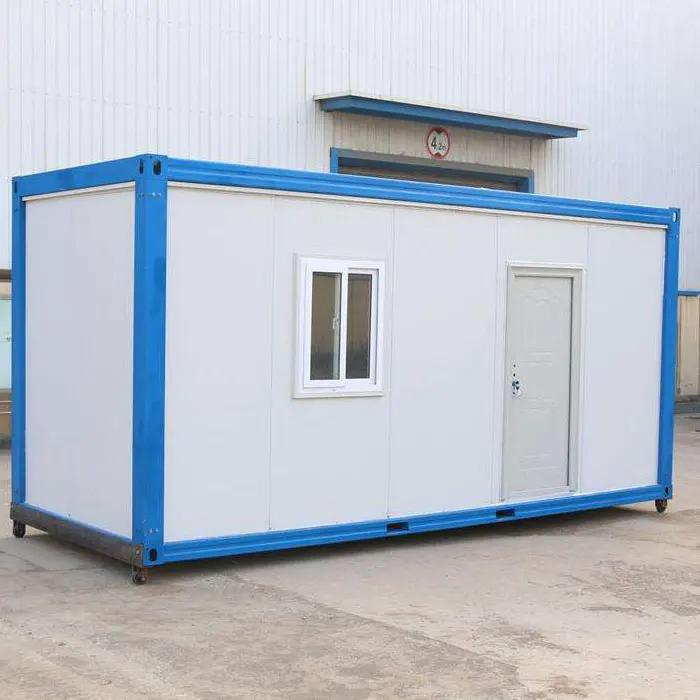

\t\t\t\t\t\t\t\t\tProduct Display \t\t\t\t\t\t\t

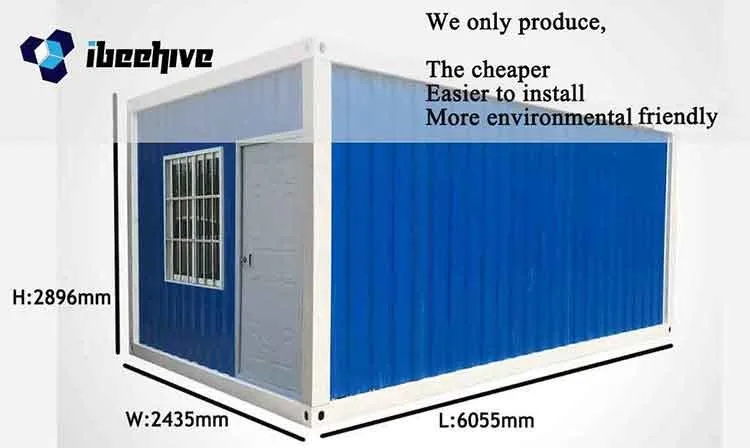

Type | External | Internal | Weight | ||||||||
Length | Width | Height | Length | Width | Height | 1650kg | |||||
20' | 6055mm | 2435mm | 2896mm | 5845mm | 2225mm | 2610mm | |||||
Advantage & Service
Advantage:
Have finished about 900 cases.
Get Certificated by ISQ,CE, JIS.
Container House easily to Install and moving.

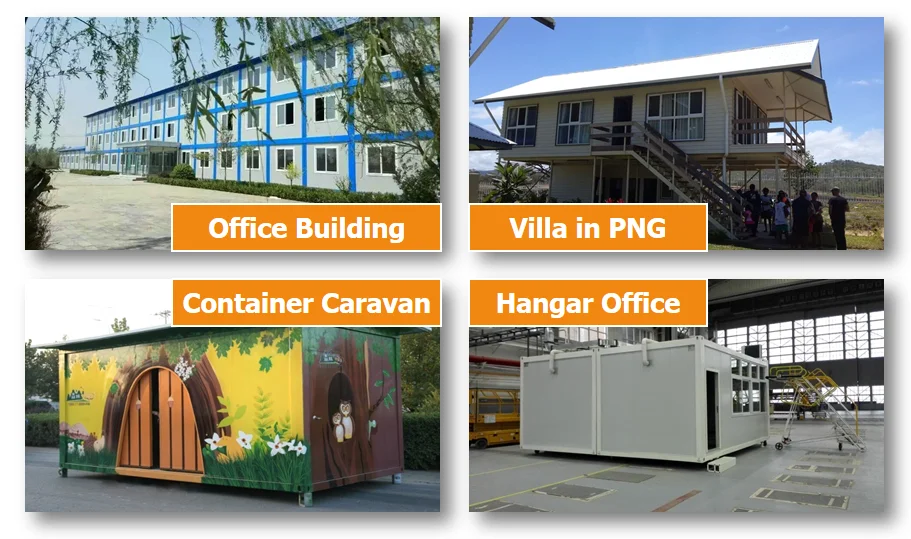

Function Widely in afferent area, like,Hotel,House,Office,Warehouse,Street Corner Shop,Washroom.
Container House can be used for 15 years.\t
All Strong Structure parts are galvanized, lifetime more than 30 years. Can be stacked up to 3 floors.

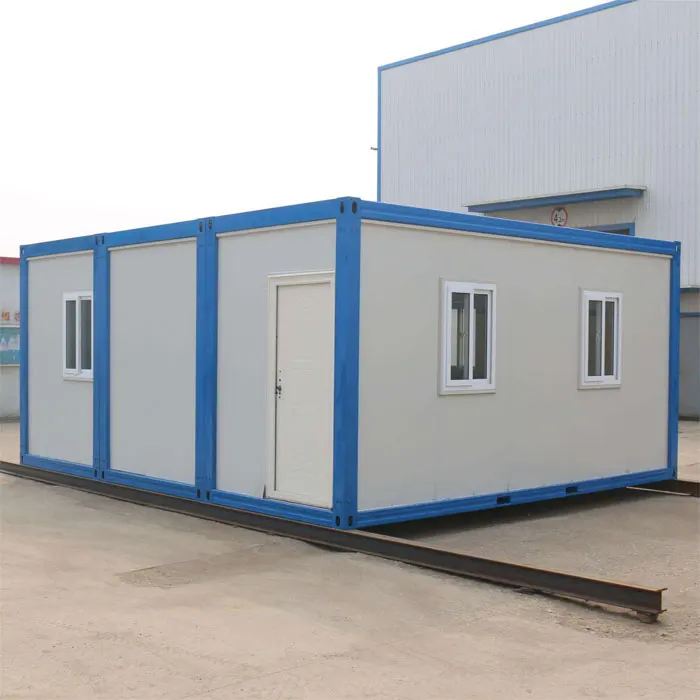

Modular Design, they are able to stack each other and fixed through high tensile screws.
Factory Quick Respond, modular design minimized and standardized part. That makes quick combination and respond possible.
Minimized Site Work, the assembly only requests simple tools. That helps to save equipment cost and labor cost. No cast-in-situ concrete slab is needed. The original floor such as turf will not be damaged.
Service:
Professional installation team and site engineers for foreign countries.
Final inspection before loading in random checking
Delivery on time.
\t\t\t\t\t\t\t\t\tProject case \t\t\t\t\t\t\t
Aruba Private School.
This project us located in Aruba. Using our modular house as a private school. It is consist of 64 units of 20ft flatpack container house, combined as 16 classroom. Aruba was the colony of Netherlands before, so the electrical system need to meet the standard of Netherlands. Give the short time ans the urgent needs of the end customer, we tried our best to provide enough and good quality container house. Just using two weeks, a 960 sqm private school was built.
Cinema in Indonesia.
This project is located in Jakarta downtown district, capital of Indonesia. The whole building is consist of 36 container house units, with steel structure. A large area of french window in the facade, makes the whole building looks more luxury and full of a sense of transparency.
Container Village.
Located in Beijing countryside, this project is made up of more than 40 container houses. Surrounded by mountains, this hotel project combined container house culture with the natural fresh air and pleasant scenery.
Residential Project in Papua New Guinea.
This project is designed and produced according to the local weather, landscape and living habits. The first floor is the overhead structure, the two floor is three bedroom, with a double slope roof on the top.
\t\t\t\t\t\t\t\t\tProduct Details \t\t\t\t\t\t\t
FOR FLOOR
Steel frame | - made from cold rolled, welded steel profiles, 4 mm thick |
- 4 corner casts, welded | |
- 2 fork lift pockets (except 30') - distance 1200mm | |
(internal clearance of fork lift pockets: 240×80 mm) | |
- steel cross members, thickness=2mm | |
Insulation | - 100 mm thick Rock Wool |
Subfloor | - 0.5mm thick, galvanized steel sheet |
Floor | - 18mm plywood board |
1.8mm PVC floor | |
flammability class B1 - hardly combustible | |
smoke density class Q1 - low smoke emission | |
wear resistance factor: T level |
FOR ROOF
Steel frame | - made from cold rolled, welded steel profiles, 3mm thick |
- 4 corner casts, welded | |
- steel cross members, thickness=2mm | |
Roof cover | - 0.5mm thick, galvanized steel sheet |
- 360 degree seaming at joint of roof panels | |
Insulation | - 100 mm thick Rock Wool |
Ceiling | - 10 mm chipboard (V 20), laminated on both sides, white |
- the chipboard complies with the emission value E1 | |
CEE connector | - sunken in frame on short end side |
Size for Steel Door:840*2035mm
Window Sizes:
1:800*1100mm
2:1110*1100mm
3:1500*1100mm
Accessories of interior
How to install
OUR CLIENTS
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q: How do you guarantee the quality of the products?
A:Strict product quality control,Each product from our factory has strict testing procedures, Final inspection before loading in random checking, the calculation sheet will be offer if you need.
Q: How can I get the quotation of the project ?
A:If you have drawing ,we can offer you our quotation according to your drawing .
If you have no design , Our engineer will design some drawings for you to confirm. And then offer you a quotation.
