XZS series Standard laboratory stainless steel test sieve with CE and ISO
- Category: >>>
- Supplier: Minhua Pharmaceutical Machinery Co. Limited
Share on (62124031387):
Product Overview
Description
Product Description
Product Description
Vibrating Screen XZS Series
———Descriptions———
XZS series lamination screening is applied for continuous screening of powder and inhomogeneous granulates in such trades as pharmaceutical, chemical and foodstuff etc.
This machine is comprised of hopper ,vibrating chamber, coupling and motor etc,. where the vibrating chamber is composed by eccentric wheel, rubber part, spindle and bearing etc. when eccentric weight is conveyed to the centerline of spindle through motor driving ,it generates centrifugal force under unbalanced state ,by which, material is forced to form regular eddy inside, and the amplitude of the weight adjuster can be regulated according to different material and screens .the whole machine features compact structure, low volume, no dust flying, low noise, high output, low energy consumption and convenient move and maintenance.
———Technical Parameters———
Model | Production capacity | Mesh size | Diameter | layers | Power | Overall size | Net weight |
XZS-400-1S XZS-400-2S XZS-400-3S |
200 kg/hour |
3 - 200 mesh |
350 mm | 1 2 3 |
0.18 KW | 580x580x560 mm 580x580x670 mm 580x580x780 mm | 62 kg 77 kg 92 kg |
XZS-600-1S XZS-600-2S XZS-600-3S |
510 kg/hour |
3 – 200 mesh |
550 mm | 1 2 3 |
0.25 KW | 800x800x750 mm 800x800x890 mm 800x800x1030 mm | 90 kg 115 kg 140 kg |
XZS-800-1S XZS-800-2S XZS-800-3S |
800 kg/hour |
3 – 200 mesh |
750 mm | 1 2 3 |
0.55 KW | 900x900x750 mm 900x900x890 mm 900x900x1030 mm | 180 kg 220 kg 260 kg |
XZS-1000-1S XZS-1000-2S XZS-1000-3S |
1100 kg/hour |
3 – 120 mesh |
920 mm | 1 2 3 |
0.75 KW | 1160x1160x810 mm 1160x1160x950 mm 1160x1160x1090 mm | 240 kg 290 kg 340 kg |
XZS-1200-1S XZS-1200-2S XZS-1200-3S |
1400 kg/hour |
3 – 120 mesh |
1120 mm | 1 2 3 |
1.1 KW | 1360x1360x885 mm 1360x1360x1050 mm 1360x1360x1275 mm | 280 kg 340 kg 400 kg |
XZS-1500-1S XZS-1500-2S XZS-1500-3S |
1900 kg/hour |
3 – 120 mesh |
1420 mm | 1 2 3 |
1.5 KW | 1850x1850x990 mm 1850x1850x1185 mm 1850x1850x1380 mm | 420 kg 540 kg 680 kg |
XZS-1800-1S XZS-1800-2S XZS-1800-3S |
2300 kg/hour |
3 – 120 mesh |
1720 mm | 1 2 3 |
2.2 KW | 2200x2200x1050 mm 2200x2200x1250 mm 2200x2200x1450 mm | 720 kg 860 kg 1000 kg |

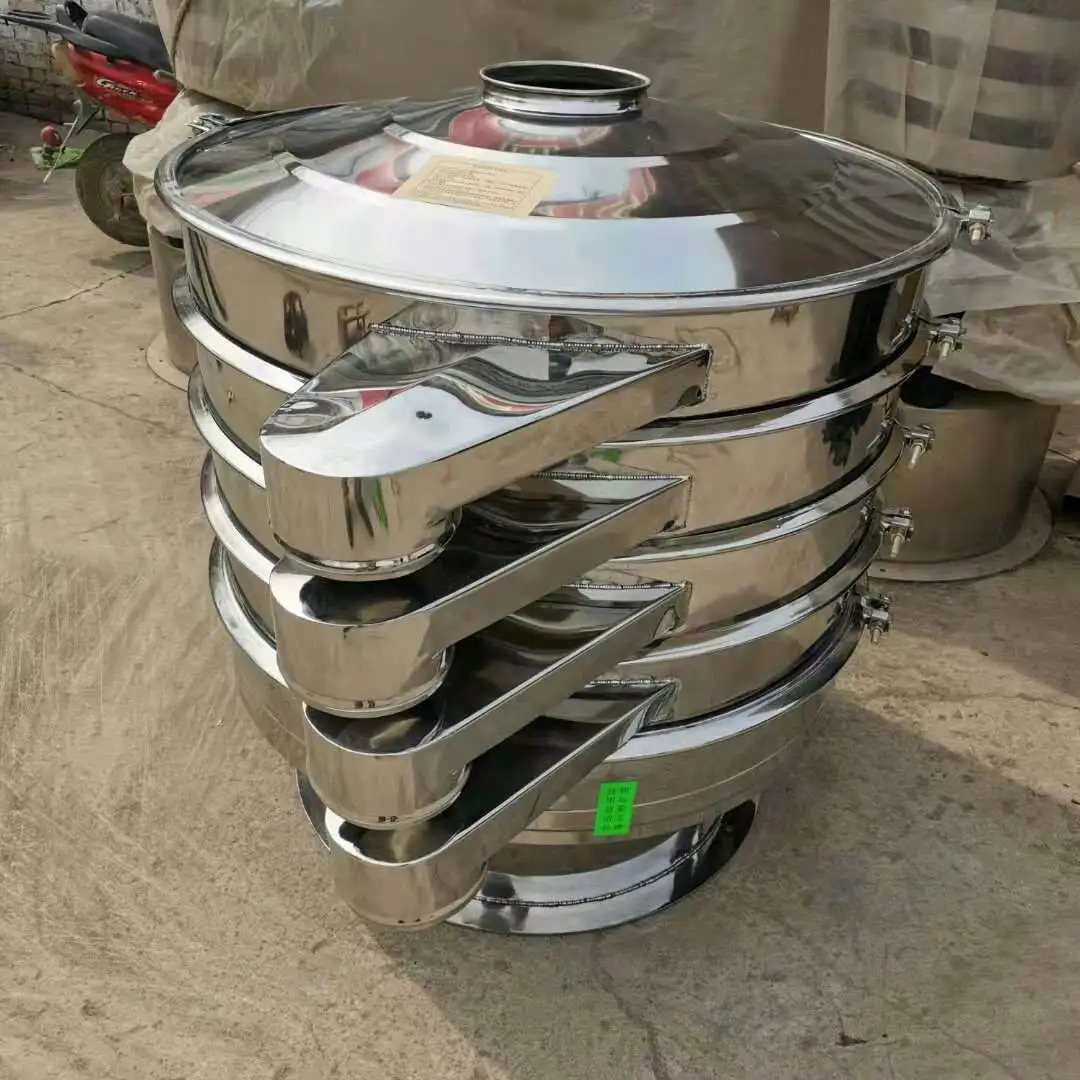

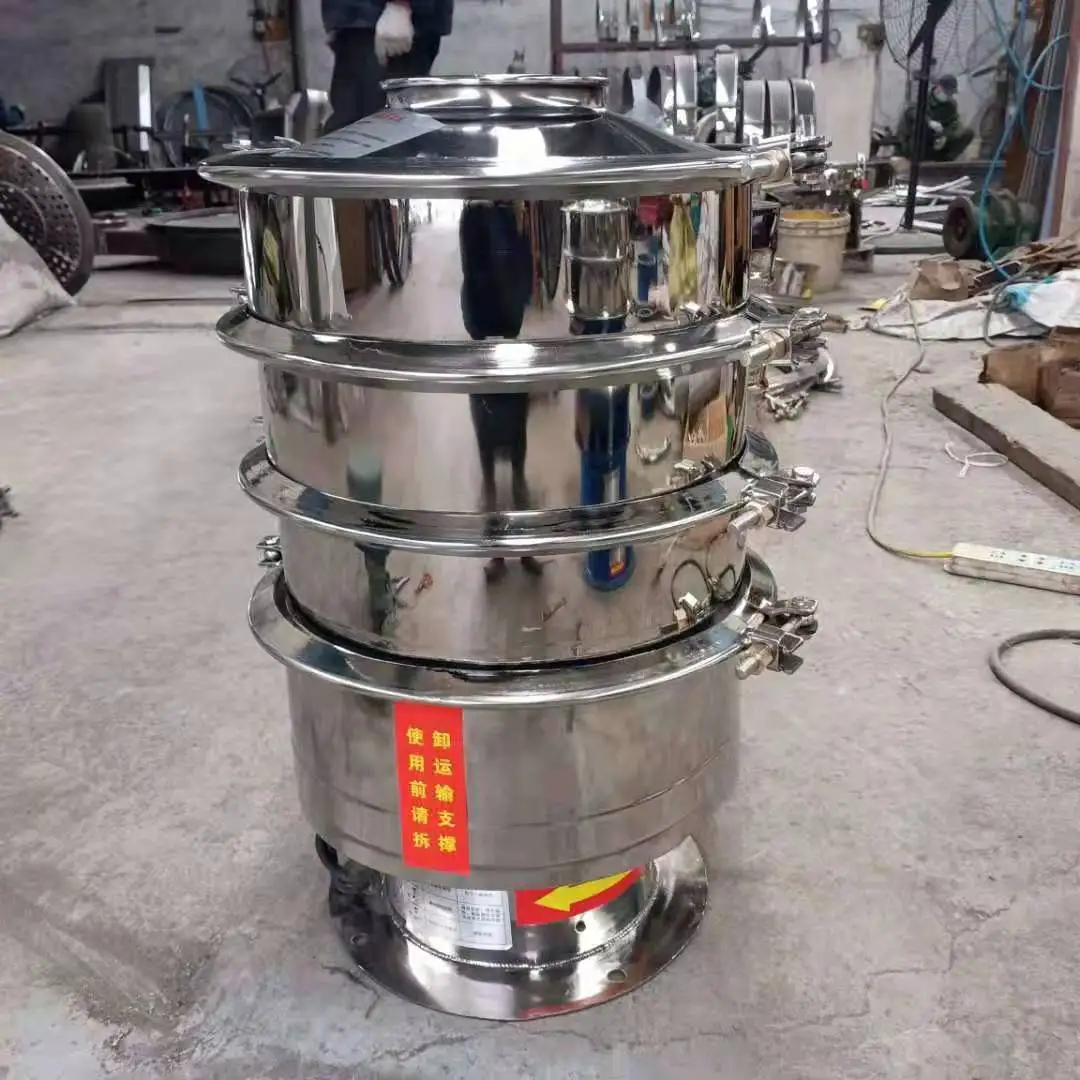

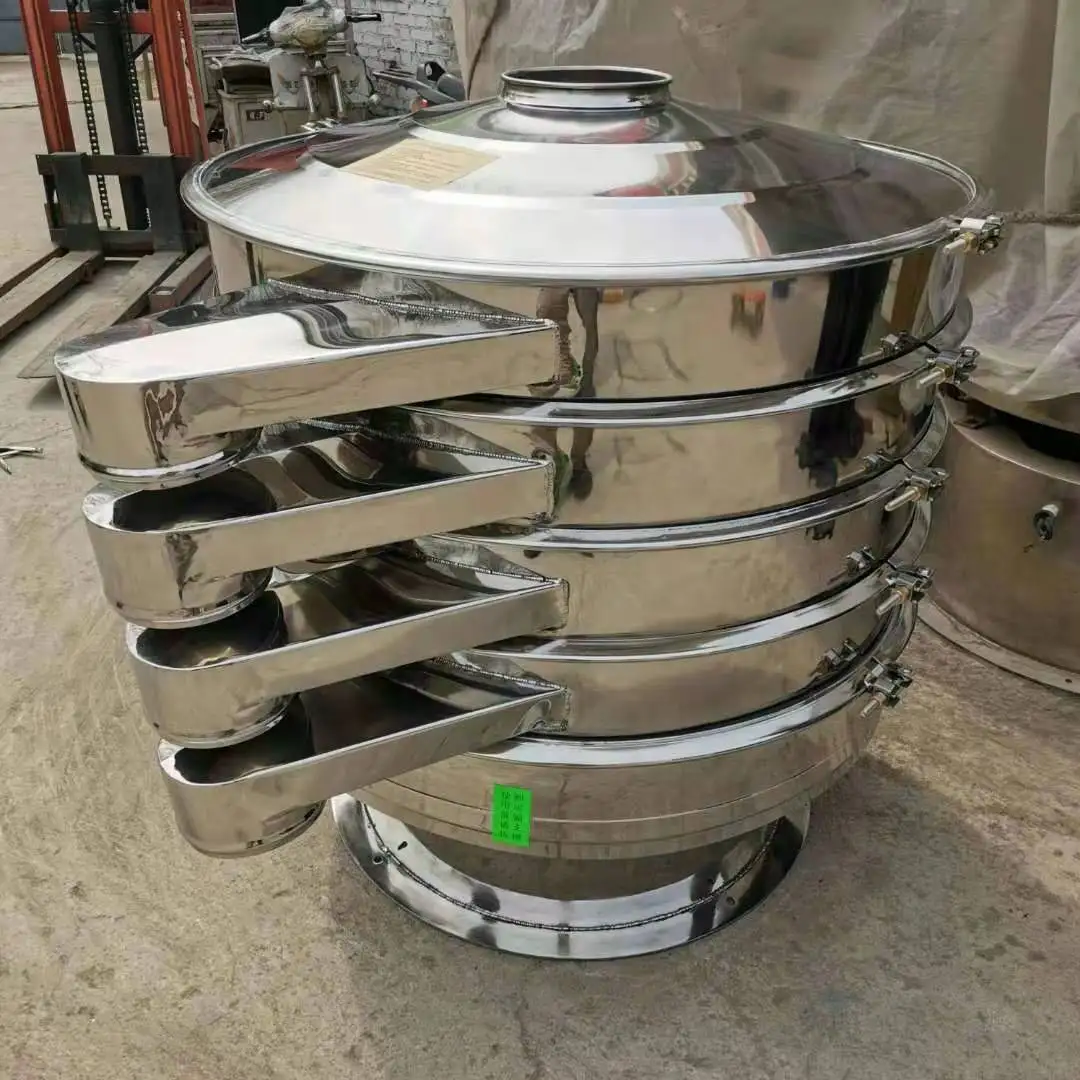

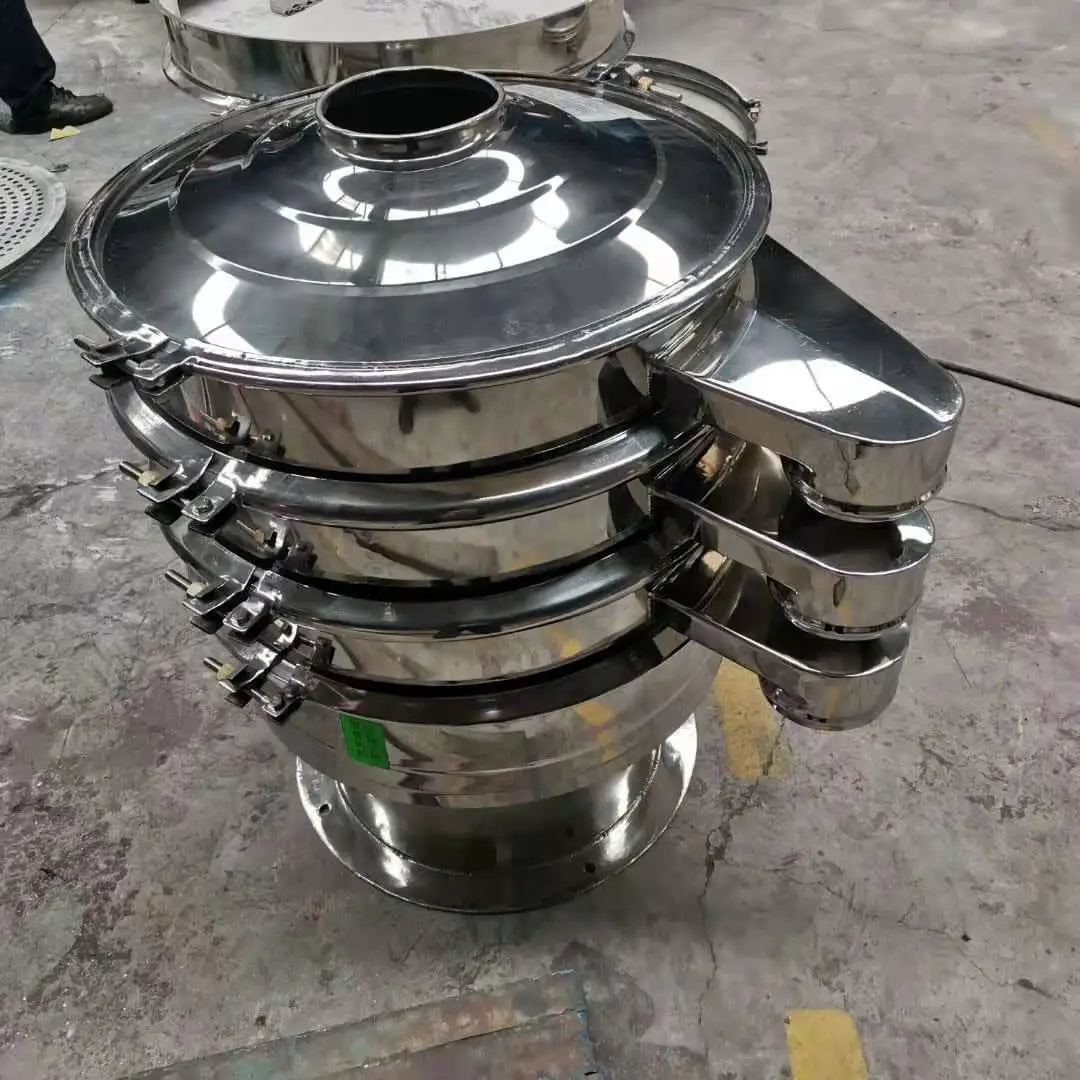

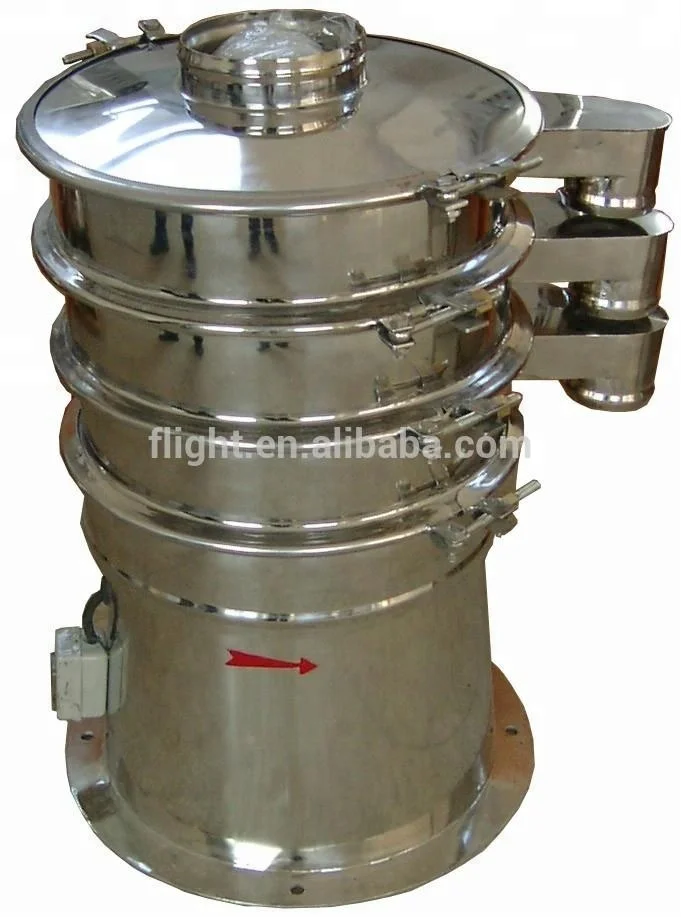

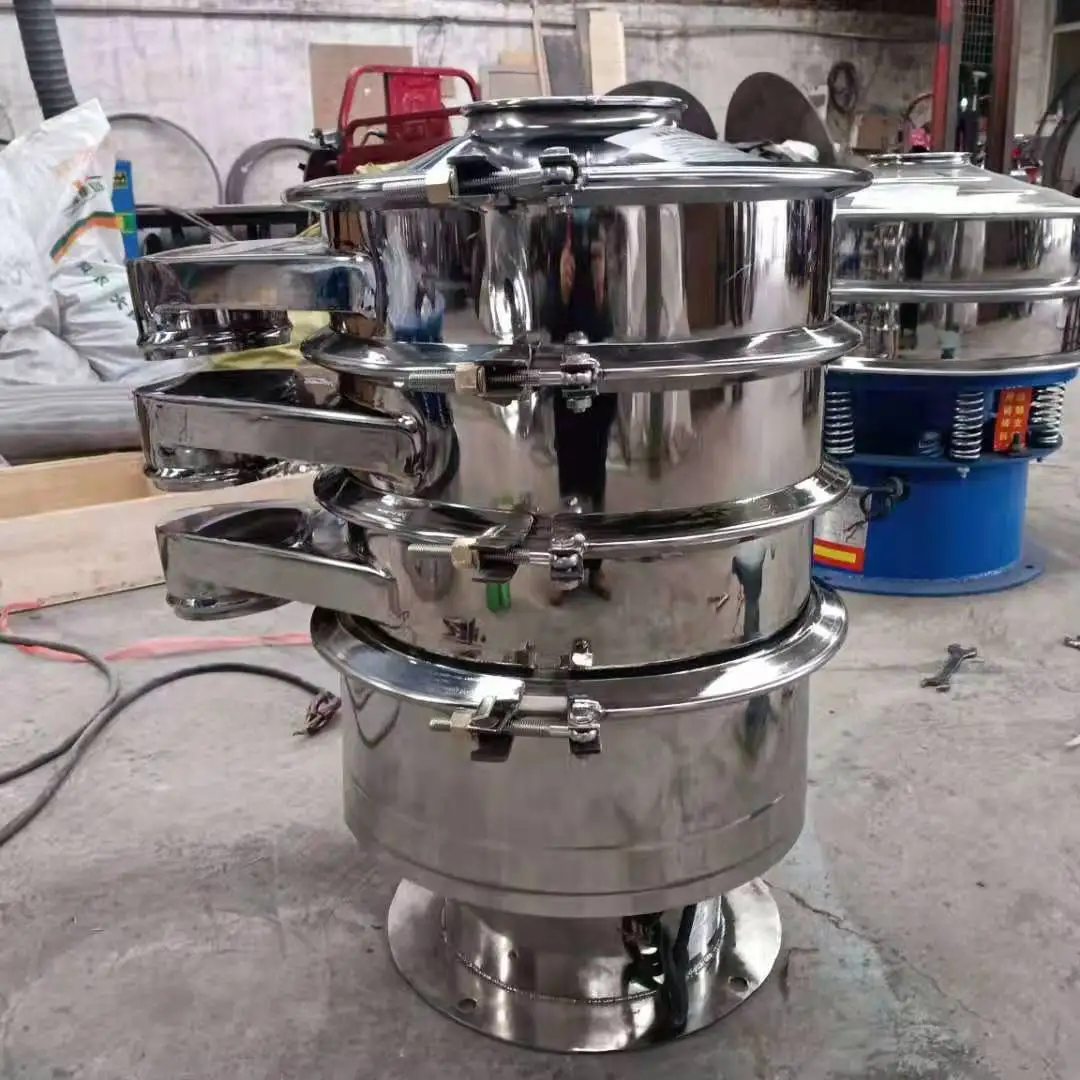

———Product image———
11111111
