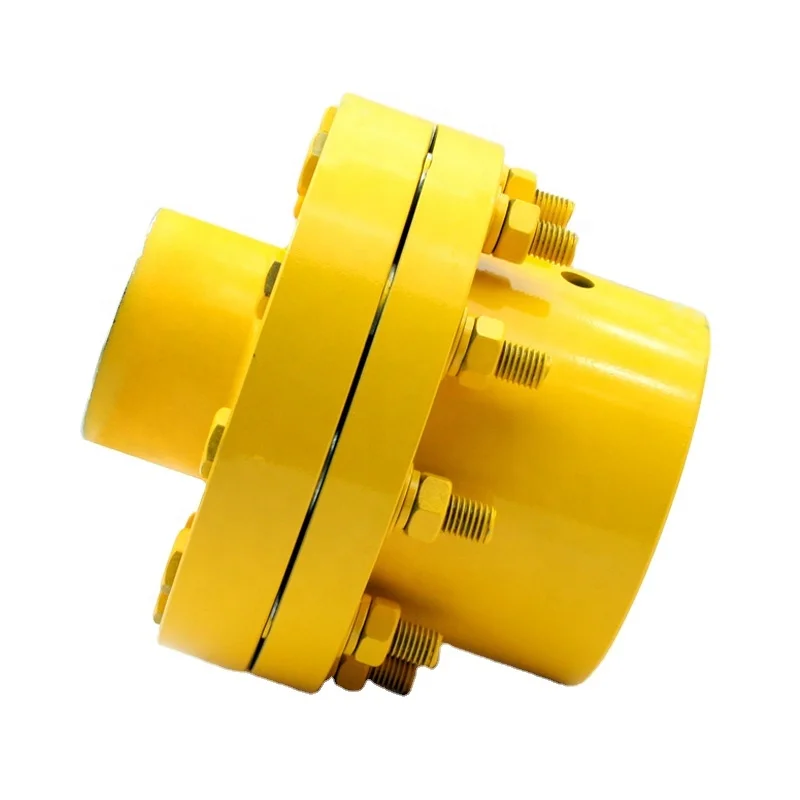

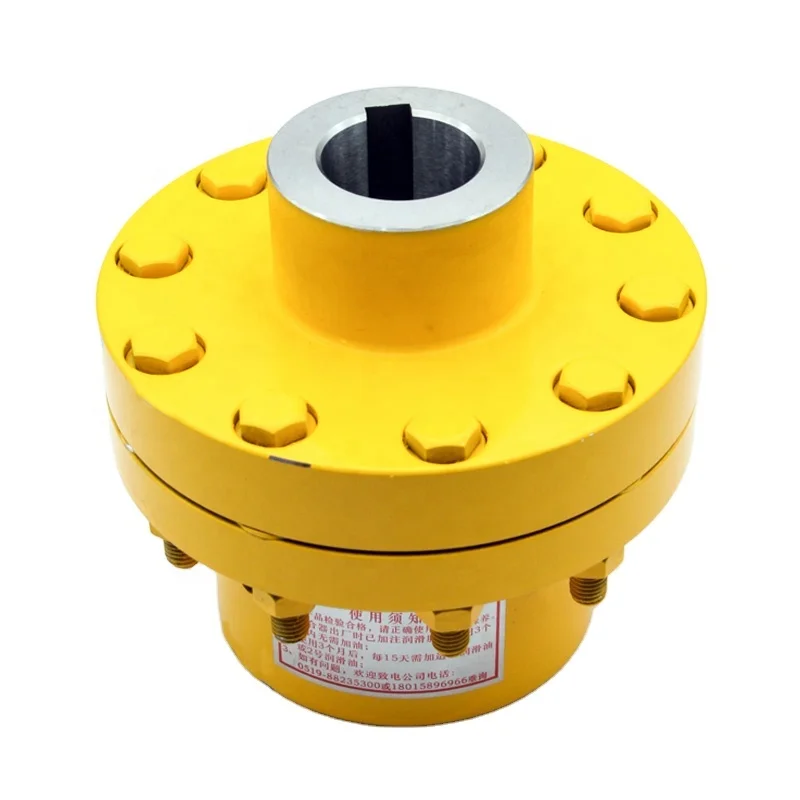

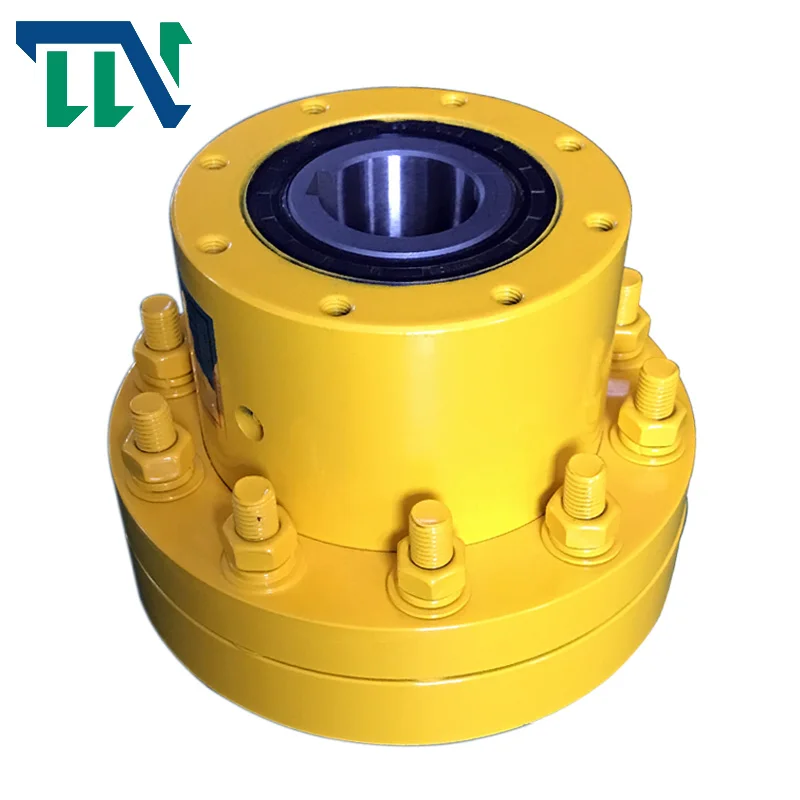

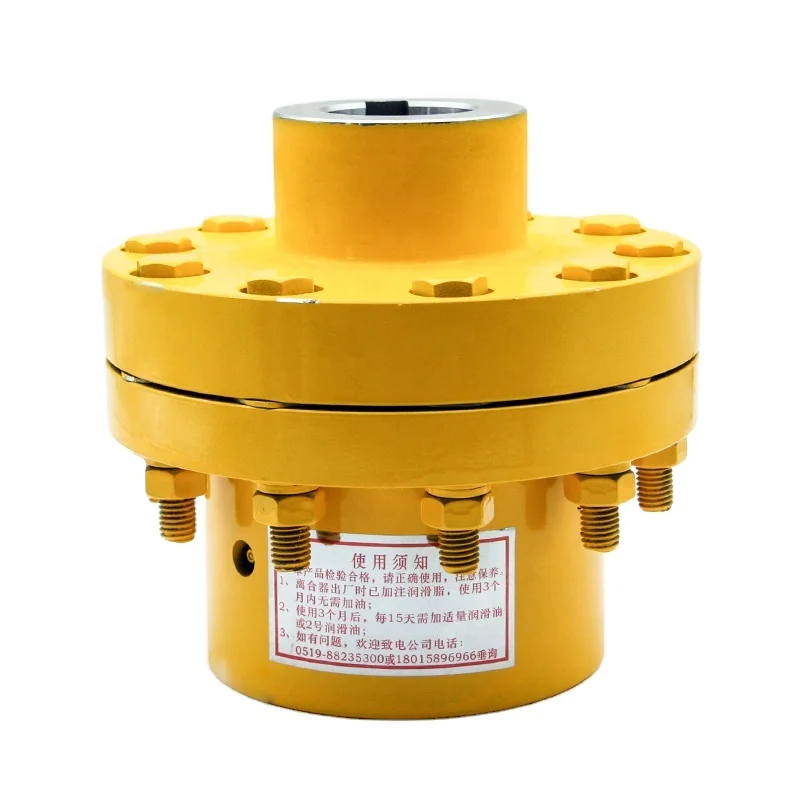

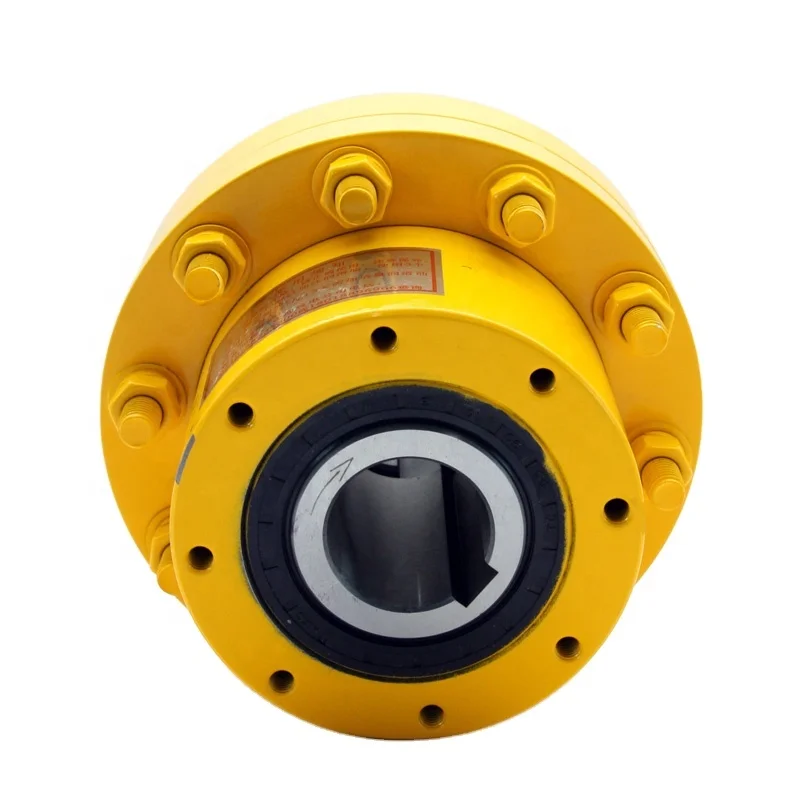

AL25 KEED2 Roller Type Cam Freewheel Clutch Bearing With Bearing supported new

AL25 KEED2 Roller Type Cam Freewheel Clutch Bearing With Bearing supported new

Category: Other Bearings >>>
Supplier: Changzhou Tianniu Transmission Equipment Co. Ltd.

Price:$200.00 - $300.00

Quantity:

Product Overview

Description

Product Description

Technical Datas

Item	AL..KEED2
Material	GCr15
Bore dia.	12-320 mm
Outer dia.	62-610 mm
Width (L₈)	90-868 mm
Torque capacity	55-250000 N.m
Weight	3-1725 kg
Package	Carton box, wooden box or as your requirements

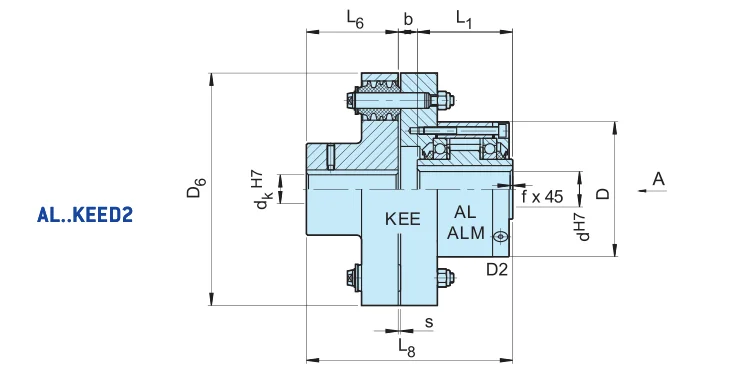

Dimensions and Capacities

Type	Size			Overrunning speed											Weight
AL..KEED2	dH7	KEE	TKN	nimax1)	namax2)	dKH7	D	L1	D6	L6	L8	b	s	f
	[mm]	KEE	[Nm]	[min-1]	[min-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]
	12	2	55	2500	6000	12…25	62	42	97	35	90	13	3	0.5	3
	15	3	122	1900	6000	16…30	68	52	112	40	110	18	3	0.8	4.4
	20	3	122	1600	5600	16…30	75	57	112	40	114.5	17.5	3	0.8	4.6
	25	4	288	1400	4500	20…40	90	60	130	50	137.5	17.5	3	1	6.4
	30	5	500	1300	4100	20…50	100	68	160	60	148	20	2	1	11
	35	6	725	1100	3800	25…65	110	74	190	75	168	19	2	1	17
	40	6	1025	950	3400	25…65	125	86	190	75	178	17	2	1.5	19
	45	6	1050	900	3200	25…65	130	86	190	75	178	17	2	1.5	19
	50	7	1750	850	2800	30…75	150	92	225	90	207	25	2.5	1.5	31
	55	8	2625	720	2650	35…90	160	104	270	100	233.5	29.5	3	2	47
	60	8	2750	680	2450	35…90	170	114	270	100	244	30	3	2	49
	70	10	5750	580	2150	45…110	190	134	340	140	312.5	38.5	3	2.5	90
	80	11	8500	480	1900	55…125	210	144	380	160	340	36	3	2.5	107
	90	12	13750	380	1700	65…140	230	158	440	180	388	50	3.5	3	170
	100	14	20000	350	1450	75…160	270	182	500	200	422.5	40.5	3.5	3	230
	120	16	30000	250	1250	85….180	310	202	560	220	471	49	4	3	330
	150	18	43750	180	980	95…200	400	246	640	250	543	47	4	4	500
	200	22	97500	120	750	125…250	520	326	880	320	700.5	54.5	4.5	5	965
	250	28	250000	100	620	160…320	610	396	1160	400	868	72	5	5	1725
ALM..KEED2	25	4	288	1100	2800	20…40	90	60	130	50	127.5	17.5	3	1	6.4
	30	5	588	1000	2500	20…50	100	68	160	60	148	20	2	1	11
	35	6	838	900	2400	25…65	110	74	190	75	168	19	2	1	17
