Taidacent Small Receiving One Transmitter to 3 Receiver Multiple Device Wireless Charging Station Li Ion Battery Charging

Product Overview

Description

Taidacent Small Receiving One-to-many Multiple Device Wireless Charging Station Chip Solution XKT801-14 Li Ion Battery Charging

The high-power XKT-801 chip developed by the company is designed to have the advantage of large output power, and the voltage is 24V.

The main parameters of this module:

Transmitting voltage	24V
Induction distance	0~30mm
Receive output	each receiving output is 5V DC voltage (can change the sampling resistance to voltage)
Transmitter module size	16mm*24mm
Transmitting coil outer diameter	200mm
Receiving coil outer diameter	23mm*0.3mm line
Drive capability	can be used for multiple receiving at the same time
Use range	0mm~60mm
Output current	5~20mA





Can supply power to the microcontroller, can directly charge tiny batteries

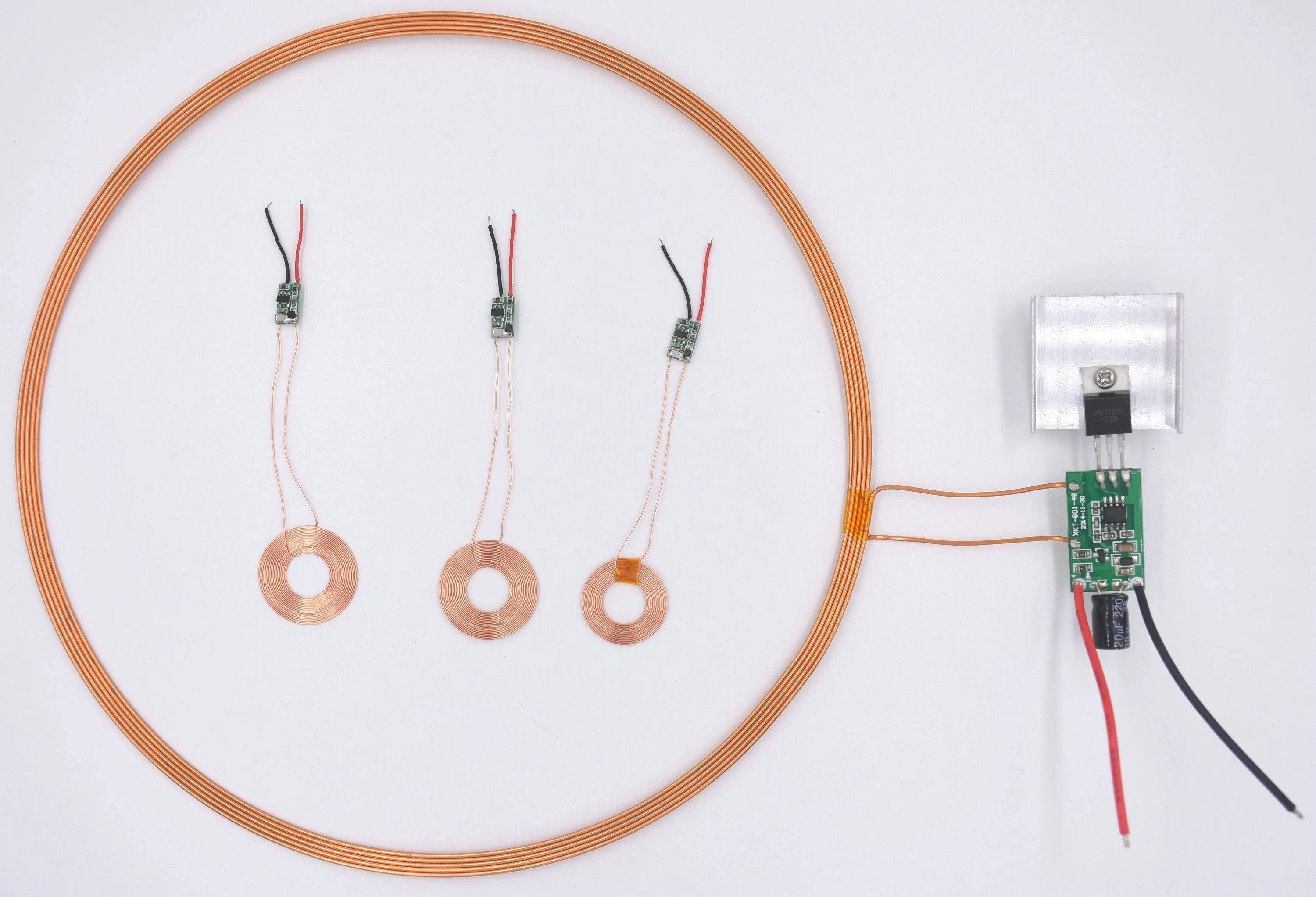

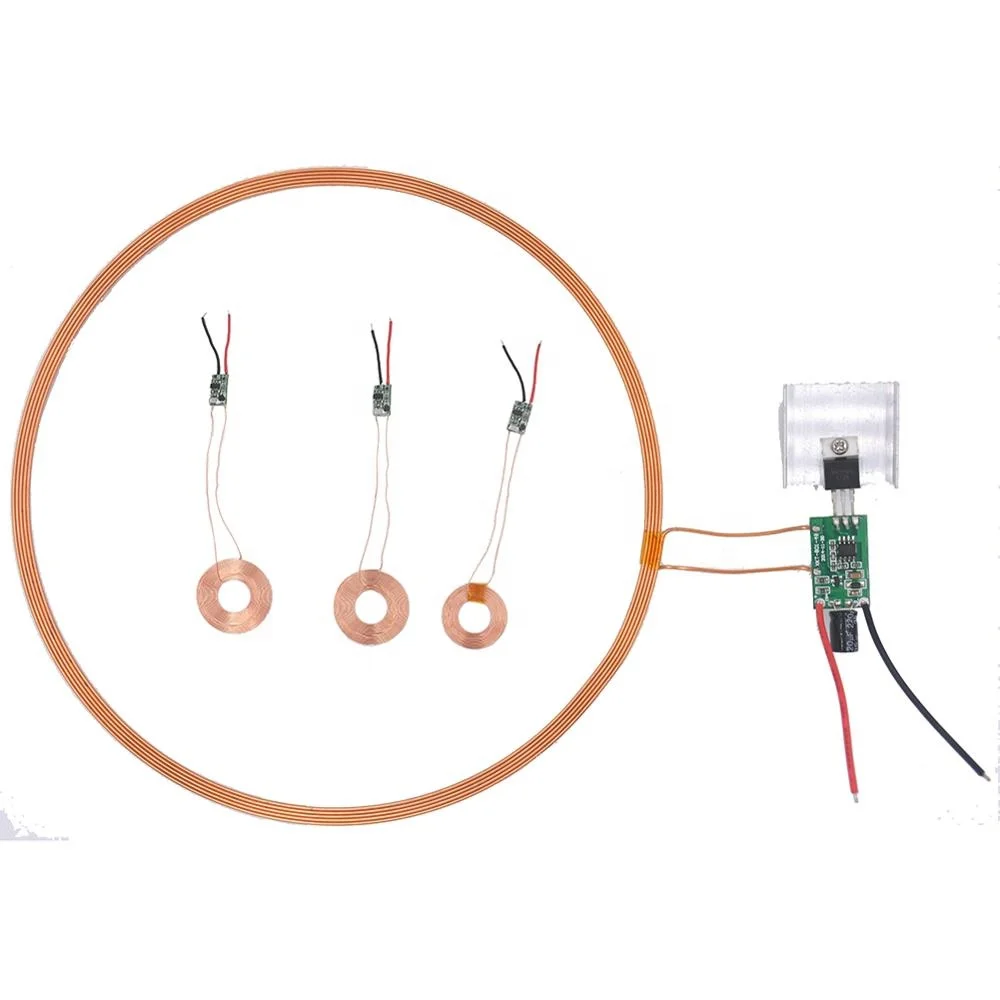

Configuration: 3 receiving with the transmitting module
