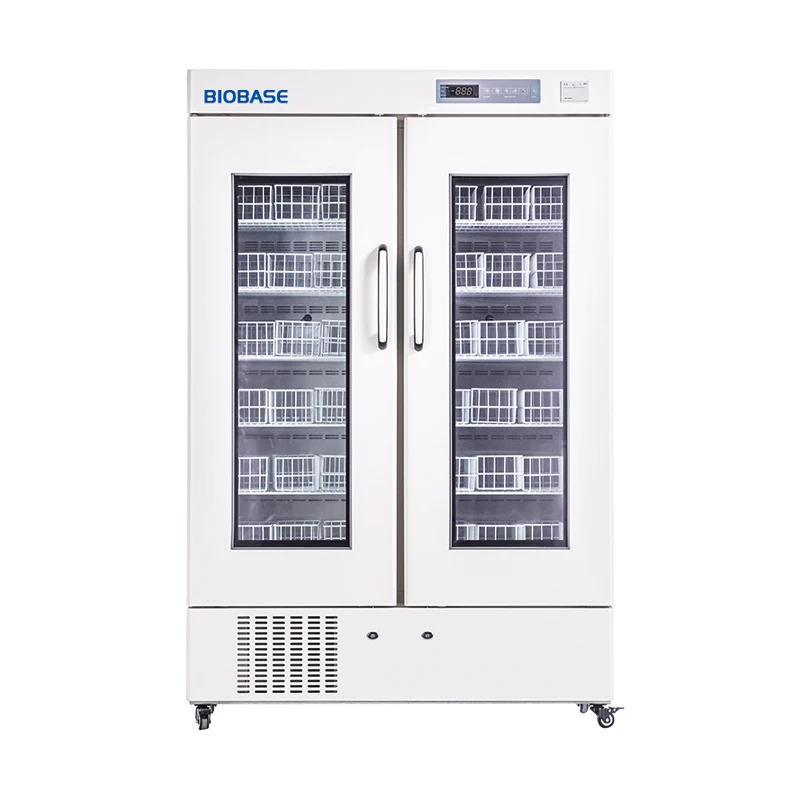

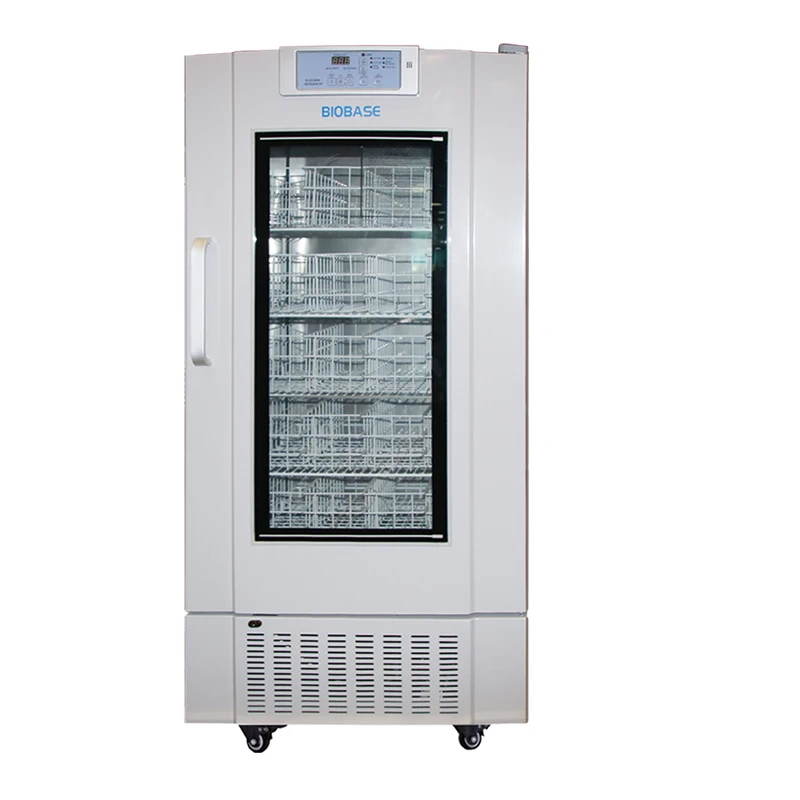

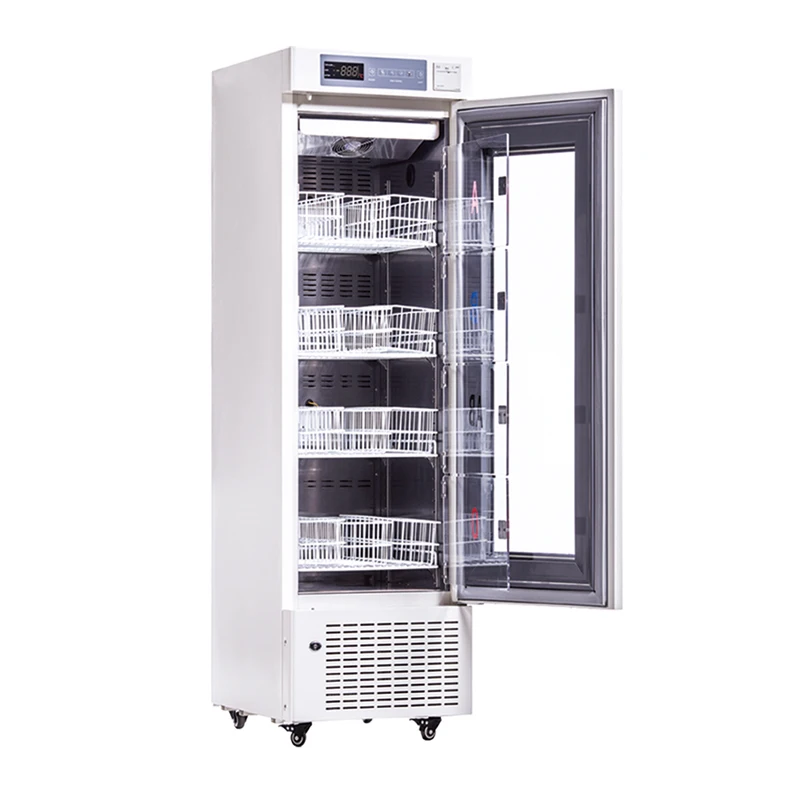

BIOBASE Blood Bags Storage Blood bank Refrigerator

Advantage:

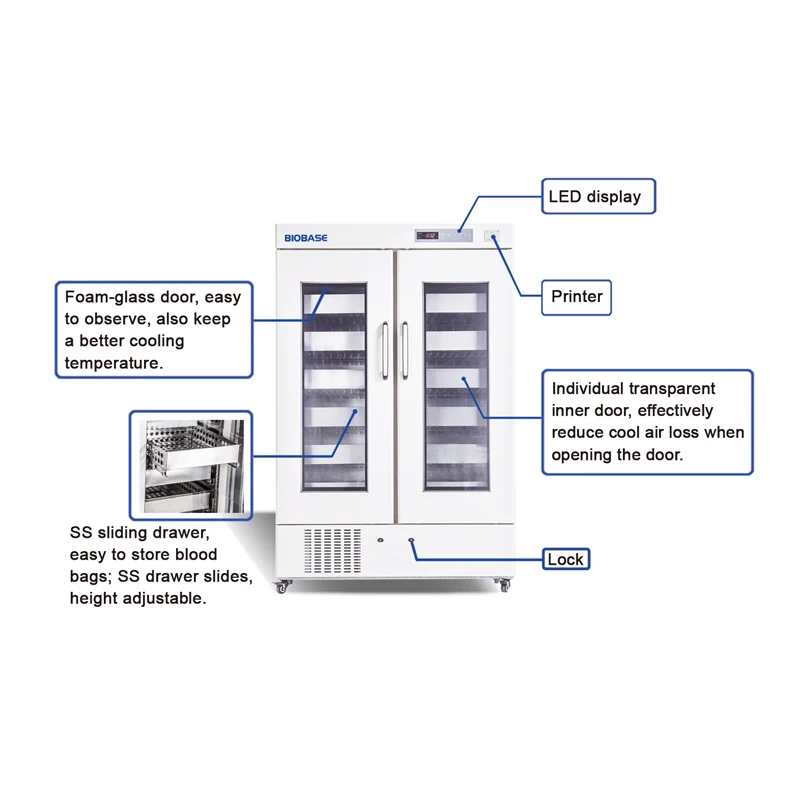

1. Multiple sensors design: make sure the precise monitoring and programming.
2. Double layer transparent glass door, easy to observe, also keep a better cooling temperature.
3. Forced air refrigeration system, ensure inner temperature constant and uniform.
4. Adjustable shelves, improve space utilization; blood storage baskets can be classified.
5. Individual transparent inner door, effectively reduce cool air loss when opening the door.
Technical Parameters:
Model | BBR-4V120 | BBR-4V160 | BBR-4V210 | BXC-V250B | BBR-4V310 | BBR-4V400 |
Capacity | 120L | 160L | 210L | 250L | 310L | 400L |
Temp. Range | 4±1℃ | |||||
Temp. Accuracy | 0.1℃ | |||||
Control System | Microprocessor control | |||||
Display | LED display | |||||
Alarm | Audio and visual alarm for: High or low temperature, Sensor & system failure; Door ajar; Power failure, Low battery alarm for BXC-V120B/160B/210B/400B Battery off alarm for BXC-V250B/310B | |||||
Refrigeration Type | Forced air refrigeration system | |||||
Refrigerant | R134a, CFC-Free | |||||
Compressor | International famous compressor | |||||
Condenser & Evaporator | High efficiency air-cooled condenser, made of copper | |||||
Defrost | Auto defrost | |||||
Construction | Unibody Design, Mono-assembly foaming (Rigid polyurethane insulation material) | |||||
Internal Material | Stainless steel | |||||
External Material | Cold-rolled steel with anti-bacteria powder coating | |||||
Door | Double layer transparent glass door with lock, Heating film preventing frosting, Sealing joint strip with magnetic force. Transparent plastic inner door | |||||
Consumption | 160W | 280W | 200W | 380W | 380W | 430W |
Power Supply | AC110V/220V ±10%, 50/60Hz | AC220V±10%, 50/60Hz | AC110V/220V±10%, 50/60Hz | AC220V ±10%, 50Hz | ||
Casters | 4 casters | |||||
Adjustable Shelves | 2 pcs | 4 pcs | 4 pcs | 4 pcs | 5 pcs | 5 pcs |
Baskets | 6 pcs | 12 pcs | 12 pcs | 12 pcs | 15 pcs | 20 pcs |
Blood Bags (450ml) | 66pcs | 80pcs | 132 pcs | 156 pcs | 195 pcs | 260 pcs |
Standard Accessory | Temperature printer, fluorescent lamp, door key | Temperature printer, LED lamp, probe access port, door key | Fluorescent lamp, probe access port, door key | |||
Optional Accessory | Temperature recorder | / | Temperature recorder, Remote alarm | / | ||
External Size (W*D*H)mm | 522*600*1050 | 600*620*1600 | 522*600*1550 | 630*666*1657 | 630*666* 1886 | 750*761* 1799 |
Package Size (W*D*H)mm | 640*740*1270 | 700*660*1755 | 580*660*1775 | 760*755*1870 | 760*755* 2100 | 854*852* 1985 |
Gross Weight | 95kg | 113kg | 120kg | 145kg | 167kg | 192kg |
Super september
Carbon box or Plywood box for choice
Available for sea shiping, air shipping, land shipping and express shipping.


Founded in 1999, having over 2000 employees (till August, 2017), BIOBASE Group is a new high-tech enterprise focusing on development, production and management of scientific equipment, In Vitro Diagnosis (IVD) instrument and reagent.
BIOBASE Group is specialized in products of 8 areas including medical diagnosis, biosafety protection, disinfection and sterilization, water purification system, infant care products, cold chain products, software products, clean room project.
BIOBASE Group has set up branch offices in 24 provinces in China, and has also set up warehouses in the United States, India, Jordan. We now have long-term business partners in more than 190 countries.

Our service for you
For maximum reliability and a long-term operational availability
Whether you need prompt assistance over the telephone, replacement of a particular component, an inspection or maintenance, our service teams act quickly and provide you with first-class support, at any location. We always endeavour to keep your total cost of ownership as low as possible.
After-sale service:
Product warrange 12 months from shipping date. We have professional sales team and after sales team to servce you.
During warranty the new parts will be offered free of charge for replacement. Online guide and on site installation and training is available on your request.
The photo is showing our after sales team guys service record to customer.
Biobase attend more than 10 worldwide exhibitions every year.
Clinical Analytical equipment: Chemistry reagent, Elisa reagent, Rapid test, Semi/Auto Biochemistry analyzer, Elisa microplate reader/washer, Auto ELISA Processor, Hematology analyzer, Urine analyzer, Electrolyte analyzer, etc.
Medical Lab Instruments: Autoclave, Centrifuge, Incubator, Mixer, PH meter, Shaker, Pump, Water bath, etc.

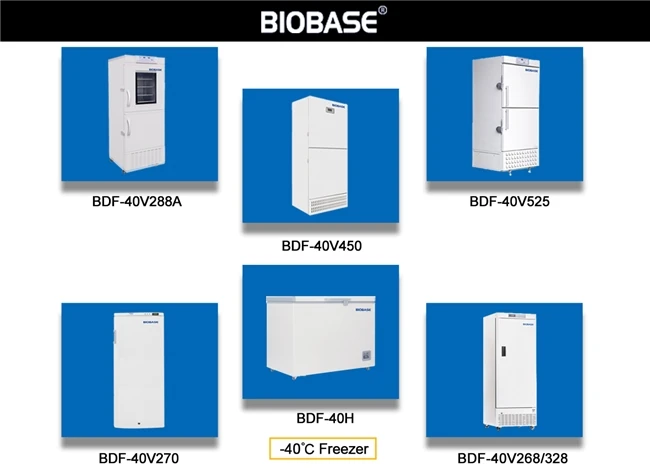

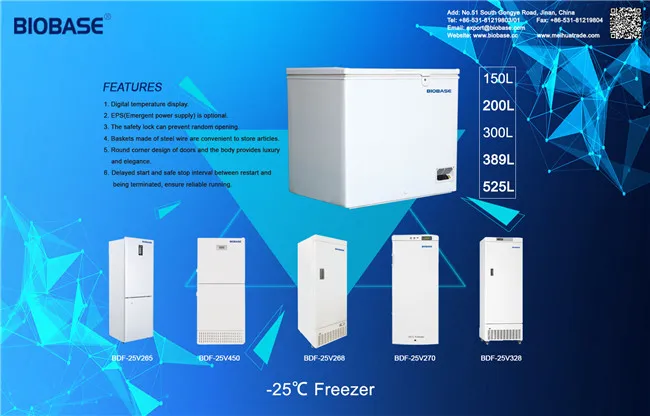

Cold Chain Products: Freezer, Freezer dryer, Platelet Incubator, Car/Portable Refrigerator, Ice maker, etc.
Air Protection Products: Biological Safty Cabinet, Laminar Flow Cabinet, Fume hood, Clean booth, etc.








Service for Health, for Future.
