Food Order Self Service Kiosks Self Order Software Pos Payment

Share on (62124343288):


Price:

Quantity:


Product Overview

Description



Hot Sales






















Product Description

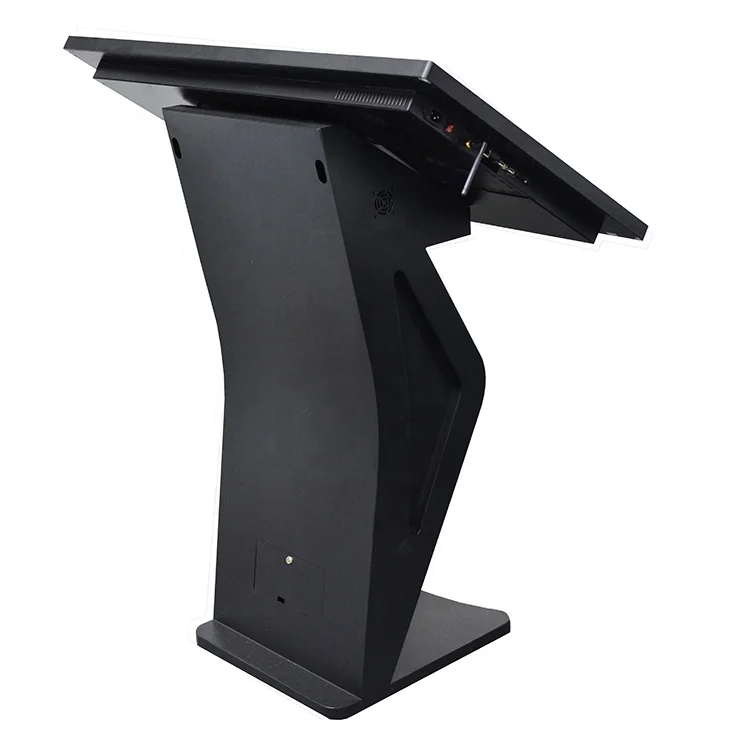

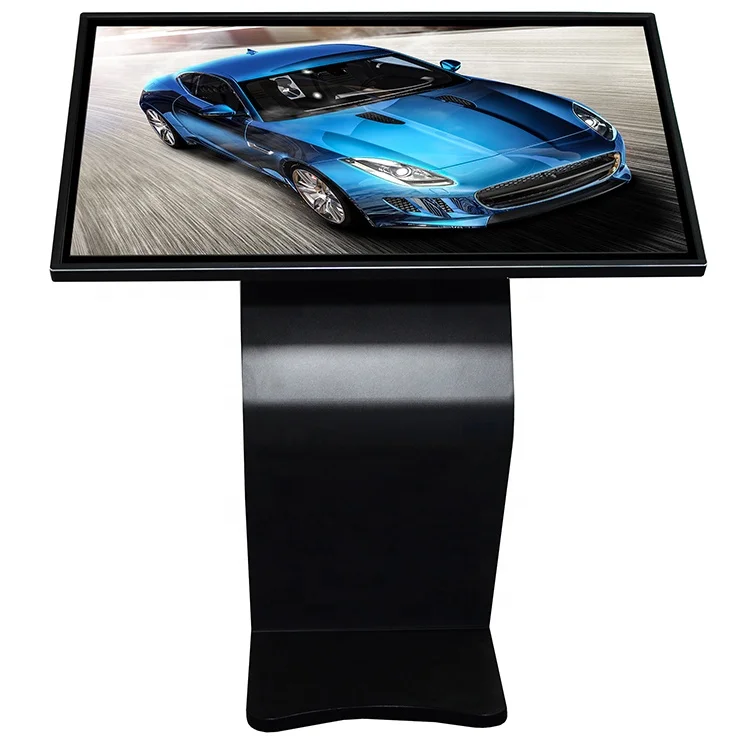

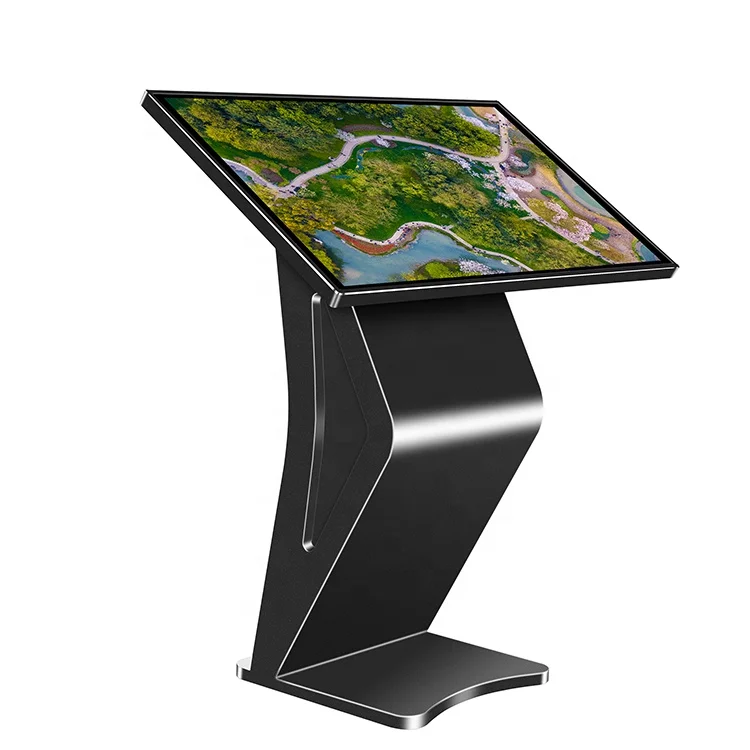

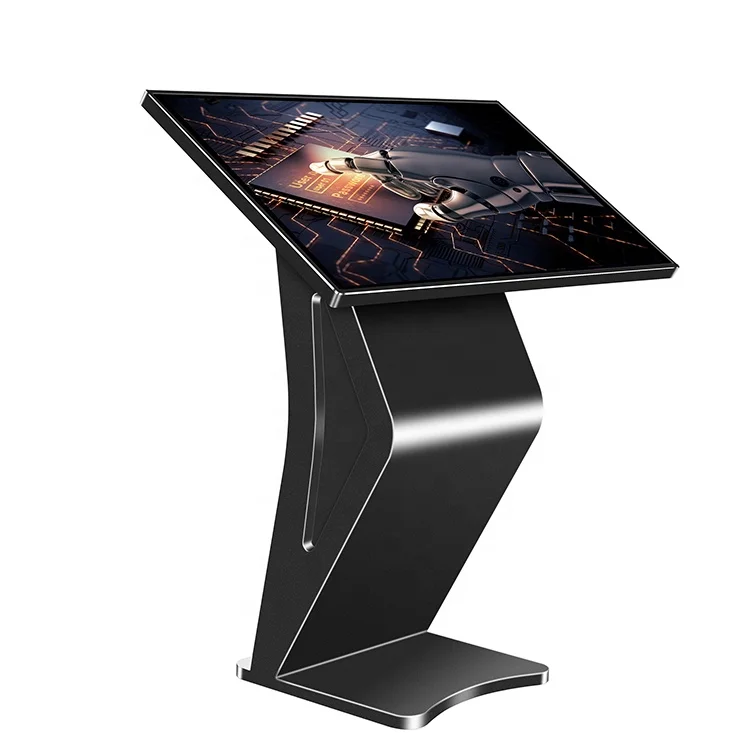

 32 inch android wifi lcd touch screen digital signage all in one touch kiosk for restaurant







































































































































































































































































CSXT-HIR1-32 32 Inch Horizontal IR Touch Screen All-in-one PC Touch Kiosk
Quick ViewScreen DirectionHorizontal
Frame Width21.7mm
Frame Thickness23.5mm
Touch ScreenInfra-red touch 10 dots
SystemWindows/Android Optional
Available Size21.5"/ 27"/ 32"/ 43"/ 49"/ 55"/ 65"/ 75"/ 86" or customized
MaterialsFrame:3mm Aluminium alloy, Shell: 1.5mm cold-rolled  steel, Display: 5mm  tempered glass
Optional Functions3G/4G, camera, card reader(ID/NFC/IC card), printer, scanner(QR code/biomini), microwave inductor, microphone, keyboard or customized
ScreenPanel BrandBrand new original A+ grade brand panel
Panel Size32"(15.6" to 100" optional)
Display Size698.4mm(H) x 392.85mm(V)
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Compatible HD Input480P/576P/720P/1080I/1080P
BacklitsLED
Display Ratio16:9
Response Time<8ms
Field Rate60HZ
Color16.7M
Contrast Ratio1300:1
Resolution1920*1080
Brightness Nits400 cd/m2
Pixel Pitch0.282x 0.282
Operation System PC VersionAndroid Version
Main BoardJ1900/Windows I3/Windows I5 optionalRK3288
Operating SystemWin7/win8/win10 optionalAndroid 6.0
(Android 4.4/5.1.1/6.0.1/7.1.2 optional)
CPU J1900/I3-3217U/I5-3317URK3288 Cortex-A17 quad-core
RAMDDR3 1G/2G/4G/8G/16G optionalDDR3 2G/4G(optional)
StorageSSD:64G/128G
NAND FLASH 500GB / 1T optional
NAND FLASH EMMC: 8GB/16G/32G optional
OSD LanguageEnglish or customizedEnglish or customized
Connection to networkRJ45/4G(optional)/WIFI (optional)RJ45/4G(optional)/WIFI

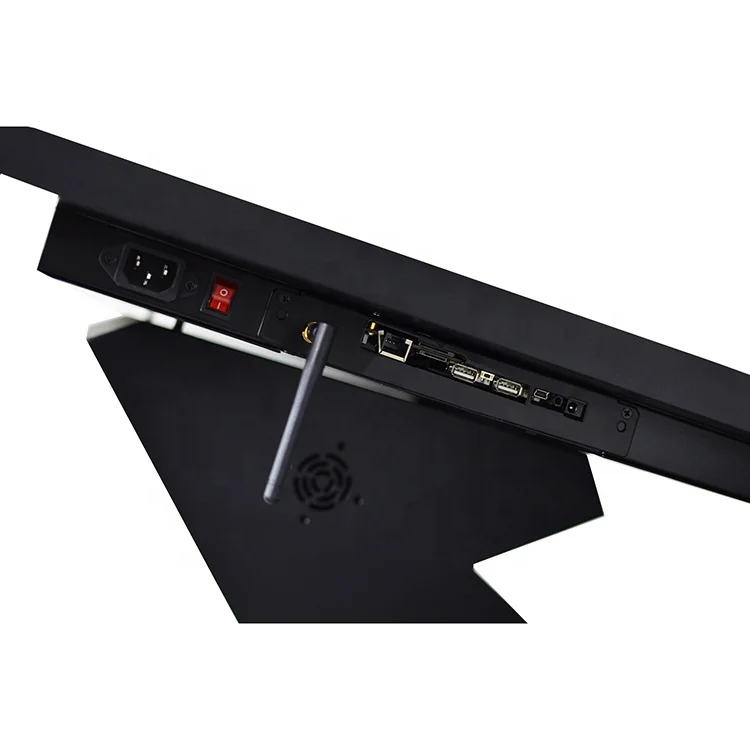

InterfaceUSB2.0*4, HDMI, VGA, RJ45, LAN,
4G/wifi(optional), audio, DC
USB2.0*2, SD card, HDMI, RJ45,
4G(optional), wifi, audio, DC
System Upgrade Support SD card upgrade
File FormatsVideo720P/1080P/H265/264/MPEG4/
AVI/WMV/3GP/MP4/MOV/FLV
Video720P/1080P/H263/264/MPEG4/
AVI/WMV/3GP/MP4/MOV/FLV
PictureJPG/JPEG/BMP/GIF/PNGPictureJPG/JPEG/BMP/GIF/PNG
MusicMP3/WMA/AAC/AC3/DTSMusicMP3/WMA/AAC/AC3/DTS
Touch ScreenTouch TypeInfra-red touch
Touch Waysfinger/touch pen
Touch Dots10 dots (20 dots/40 dots optional)
DurabilitySingle point more than 600 million times
PowerPower130W
Power SupplyAC100-240V 50/60HZ
Working&Storage
Requirement
Working/Storage Temperature0-50°C/-20 - 60°C
Working/ Storage
Humidity
20%~80%/5% - 95%
BodyMaterialShell1.5mm cold-rolled steel with antirust paint
Frame3mm wire drawing aluminium alloy
Display5mm tempered glass
ColorBlack, white, silver, gold or customized
Size749 x444x1037.9mm
Frame Width21.7mm
Frame Thickness23.5mm
Other InstructionsPlay ModeSupport horizontal or vertical playing, automatically loop playing
Scrolling CaptionSupport over-long scrolling caption display
Auto On/OffAuto on/off according to the setting time
ResetWith reset switch, easy to operation
InputLVDS directly drive
Audio ModeHi-fi stereo audio
Speaker2 * 5W (8 ohm)




Product Detail

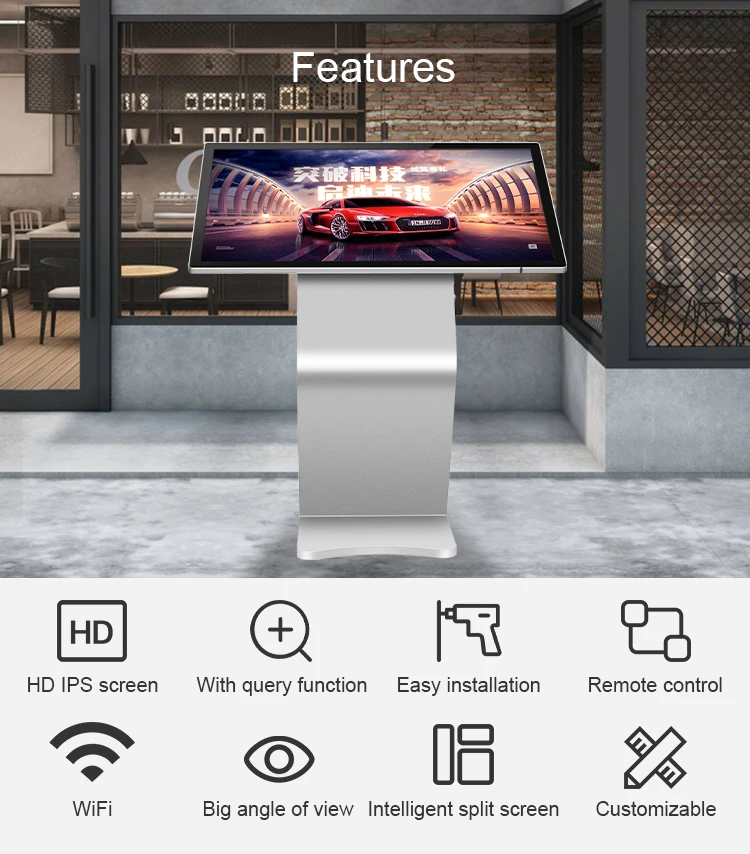

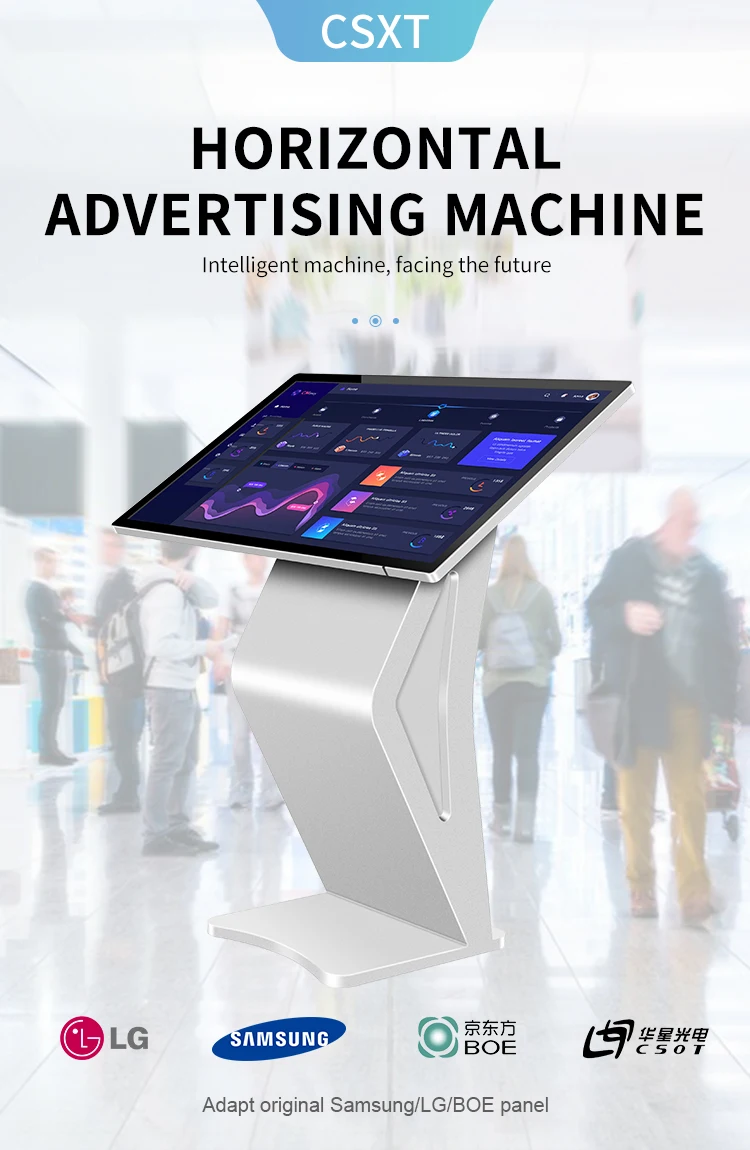

4_014_034_074_064_054_04










Packing


 Packaging3





Factory Details


_12

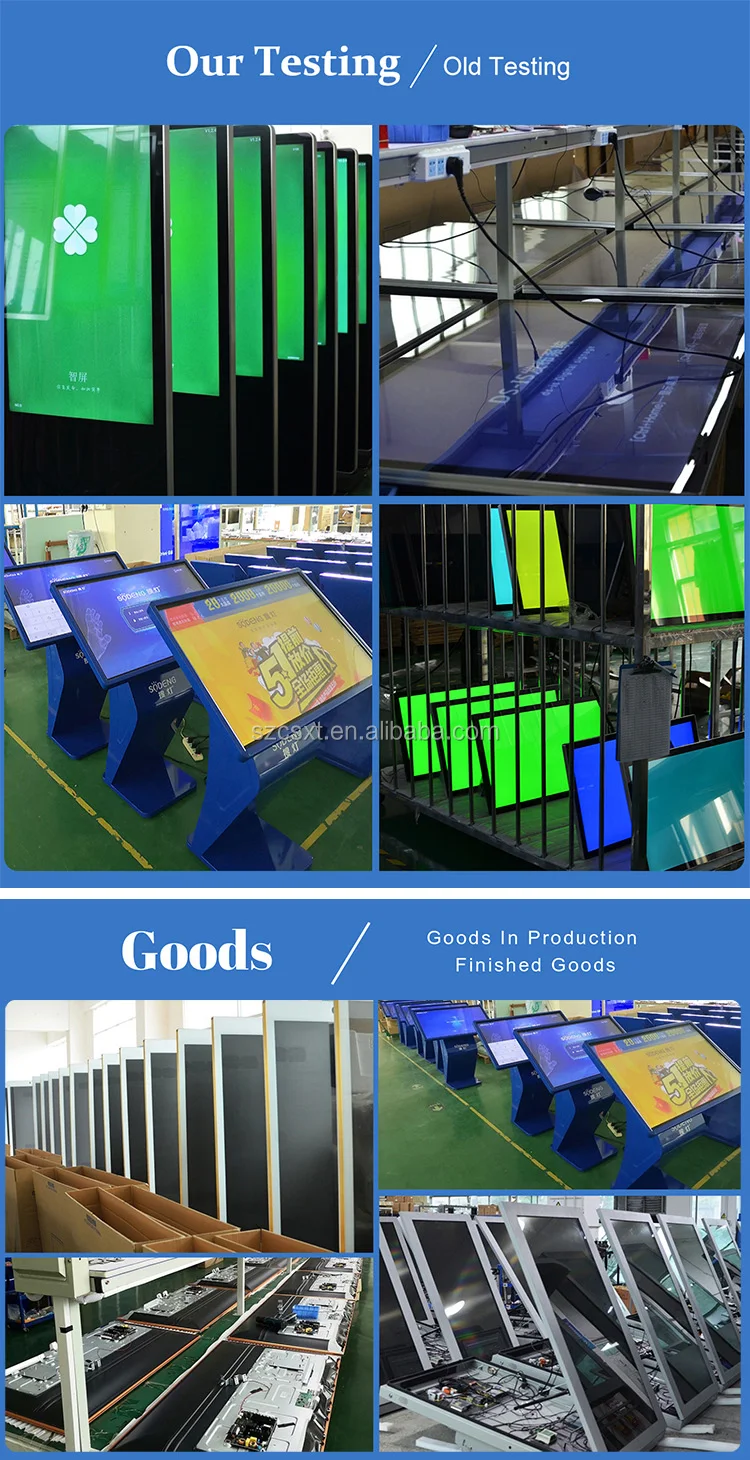

 Factory Details2








Our Certificates









FAQ


1) Q: Are you a factory or trading company?
A:We are a OEM/ODM factory and specializing in producing LCD display for 10 years


2) Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.


3) Q:How long is the warranty time for your products?
A:Our officially promised warranty time is 2 years after delivery at best.hardware problems can be replaced with parts, software problems can be resolved by remote control, with a perfect system and professional before-sales and after-sales engineers.


4) Q:I haven't done business with you guys before,how can i trust your company?
A:High-end Alibaba store-Jinpincheng store, Alibaba has sent professionals to build KA (annual sales of 50 million) or SKA (annual sales of 100 million) for our stores . what's more,we've got quite a lot authority certificates,for example,CE, UL, RoHS, FCC ISO9001, BV, Alibaba onsite check certificate.


5) Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order. As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-7 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG. As for detailed cost, it depends on your final order.


6) Q:Do you give any discount ?
A:I'll surely try my best to help you get those by the best price and good service at the same time.


7) Q:I would like to ask you if it's possible to have my logo on the product.
A:We hope you know that our company CSXT perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.


8).Q:what brand of screen are you using?
A:We are using Samsung,LG,AUO and CHIMEI screen.


9).Q:if you are not online,how can i get contact with you?
A:if i am not online,please kindly check the following contact information,you can send me email,you can call me or whatsapp me,i will reply you ASAP.





Quality Assurance



  • Step 1.  100% inspection for all incoming materials by our IQC department, if the deficient rate is over our standard 2%, we will return the defective materials to our suppliers for rework, if less than 2%, we will change the defective parts by new qualified materials.

  • Step 2.  Before on-line production, all the appearance and functions of the boards must be 100% checked by our QC department.

  • Step 3.  Semi-finished goods must be 100% inspected by our QC department, if any defective part, we will repair it and then return it to the production line again.

  • Step 4.  IPQC(Input process quality control) must patrol inspecting during production process.

  • Step 5.  Completed sets must be 100% checked by the QC department, after that, all the goods start 24 hours aging testing

  • Step 6.  After aging testing, QC department will 100% check all goods again and then start packing.

  • Step 7.  After packing, QA department will start sampling inspection, then we will inform customers to arrange the inspection date of the goods.
