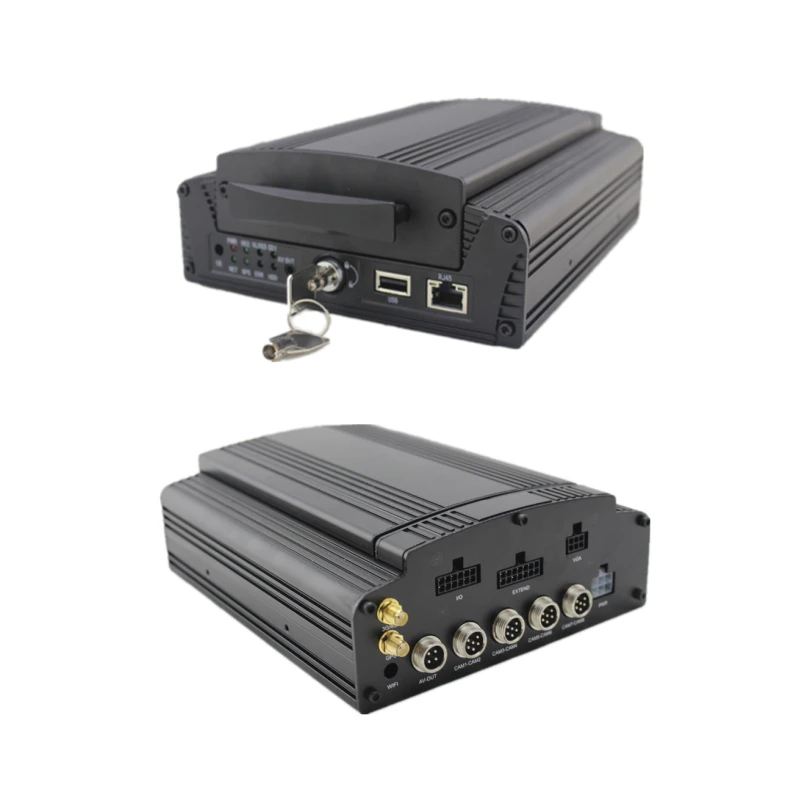

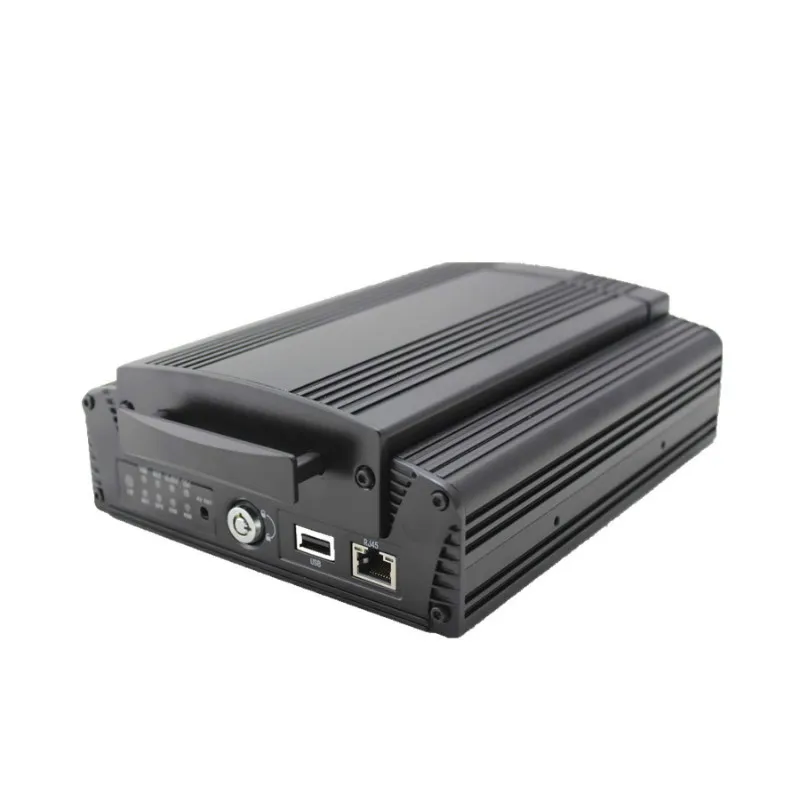

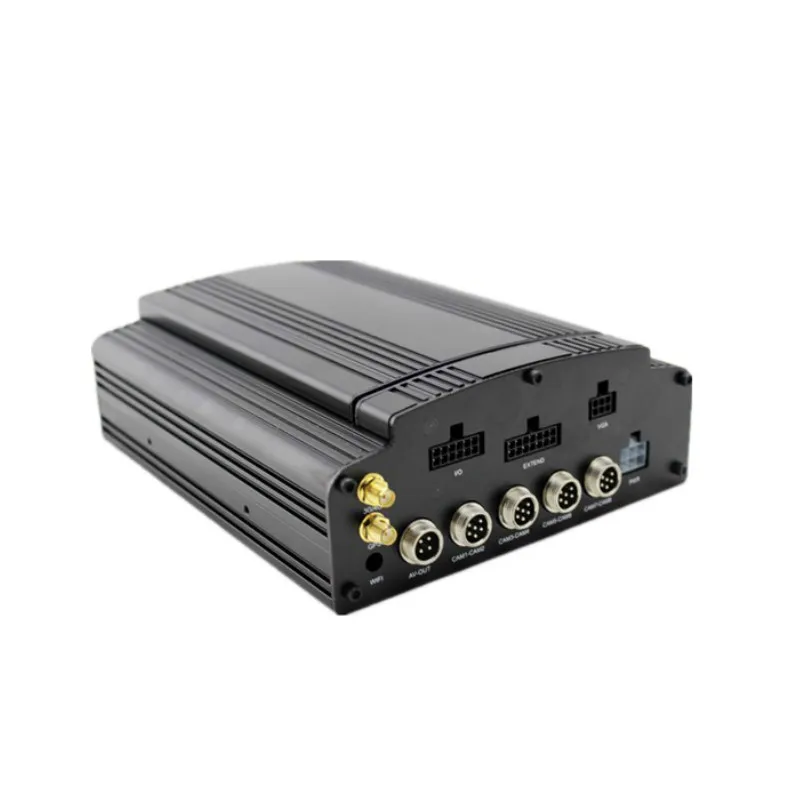

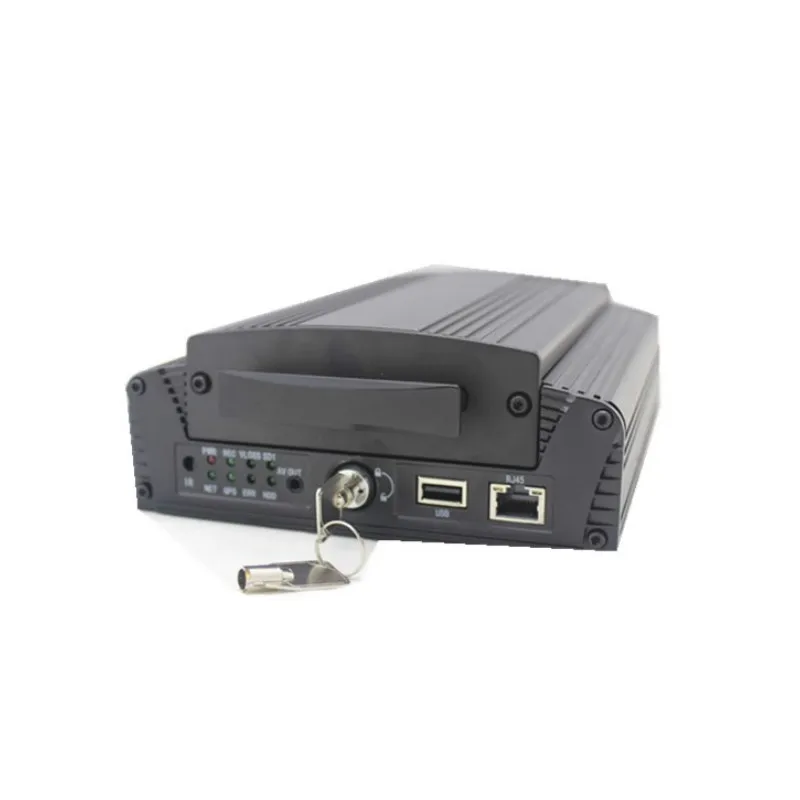

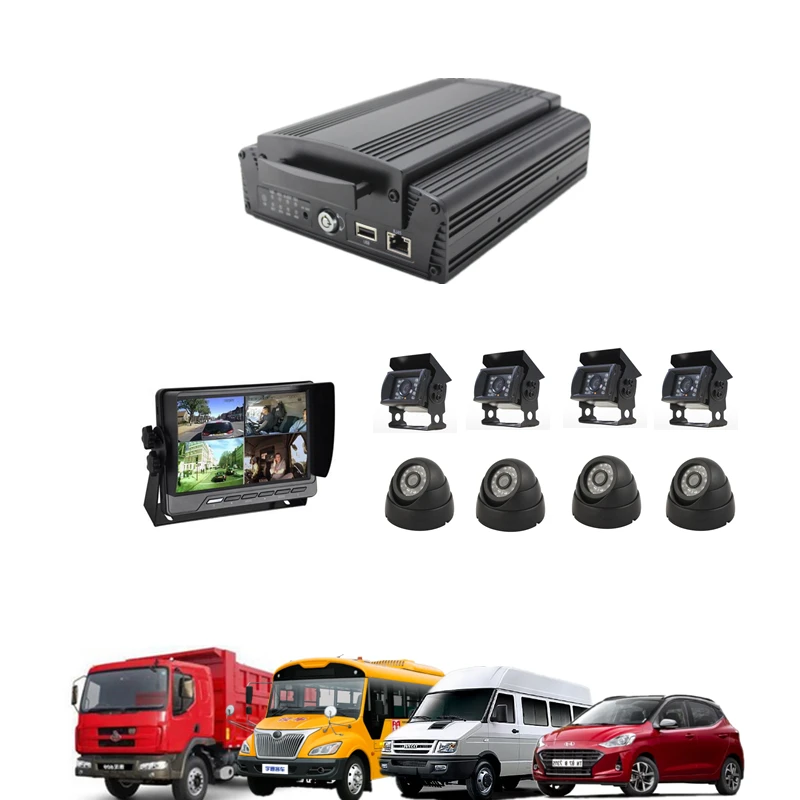

Recoda H.264 8CH MDVR 1080P 4G WiFI GPS Mobile vehicle DVR camera car CCTV System For Van/Taxi/Bus/Truck/Car
- Category: Security >>>
- Supplier: Shenzhen Recoda Technologies Limited
Share on (62124444329):
Product Overview
Description
Recoda H.264 8CH MDVR 1080P 4G WiFI GPS Mobile DVR vehicle camera car CCTV System For Van/Taxi/Bus/Truck/CarI
Product Description
The main features of M728 8ch hard disk mobile DVR are as follow:
- Support 8CH D1 real-time recording and playback. 8CH audio synchronous recording
- Support 2.5 inch HDD,max 2TB add 128GB SD Card,SD card and HDD dual storage (Optional)
- H.264 video format, Linux system, dual stream,Support remote download and playback function
- TES correction encrypted file management system, preventing data from being loss and damaged caused by sudden power off
- Support pre-alarm record, motion detection and alarm linkage
- 10V-36V wide range voltage supply, standard industrial embedded design, military level anti-vibration technology
- Automobile black box function, record speed, GPS position, acceleration of gravity, brake,back the car, swerve,alarm etc.
Technical Details
Model | M728AHD |
System | |
OS | Linux |
Language | Chinese/English/Customized |
Video | |
Video Input | 8CH 1080P input, aviation connector, 1.0Vp-p, 75Ω |
Video Output | 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,8CH Screen view |
Video Compression | H.264 |
Video Quality | 1-4 levels, 1 is the highest level. |
Audio | |
Audio Input | 8CH Aviation Plug Input |
Audio Output | 2CH,headphone connect at front panel, BNC Connect on Back panel |
Audio Compression | G.726 compression, 8KB/s speed |
Display | |
OSD | Overlays information such as date time and vehicle ID |
Preview | Support 1 channel and 8 channels preview, Support Manual / Alarm Trigger full screen preview |
Graphical User Interface | Setup system parameters with the remote control. |
Recording | |
Resolution | 1080P |
Alarm | |
Alarm Input | 6CH Alarm Input,1CH AD Input, impulse speed input, Alarm Linkage |
Alarm Output | 2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off |
Playback | |
Search Mode | Search By Record Time/Record Type etc |
Playback Speed | Max support 4CH Replay /Stop/Fast/Slow at same time Support forward and backward play at the speed of: x 2,x4,x8,x16. |
Network | |
Ethernet | RJ-45 port |
3G/4G/WiFi | Optional |
GPS | Built-in high accurate GPS module(optional) |
G-Sensor | Support G-sensor |
Storage | |
HDD + SD Card | Max 2.5” 2TB HDD + Max 128GB SD Card |
File System | Special FAT32 File System |
Update | Support USB Updating, SD Card Updating, OTA Remote Updating |
Auxiliary Interface |
|
USB | 1Port,USB2.0, USB Interface on Front Panel for data back up by U Disk,Hard Disk |
RS485 | 1 Port, For PTZ Camera |
RS232 | 2 Ports, For POS/Fuel Sensor/LED Advertisement Connection |
Voice Call | Support voice call each other |
TTS Voice Broadcast | Support TTS voice broadcast function |
Serial Expand | Support LED Advertisement Panel, Oil Sensor, POS, Bus Station Broadcaster, Car OBD, ect. external device |
General |
|
Voltage Input | DC:+10V - +36V |
Voltage Output | +12V~1.5A,+5V~1.5A |
Power Consumption | Working <5W |
Power Management | Wide Voltage. Support Timed/Delay off |
Temperature | -20℃ - +70℃ |
Humidity | 20% - 80% |
Dimension | 218 (D)* 161(W)* 65(H) mm |
Net Weight | 2.2 Kg |

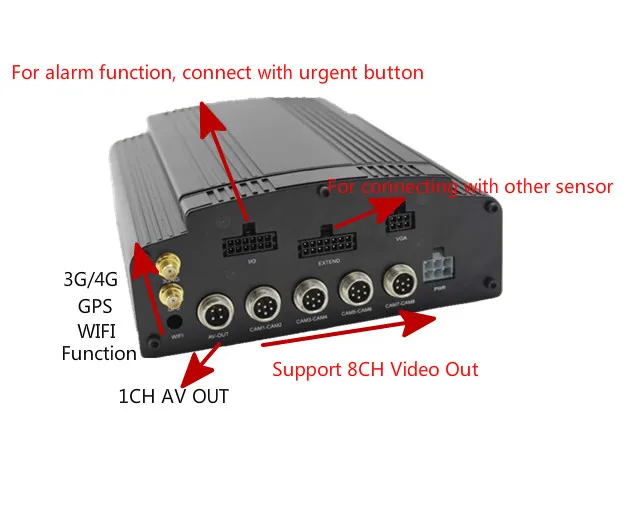

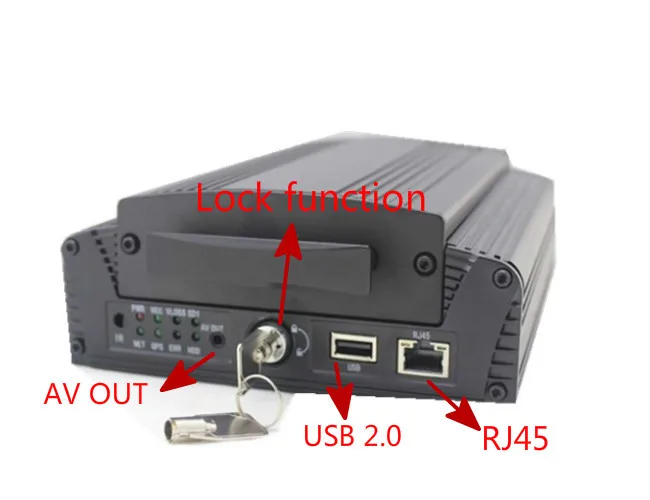

Detail pictures
Packaging & Shipping
The Exhibition
We have participated many big security exhibitions all over the world, our surveillance system and CCTV products, such as mobile DVR , body worn camera, get our clients favorite.
