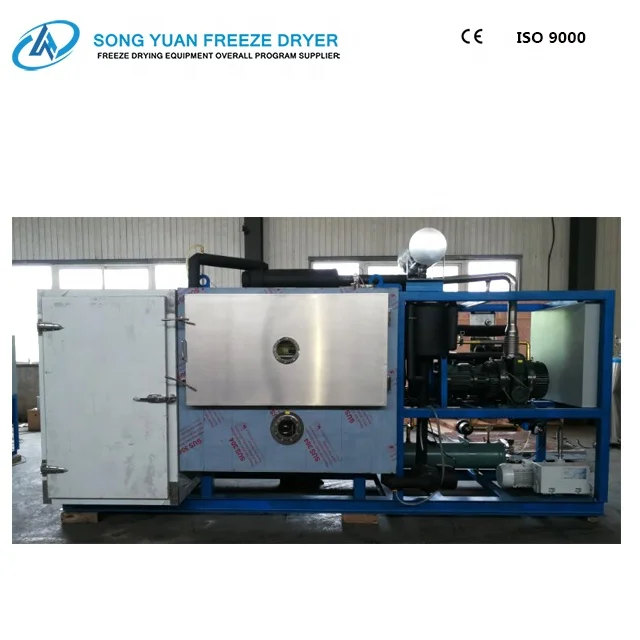

cold drying machine freeze dried food machine industrial freeze drying machine LG 10

Share on (62124552591):


Price:RUB 4,089,084.48

Quantity:


Product Overview

Description

specification
unit
LG-10
shelf area
m2
10
input capacity
kg
100
shelf number
layers
9+1
shelf size
mm
1000*1200
shelf spacing
mm
80
trolley number
set
-
temp.control range
ambient temp. - +120
ice condensing capacity
Kg/batch
≥150
condensr temp.(no loading )
≤-60
cooling method
-
water cooling
water temp. <30℃
defrosting
-
spraying +soaking
final vacuum (no loading )
Pa
<5
installation rate
Kw
45
cooling water
m3/h
20
hexternal dimension
(L*W*H)
mm
5000*2000*2500
total weight
KG
6000

main features
* Compact structure, pre-freeze and dry split design

* Aerospace grade aluminum alloy material, surface passivation treatment technology, high radiation efficiency
* Application accelerated sublimation theory design + energy-saving optimization control technology
* New FD-Manager control system, multiple freeze-drying processes, one-button process introduction, one-button freeze-drying
* System fault intelligent diagnosis, maintenance information reminder and sensor real-time calibration
* Using identity authentication, access control, security encryption and other technologies, decentralized operation management
* Meet the requirements of the HACCP certification system

applications


●Chinese herbal medicine health supplements: Ginseng, Gastrodia, Panax notoginseng, Poria, Shouwu, Dendrobium candidum, Cordyceps, bird's nest, bee products, deer products, etc.;

●All kinds of extract preparations: Anthocyanin, Ginkgo biloba, nutrient solution, biological agents, reagents, enzymes, antibiotics, etc.

●Aquatic products and meat and eggs: sea cucumbers, abalone, shellfish, shrimps, fish, beef and mutton, chicken, egg products, etc.;

● forest products: various edible fungi, wild vegetables, matsutake, bamboo shoots, asparagus, mangosteen, snake meat, forest frogs, pollen, konjac, etc.;

● Fruits, vegetables and soups: various fruits such as strawberries, raspberries, mangoes, lemons, apples, peaches, etc., various types of vegetables such as onions, garlic, yams, purple sweet potatoes, various instant soups and beverages such as egg soup, laver Soup, seafood soup, tomato soup, coffee, orange juice, tomato juice, etc.

Our Company

Beijing Songyuan Huaxing Technology Development Co., Ltd. was founded in 2000 and specializes in the R&D, production and sales of vacuum freeze-drying products. With the vacuum freeze dryer as the core product, forming different scales and different applications of three series of products as well as targeted solution for scientific research experiment, medical, and food industry. We are well-known on providing the vacuum freeze-drying equipment and targeted solution in China.
We are one of the first domestic enterprises engaged in vacuum freeze-drying technology and safety production standardization of Beijing industrial enterprises. Our head office is in Beijing. We have the branches and special maintenance stations in Shanghai, Guangdong, Wuhan, Xian, and Chengdu. Our products are exported to the United States, Russia, South Korea, Japan, Singapore, Malaysia, Canada and other countries.

Certifications
Packing & Delivery
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* One year warranty.
