custom shape 5.5' amoled touch mipi thin high resolution oled display
- Category: OLED\/E-Paper Module >>>
- Supplier: Shenzhen Elsun Technology Co. Ltd.
Share on (62124576141):
Product Overview
Description
Product Description
Mipi 1080X1920 touch screen 5.5" oled ips display key mechanical data :
| Item | 5.49 /5.5 inch 1080*1920 AMOLED display |
| Model No | PV054902PY39C |
| Resolution | 1080*1920 |
| Outline Dimension | 70.66(L) *128.36(W) *0.82(T) |
| Active Area(mm) | 68.299(L) *121.421(W) |
| Interface | MIPI 4 LANES |
| Viewing Angle | All |
| Warranty | 12 months |
| Driving IC | RM67191 |
| Display Mode | Normally Black |
| Technology Type | AMOLED |
| Pixel Pitch (mm) | 31.62*63.24 |
| Pixel Configuration | Rendering |
| Surface treatment: | Anti-Glare |
| PIN | 39 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Response time | 2ms |
| Color Depth | 16.7M |
| Brightness | 350nits |

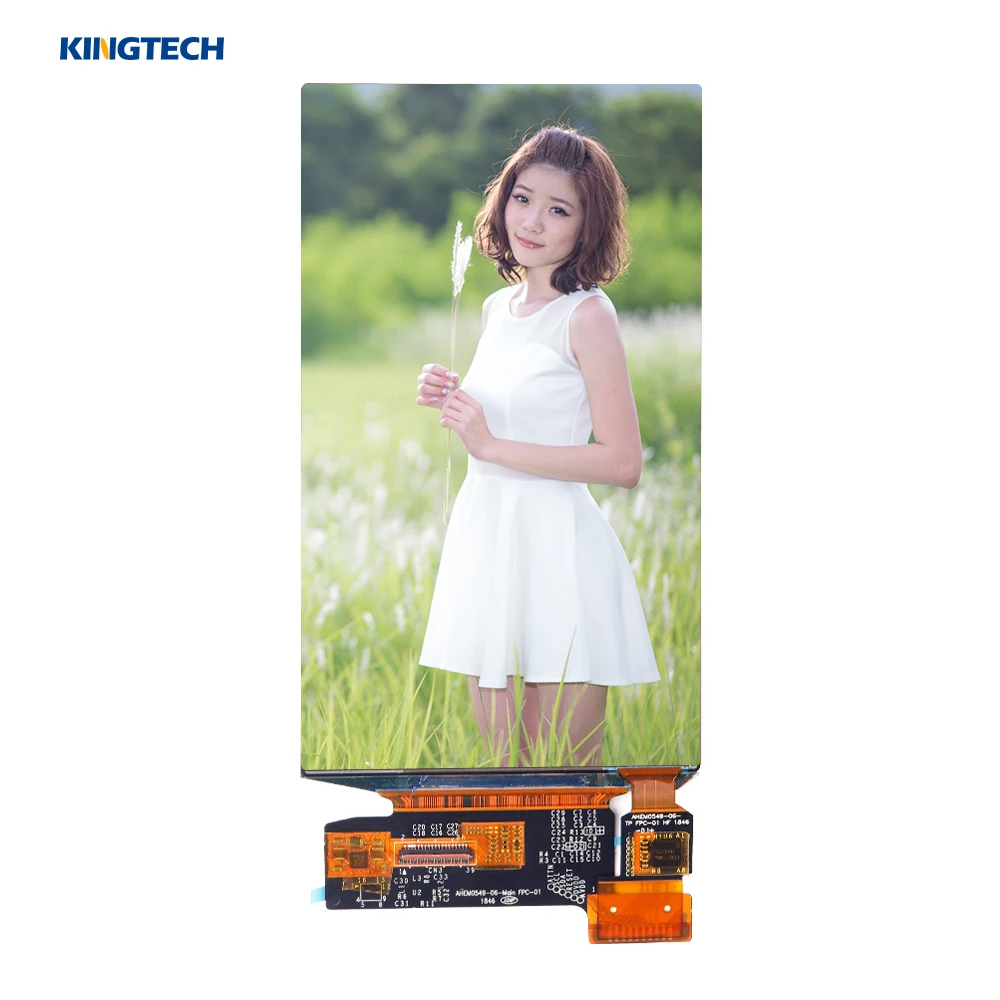

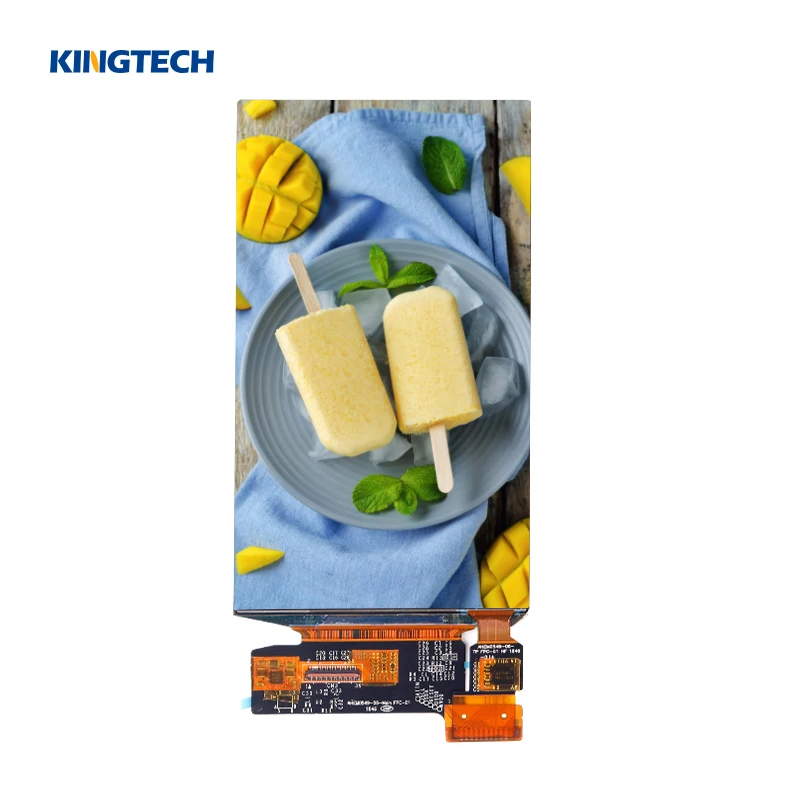

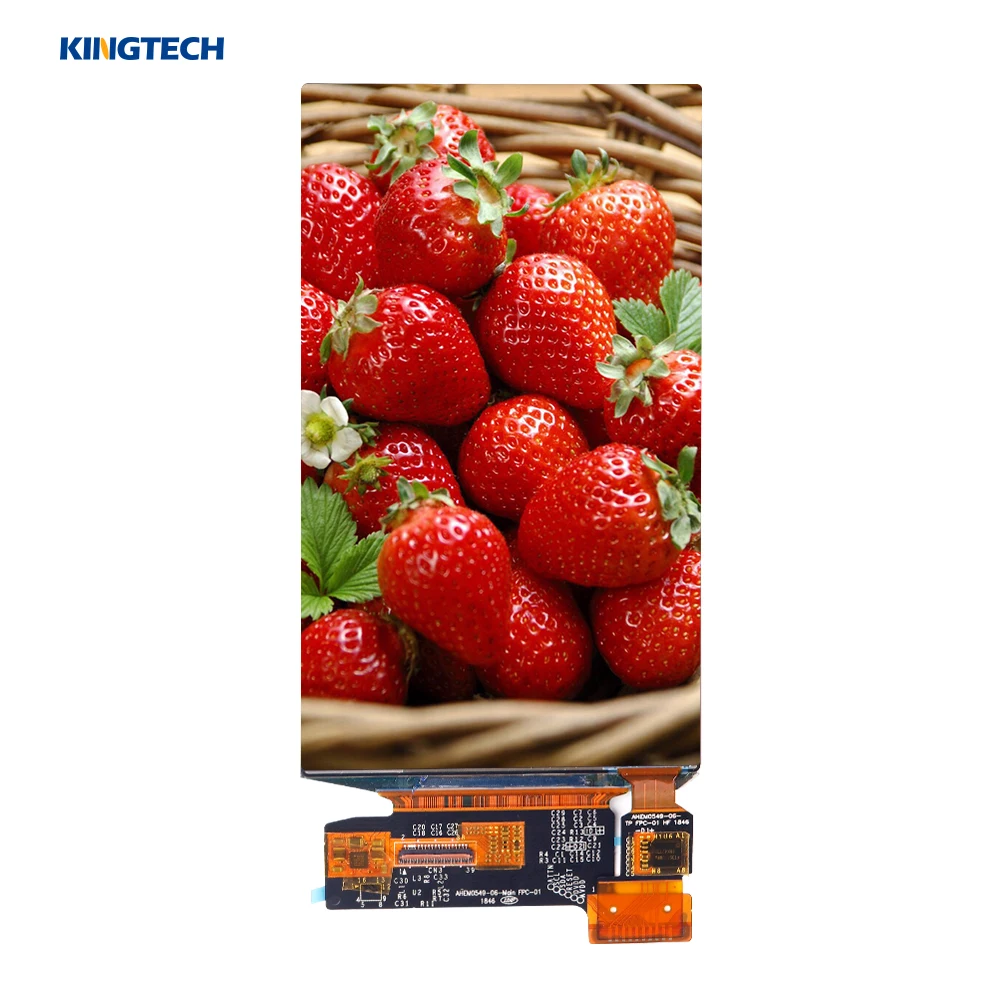

Mipi 1080X1920 touch screen 5.5" oled ips display front picture :

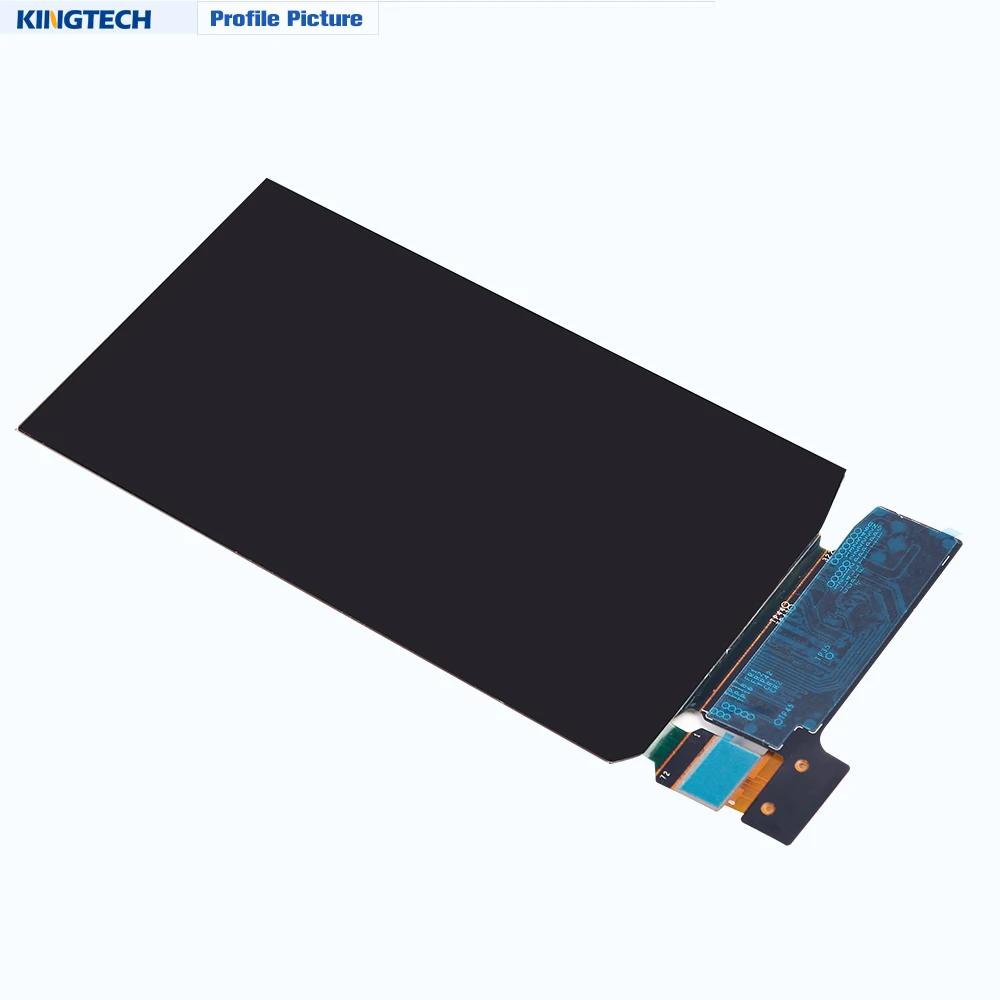

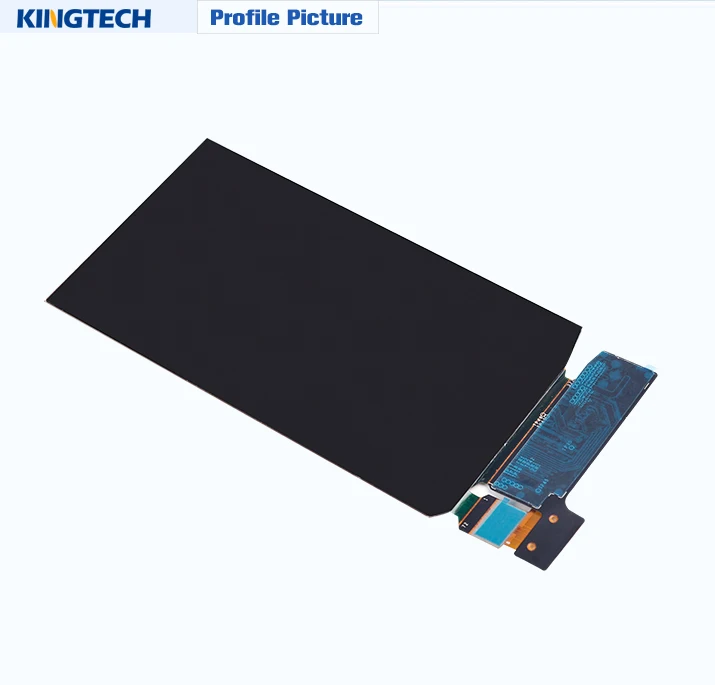

Mipi 1080X1920 touch screen 5.5" oled ips display profile picture:

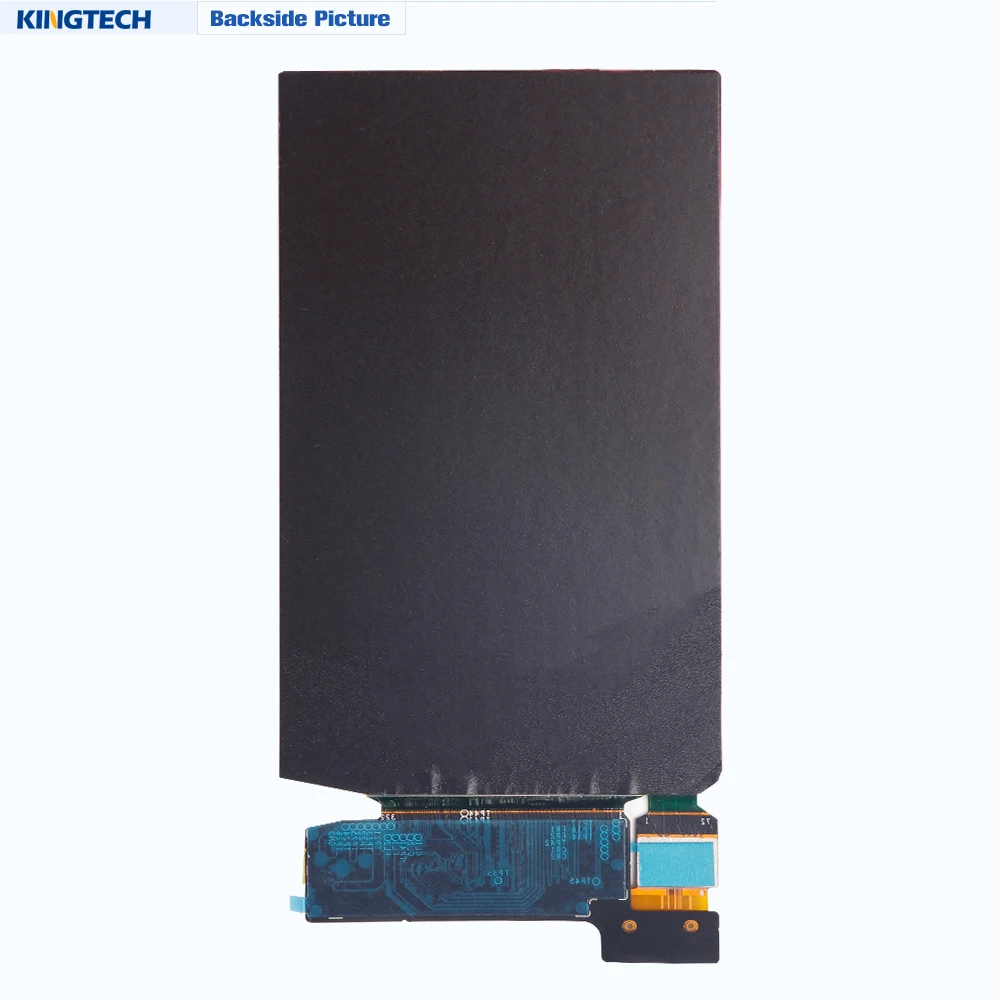

Mipi 1080X1920 touch screen 5.5" oled ips display backside picture:
Workshop
We are awarded as the good faith demonstration base B2B business. We are combination of R&D, manufacturing and sales.
Full automatic line to bond LCD panel, IC and FPC together as FOG for mass production. Semi-automatic line for sample making and small order assembly.
We can handle sample and small orders flexibly. We don't have strict MOQ requirement. Thousand class cleaning room to assemble backlight and FOG
We have our own LCD panel cutting and etching factory. With strong R&D capability, both ODM and OEM business are welcome
We have strict on quality control procedure with complete set of inspection equipments to ensure our high quality
Each model, before mass production, we do reliability test to ensure our material choice and workmanship are designed properly.
This can help to avoid reliability issues happening at our customer side
Other Products
Other product products, please click below Model No to review product details
| Size and Feature | Model No | Resolution | Outline(mm) W*H*T | Brightness | Viewing angle | TP | Storage Temp |
| 1.39" round Amoled | PV13902PY24E | 454*454 | 38.83*38.21*0.68 | 450 | All | NA | -30~70 |
| 2.4" ips lcd | PV0241F2CZ0_V00 | 240*320 | 60.4*42.72*2.21 | 200 | All | CTP | -30~80 |
| 2.47'' round LCD | PV02470GMH50A_V00 | 480*480 | 69.19*71.74*2.45 | 350 | All | NA | -30~80 |
| 2.8" ips LCD | PV02805LZR50E | 240*320 | 50.0*69.2*2.5 | 400 | All | RTP | -30~80 |
| 3.34'' round LCD | PV033400AR17A | 320*320 | 66.20*69.30*2.66 | 600 | 12 O'Clock | NA | -30~80 |
| 3.5" 320x240 LCD | PV03501TYD54C | 320*240 | 76.90*63.90*3.27 | 290 | 12 O'Clock | CTP | -30~80 |
| 3.5" Transflective LCD | PV03501LZR40C | 480*640 | 63*85*2.9 | 300 | All | NA | -30~80 |
| 3.5" IPS LCD | PV0350B2Z10 | 320*480 | 84.18*53.76*3.30 | 230 | All | CTP/RTP | -30~80 |
| 4.3" 800 nits LCD | PV043WQ-CTNC4001 | 480*272 | 105.4*67.15*2.95 | 800 | 12 O'clock | CTP | -30~80 |
| 4.3" 280 nits LCD | PV04300TYD40A-R | 480*272 | 105.5*67.2*4.15 | 280 | 12 O'Clock | CTP/RTP | -30~80 |
| 4.3" 500 nits IPS LCD | PV04300FT40C | 480*800 | 104.75*61.46*2.20 | 500 | All | NA | -30~80 |
| 4.3" 300 nits IPS LCD | PV043WV-BIRA4522-R_V00 | 480*800 | 105.8*63.3*3.6 | 300 | All | CTP/RTP | -30~80 |
| 4.82'' IPS LCD | PV04800TS24A | 480*1120 | 122.12*51.26*1.9 | 280 | All | CTP | -40~60 |
| 5.0" 500 nits LCD | PV0502LZR40D | 800*480 | 120.7*75.8*2.9 | 500 | 12 O'Clock | CTP/RTP | -30~80 |
| 7"800x480 300nis lcd | PV07002LZR40B | 800*480 | 164.9*100*5.7 | 300 | 12 O'clock | RTP | -30~80 |
| 7"800X480 400nis lcd | PV0705YX50E | 800*480 | 164.9*100*5.7 | 400 | 12 O'Clock | CTP/RTP | -30~80 |
| 7"1280X800 IPS LCD | PV07006LZR40C | 1280*800 | 161.0*107.0*3.35 | 400 | All | CTP | -30~80 |
| 10.1"1000nit1280*800 | PV10102LZR40C-C | 1280*800 | 229.46*149.10*2.8 | 1000 | all | CTP | -30~80 |
With Customers
Kingtech History
| Year | Event |
| 1995--2003 | Founder of Kingtech work in LCD display moudule enterprise |
| 2003 | Start distribution for LCD panel and Driver IC |
| 2006 | Started LCD display module R&D, manufacturer, export |
| 2009 | Establish factory to cut LCD panel to smaller size |
| 2013 | Acquisition a factory to etch LCD panel to be thinner |
| 2014 | Became Alibaba Top10 supplier |
| 2016 | Establish our backlight factory |
| 2016 | Award of Alibaba B2B Good Faith Demonstration Base |
| Mission | To be custom small and middle size LCD module specialist |
