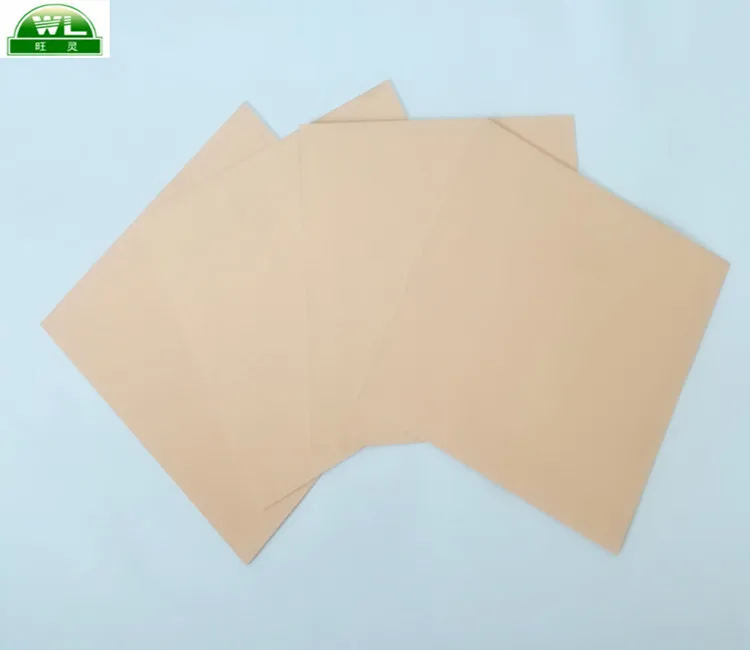

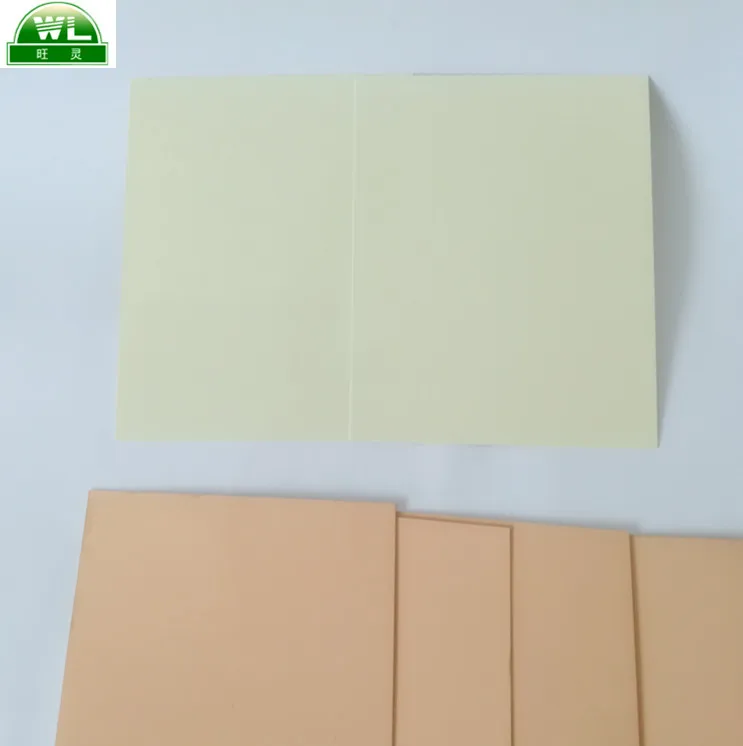

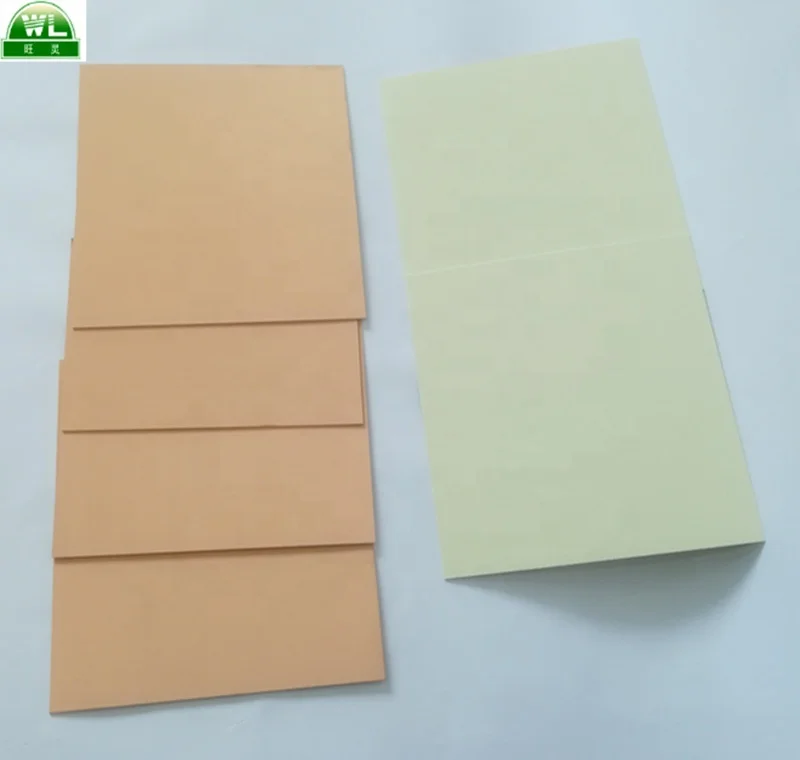

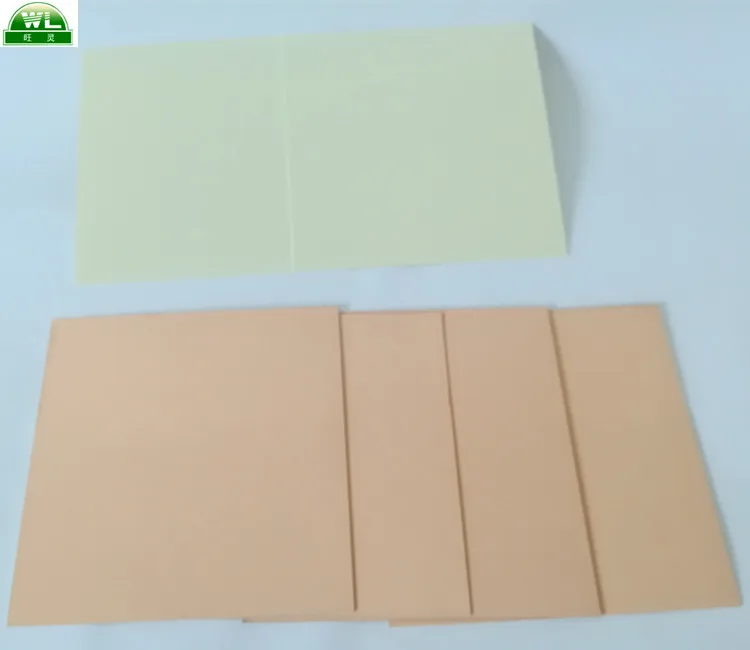

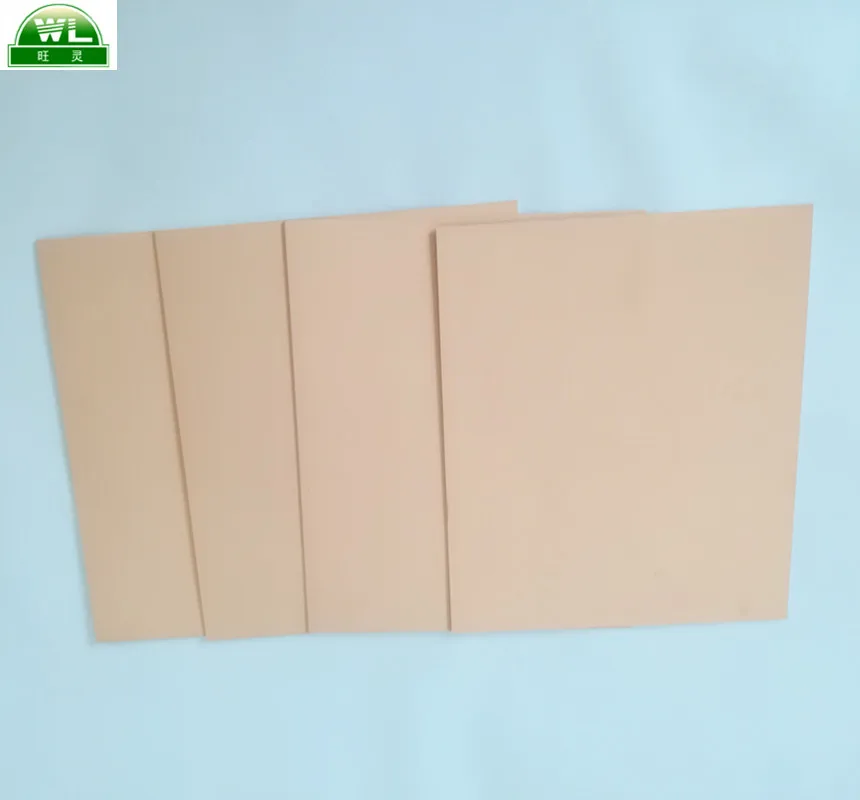

0.762mm Hydrocarbon ceramic copper clad laminates with woven fiberglass(WL CT350) Benchmarking Rogers ro4530B

Types

Double side(WL-CT350)

Dimensions (mm)

460X610(18''X24''), 915X1224(36''X48'')

For special dimension, customized laminates is available.

Dielectric constant

3.48±0.05

Dielectric thickness and Tolerance(mm)

0.762mm(30mil)±0.05mm(2mil)

1. Dielectric thickness can be customized.

2. Non-standard thickness starts from 0.508(20mil) , with 0.0838(3.3mil) increase.

3. More than 6.1 mm (240mil), please contact us.)

Thickness of ED copper foil

 Copper peel strength

(1oz copper)

Surface Resistivity

(M·Ω)

≥ 4×10⁸

Volume Resistivity

(MΩ.cm)

Condition: Normal state

≥ 1×10⁹

Tg(℃)

Test condition:TMA

>280℃

Td(℃)

Test condition: TGA

386

CTE(typical)

X  Axis

Y  Axis

Z  Axis

11

14

34

Halogen
