99.5% Al2O3 High Purity Alumina Ceramic Valves with High Precision
- Either Cold Isostatic Press or dry press forming is optional with secondary fine-machining - Fine polished surface with high precision for accurate flow controlling use - Good insulation, anti-magnetic, static electricity-free - Good thermal shock resistance and good thermal stability - Outstanding bending strength and fracture toughness - Excellent anti-wearing & anti-corrosion & abrasion resistance characters in harsh using fields - Competitive price with more reliable quality compared with traditional metal valves
- Complying with ROHS and REACH regulations
- Non-toxic, healthy material, eco-friendly - Skilled ceramic R&D team is available for your speical requests of various ceramic valves
Product Name
99.5% Al2O3 High Purity Alumina Ceramic Valves with High Precision
Compositions
99.5% High Purity Alumina- Al2O3
Color
Ivory White
Density
3.93 g/cm3
Torlerance
+/- 0.005mm
Finishing
Ra 0.02
Max. Using Temperature
1800 oC
Using Fields
Accurate Measuring Pumps, Flow Controlling Equipments, Dispenser, Valves

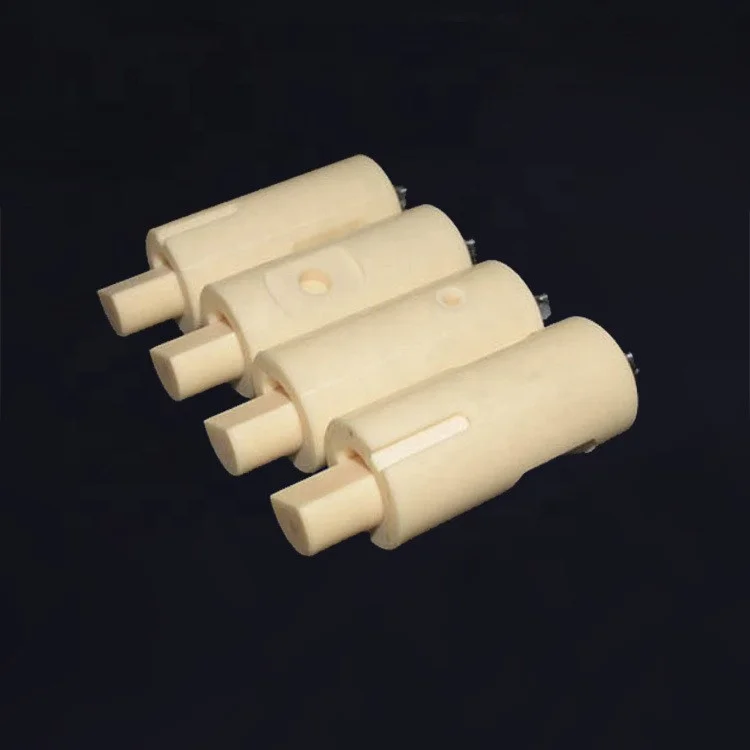

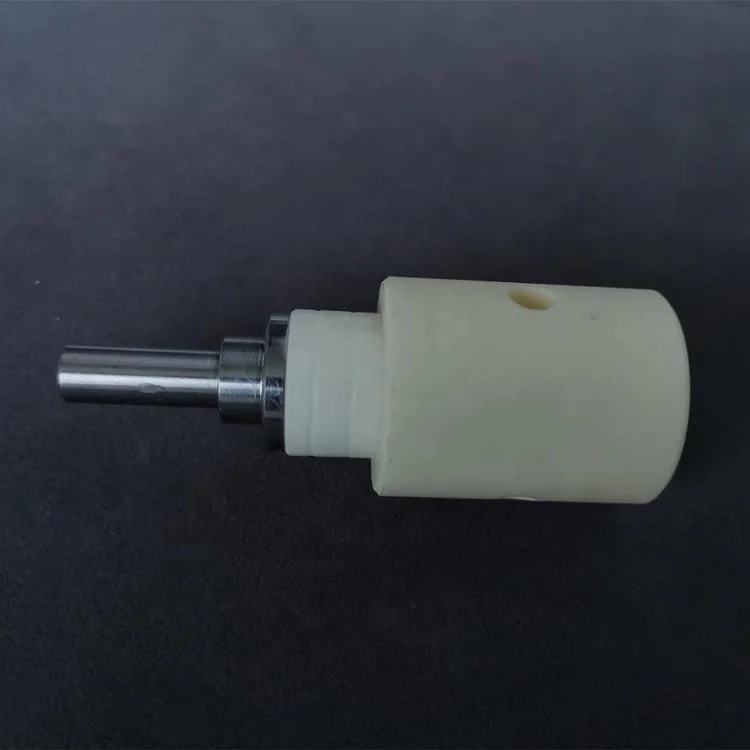

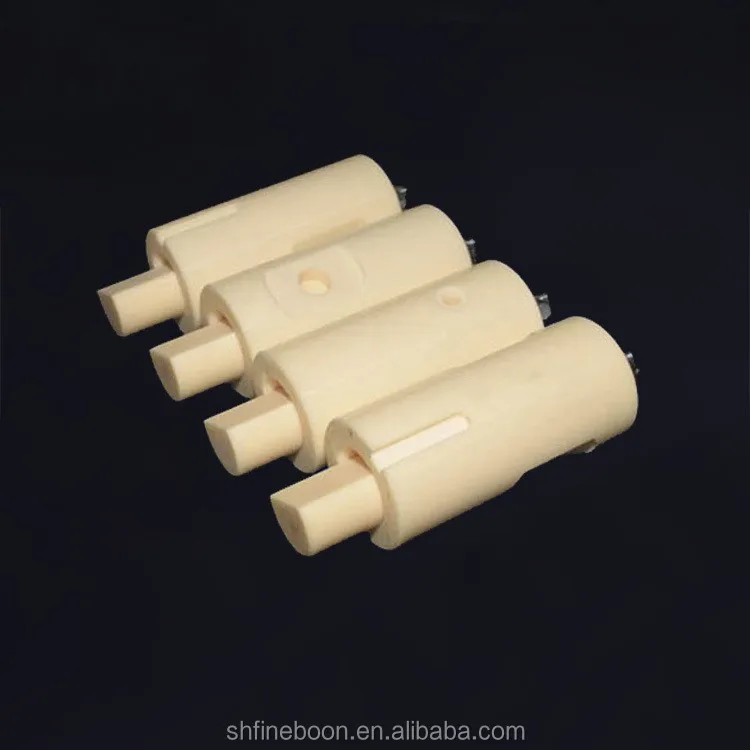

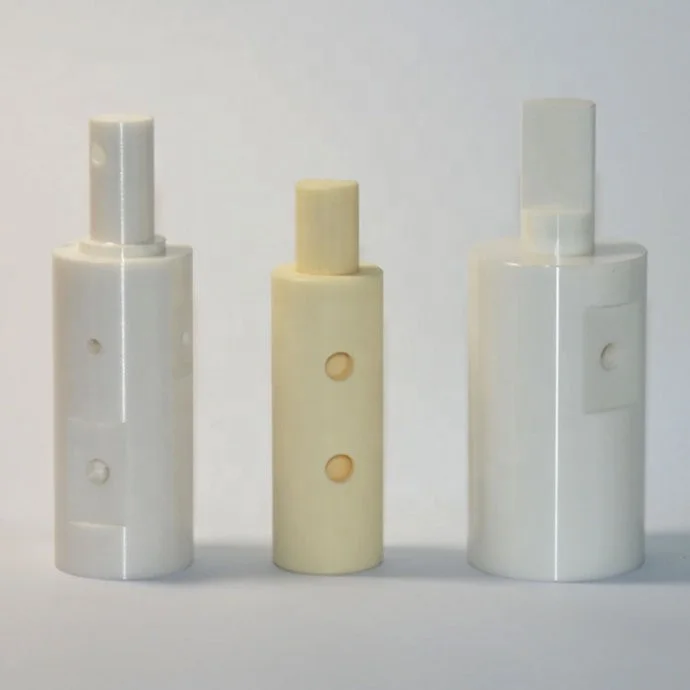

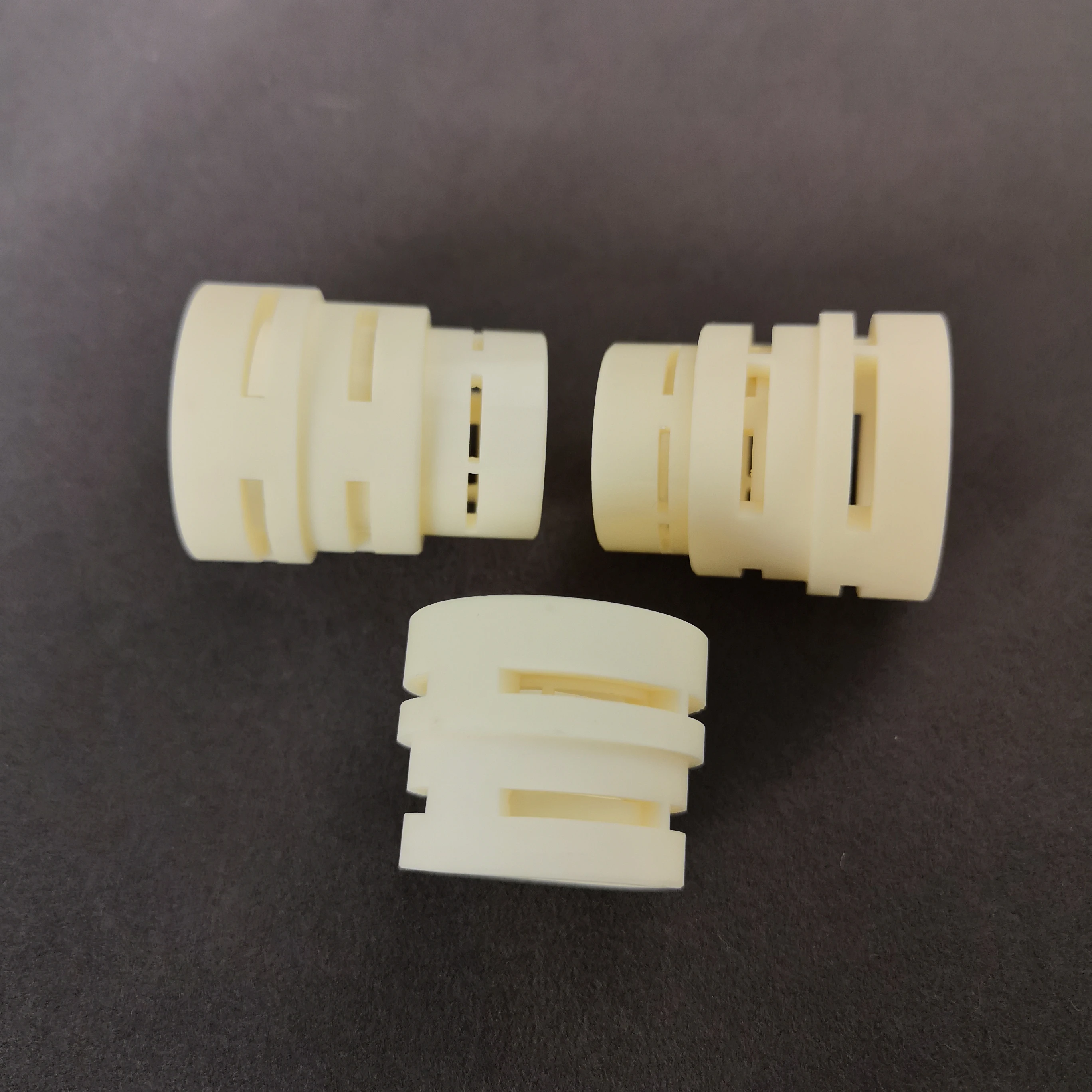

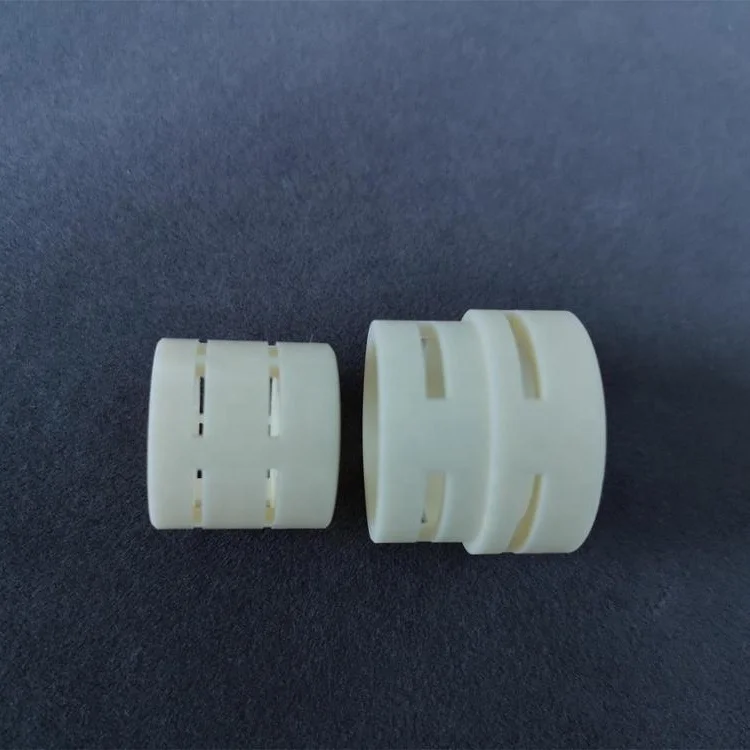

Ceramic Valve Show

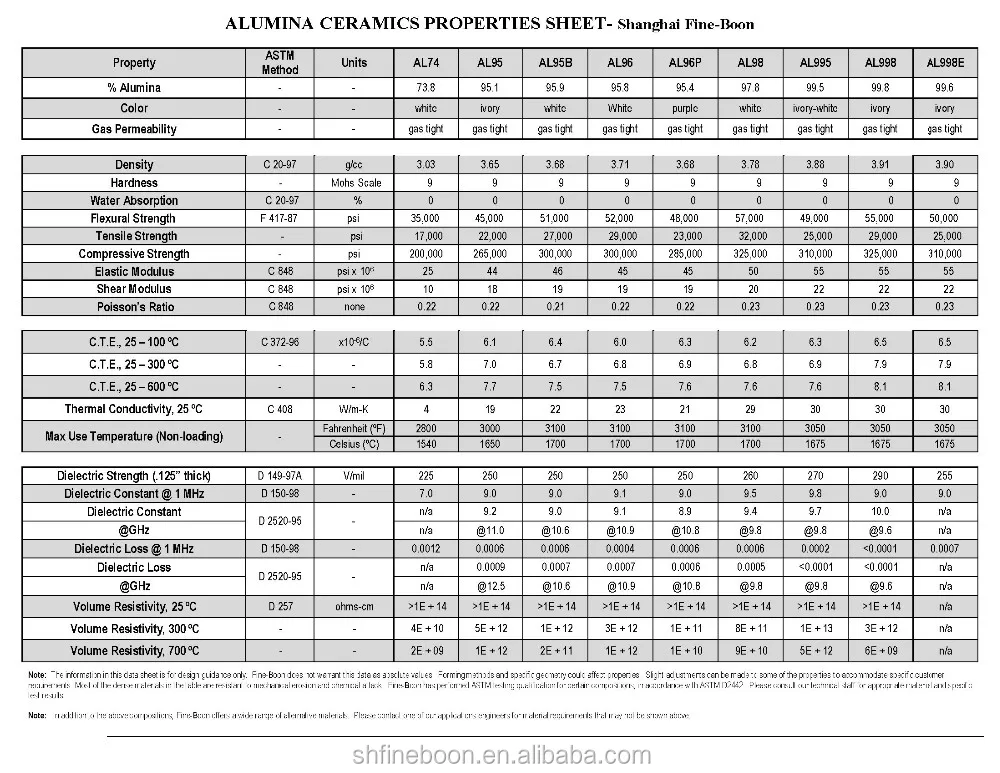

Belows are the Various Standard Alumina Performance Characters Data Sheets and Various Alumina Performance Comparison sheets with other ceramic materials
Production Equipment
Press Machines
We can provied extrusion, dry press and CIP press forming for ceramics green bodies.
Sinter Furnaces
We have many electric sintering furance with different size available for green body sintering use.
Quality Control
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Our Company
Factory Birdview
Our factory for various ceramic alumina valves production
Workshops View
Our workshops for various ceramic alumina valves production
Packing & Delivery
Packing Details: Individual bubble bag for each ceramic alumina valve, seaworthy package
Delivery Details: 30 days after purchase order of ceramic alumina valves was issued
1. Bubble films packed for each ceramic valve separately in carton
2. All cartons are loaded in Ply-wood standard pallets with films wraped.
3. All shipping methods are available for your choice.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional ceramic factory with our own exporting office in Shanghai.
Q: How long is your delivery time for ceramic valves?
A: Generally it is 30 days for our customized alumina valves after your purchase order was issued to us
Q: Do you provide samples of ceramic valves? is it free or charged?
A: Yes, we could offer the sample of ceramic alumina valves for free, but do not pay the cost of freight.
Q: What is your terms of payment for ceramic alumina valves ?
A: Payment<=1000USD, 100% in advance before shipping.
Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have any other questions for ceramic alumina valve components, pls feel free to contact us as below:
