Высоковольтный epcos gdt газоразрядный трубчатый ограничитель

Product Overview

Description



      Gas discharge tubes eliminate the surge voltage by the principle of gas ionization discharge. They have high insulation resistance, low capacitance and low leakage current to ensure minimal effect on normal operation of equipment.

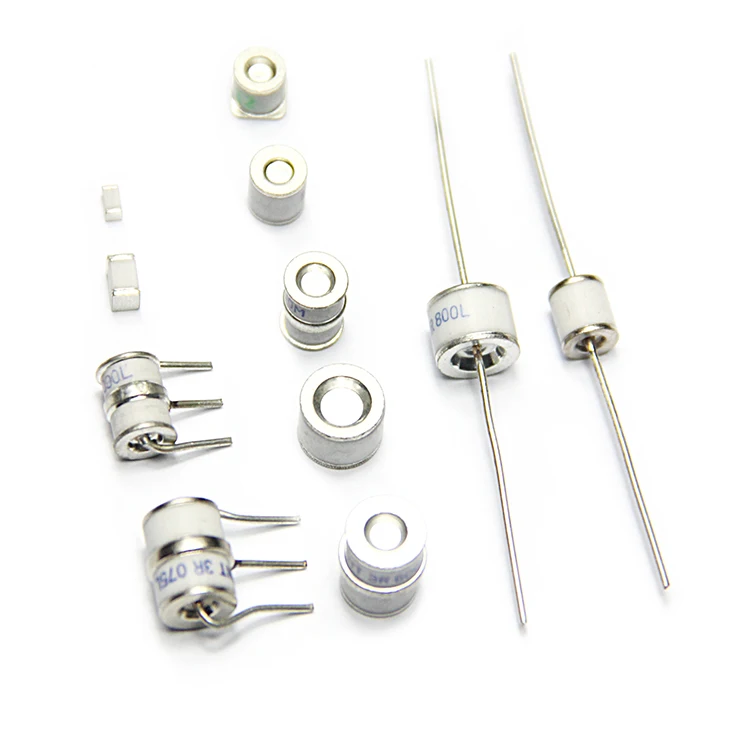

    YINT provides high-performance and small size packaging (DIP/SMD) gas discharge tubes with fast response speed and surge suppression capability, which reduces the risk of equipment damage, this is also a good choice for protecting devices from damaging by surge current caused by lightning, especially suitable for outdoor telecommunications equipment.

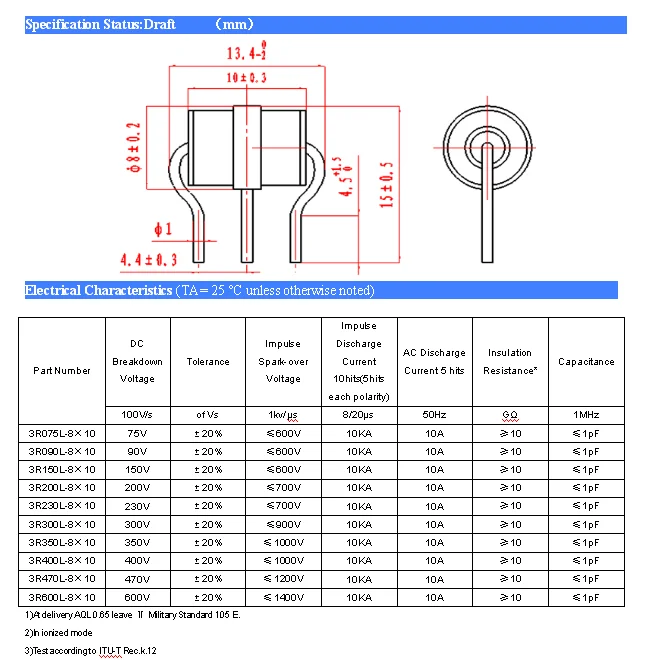

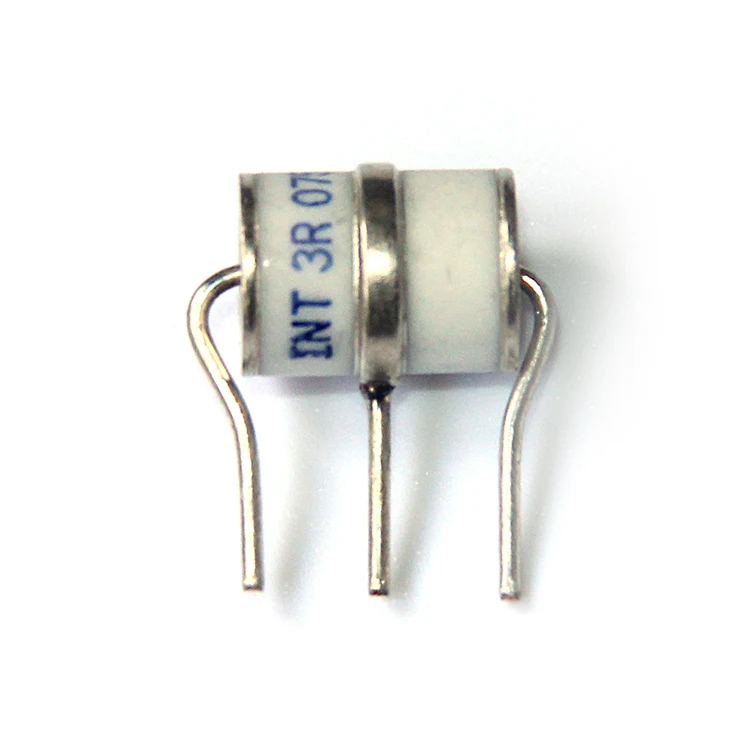

Size:8mm*10mm

Stable breakdown voltage.

High insulation resistance.

Low capacitance (≤1pF)

High holdover voltage

Storage and operational temperature: -40℃ ~ +90℃
