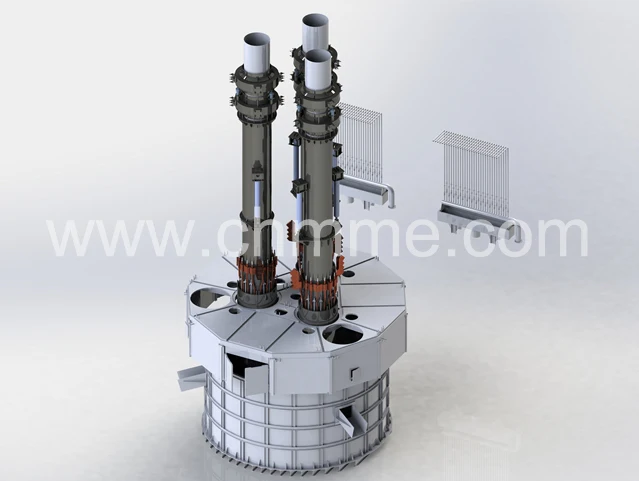

Electric arc furnace for calcium carbide
- Category: >>>
- Supplier: Hunan Chmm Metallurgy Engineering Co. Ltd.
Share on (62125366371):
Product Overview
Description
Product Description
Ore-smelting electric furnace is a electric furnace that smelts the raw material using submerged arc and resistance heat. The ferroalloy furnace, matte furnace, calcium carbide furnace and yellow phosphorus furnace are main types of this group.
The heating material and electrothermal energy conversion occur simultaneously to furnace burden inside the ore-smelting electric furnace. The heat source is the internal one with low thermal resistance and high thermal efficiency; the average electrothermal efficiency is 60%-80%. The material inside the furnace is smelted under theelectrothermal energy conversion and thermal transmission.
| S/N | Item | Unit | Parameter |
| 1 | Transformer apparent power | kvA | 16500 |
| 2 | Primary voltage | kV | 35 |
| 3 | Secondary voltage | V | 136-151-178 |
| 4 | Product | 75% ferrosilicon | |
| 5 | Diameter of furnace shell | mm | 7800 |
| 6 | Height of furnace shell | mm | 4400 |
| 7 | Diameter of furnace | mm | 6200 |
| 8 | Depth of furnace | mm | 2400 |
| 9 | Tapping hole | PCS | 2 |
| 10 | Height of hood | mm | 2150 |
| 11 | Diameter of electrode | mm | 1150 |
| 12 | QTY of electrode | Pcs | 3 |
| 13 | Travel distance of electrode | mm | 1500 |
| 14 | lifting and dropping speed of electrode | m/min | 0.5 |
| 15 | Pole shank circle diameter | mm | 2800±100 |
| 16 | Common secondary voltage | V | 154 |
| 17 | Common secondary Current | A | 61861 |
| 18 | Power factor | cos | 0.8 |
| 19 | electrode current density | A/cm2 | 5.96 |
| 20 | Pole shank circle power density | kw/m2 | 2011 |
| 21 | Furnace area power density | kw/m2 | 410 |
| 22 | Furnace volume power density | kw/m3 | 171 |
| 23 | Height of charging desk | mm | -0.312 |
| 24 | Height of transformer platform | mm | 3688 |
| 25 | height of electrode press-release platform | mm | 7700 |
| 26 | Height of electrode paste platform | mm | 11700 |
| 27 | Height of furnace roof hanger rail | mm | 15000 |
Packaging & Shipping
Packaging: wooden case, wooden pallet, plywood case, ply wood pallet, nude packing or iron case.
Shipping: Transport by sea, truck, train .
