Full Automatic Running Used Oil Refinery To Diesel with Low Sulfur Customized Distillation Machine For Black Oil With PLC

Full Automatic Running Used Oil Refinery To Diesel with Low Sulfur Customized Distillation Machine For Black Oil With PLC

Category: >>>
Supplier: Shangqiu Ruike Mechanical Equipment Co. Ltd.

Price:

Quantity:

Product Overview

Description

Company Introduction

Shangqiu Ruike Mechanical Equipment Co., Ltd.

Shangqiu Ruike Machinery Equipment Co., Ltd. is a professional organization specializing in the development and utilization of
waste resources (waste plastics, waste rubber, waste oil, waste engine oil). It is a large-scale enterprise integrating scientific
research, development and manufacturing of related equipment.
Our company is located in Shangqiu City, Henan Province, with convenient transportation and rapid economic development.
Our company pyroysis machine and distillation have get the certification: CE, ISO9001, ISO14001 by BV and SGS.

Ruike Company are equipped with:
1), waste tyre&plastic pyrolysis machine
2),PLC control system from waste engine oil/mineral oil/tire oil/plastic oil to diesel, base oil distillation machine

3),Crude oil refinery machine..

Product Description

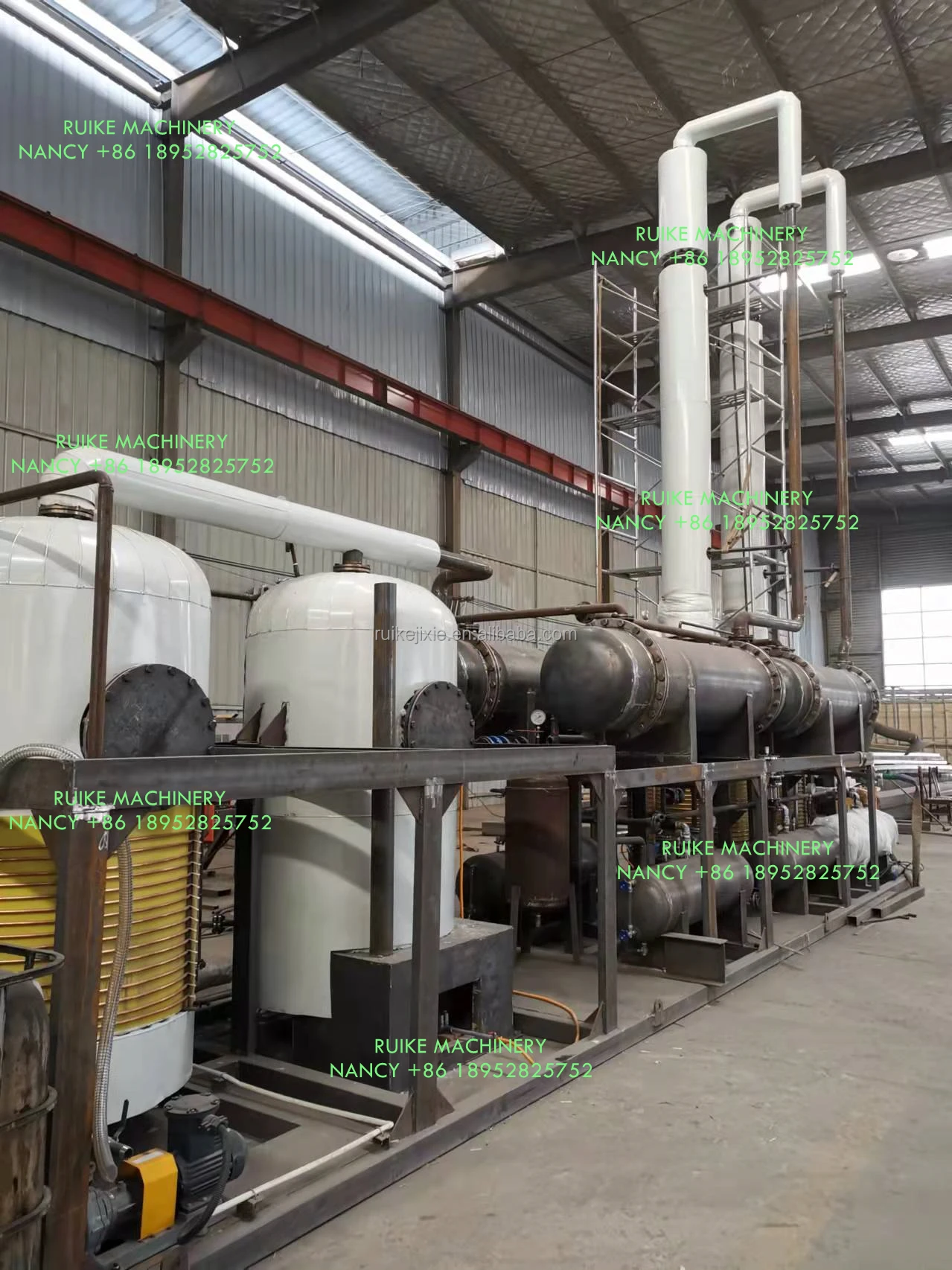

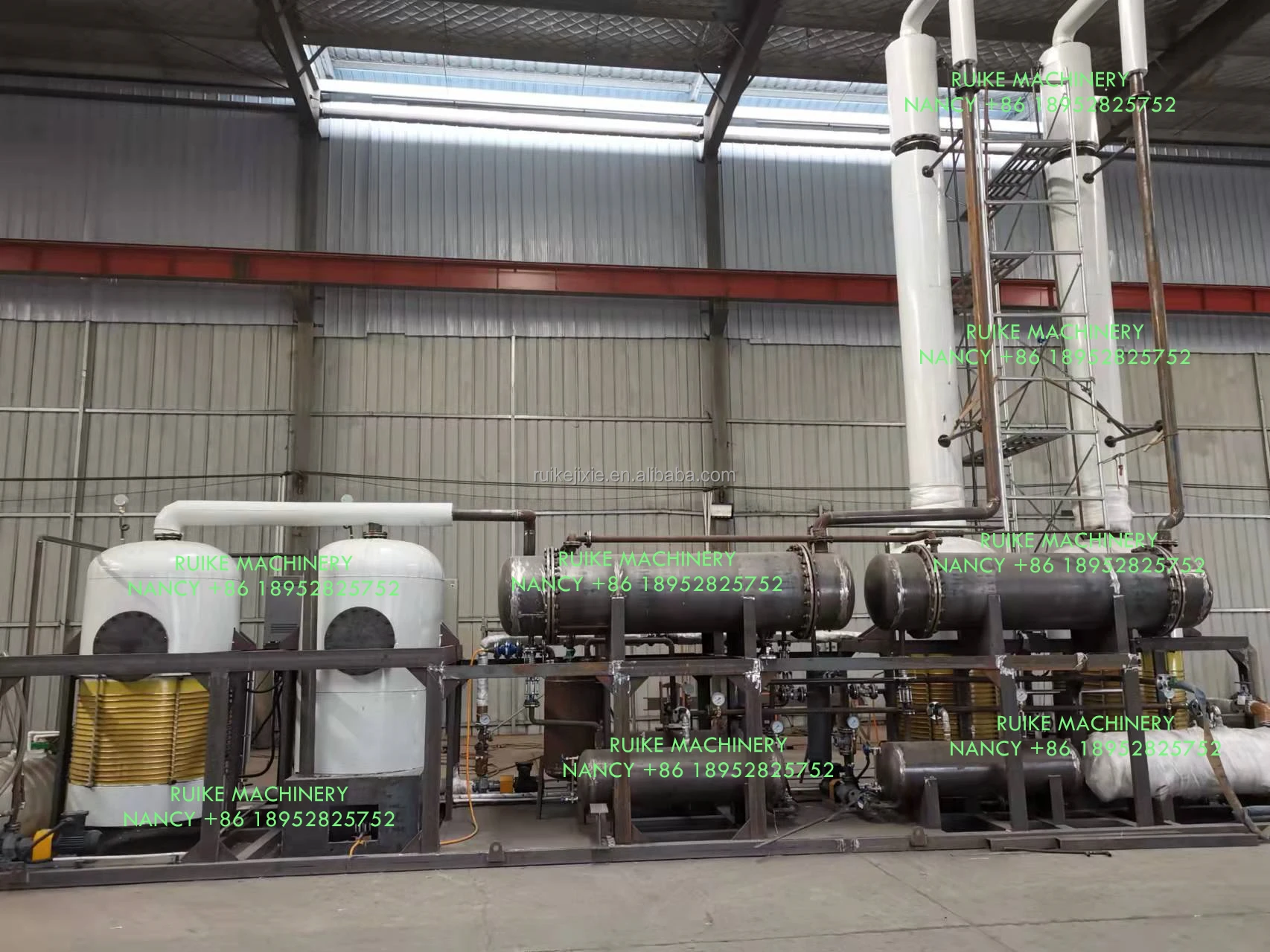

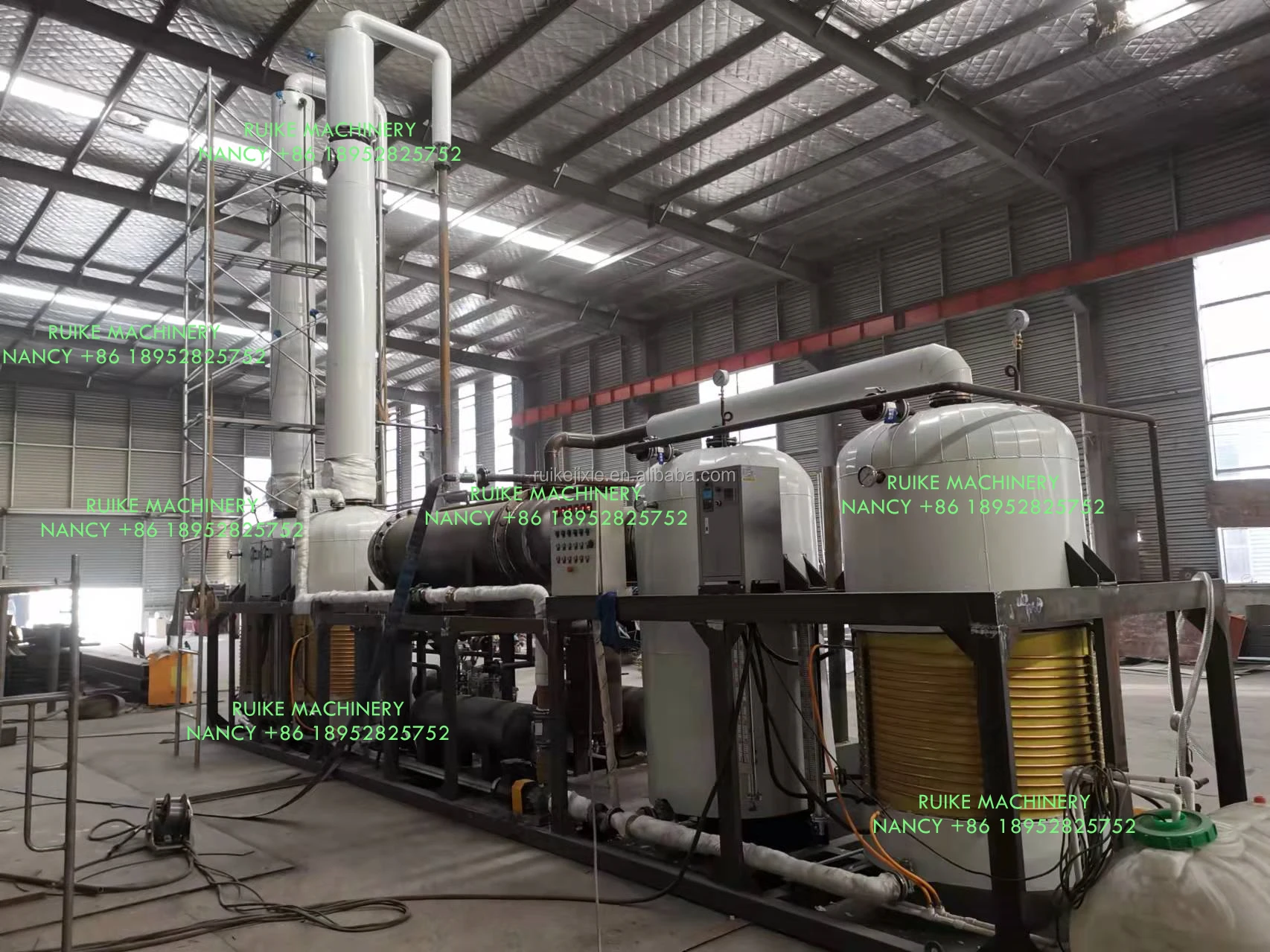

Waste engine oil Distillation plant to Diesel .

Raw material can be processed: Waste engine oil, Tyre oil, Plastic oil, Bunker oil , HFO

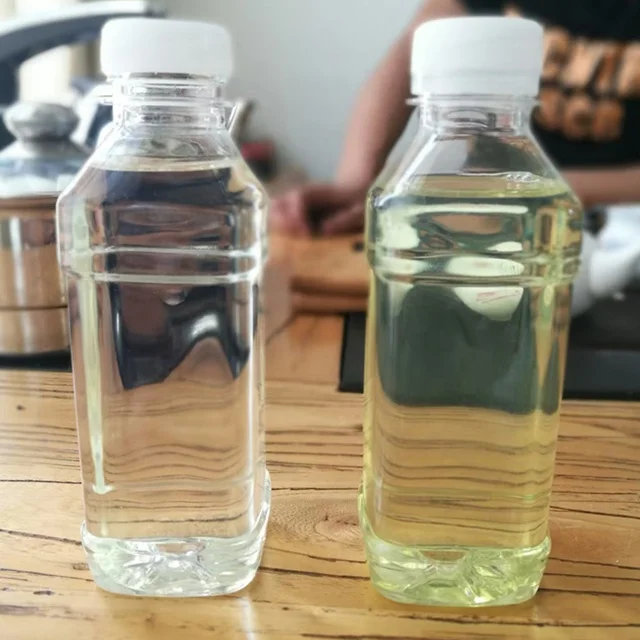

End product can be got : Diesel , Light oil, Heavy oil, waste gas( can be re-used during the process)

Daily process capacity : 3-200Tons/day

Working Model : 3-10Tons capacity with Distillation reactor+Distillation tower ( Semi-continuous system)

20-200Tons with distillation tower in 24hours continuous running by PLC system

Model	capacity	power	catalyst
RK-5BB	5Tons	45KW	1.5tons
RK-10BB	10Tons	45KW	1.5Tons
RK-20BB	20Tons	60KW	3Tons
RK-30BB	30Tons	80KW	3Tons
RK-50BB	50Tons	80KW	8Tons
RK-100BB	100Tons	140KW	8Tons
RK-200BB	200Tons	250KW	20Tons

Process flow chart

Diesel process flow chart .

Process: waste water removal---Light oil separation---Diesel separation---Diesel goes for filter--End product collecting

Main technology

PLC control

Continuous running

With catalyst

Tube furnace and Thermal oil heating system

Profit analysis (30Tons waste engine oil)
Input	Unit	Price	Total
waste engine oil	30Tons/day	300$/Ton	9000$
Power	60KW240.6	0.12$/kwh	103$
Labors	4 per day	50$/people	200$
Catalyst		10$/ton	300$
Fuel oil	light oil as fuel
Total			9603$
Output
Diesel	70%*30Tons	650$/Ton	13650$
light oil	For heating
heavy oil	10%*30Tons	100$/Ton	300$
Total			13950$
Profit per day			4337$
