OPTO EDU A10.1007 live blood analysis darkField microscope
- Category: >>>
- Supplier: Opto-Edu (Beijing) Co. Ltd.
Share on (62125632461):
Product Overview
Description
Product Application
Details Images
Accessorices
Products Description

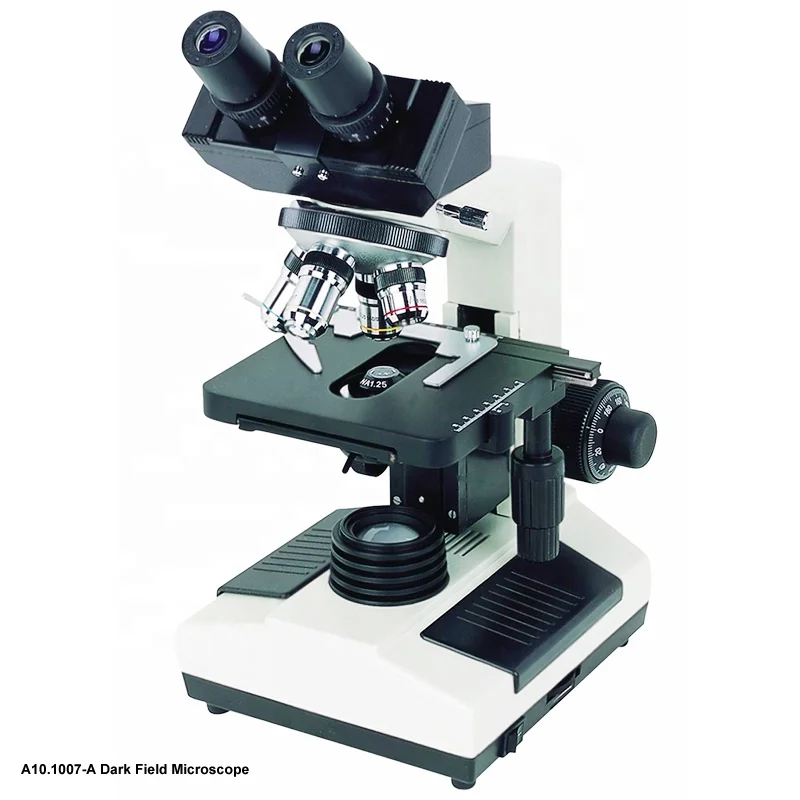

A10.1007 Professional Dark Field Microscope | ||||
Magnification | 40x~1000x | |||

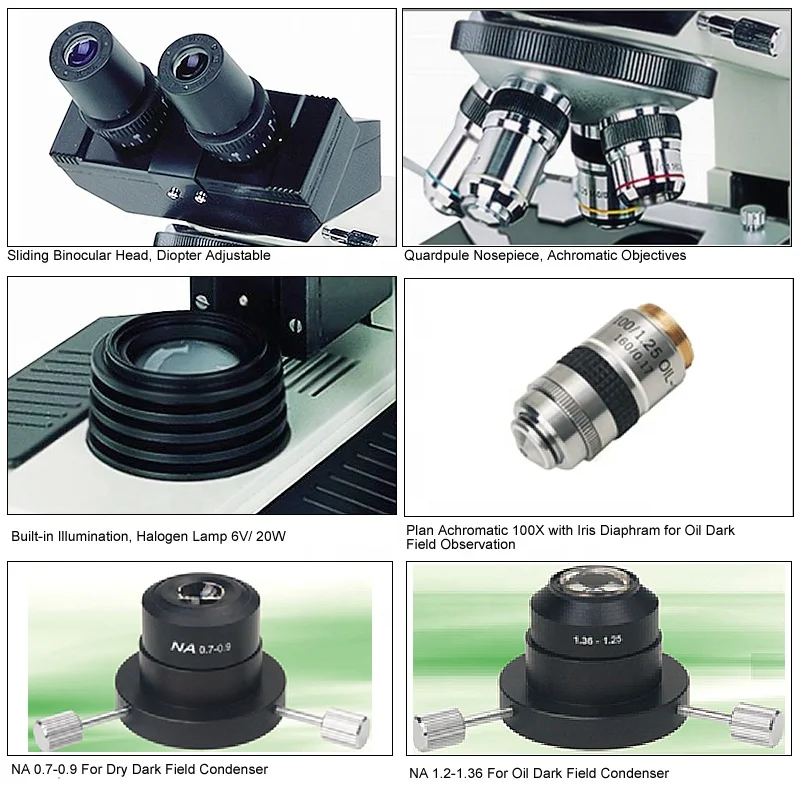

Head | Sliding Trinocular Head, 45° Inclined, With C-Mount 0.45x | |||
Eyepiece | Wide Field WF10x/18mm | |||
Nosepiece | Quadruple Nosepiece | |||
Objective | Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil) | |||
Stage | Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm | |||
Focusing | Low Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, With Tension Adjustment, With Up Limit | |||
Condenser | NA1.25 Bright Field Condenser with Iris Diaphram | |||

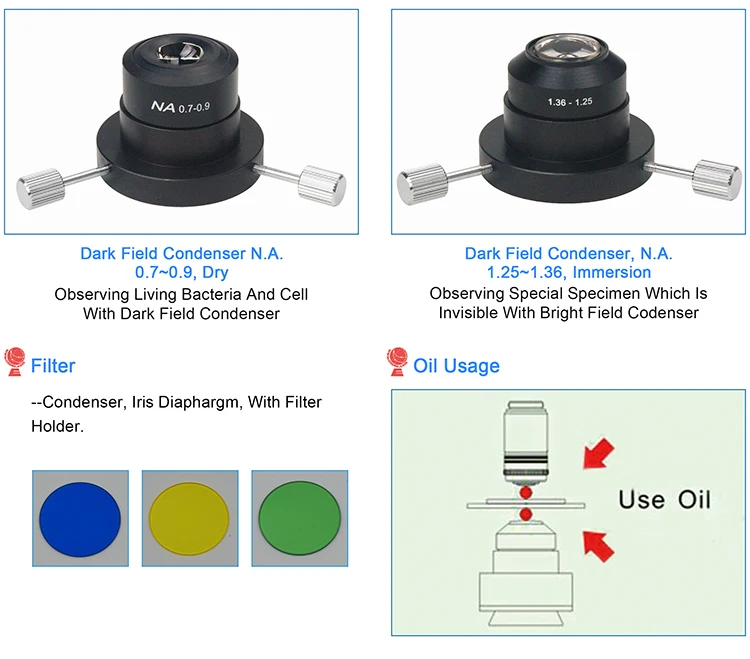

Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | |||
Dark Field Condenser, N.A. 1.25~1.35, Immersion | A5D.1030-1 | |||

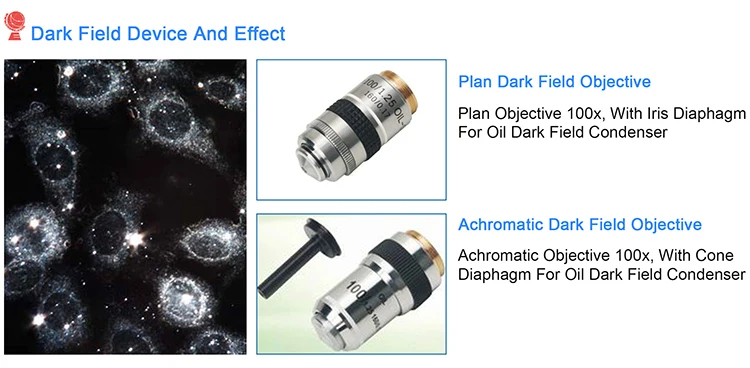

Achromatic Dark Field Objective 100x, With Cone Diaphragm | A5D.1030-2 | |||
Plan Dark Field Objecive100X, With Iris Diaphragm | ||||
Filter | Blue, Yellow, Green | |||
Light Source | Built-in Illumination 6V20W Halogen Lamp | |||
Adapter | C-Mount 0.45x | |||

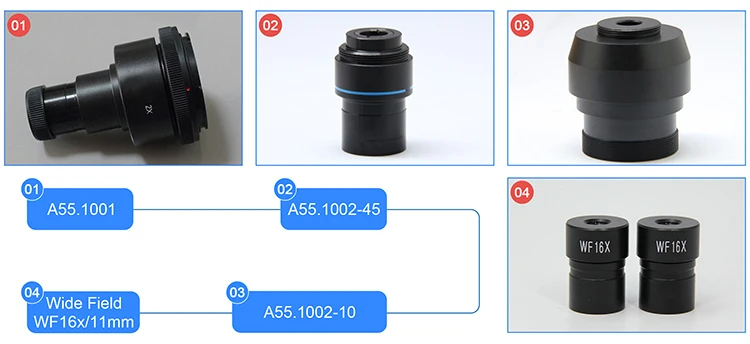

A10.1007 Dark Field Microscope Optional Accessories | ||||
Adapter | Photo Adapter, For Nikon or Cannon SLR Camera, 1.0x | A55.1001 | ||
C-Mount 1.0x | A55.1002-10 | |||
Eyepiece | P16x/11mm | A51.1002-16 | ||
Company Profile
OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.
