WIN/Linux intel all in one touch PC with mini pci e,Celeron J1900 CPU,2GB RAM,16GB SSD,12V,support WIFI,3G,GPRS,GPIO,RS485,
- Category: >>>
- Supplier: Dongguan Haxun Technology Co. Ltd.
Share on (62125709592):
Product Overview
Description

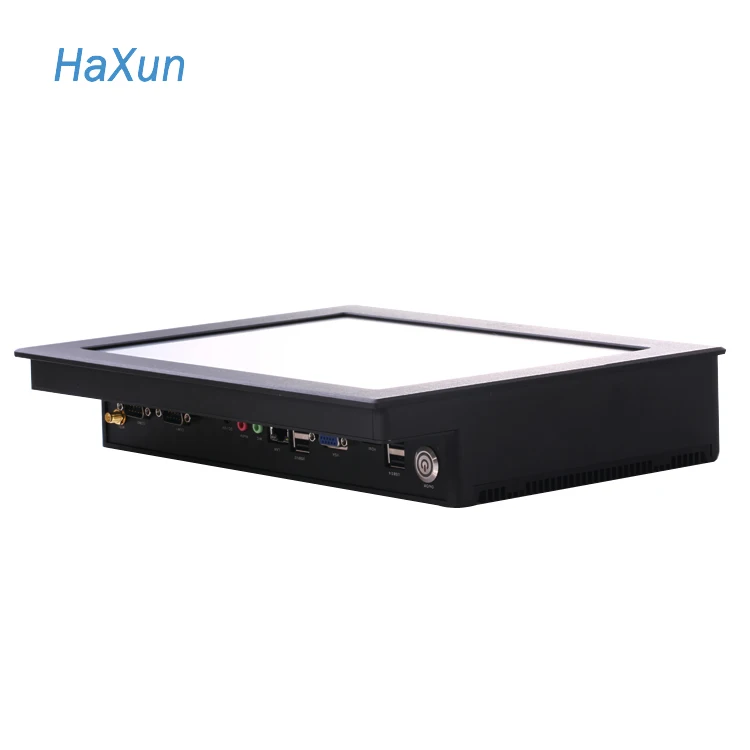

Product Name: | Fanless Industrial Panel PC | ||
Product No: | IPC1201 | ||
System | CPU | •Intel® Atom™ D2550 Dual Core 1.86GHz, NM10 Chipset •Intel® J1900 Four Cores, 2.0GHz, 2M Cache ,NM70 Chipset •Intel® Haswell 4010U 1.7GHz, 3M Cache,NM70 Chipset •Intel® Skylake i5 6287U, 3.1GHz~3.5GHz , 4M Cache | |
RAM | 1 x DDR3 SO-DIMM socket, support up to 8GB | ||
HDD | 1 x 2.5" SATA HDD drive bay | ||
BIOS | AMI 16MB DPI Flash | ||
Watchdog Timer | 255 level, 0~255 sec | ||
LAN | Realtek RT8111E, 10/100/1000M, Support PXE, Wake on Lan | ||
Graphic | Intel® HD Graphics/Intel® HD 4400 | ||
OS | Linux/Windows XP/ Win7/Win8/Win10(Optional) | ||
Extendable Ports | 2xfull-mini PCI express; 2x COM port | ||
Display Part | LCD Size | 12.1inch | |
Contrast Radio | (700:1) | ||
Response Time | 10ms | ||
Brightness | 420 CD/㎡ | ||
Aspect ratio | 4:3 | ||
Viewing Angle | 80/60(U/D), 80/80(L/R) | ||
Operating Temperature | -10 to +60 ° | ||
Resolution | 800*600 (Optional: 1024*768) | ||
Color Resolution | 16.7M/ 262K Colors | ||
Touchscreen | 5-Wire resistive type | ||
Power Requirements | 12V DC-IN(Standard) / 8V~28V Input(Optional) | ||
Dimensions | 313 mm (W) x 243 mm (D) x 57 mm (H) | ||

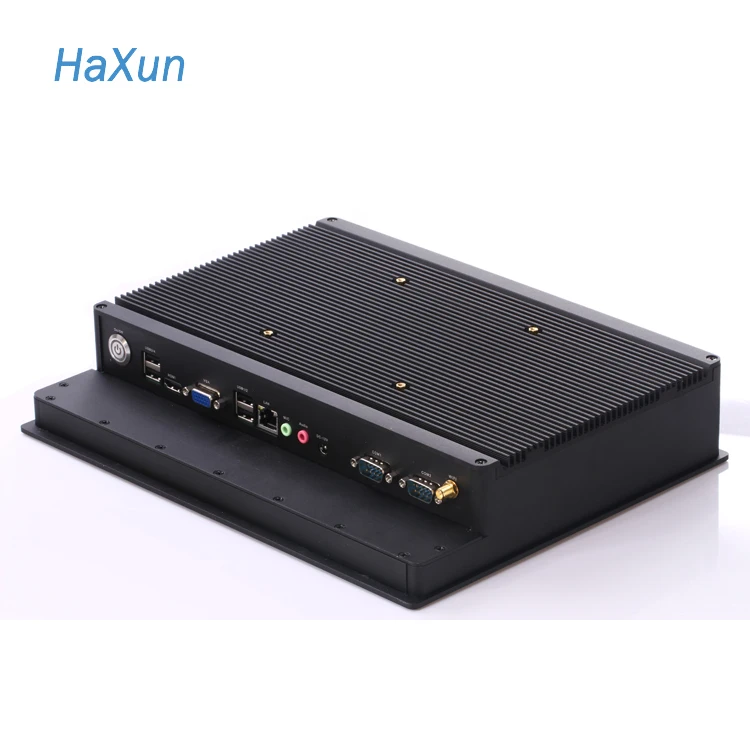

Construction | Aluminum Chassis with fanless design | ||
Degree of protection | IP65 Front/ Whole IP65(optional) | ||
Mounting VESA | 100X100MM | ||

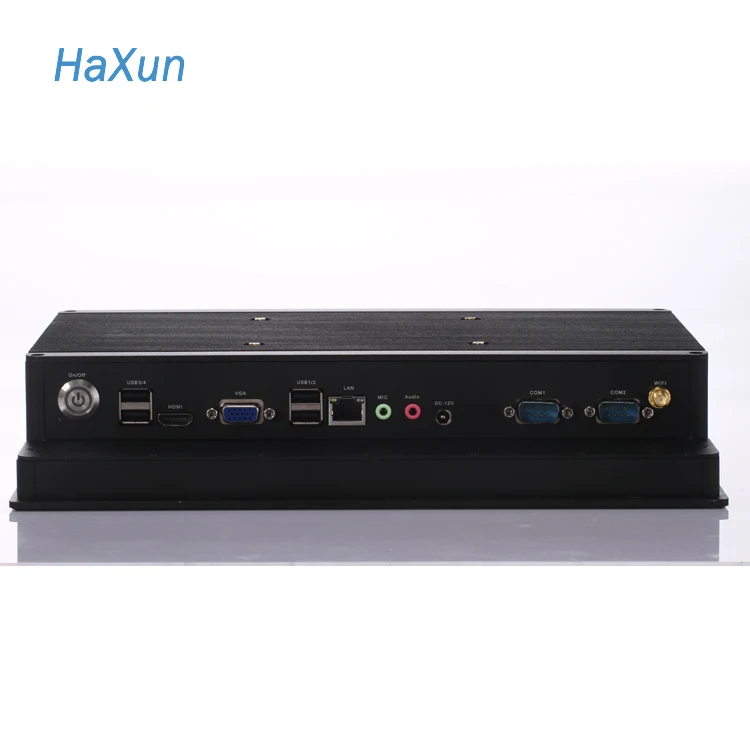

I/O Ports | 4 x USB 2.0/1 x RJ45/1 x VGA/1 x HDMI/1 x Headphone-out/2xCOM | ||
Related Products
8inch fanless industrial panel pc | ||
CPU | Intel® Atom™ N2800 Dual Core 1.86GHz | |
Memory | 1 x DDR3 SO-DIMM socket, support up to 4GB | |
Storage | 1 x 2.5" SATA HDD drive bay | |
I/O ports | 2 x USB 2.0/2x RJ45/1 x VGA/1 x HDMI/1 x Headphone-out/2xCOM | |
Dimensions | 205 mm (W) x 160 mm (D) x 56 mm (H) | |
10.4inch fanless industrial panel pc | ||
CPU | Intel® Atom™ D2550/J1900/I3 4010U | |
RAM | 1/2/4/8GB RAM DDR3 | |
HDD | 500GB HDD/16/32/64/128/256GB SSD | |
I/O Ports | 4 x USB 2.0/1 x RJ45/1 x VGA/1 x HDMI /1 x Headphone-out/2x COM | |
Dimensions | 255 mm (W) x 208 mm (D) x 70mm (H) | |
17inch fanless industrial panel pc | ||
CPU | Intel® D2550/J1900/I3 4010U | |
RAM | 1/2/4/8GB RAM DDR3 | |
HDD | 500GB HDD/16/32/64/128/256GB SSD | |
I/O Ports | 4 x USB 2.0/1 x RJ45/1 x VGA/1 x HDMI/1 x Headphone-out/3x RS232 | |
Dimensions | 359 mm (W) x 282 mm (D) x 59 mm (H) | |
17inch fanless industrial panel pc | ||
CPU | Intel 1037u/D2550/J1900/Haswell i3,i5,i7 | |
RAM | 2/4/8GB RAM DDR3 | |
HDD | 500GB HDD/16/32/64/128/256GB SSD | |
I/O Ports | 8 x USB 2.0/1 x RJ45/1 x VGA/1 x HDMI/1 x Headphone-out/2x RS232/ATN | |
Dimensions | 385 mm (W) x 310 mm (D) x 67 mm (H) | |
21.5inch fanless industrial panel pc | ||
CPU | 1037u/D2550/J1900/Haswell i3,i5,i7 | |
RAM | 2/4/8GB RAM DDR3 | |
HDD | 500GB HDD/16/32/64/128/256GB SSD | |
I/O Ports | 4 x USB 2.0/1 x RJ45/1 x VGA/1 x HDMI/1 x Headphone-out/3x RS232 | |
Dimensions | 533 mm (W) x 325 mm (D) x 73mm (H) | |
