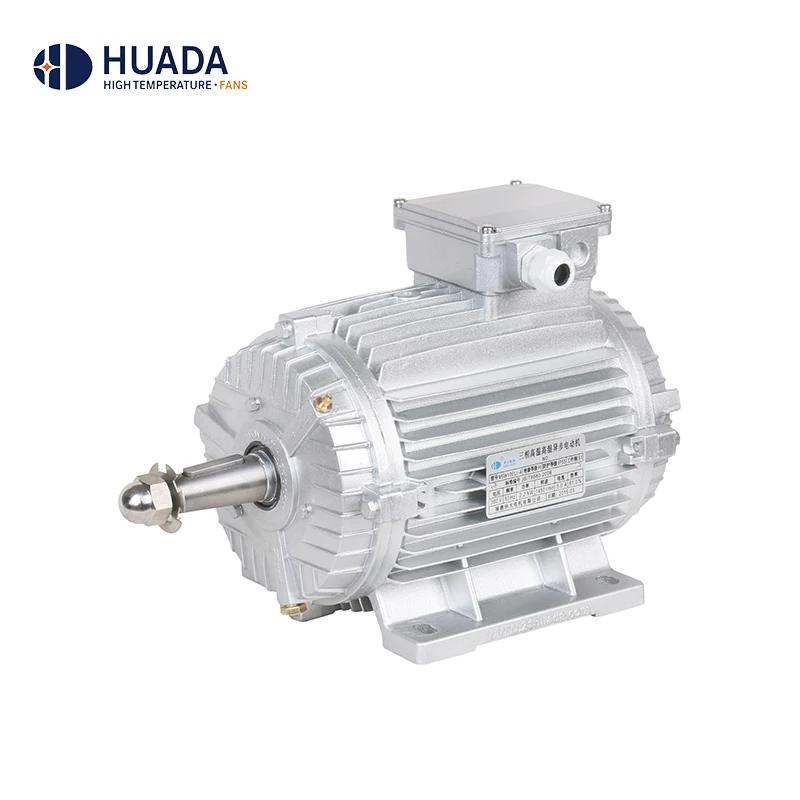

MSW high temperature high humidity asynchronous motor
1. This special motor with ventilator fan is used in high temperature and high humidity environment.
2. The characteristic of blower-pump load, motor shell adopts aluminum alloy material, fastening piece adopts stainless steel and copper, attractive appearance.
3. The bearing material: stainless steel and chrome steel
4. The motor cover: the nozzle tip (closed high temperature bearing)
5. The mounting dimensions: standard for B3, B5, B14, B34, B35
Max. Ambient Temp: <130℃
Relative humidity: ≤98%
Power form: Single phase: 220V Three phase: 220/380/660V, 230/400/690V, 240/415/720V
Cooling Method: IC411, ICO141
Protection Class: IP54/IP55
Insulation Class: Class F(120℃), Class H(180℃)

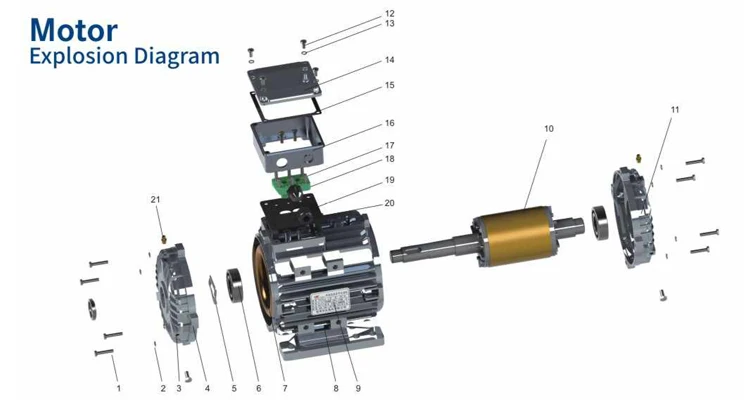

1. Bolt
5. Wave form
9. Nameplate
13. Spring washer
2. Spring washer
6. Bearing
10. Rotor
14. Terminal box lid
3. Oil hole
7. Stator
11. Rear endshield
15. Gasket
4. Front endshield
8. Frame
12. Screw
16. Terminal box base
