Laser engraving machine is used for engraving and cutting on non-metal material. It is widely used on engraving or cutting on acrylic wood rubber glass PVC MDF leather etc.

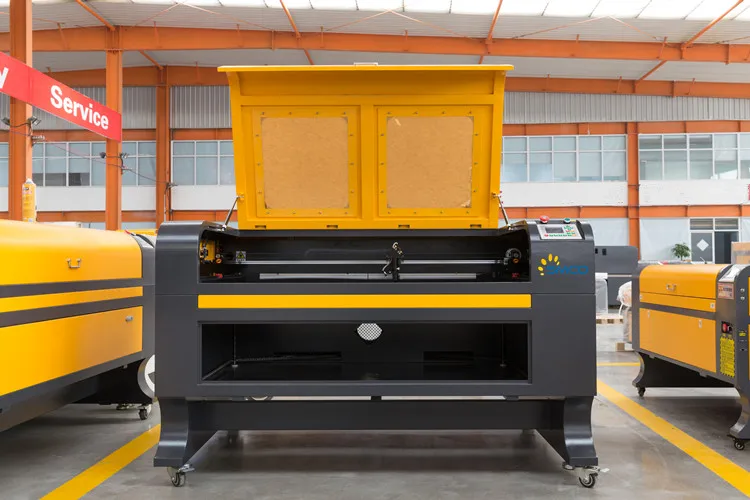

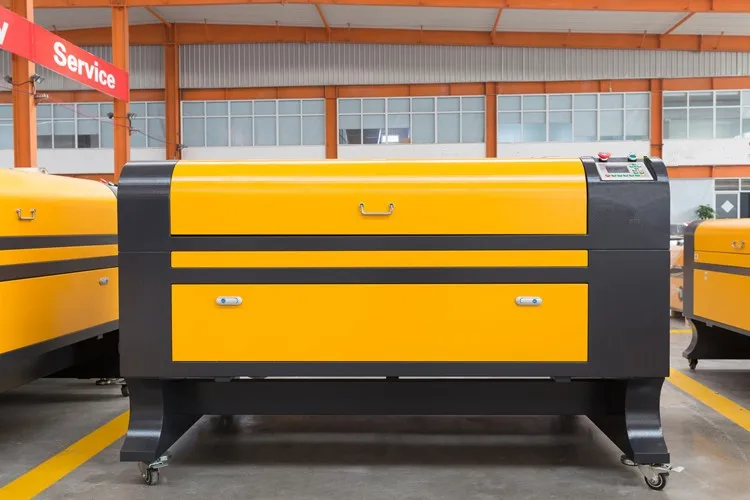

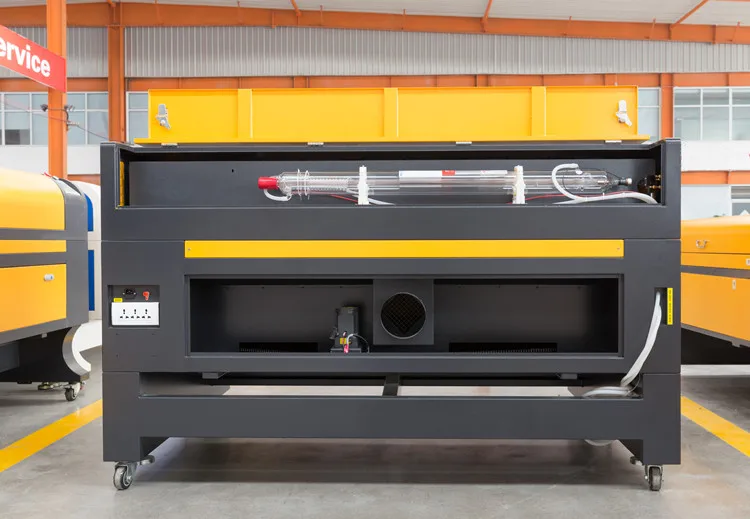

SPECIFICATIONS FOR 1390 laser engraving machine
Basic performance parameters
working area
mm
1300*900
laser power
W
60/80/100/130/150
laser type
/
sealed CO2 laser tube
Main performance parameters
cutting speed
mm/s
0-300
engraving speed
mm/s
0-1024
cutting thickness
mm
0-20
Hydraulic system
engraving thickness
mm
0-2
Location precision
mm
<=0.01
lift range
mm
0-270
Main Features

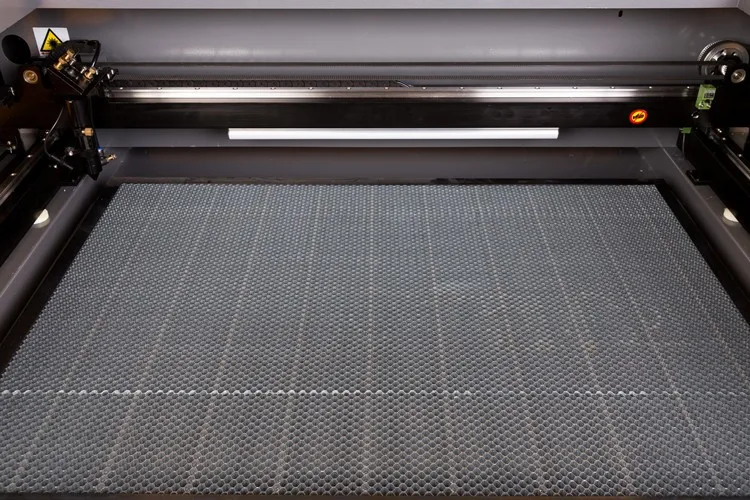

1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting 2. USB Interface 3. Air Assist, Remove heat and combustible gases from the cutting surface. 18W Air pump, flow can be 38L/Min. 4. Embedded Exhaust Fan, Easier intall, Safer transport. 40W exhaust fan, flow can be 5.27m³\Min. 5. Rotary Axis, Engrave any cylindrical object. 6. Cellular platform, Leave no chippings on working area. 7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser. 8. Water Cooling and Protection System. 15W Water Pump, flow can be 7.5L/H.

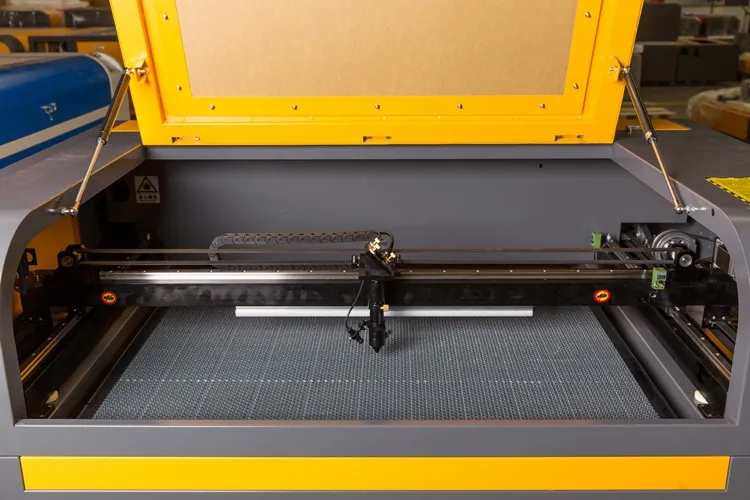

Detailed Images
Machine Parts

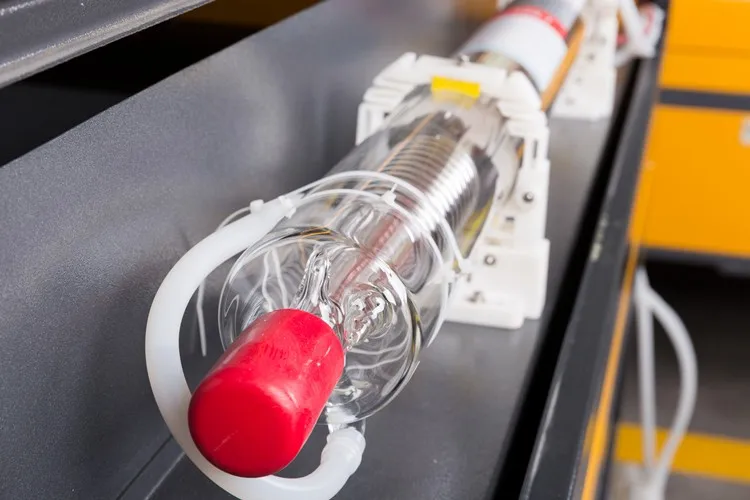

Name: sealed co2 laser tube
Brand:reci or EFR
High quality laser tube, strong and fine light beam, long life span 10000 hours low fuel consumption.
Main Parts
Name: ruida panel Brand: ruida offline systerm, continue caving when power off, stable performance, high speed transmission, visualize working process, dynamic display track, modify layer parameters online, support mutliple language, support coreldaw, Al and CAD software.
Machine Parts

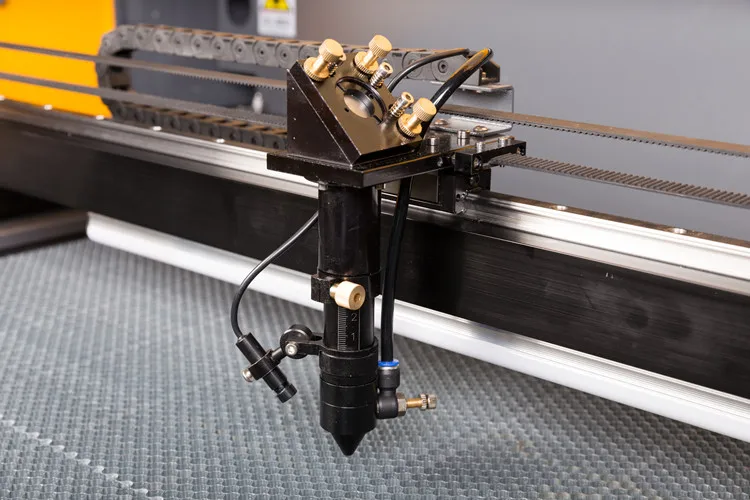

Name: premium industrial laser head industrial laser head , long life span. airblow protection system red light positioning
Main Parts

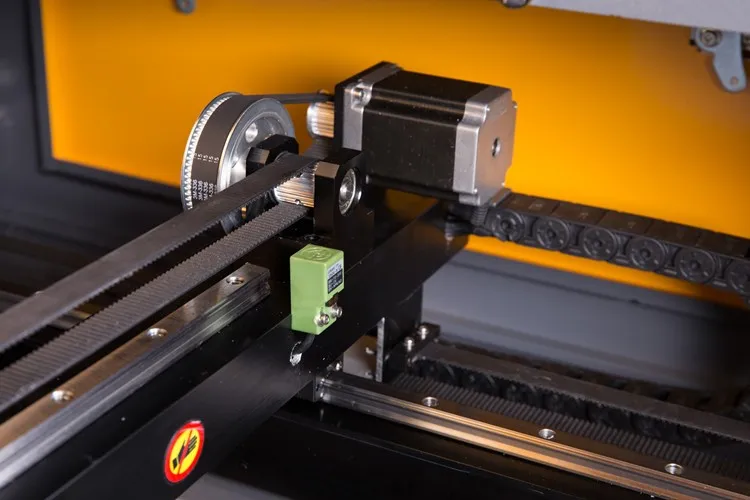

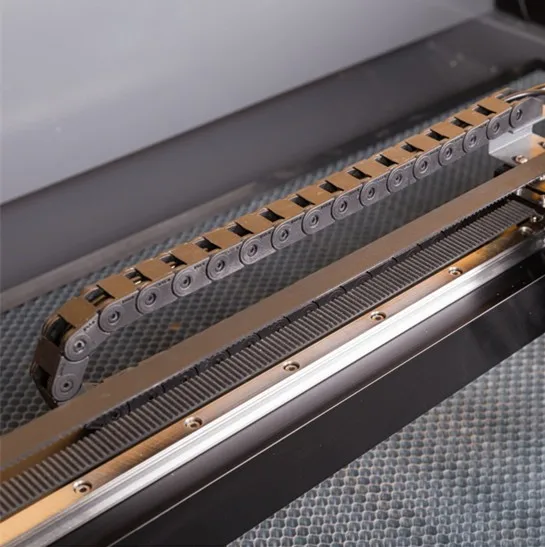

Name: linear guide Brand: taiwan imported smoothly and steady moving highe speed and low noise supported precision engraving cutting
About our company

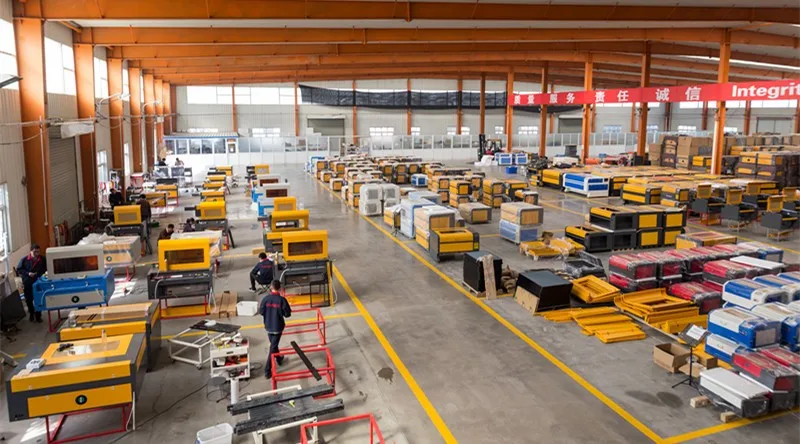

16 years manufacturer for laser engraving cutting machine.
* We reach the demonstration enterprise at the year 2015 * We built material anlysis lab at the year 2015 *We are the pointed factory of school laser machine purchasement *We reach the top three exported factory in Liaocheng city.
Excellent R&D team
* We have four engineers have worked in laser machine filed over 10 years,they devoted to improving the performace of our products. *The new models machine are on the way *Customized products are avaliable * Engineers available to service machinery overseas.
At Exhibition
Certifications
Samples
Packing & Delivery
Packaging
Size
1900 (L) * 1460 (W) * 1280 (D)
Weight
420kg
Packaging Details
The normal package is plywood box(Size: L*W*H). or according to customers special request.
