Customized Diameter 5 300mm AR coating @1064nm&755nm BK7, Fused Silica Plano Convex Lens

Share on (62126124303):


Price:$4.00 - $25.00

Quantity:


Product Overview

Description


Product Description

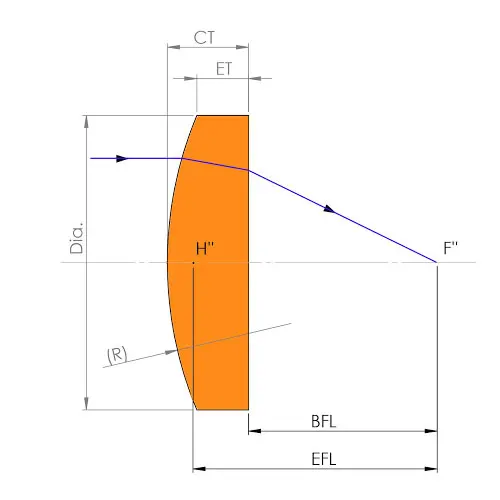

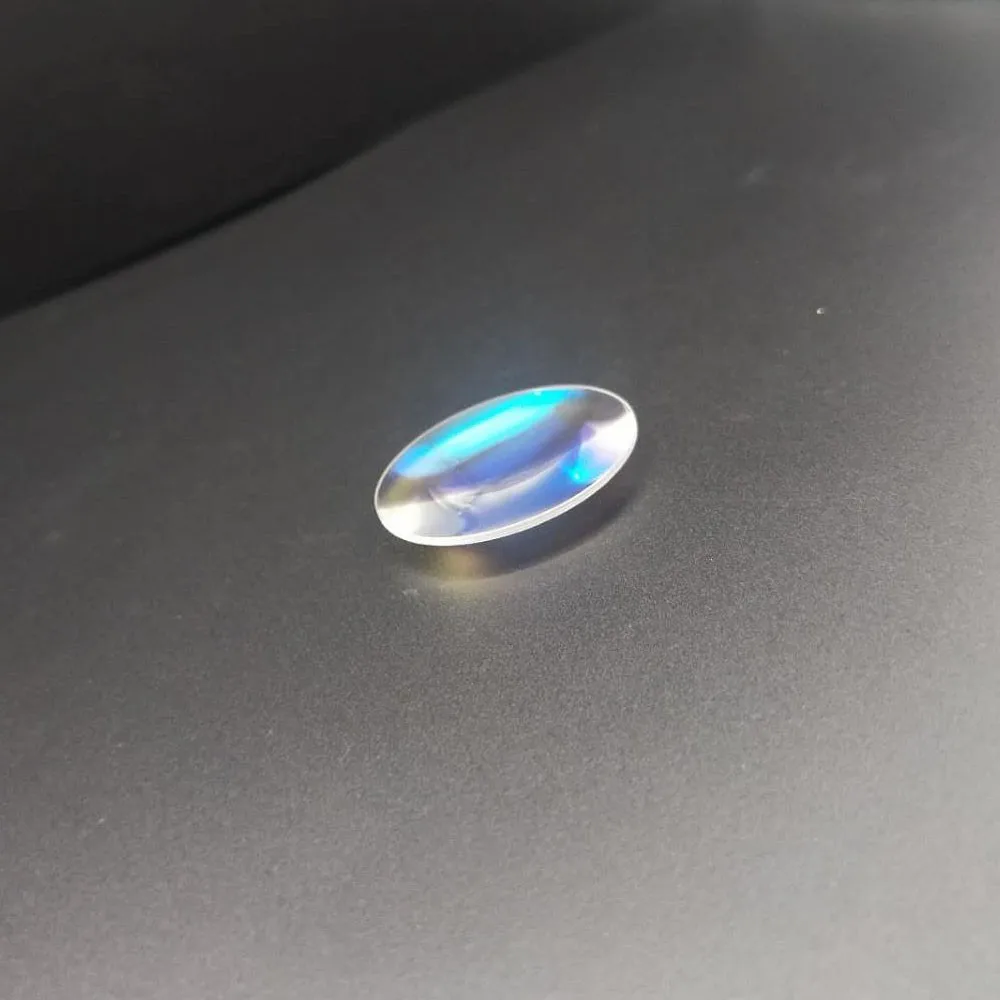

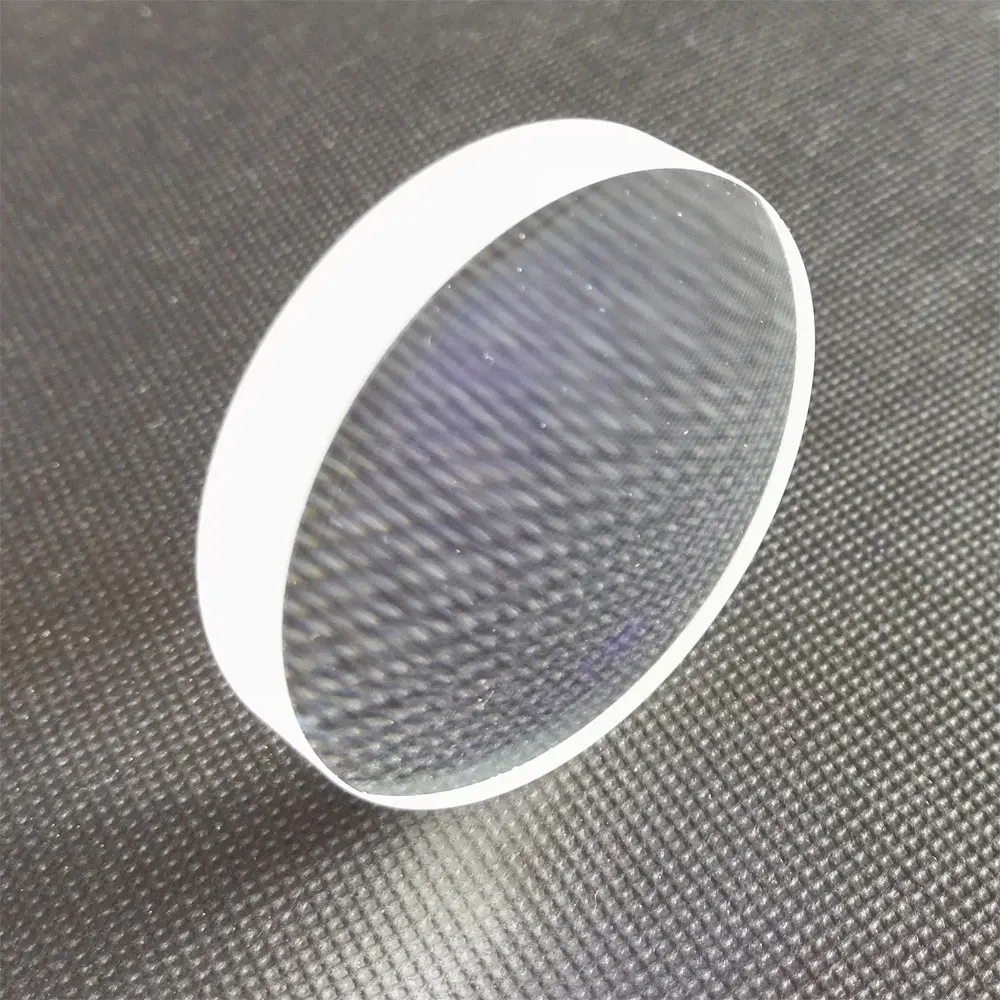

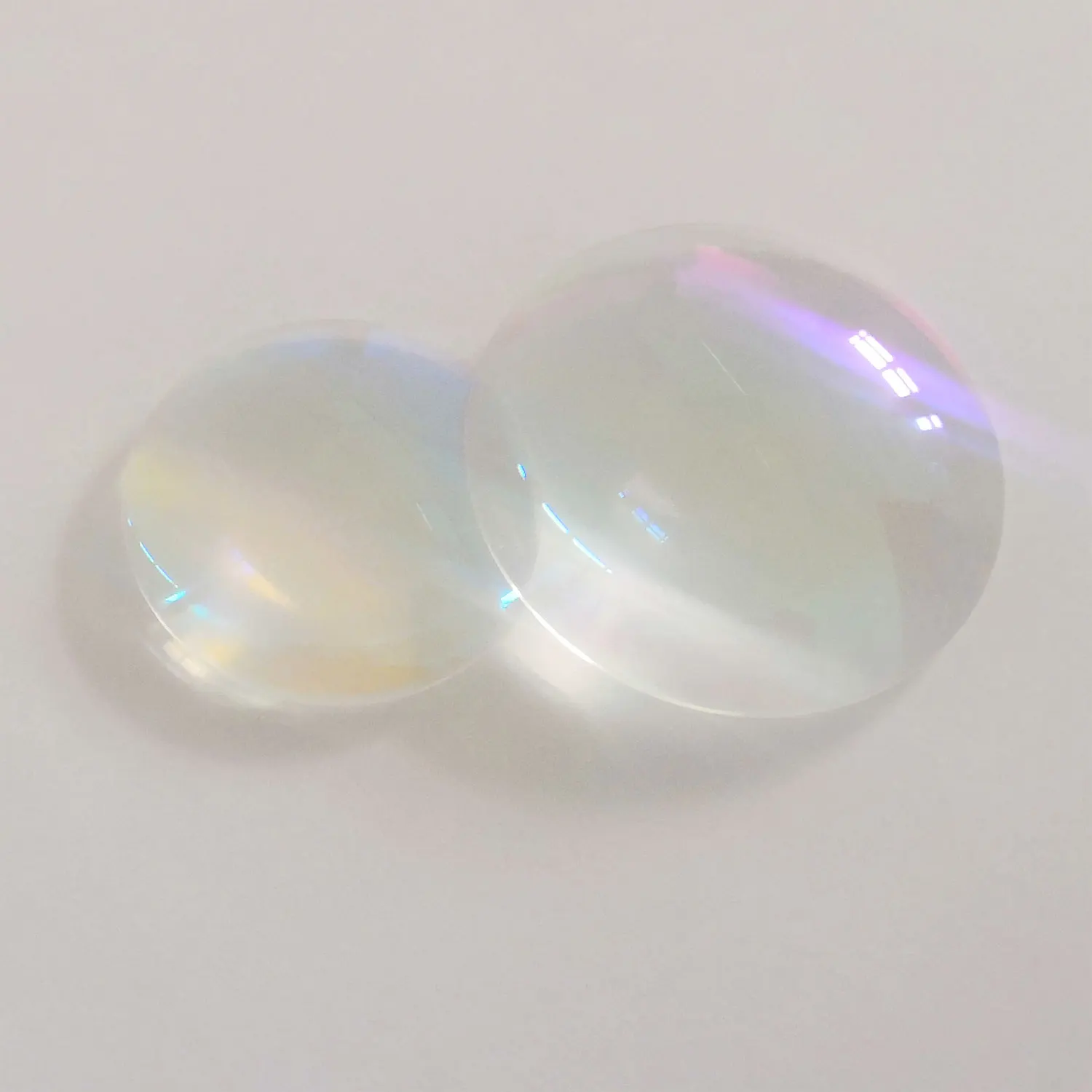

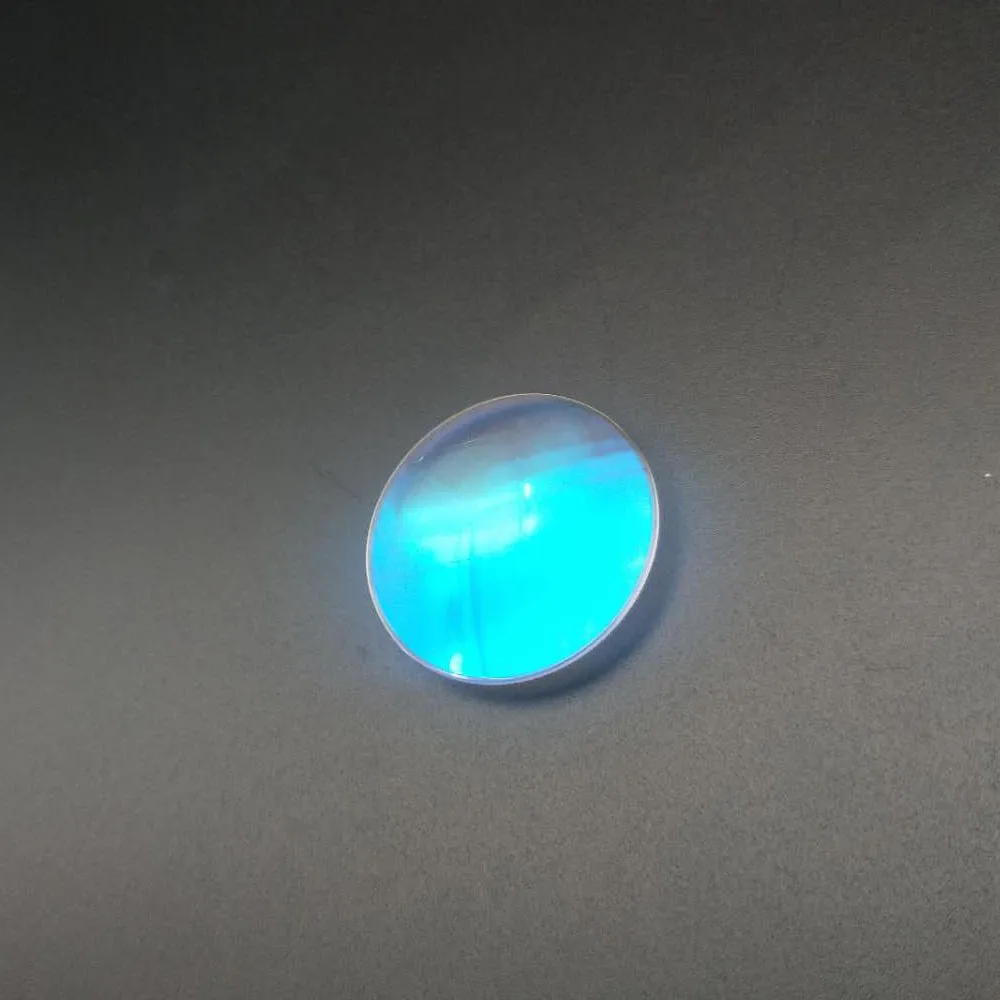

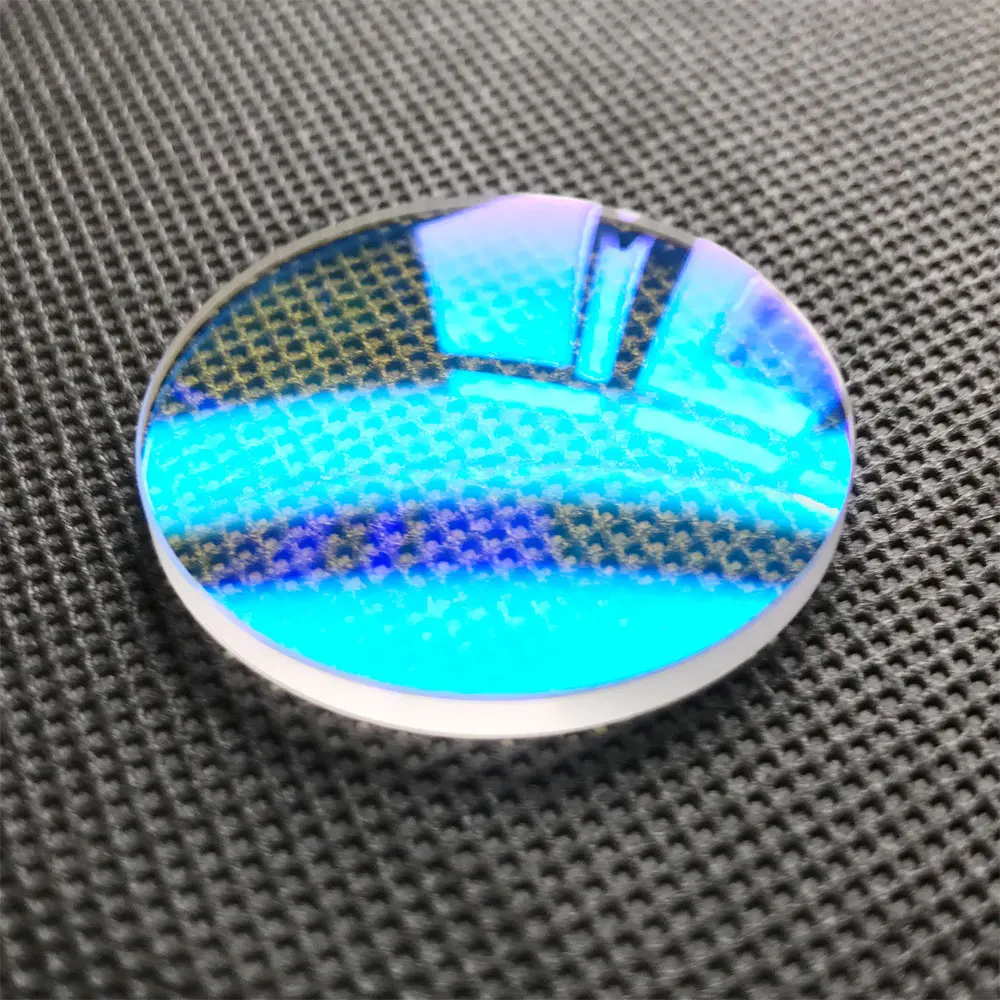

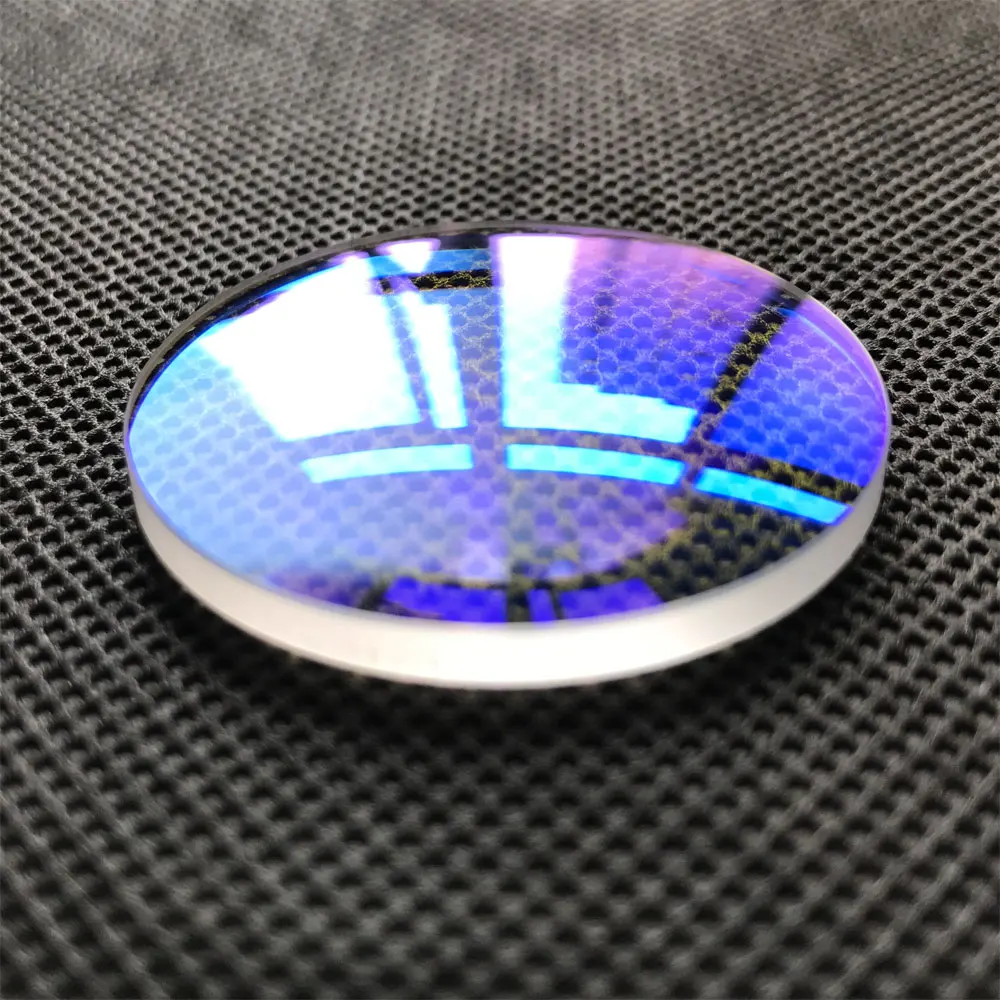

Plano-convex lenses are positive focal length elements that have one spherical surface and one flat surface. These lenses are designed for infinite conjugate (parallel light) use or simple imaging in non-critical applications. These optic lenses are ideal for all-purpose focusing elements.
Wuhan Especial Optic manufactures plano-convex lenses from S1-UV Grade Fused Silica, G1 Fused Quartz, Commercial Grade,Sapphire,CaF2,MgF2 and BK7 Optical Glass. Every optic is fine polished, providing good surface quality and an exceptional low-cost imaging performance with a variety of light sources.
We also offer plano-concave lenses, which have negative focal length components and one concave surface. For information on our optic lens custom work, please feel free to contact us.

Standard
High Pricision
Material
Si, Ge, ZnS, ZnSe, CaF2, MgF2, Sapphire
Size
5mm-300mm
5mm-300mm
Size Tolerance
±0.1mm
±0.02mm
Clear Aperture
≥90%
95%
Surface Quality
60/40
20/10
Centration
3'
1'
Focal Length Tolerance
±2%
±0.5%
Coating
Uncoated, AR, BBAR, Reflective
Our Company
Wuhan Especial Optic established in 2012, compliance with ISO 2009.
WHEO is very good at developing and processing kinds of infrared optical components at ultra high precision, ultra thin, very large, ultra small and customization. Like 0.5mm thickness CaF2 window, 300mm diameter Germanium and ZnSe window. Our featured products include: Optical Protective Window (AR BBAR coating), High Reflection Mirrors (Metalic and Dielectric coating), Optical Lens (Aspheric Lens, Achromatic Lens, Cylindrical lens, Ball Lens, Powell Lens, Collimator Lens), Optical Filters (UV pass, IR pass, narrow bandpass, notch filter), Optical Prism, Galvo Mirror, Polarization rotators.
We can custom all these optical components strictly as per your requirements. For instance, surface quality, flatness, tolerance and so on.
In addition, we have various kinds of products in stock. If you need samples, please write to us at sales@wheo.cn for free sample.
Our Service

a: Dimesion size : 5-300mm , thickness up to customer requirements

b: Many material could be choosed, like BK7, Fused Silica, Sapphire, MgF2, CaF2, Ge, Si, Znse, ZnS and so on.

c: AR HR DLC coating or as your request

For more please visit our website: www.wheo.cn

                  Optical design

   We can design optical components according to your requirements.

                  Production

    Our current production capacity         includes but not limited to cutting, grinding, polishing,coatin and testing.

              After-sales service

    If you have questions about our products you can contact us directly.

Our products
                    BK7 windows
                      caf2 window
            AR coating Ge window
                    ZnSe window
            AR coating SI window
           AR coating ZnS window
                             Sapphire window
                               Fused Slica  window
                     optical lens
                   Cylindrical Lens
                        Powell Lens
             optical convex mirror
                 Al coated mirror
              Gold coated mirror
          Optical Filter
                    Optical Prism
                Galvo Mirror
Packing & Delivery

Packing Details: Protective film or Capacitor paper,Pearl cotton,Cardboard box.
Delivery Details: 7 days for stock.

                              3-4 weeks for custom-made products for sample.

                              in common, 4 weeks for mass production

FAQ

What's the way of shipping?
We commonly use UPS, FedEx, DHL, TNT, SF, EMS etc. If you have your own express account, it's great.


How to pay?

We usually draft Trade Assurance Order on Alibaba, you can pay by the most convenient way which also protect most of your rights.

What's the deliver time?
For inventory: the delivery time is around 5 workdays.

 Customized products: the delivery time is 10 to 30 workdays. According to the quantity and precision.

How to ensure the safety of payment?
Wuhan Especial Optic.,INC is the gold supplier and supports Alibaba Trade Assurance. Payment<=5000USD, 100% in advance. Payment>5000USD, 50% T/T in advance, balance before shippment.


Can I customize the products based on my need?
Yes, we can customize the material, specifications and optical coating for your optical components based on your needs. OEM is available.
