Automatic Vacuum and nitrogen can seamer
- Category: >>>
- Supplier: Wuhan Global Exchange Import And Export Limited
Share on (62126129000):
Product Overview
Description

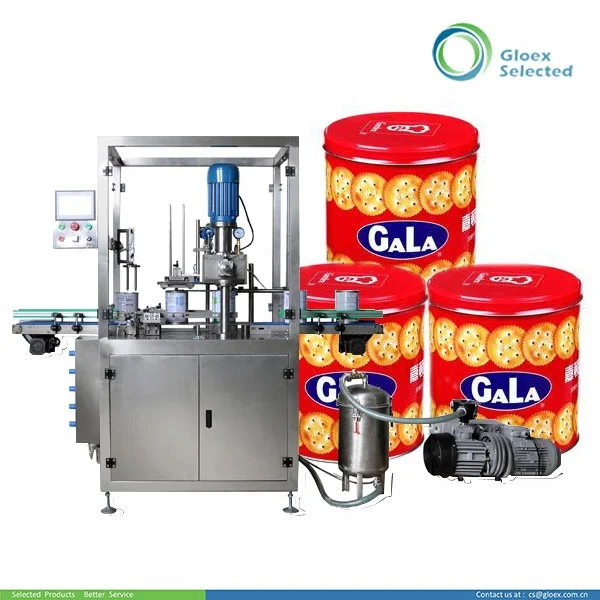

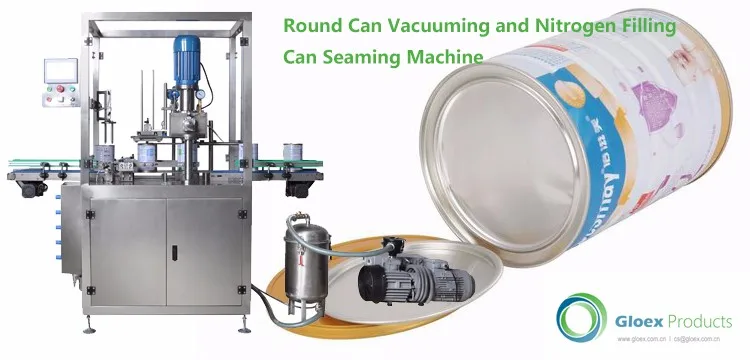

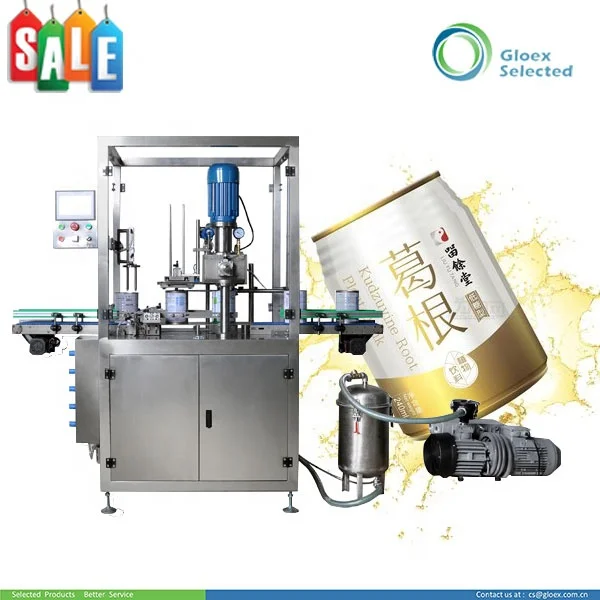

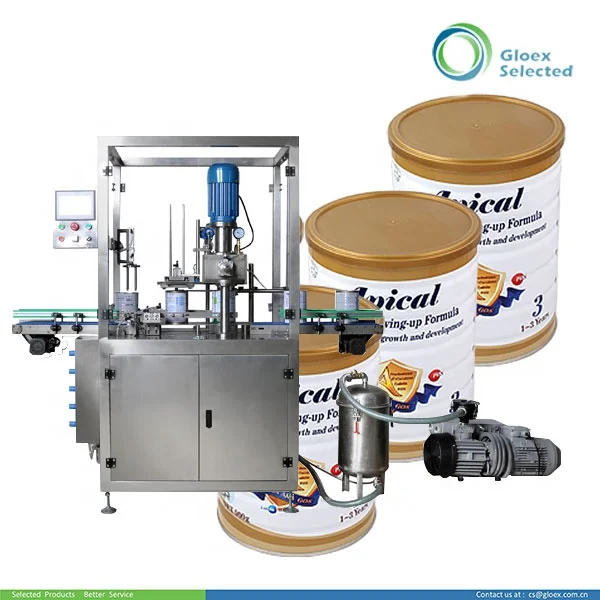

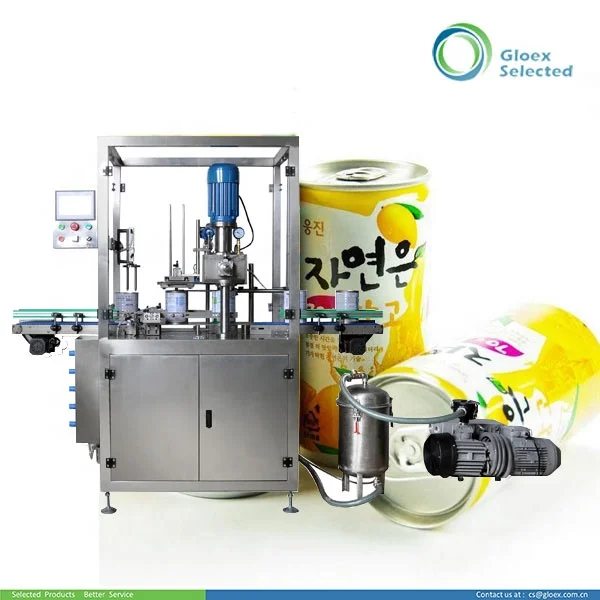

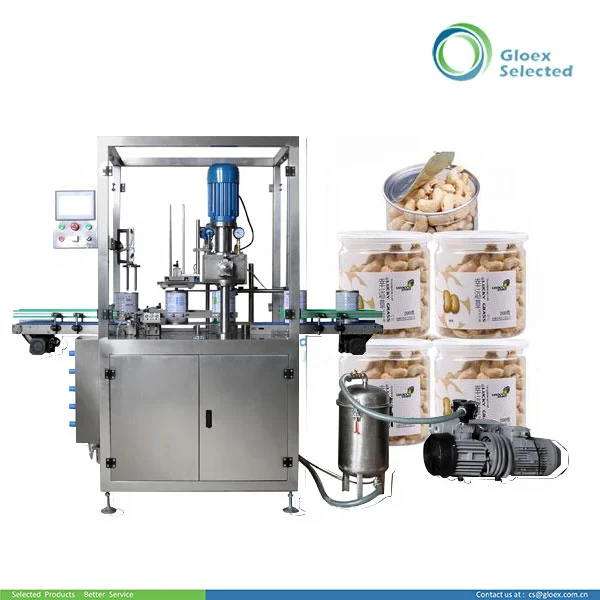

Automatic Vacuum and nitrogen can seamer
Product Description
This machine is applicable for Round Shaped Tinplate can , Aluminum Can or PET can seaming with vacuuming and nitrogen filling processes.
Standard Features
1) Configure with Stainless Steel 304 for structure, shield and other key components
2) Apply silicone gel for vacuum sealing system
3) All processes include Can feeding, lidding vacuuming, nitrogen filling and can seaming processes can be done automatically
4) Configure with can feeding and lidding interlock, no can feeding no lidding
5) Configure with PLC and touch screen control system, parameters can be set up conveniently.
6) Equipped with high precise sensor for vacuum detecting
1) Seaming Speed : 6-7 cans / minutes
2) Size range of can : Diameter: 70-127mm, Height: 80-190mm
3) Power requirement: 380V, 50/60HZ,
4) Power Capacity: 4.0 Kw
5) Net Weight : 500kg
6) Dimension: 2000(L)×800(W)×1850(H)mm
7) Compressing Air Requirement: 0.6-0.8MPa
8) Compressing Air Consumption: 80Liter/Min
9) Nitrogen Pressure: >=0.4Mpa
10) Nitrogen Consumption : App. 50 Liter/Min
11) Residual oxygen content: <=5%
12) Vacuuming Pump: Include
13) Filter Tank: Include, Stainless Steel 304
Related Products
Summary of can seaming machine options
Product Code | Standard Feature | Optional Feature | Driving Method | Size Range (mm) | Speed (cans/minute) | Remarks | |
PP172 | Seam only | Fill & Seam; Integrated | Electrical & Pneumatic | 52.5-130 | 30-60 | Mainly apply for power, granule products; Easier for can size changing over | |
PP170 | Vacuum & Seam | Seam only; Vacuum, gas flush and seam | Electrical & Mechanical | GT4B2 series Diameter: 52-108 Height: 46-135 | Vacuum or No Vacuum: 42 | Easier for cleaning by water, less controlling parts; Vacuum value: 0.04-0.06Mpa; Residual Oxygen: 9-14% | |
Vacuum and Gas flush: 15-17 | |||||||
GT4C3B series Diameter: 99-159 Height: 60-270 | Vacuum or No Vacuum: 28 | ||||||
Vacuum and Gas flush: 10-12 | |||||||
CT4C280 series Diameter: 100-280 Height: 100-360 | 30-40 | ||||||
PP169 | Vacuum, gas flush and seam | Seam only; Vacuum & seam | Electrical & Pneumatic | Diameter: 70-127; Height: 80-190 | Automatic | 6-7 | Able to change diameter by change the turntable and other accessary; Vacuum value: 0.085Mpa; Residual oxygen content: <=5% |
Manual can feeding and lidding | 5-6 | ||||||
PP222 | Vacuum, gas flush and seam | Seam only; Vacuum& seam | Electrical, Mechanical & Pneumatic | Diameter: 90-127; Height: 100-200 | 30-35 | Vacuum value: 0.01-0.015Mpa; Residual Oxygen: 2-4%; Can seaming intermittently, vacuum and gas flush continuously | |
PP270 PP170
PP172 PP222
Documentation
Following documents are available, but not limited, to be provided upon the stage of purchasing
No | Document | Code | Description |
1 | Products Selection Guide | SG | To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 | Products Profile | PP | To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 | Installation Instruction | IN | To explain the step of installation of the equipment, and include commissioning instruction as well |
4 | User Manual | UM | To cover the content of Operation & Maintenance and Trouble Shooting |
Service
Customization
Customization Philosophy
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
1) Height of Can/Jar
2) Material of seaming head
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
