Product Description
when sawing, below and above in the table saw each equipped with a clamp, sawing card mounted directly below the work surface on saws card installed in the machine body, can move up and down. In the back there is a card on the saw pulley, when the saw blade to run backwards, since it limits the role, does not cause the blade to fall. The machine adopts centralized exhaust sawdust methods to ensure clean workplace.
Product Parameter

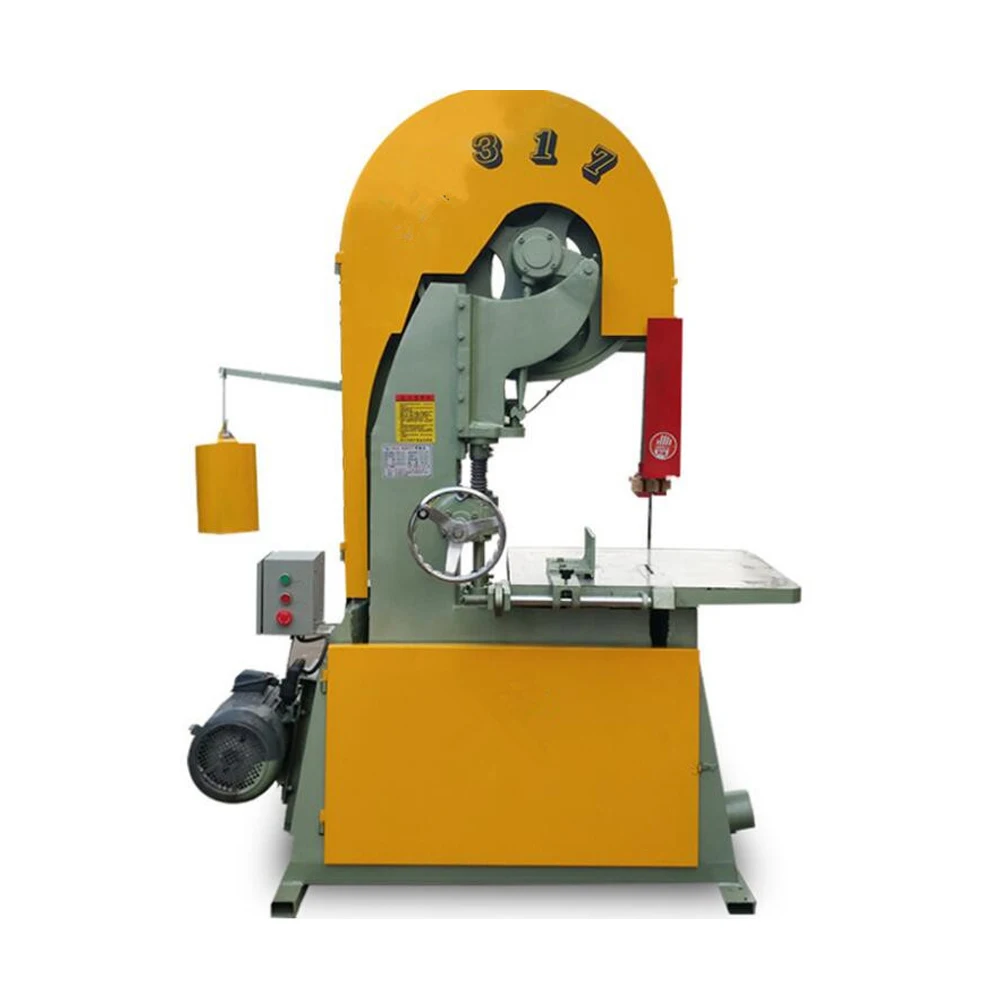

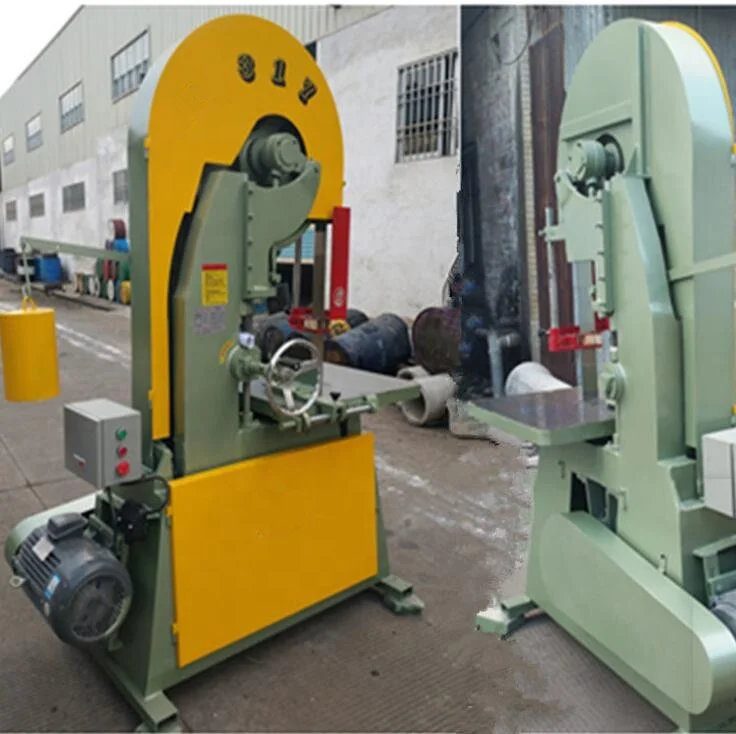

Model | UDMJ-317 |
Saw band length | 4650mm |
Saw band width | 70-100mm |
Saw wheel width | 90mm |
Saw wheel speed | 720r/min |
Saw wheel diameter | 650mm |
Saw blade thickness | 0.8-1.07mm |
Max processing thickness | 400mm |
Max processing width | 350mm |
Power | 7.5kw |
Motor speed | 1450r/min |
Table size | 700*650mm |
Dimensions | 1700*850*1300mm |
Weight |
Product Show
