SVG 400V 100Kvar Static Var Generator modular
- Category: >>>
- Supplier: Anhui Zhongdian Electric Co. Ltd.
Share on (62126206149):
Product Overview
Description
Product Description

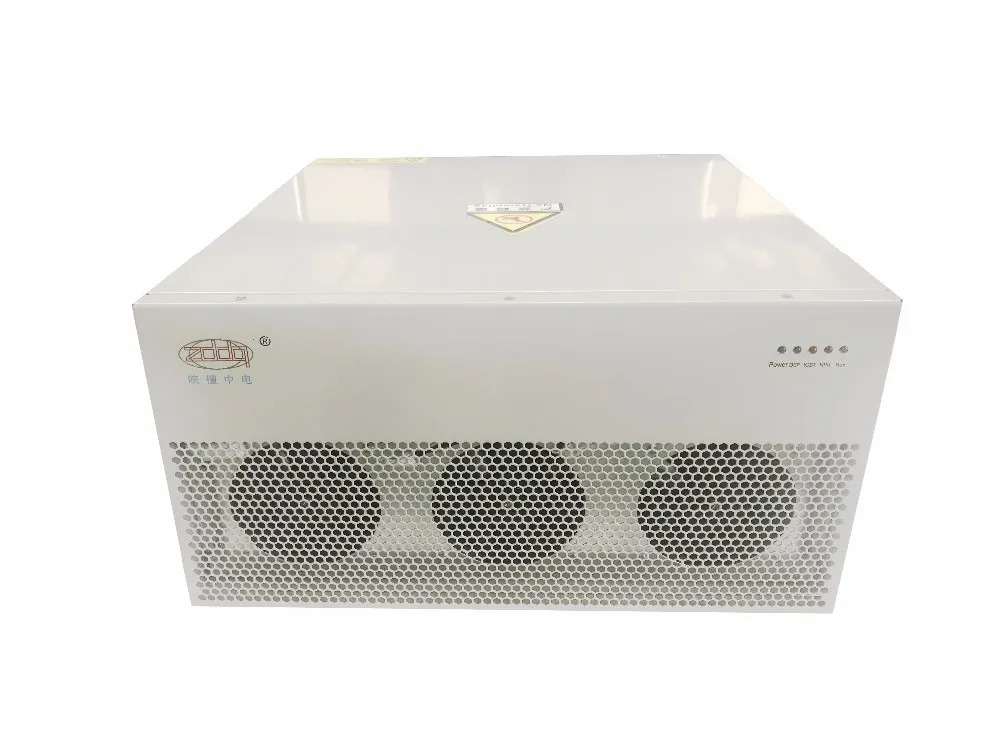

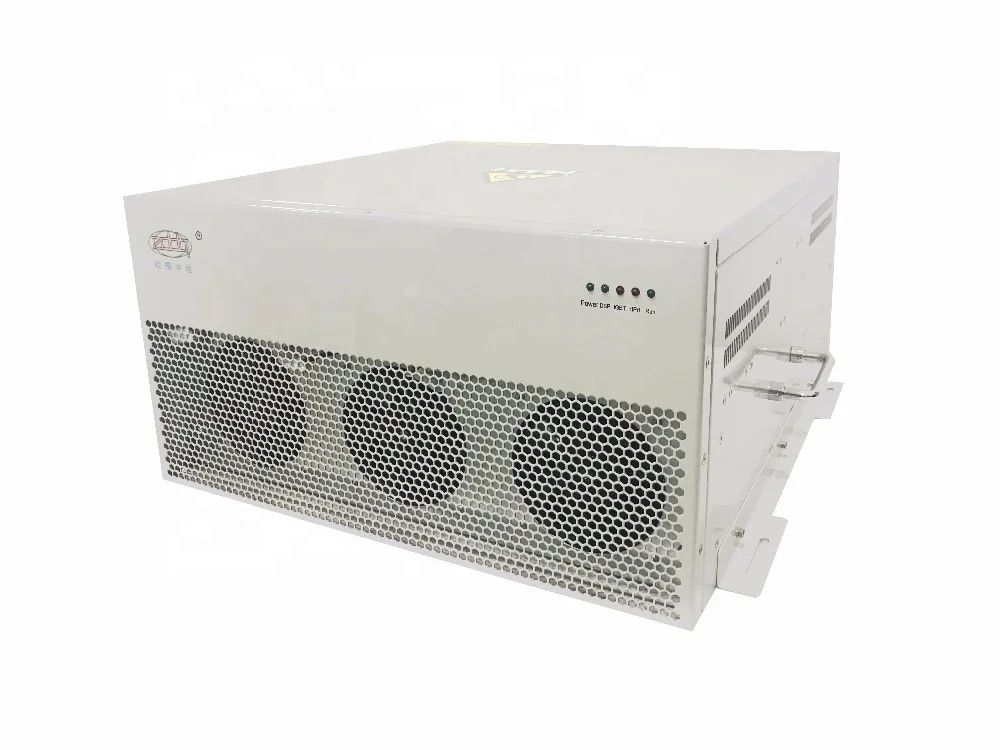

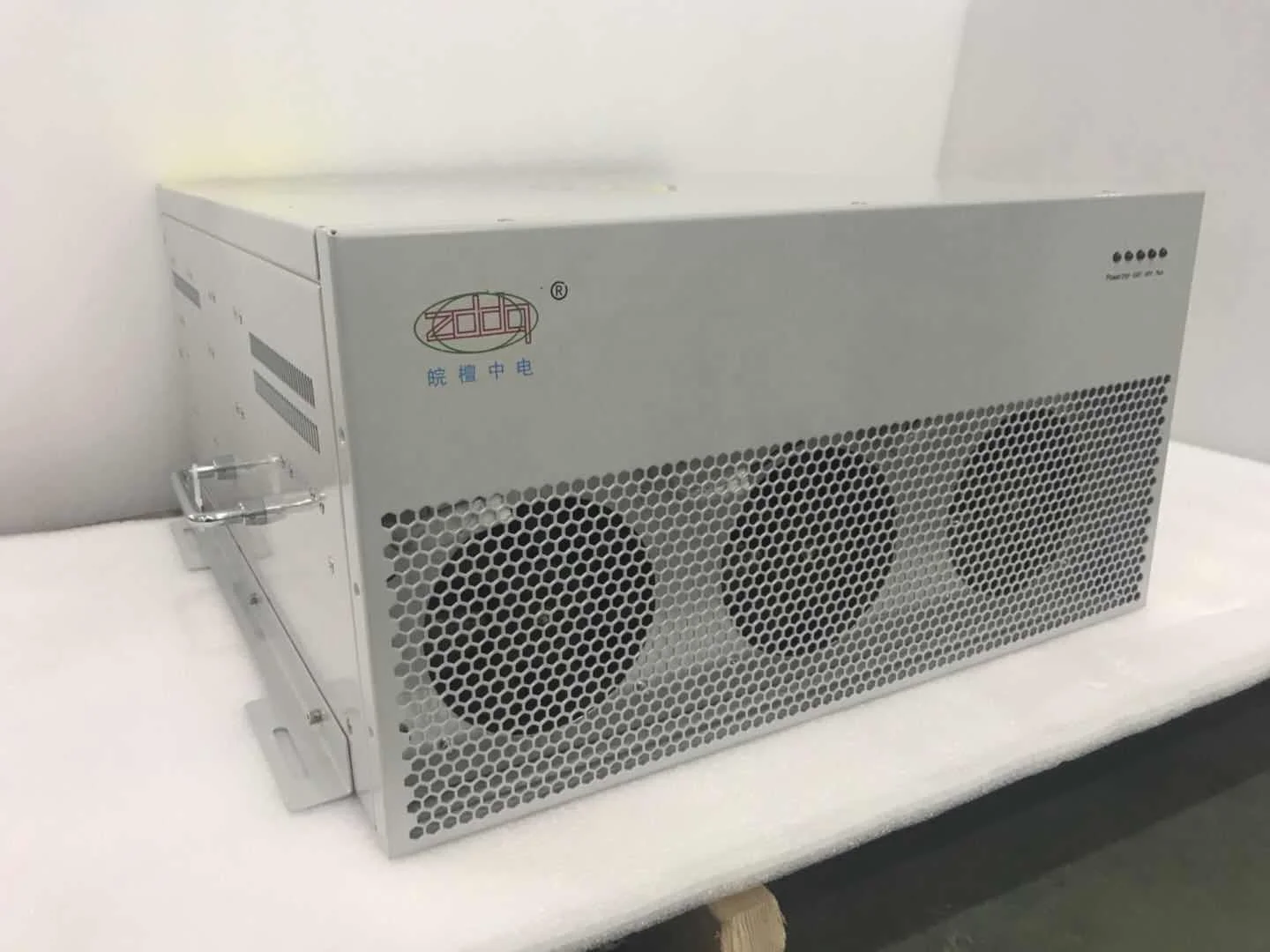

Static Var Generator:ZD-SVGM/100-4-4L/3L
The static var generator (SVG for short), based on voltage type inverter principle, uses the isolated gate binary transistor (IGBT4) to control the value and phase of AC voltage of inverter, so as to serve the purpose of reactive and harmonic compensation. As the switching frequency of IGBT is very high (dozens of kHz), SVG can realize fast compensation for reactive load, and achieve very high compensation precision. ASVG is currently the best solution in reactive power control filed. Compared with the traditional SVT represented by TSC, the regulation speed of SVG is faster (the response speed is within 5ms), its compensation precision is high (the power factor after compensation is over 0.99), the compensation method is flexible (SVG can compensate both inductive reactive power and capacitive reactive power), and SVG also has the function of active filtration of harmonic current.
Main Function
(1) maintain receiving end voltage, strengthen system voltage stability
(2) compensate system reactive power, improve power factor, reduce line loss, save energy and reduce cost
(3) suppress voltage fluctuation and flicker
(4) suppress three phase unbalance
Permance indicators
Rated voltage | 400V,AC | |
Operating frequency | 50Hz/60Hz | |
Electrical connection | Three-phase four-wire / three-phase three-wire | |
Capacity of whole cabinet | 100kvar | |
Compensation mode | Either three-phase compensation or single-phase compensation | |
Compensation effect | ≥0.98 | |
SVG module response time | <5ms | |
Active loss of system | <3% | |
Number of units connected in parallel | ≤10 units | |
MTBT | >100,000 hours | |
Controller | DSP+FPGA | |
Switching frequency | 12.8K | |
Capacitor control interface | 14 ways | |
Communication mode | Adopt Modbus remote communication protocol; communication interface adopts RS485 and CAN bus, supporting USB data download. | |
Control connection | Fiber or electrical connection | |
Weight | Refer to the model selection table. | |
Level of protection | IP20 | |
Cooling method | Air cooling | |
Noise | <50db | |

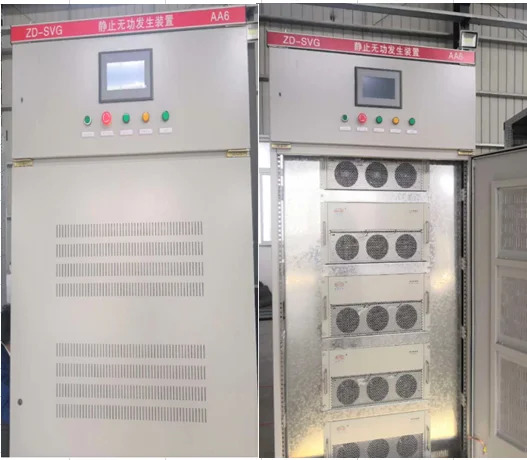

Installation method | Cabinet mounting. | |
Ambient temperature | -20~55℃ | |
Relative humidity | Maximum 95%, without condensation | |
Altitude above sea level | ≤1,000m |
Model
Specification and Model Table
Applied Type | Model | Voltage Class | Capacity |
ZD-SVGM/100-4-3L-R | 400V | 100kvar | |
ZD-SVGM/100-4-4L-R | 400V | 100kvar |

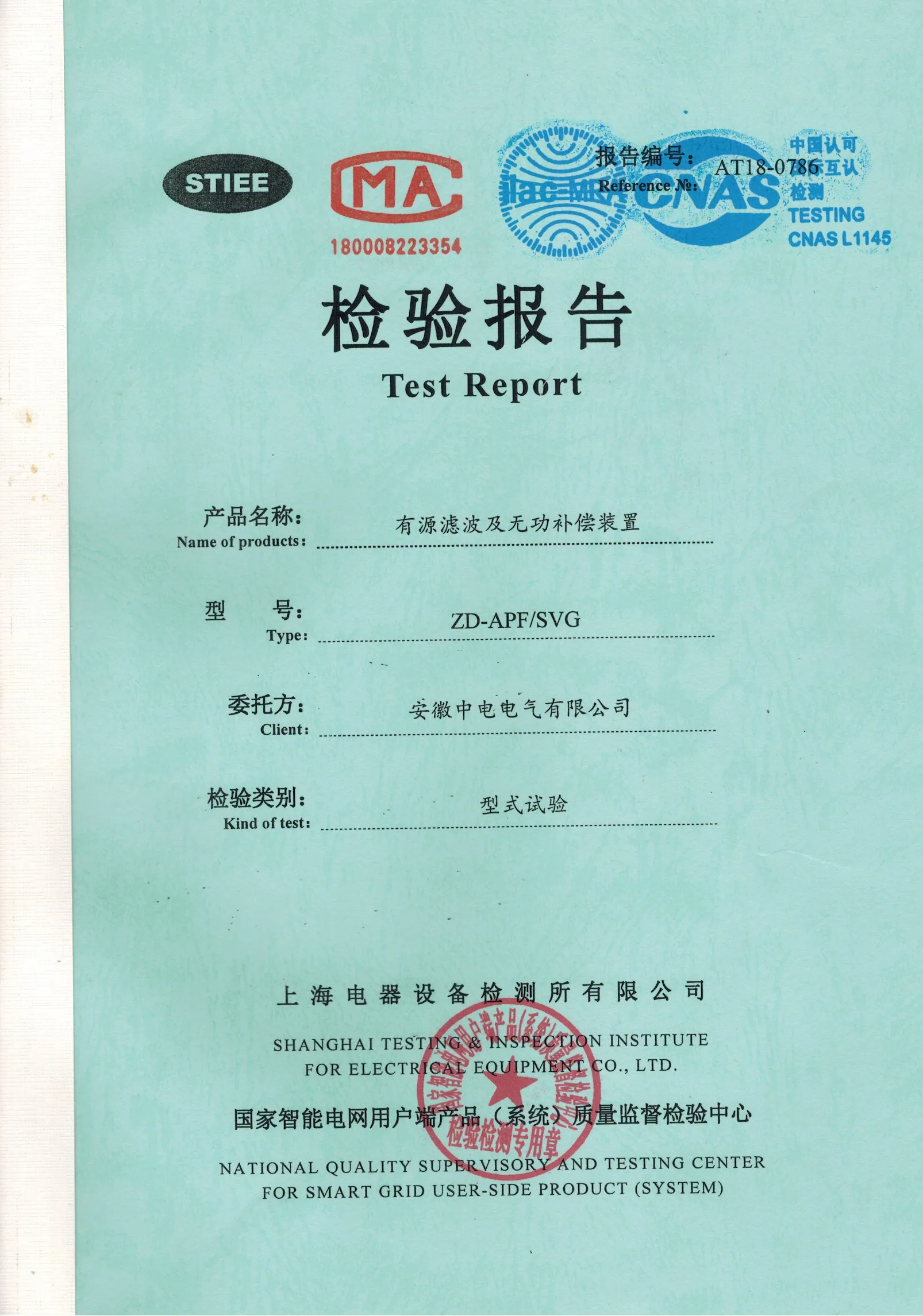

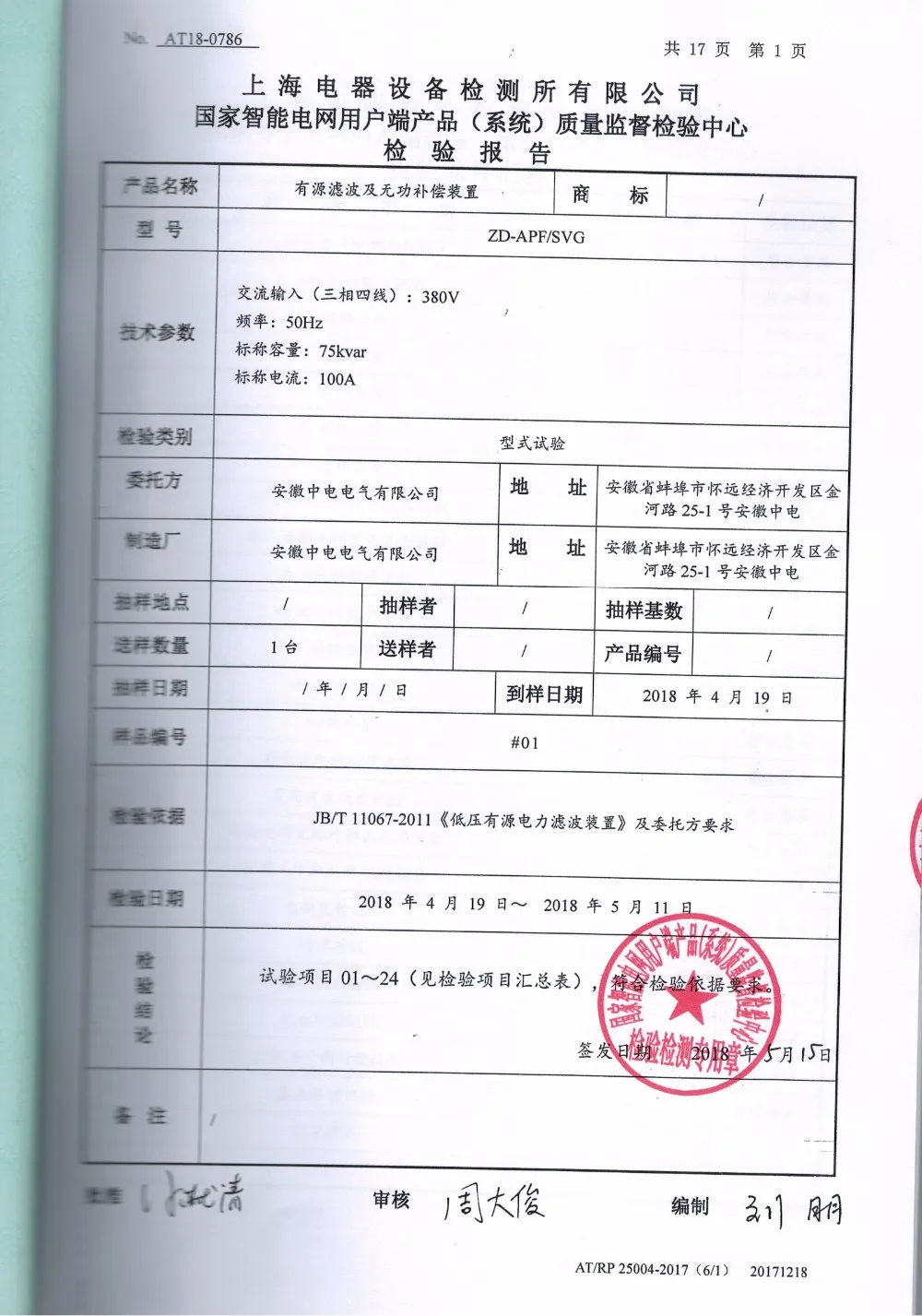

Certifications
