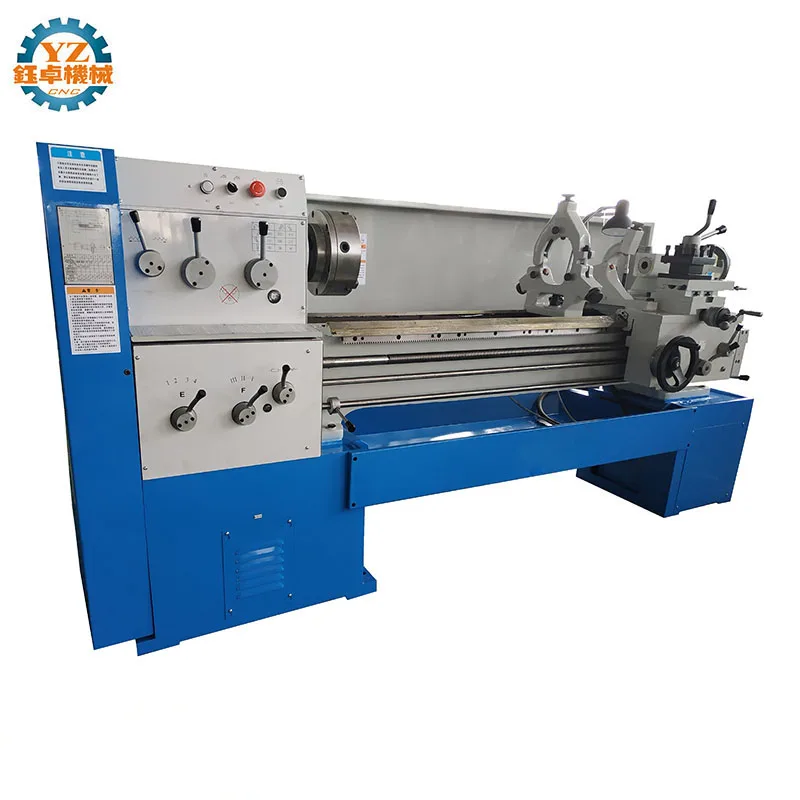

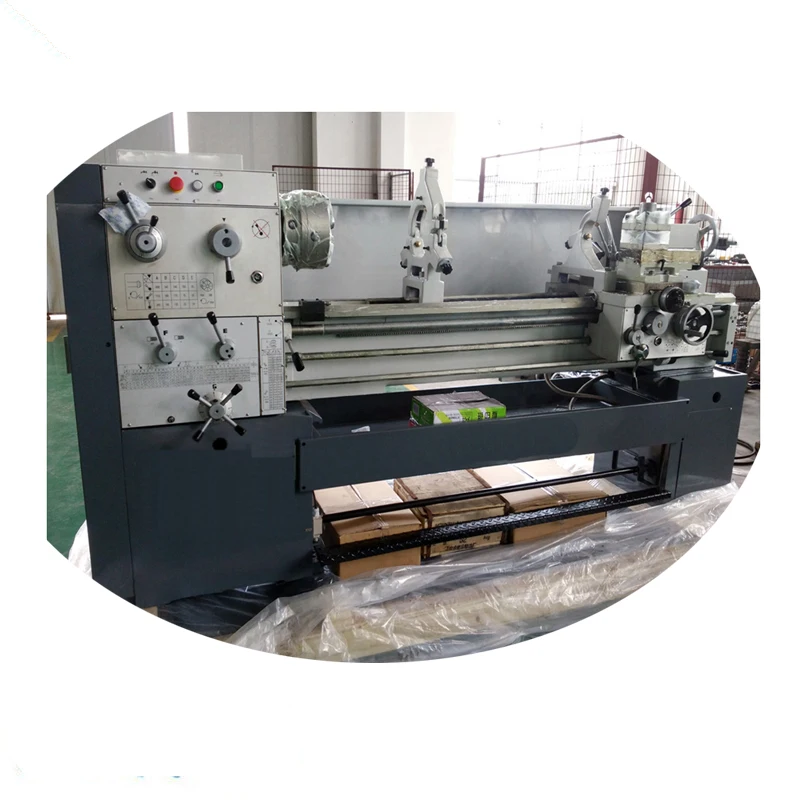

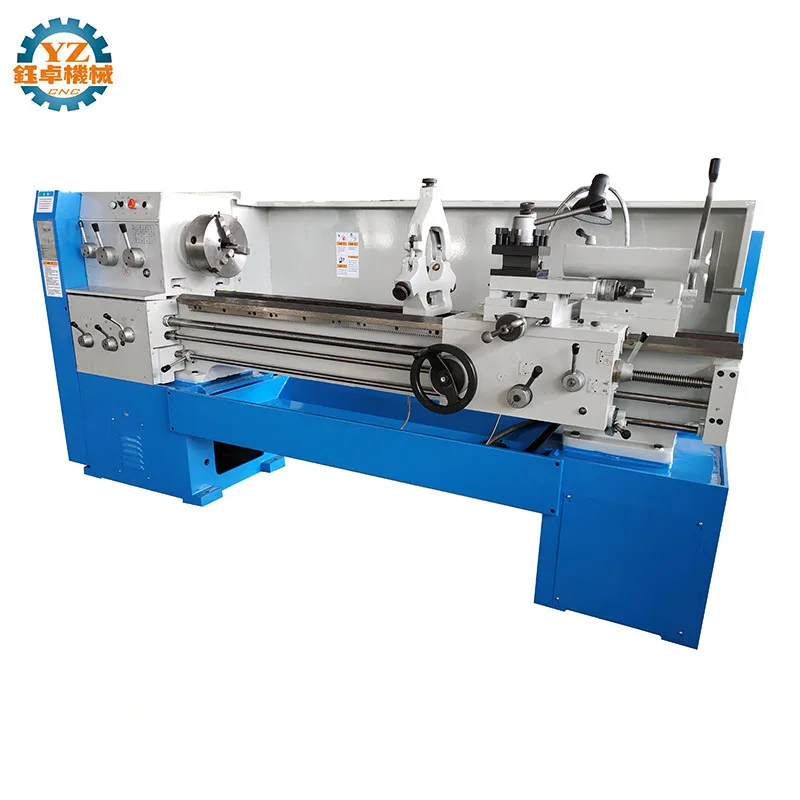

LC510 Manual Engine Universal Lathe Machine For Sale
*Widen guideway
*High rigidity casting body
*Hardened and ground bed way coated with Turcite-B
*Integrated automatic lubrication system
Machine Parameter:
Item | Unit | LC510x1000 | LC510x1500 | LC510x2000 | ||
Max.swing over bed | mm | 510 | ||||
Max.swing over cross slide | mm | 330 | ||||
Max.swing over gap | mm | 660 | ||||
Effective length of gap | mm | 200 | ||||
Center Distance | mm | 1000 | 1500 | 2000 | ||
Bed Width | mm | 360 | ||||
Spindle hole | mm | 52/82/103 | ||||
Spindle nose | ISO-C8 | |||||
Spindle taper | MT8 | |||||
Spindle speed(Number) | rpm | (9steps)40-1300 | ||||
Max.travel of top slide | mm | 95 | ||||
Max.travel of cross slide | mm | 250 | ||||
Section of turning tool | mm | 20x20 | ||||
Longitudinal feeds range | mm/r | 36kinds 0.0832-4.66 | ||||
Cross feeds range | mm/r | 36 kinds 0.048-2.69 | ||||
Metric threads range | mm | 19kinds 0.25-14 | ||||
Inch threads range | inch | 49kinds 2-40 | ||||
Moudle threads range | mπ | 11kinds 0.5-3.5 | ||||
Dia.of tailstock sleeve | mm | 65 | ||||
Taper of tailstock sleeve | MT4 | |||||
Max.travel of tailstock | mm | 140 | ||||
Main motor power | kw | 5.5 | ||||
Coolant pump motor | w | 90 | ||||
Packing size (LxWxH) | mm | 2420x1120x1750 | 2920x1120x1720 | 3420x1120x1720 | ||
N.W/G.W | kg | 1600/1800 | 1800/2050 | 2000/2300 | ||
Standard Configuration
(INSTALL ON THE LATHE)
1.\t3-jaw chuck(Φ250mm).
2.\tSteady rest & follow rest.(only for 1500mm and
2000mm center distance)
3.\tLongitudinal touch stop.
4.\tWork lamp.
5.\tCoolant system.
6.\tFull-length splash guard.
7.\tFoot brake and brake ribbon.
(INSIDE THE PACKAGE WITH THE LATHE)
1.\t4-jaw chuck(Φ320mm).
2.\tChange gears.
3.\tDead centre and centre sleeve.
4.\tFace plate.
5.\tOil gun.
6.\tPaddings.
7.\tOne whole set spanner and tool box.
8.\tOperation manual.
Optional Configuration
1.\tLive centre(MT4).
2.\t2axis Digital readouts(SINO).
3.\t3axis Digital readouts(SINO).
4.\tRapid travel(for 1000&1500mm length is optional; for 2000mm length is standard).
5.\tCE-conformity(Chuck guard,Toolpost guard and leadscrew guard).
6.\tUSA type Quick change tool post.
7.\tEurope or Italy type Quick change tool post.
8.\tThread-cutting dial.
9.\tDrive plate.
10.\tThread-cutting dial.
11.\tMagnetoelectrical brake.
12.\tDrill chuck set.
13.\tTaper cutting function.
14.\tCutting tool holders set(7pcs or 9pcs).

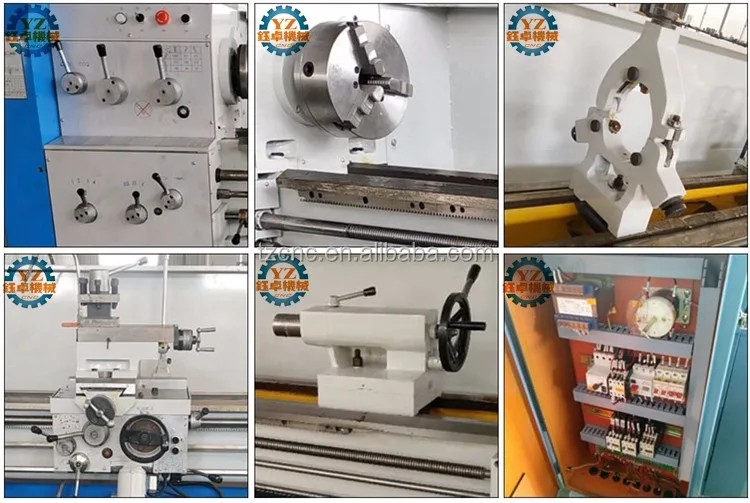

Product Details Show
