Hidden brakes designed carbon road bike frame
- Category: >>>
- Supplier: Shenzhen Imust Carbon Technology Co. Limited
Share on (62126647494):
Product Overview
Description
Hidden brakes designed carbon road bike frame
Product Description
| Type | AERO updated version ROAD frame |
| Frame | A4 |
| TRP brake | front : TRP06 rear : TRP922-1 |
| Material | Toray T700 carbon |
| weave | UD matt /UD glossy |
| Frame weight (+- 40g ) | 45cm 1226.5g |
| 48cm 1236.5g | |
| 50cm 1246.5g | |
| 52cm 1256.5g | |
| 54cm 1266.5g | |
| 56cm 1276.5g | |
| 58cm 1306.5g | |
| 60cm 1336.5g | |
| Fork weight | 580g (fork+headset) |
| Seatpot weight | 225g |
| Headset | 1-1/8'',1-1/8'' (H52 included) |
| Max tire size | Rim max 27mm width ,Tire max 25mm width |
| Certificate | The frameset has passed EN test |
| Cable | Inner cable routing |
| BB(Bottom Bracket) | BB86(DI2) or BSA (DI2) |
| Max tire size | Rim max 27mm width ,Tire max 25mm width |

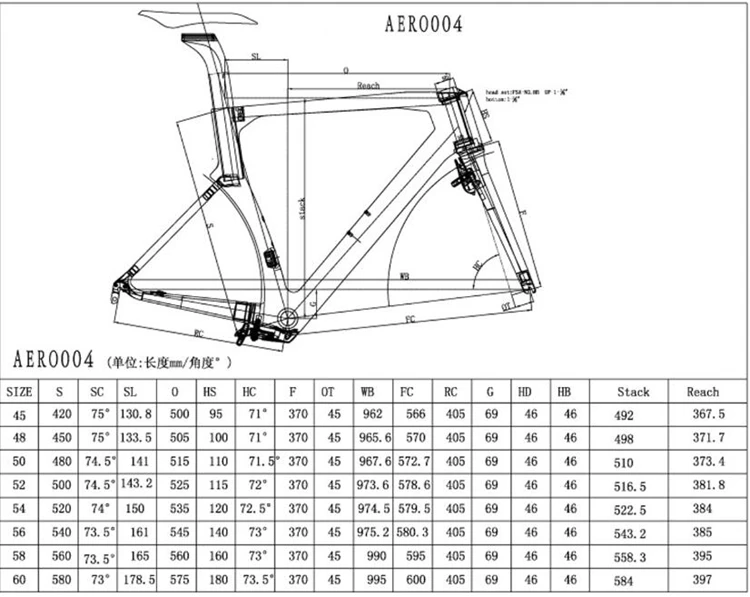

Size chart
