Frameless Series Motor Inrunner or Out runner Motor
Frameless Series Motor Inrunner or Out-runner Motor
Frameless Series Motor Inrunner or Out-runner Motor
Frameless Series Motor Inrunner or Out-runner Motor
Frameless Series Motor Inrunner or Out-runner Motor
Frameless Series Motor Inrunner or Out-runner Motor
Frameless Series Motor Inrunner or Out-runner Motor

Frameless Series Motor Inrunner or Out runner Motor

Share on (62126679145):


Price:$50.90 - $61.90

Quantity:


Product Overview

Description



Products Show


All our motors can be customized in Size Voltage Logo
Torque Output.
More Drawings And Requirements .Pls contact Us !



MORE ABOUT THIS MOTOR .

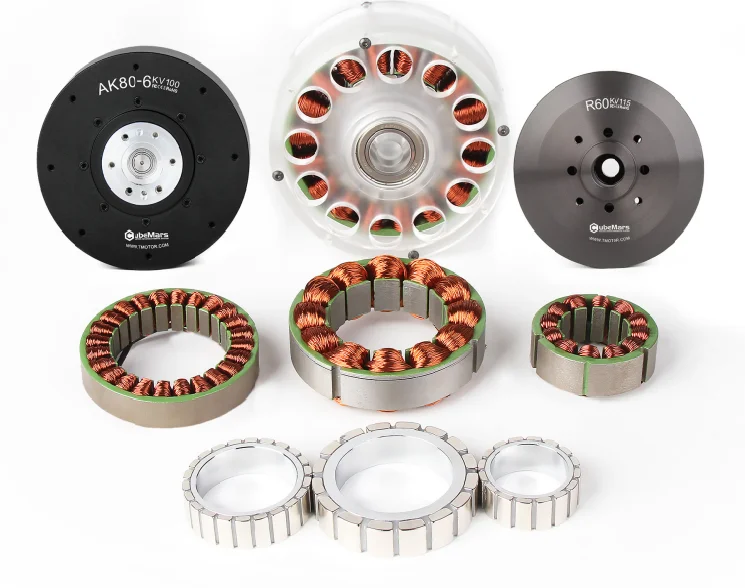

To facilitate projects in different fields, we have several types of Frameless Inrunner motors.


We just want to ensure their performance, do not want to make too much additional appearance.

which will be more convenient for the internal assembly and integration.


Yes, this is our Frameless Motor .



Motor Specs


Motor Parameters/Dimensions
RI50/5416
RI60/6013
RI70/7613
RI80/8516
RI100/10413
Motor Type
Frameless In-runner motor
Frameless In-runner motor
Frameless In-runner motor
Frameless In-runner motor
Frameless In-runner motor
Weight(g)
200
165
275
470
550
Voltage(V)
48
48
48
48
48
Rated Torque(N.m)
0.58
0.58
0.94
1.45
1.75
Peak Torque(N.m)
1.63
1.64
2.63
4
4.92
Max Speed@Rated Torque(Rpm)
4000
3900
3200
3200
3100
Rated Current(A)
5
6.3
7.9
10
15.5
Peak Current(A)
14
18
22
28
43
Kt(N.m/A)
0.104
0.083
0.106
0.1308
0.1005
Ke(V/rpm)
0.0109
0.0087
0.0111
0.0137
0.0106
Kv(Rpm/v)
92
115
90
73
95
Km(Nm/√w)
0.1658
0.1088
0.1807
0.4313
0.3368
Pole-paors
7
14
14
7
14
Phase to Phase resistance(mΩ)
395
585
350
92
98
Phase to Phase Inductance(uH)
247
375
314
155
228
OD(mm)
54
60
76
85
104
ID(mm)
22
30
38
40.5
45
Max Torque Weight Ratio(N.m/kg)
8.15
10
9.5
8.5
9




Our Company






Packing & Delivery






FAQ



Q1: Do you have manufacturer ?

A: We are the headoffice & manufacturer of T-MOTOR brand .

We can do both OEM and ODM. We have our own R&D team.

Q2: Can I get a free sample?

A: Generally we don't provide free sample, but we can return sample cost when you place format orders .

Q3: What are the shipping methods?

A: DHL express is default delivery . Usually it will take 3-5 days to arrive your place . We accept UPS , FedEx and others you required .

Q4: How is your warranty service?

A: We do strict test before shipping and guarantee for 365 days. We pay high attention to after-sales service.

Q5: What're the payment methods?

A: We accept Alibaba trade assurance , Paypal , Bank transfer , Credit card .
