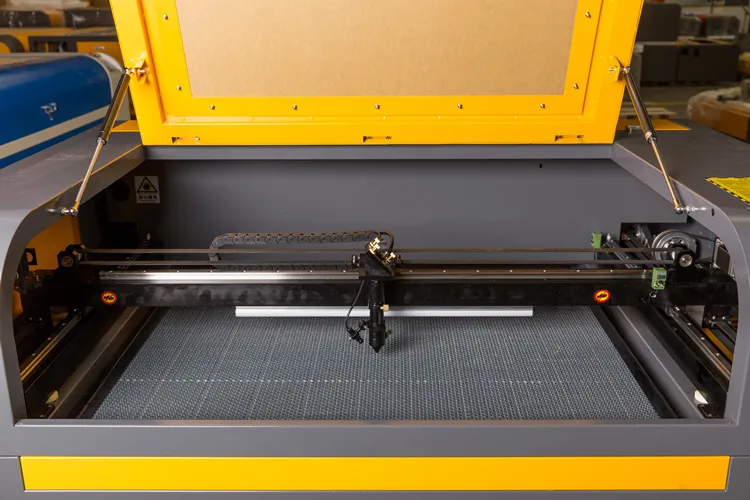

co2 laser wood stencil acrylic sheet MDF bamboo laser cutting machine 1390
co2 laser wood stencil acrylic sheet MDF bamboo laser cutting machine 1390
co2 laser wood stencil acrylic sheet MDF bamboo laser cutting machine 1390
co2 laser wood stencil acrylic sheet MDF bamboo laser cutting machine 1390
co2 laser wood stencil acrylic sheet MDF bamboo laser cutting machine 1390
co2 laser wood stencil acrylic sheet MDF bamboo laser cutting machine 1390
co2 laser wood stencil acrylic sheet MDF bamboo laser cutting machine 1390

co2 laser wood stencil acrylic sheet MDF bamboo laser cutting machine 1390

Share on (62126767640):


Price:$2,650.00 - $2,680.00

Quantity:


Product Overview

Description


Product Description

Product Application

Laser engraving machine is used for engraving and cutting on non-metal material. It is widely used on engraving or cutting on acrylic wood rubber glass PVC MDF leather etc.

\t
SPECIFICATIONS FOR 1390 laser engraving machine
\t

Basic performance parameters
\t
working area
\t
mm
\t
1300*900
\t
laser power
\t
W
\t
60/80/100/130/150
\t
laser type
\t
/
\t
sealed CO2 laser tube
\t

Main performance parameters
\t
cutting speed
\t
mm/s
\t
0-300
\t
engraving speed
\t
mm/s
\t
0-1024
\t
cutting thickness
\t
mm
\t
0-20
\t

Hydraulic system
\t
engraving thickness
\t
mm
\t
0-2
\t
Location precision
\t
mm
\t
<=0.01
\t
lift range
\t
mm
\t
0-270

Main Features

1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2. USB Interface
3. Air Assist, Remove heat and combustible gases from the cutting surface.
18W Air pump, flow can be 38L/Min.
4. Embedded Exhaust Fan, Easier intall, Safer transport.
40W exhaust fan, flow can be 5.27m³\\Min.
5. Rotary Axis, Engrave any cylindrical object.

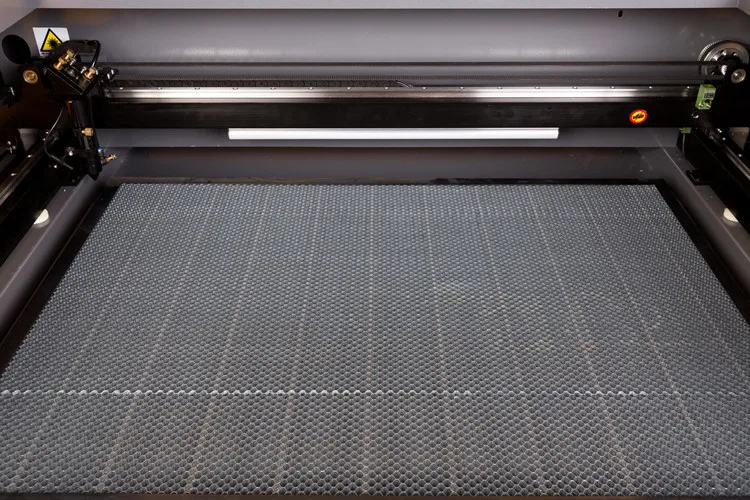

6. Cellular platform, Leave no chippings on working area.
7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
8. Water Cooling and Protection System.
15W Water Pump, flow can be 7.5L/H.

Detailed Images

Machine Parts

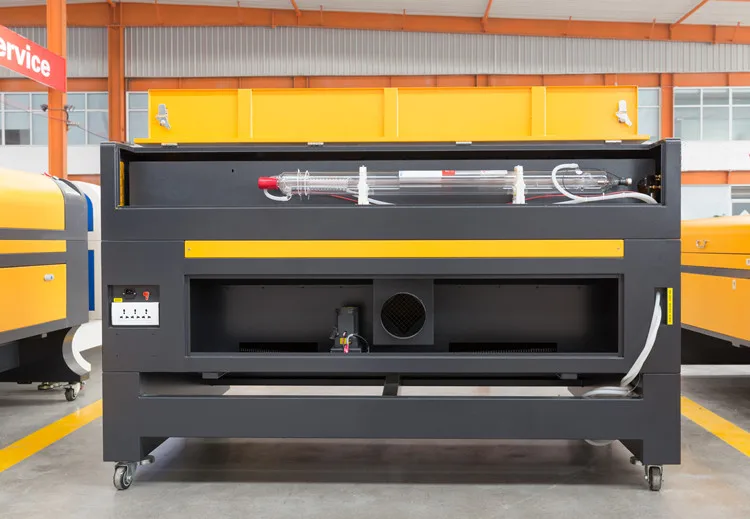

Name: sealed co2 laser tube

Brand:reci or EFR

High quality laser tube,
strong and fine light beam,
long life span 10000 hours
low fuel consumption.

Main Parts

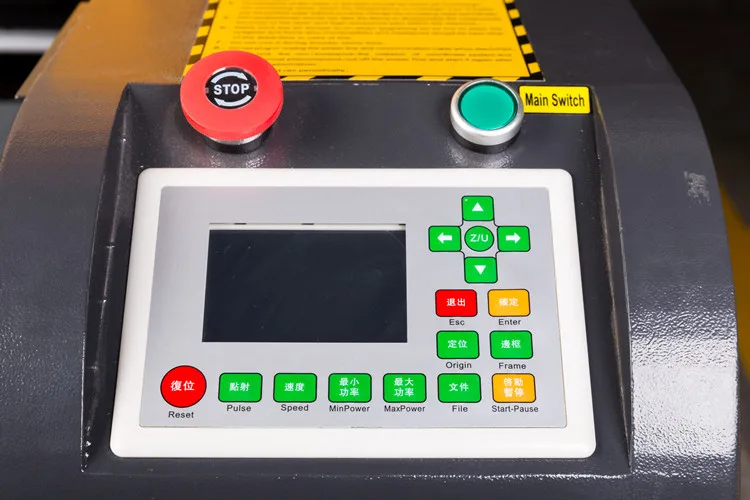

Name: ruida panel
Brand: ruida
offline systerm, continue caving when power off,
stable performance, high speed transmission,
visualize working process, dynamic display track,
modify layer parameters online,
support mutliple language,
support coreldaw, Al and CAD software.

Machine Parts

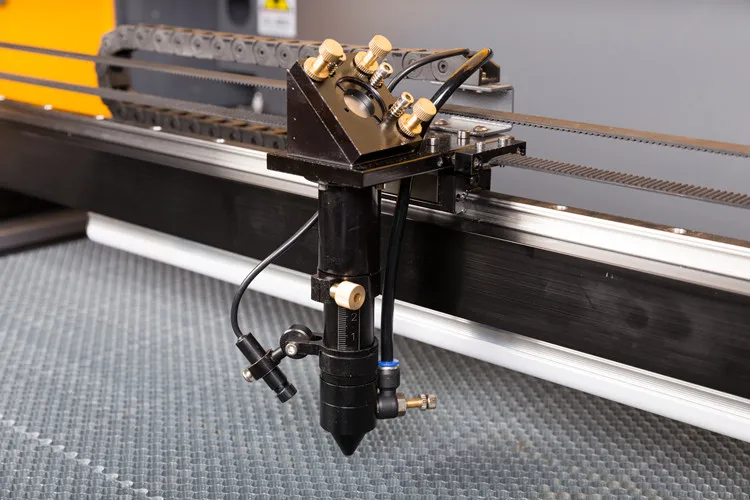

Name: premium industrial laser head
industrial laser head ,
long life span.
airblow protection system
red light positioning

Main Parts

Name: linear guide
Brand: taiwan imported
smoothly and steady moving
highe speed and low noise
supported precision engraving cutting

About our company

16 years manufacturer for laser engraving cutting machine.

* We reach the demonstration enterprise at the year 2015
* We built material anlysis lab at the year 2015
*We are the pointed factory of school laser machine purchasement
*We reach the top three exported factory in Liaocheng city.

Excellent R&D team

* We have four engineers have worked in laser machine filed over 10 years,they devoted to improving the performace of our products.
*The new models machine are on the way
*Customized products are avaliable
* Engineers available to service machinery overseas.



At Exhibition
Certifications
Samples
Packing & Delivery
\t
Packaging
\t
Size
\t
1900 (L) * 1460 (W) * 1280 (D)
\t
Weight
\t
420kg
\t



Packaging Details
\t



The normal package is plywood box(Size: L*W*H).  or according to customers special request.
