Brief introduction Qt4-20 Semi Solid Sand Lime Brick Concrete Hollow Block Machine Block Plant Automatic

This QT4-20 is semi automatic production line with hydraulic pressure and vibration.
The hydraulic pressure is about 16-25mpa makes the blocks much stronger.

It can produce hollow blocks,solid blocks&bricks,curbstones, color pavers,Hourdi Blocks,etc.

qt4-20 hemp cement block making machine sale in ghana/kenya

This line includes one QT4-20 molding machine with Pallet feeder and brick receiver. Hydraulic station,JQ500 MIXER,Conveyor belt,Manual trolley

If you produce color pavers, just add color feeding system.

You can also add stacker for this machine.

\t
Technical parameter of QT4-20 block brick making machinery
\t
Overall size
\t
3600X1650X2200mm
\t
Forming cycle
\t
18-25s
\t
Vibration frequency
\t
2800-4200r/m
\t
Pallet size
\t
850x550x20mm
\t
Electric source
\t
220v/380/440v/50hz or 60hz as request.
\t
Power
\t
18.5kw
\t
Total weight
\t
4200kgs
\t
Shaping Method
\t
hydraulic press+ vibration
\t
Hydraulic pressure
\t
15-22mpa
\t
Mixer
\t
JQ500
\t
Production Capacity
\t
No.
\t
Size(L*W*H)
\t
Block Type
\t
Pcs/mould
\t
Pcs/hr
\t
Pcs/8hr
\t
01
\t
400*200*200mm
\t
Hollow blocks
\t
4
\t
720
\t
5760
\t
02
\t
400*100*200mm
\t
Hollow blocks
\t
7
\t
1260
\t
10080
\t
03
\t
400*150*200mm
\t
Hollow blocks
\t
\t
900
\t
7200
\t
04
\t
240*115*52mm
\t
Solid bricks
\t
26
\t
6240
\t
49920
\t
05
\t
200*160*60mm
\t
Color pavers
\t
9
\t
2160
\t
17280
\t
06
\t
500*350*150mm
\t
Curbstones
\t
3
\t
720
\t
5760
Detailed Images

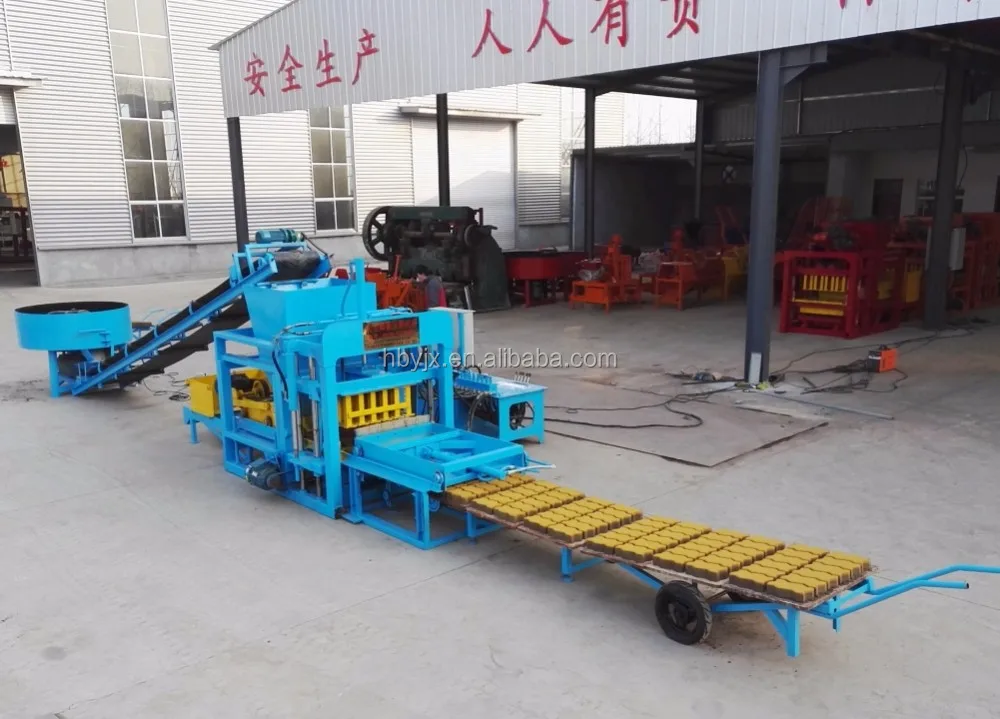

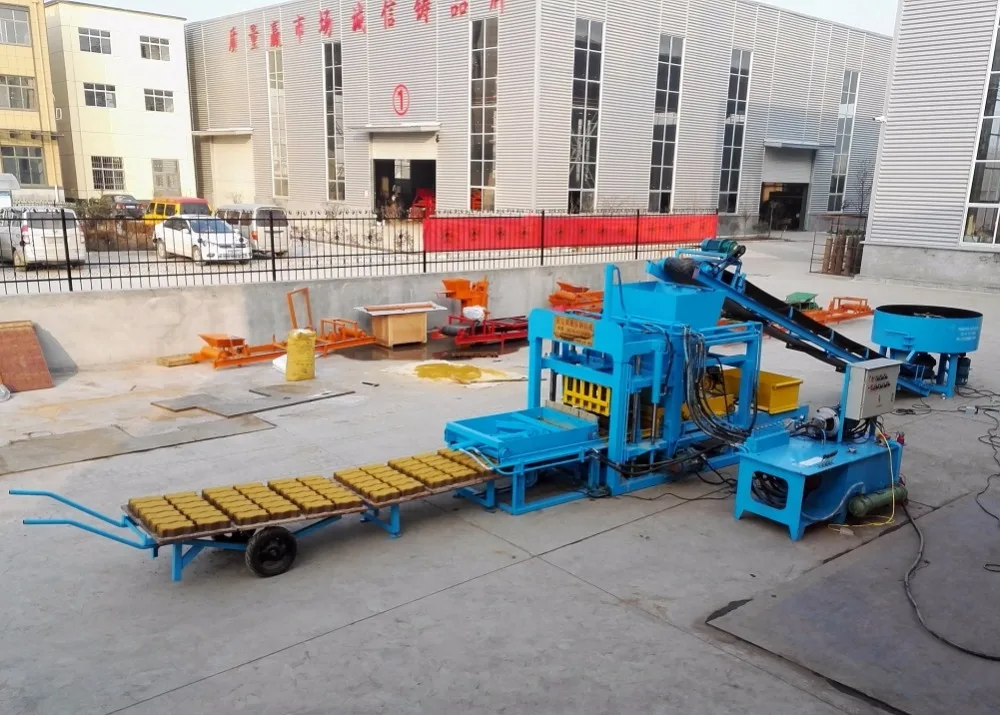

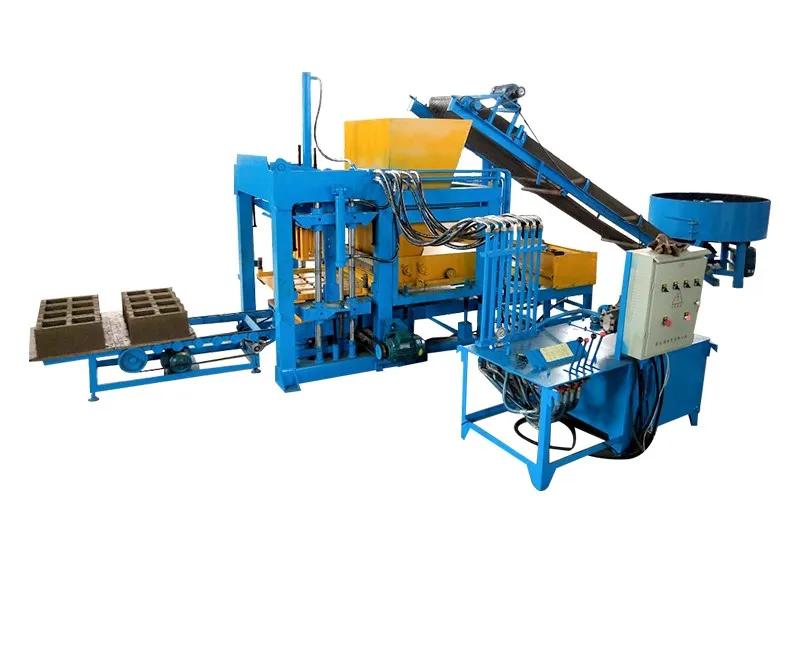

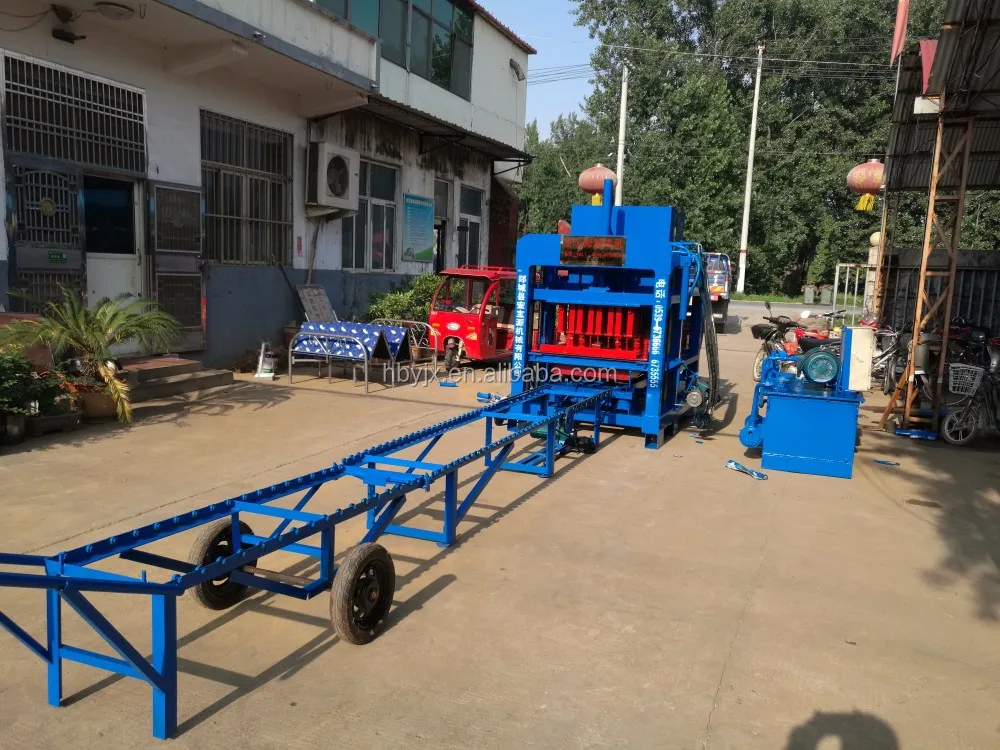

QT4-20 block molding machine

Semi-Automatic QT4-20 is with hydraulic pressure


Hydraulic station


\t
JQ500 concrete  mixer
\t
Charge volume(L)
\t
600
\t
Discharge volume(L)
\t
500
\t
Dimension (L*W*H)
\t
1500*1500*1300mm
\t
Total weight(kg)
\t
600
\t
Motor power
\t
7.5kw

6m Conveyor belt

Conveyor the material from mixer to hopper of block forming machine.

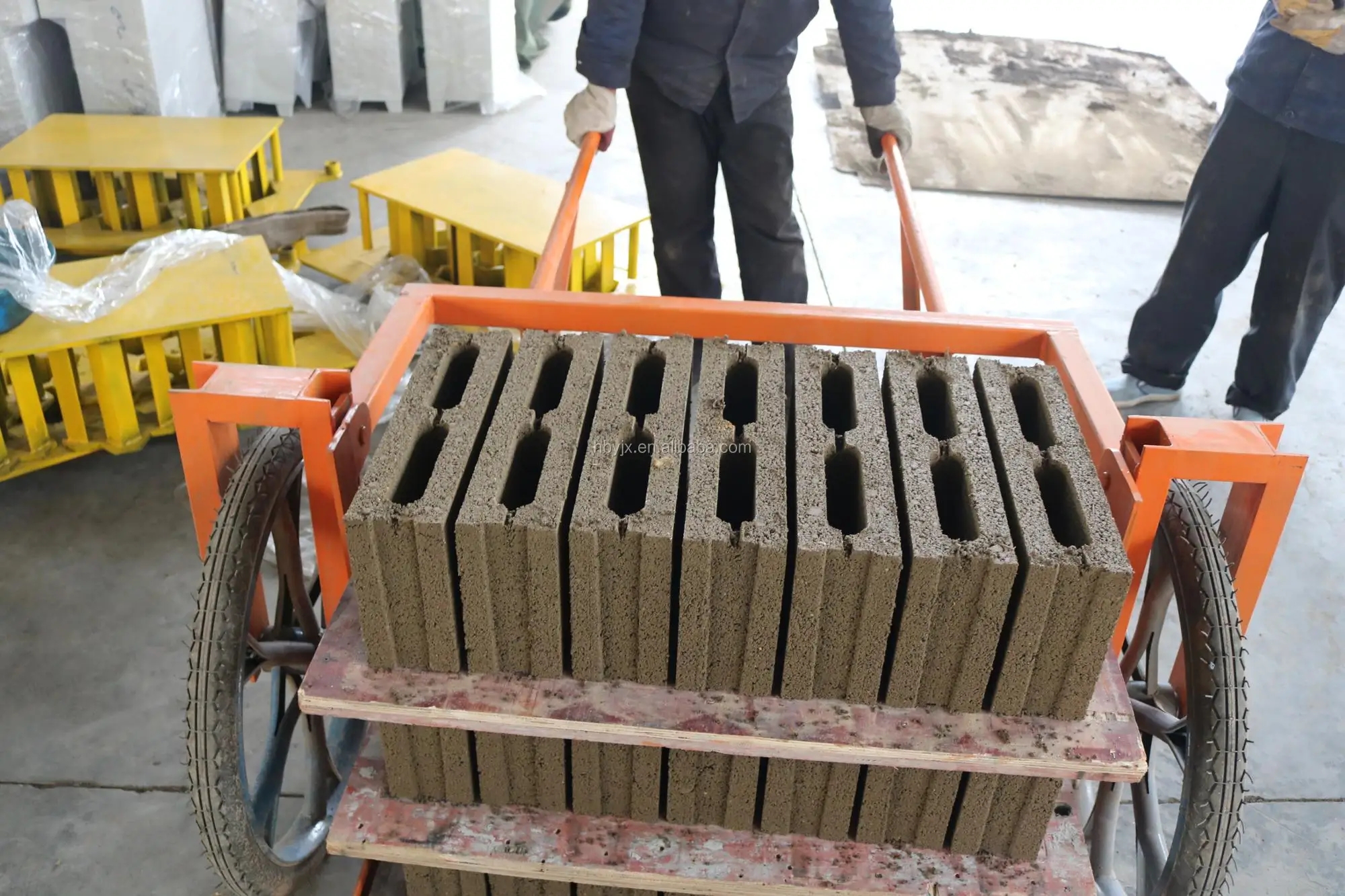

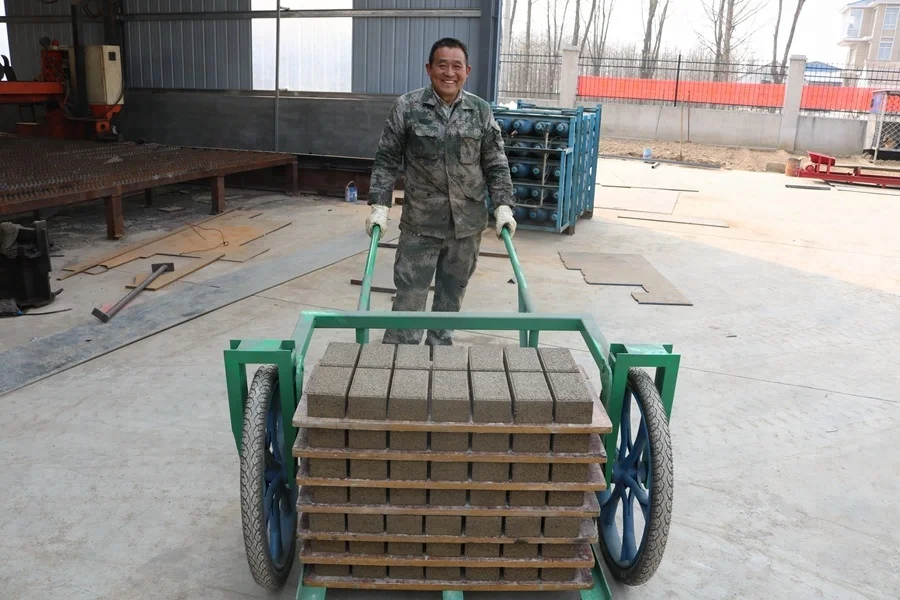

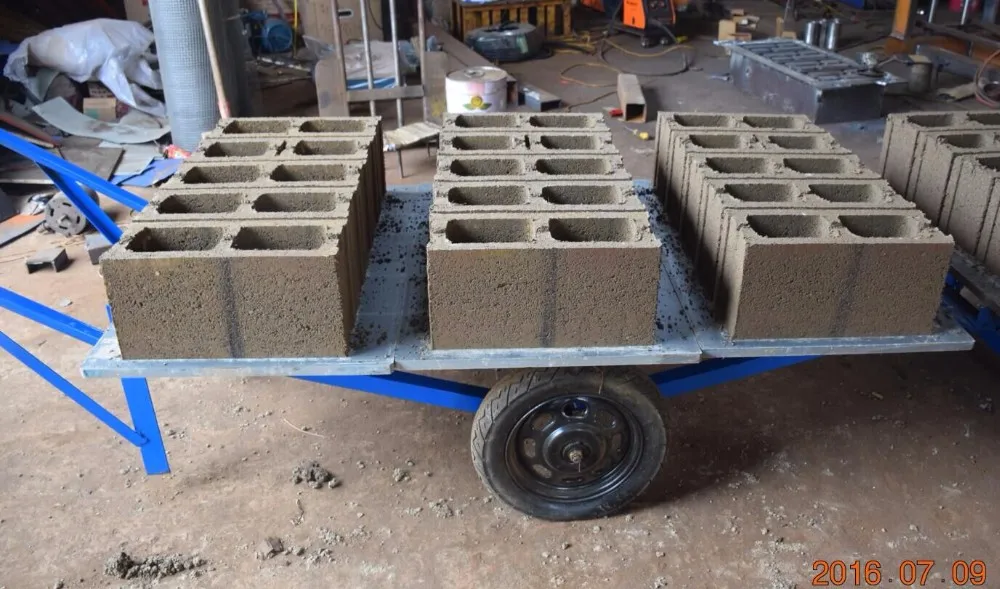

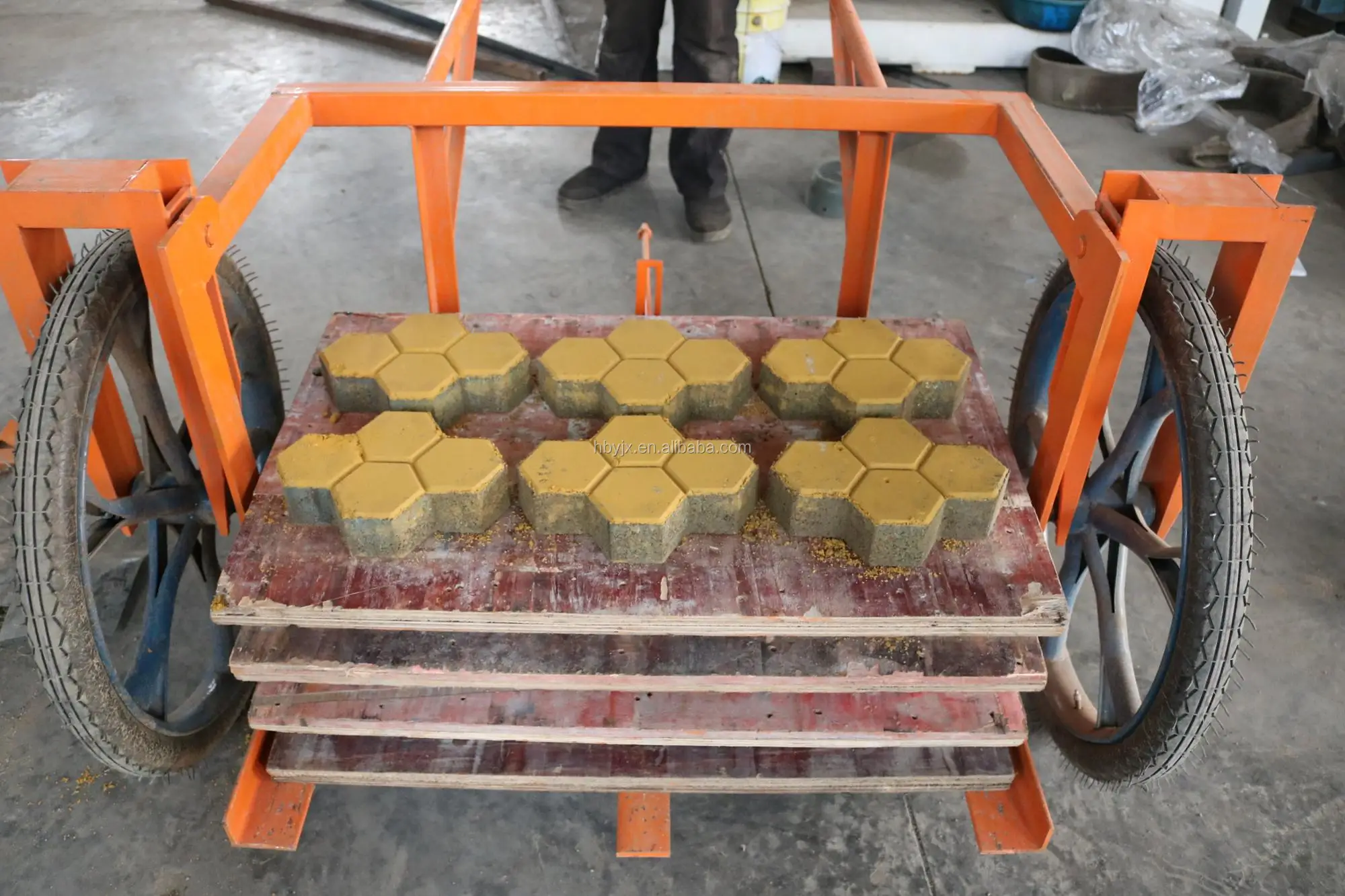

Two Manual trolley for free

For this trolley can carry 3 pallets blocks per time

Packing & Delivery

Package:nude package in 20'FT container.we will use pe film for packing or pack it according to customers special request.

Delivery time:within 25 days after payment
