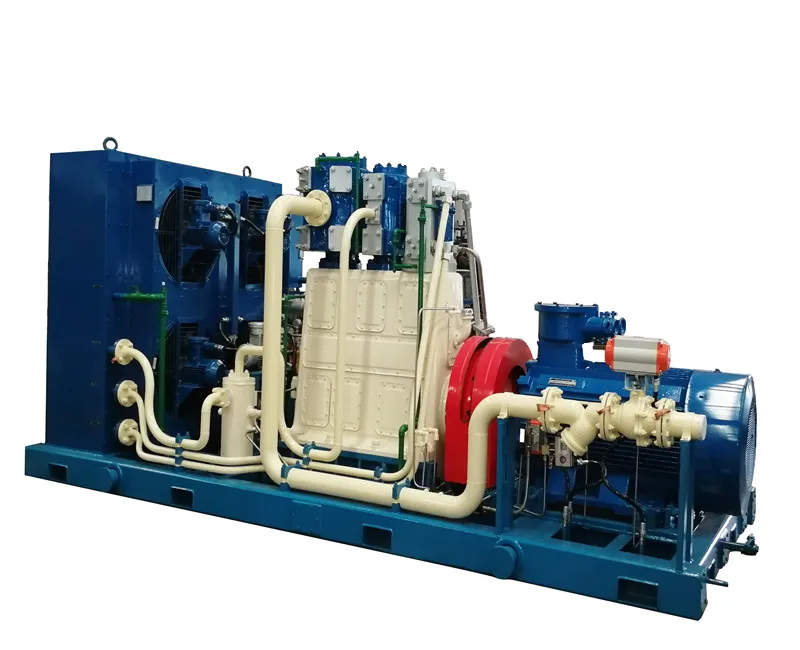

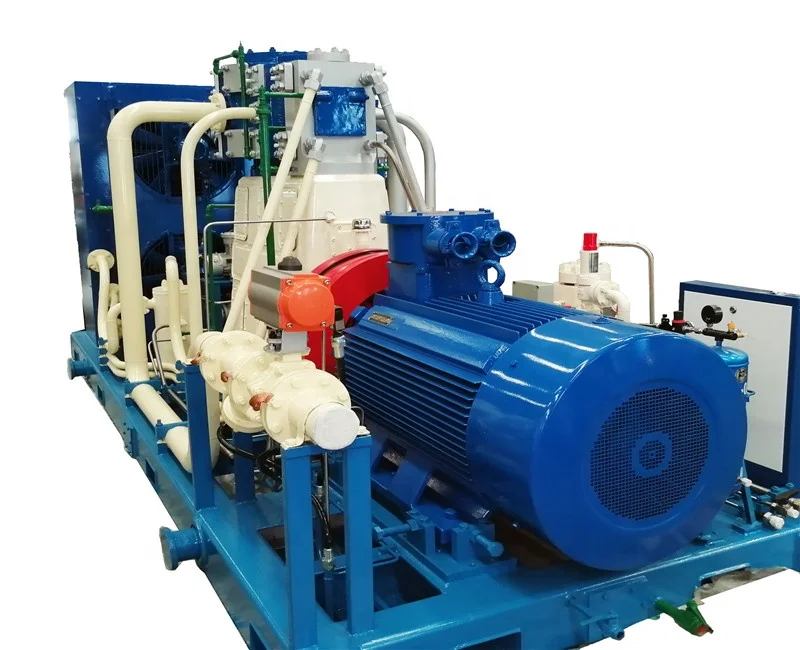

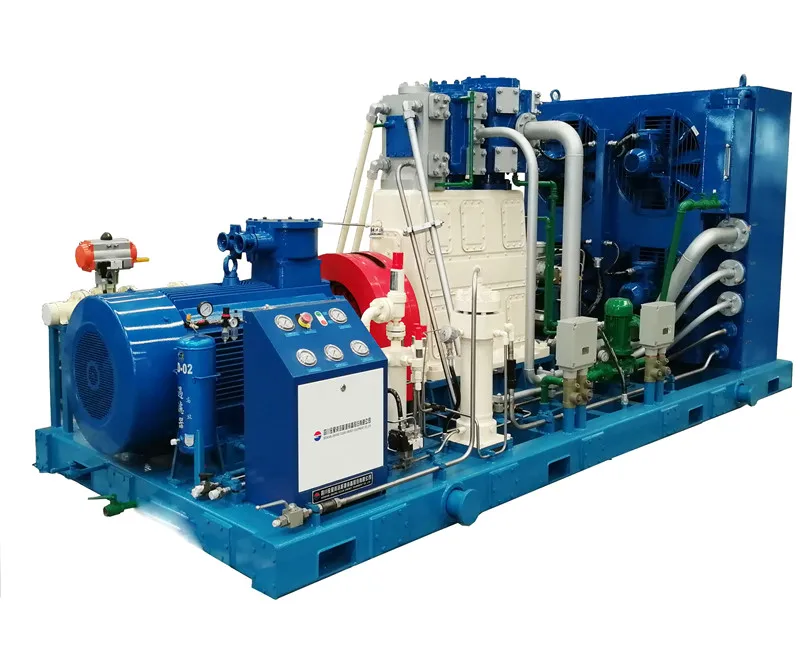

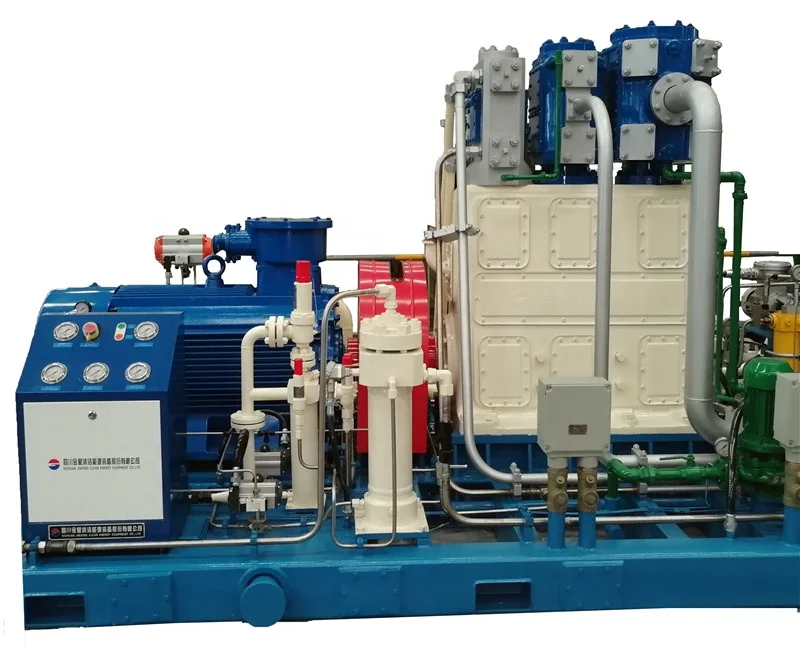

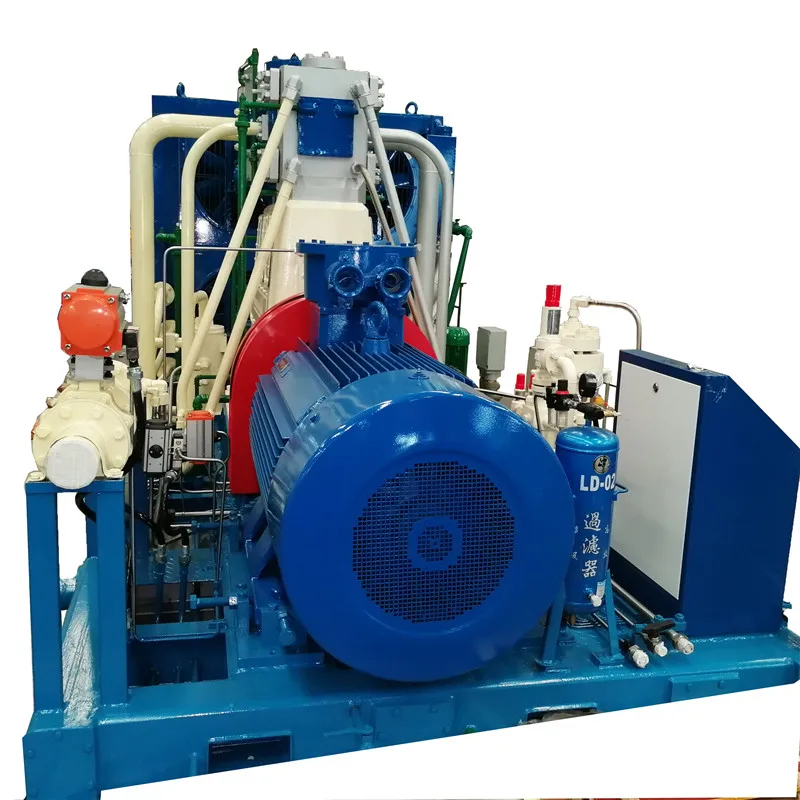

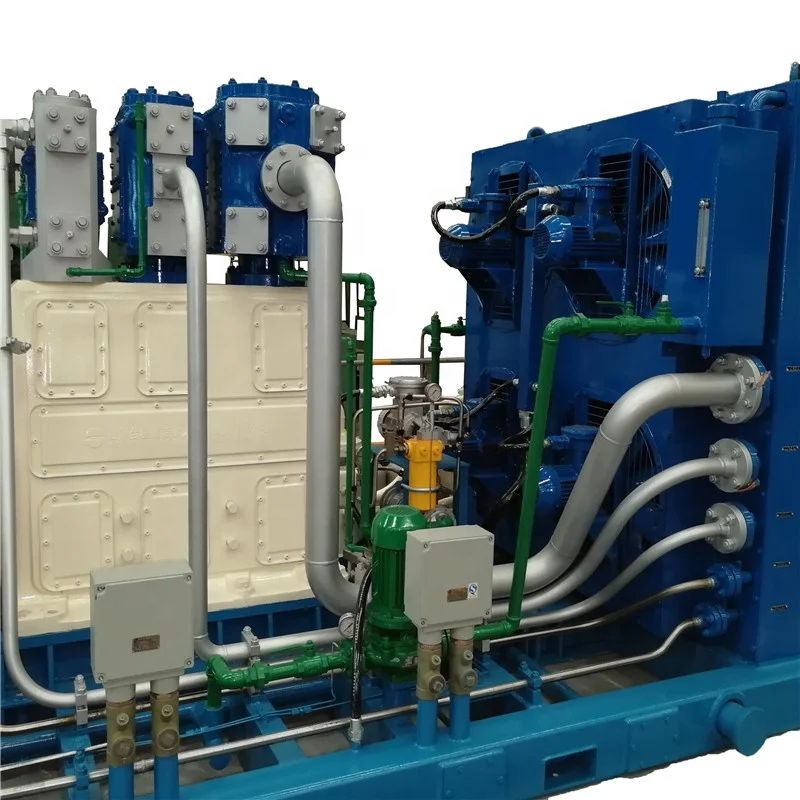

ZW type oil free natural gas compressor CNG compressor CNG station compressor
- Category: >>>
- Supplier: Sichuan Rongteng Automation Equipment Co. Ltd.
Share on (62126837401):
Product Overview
Description
Product features
Description:
The ZW type CNG compressor is oil free. It's applied in daughter station.
Product features:
The first special compressor type for CNG filling station in China, which covers a small area and runs steadily.
Vertical reciprocating piston compressor, four cranks into 90 degrees each other, running smoothly.
The compressor cylinder is designed with oil-free lubrication structure and operates without oil lubrication.
Energy-saving non-balanced compressor technology and high-pressure packing sealing technology are adopted.
Compressor unit skid-mounted, convenient transportation, simple installation.
Technical parameters
| S/N | Model | Inlet pressure (Mpa) | Power (KW) | Capacity(Nm3/h) | Cooling style |
| 1 | ZW-3.6/1-250A-JX | 1 | 110 | 420 | water cooling |
| 2 | ZW-4.4/1-250-JX | 1 | 110 | 470 | water cooling |
| 3 | ZW-5/1-250D-JX | 1 | 132 | 533 | water cooling |
| 4 | ZW-4.8/1.25-250-JX | 1.25 | 132 | 580 | water cooling |
| 5 | ZW-3.8/1.4-250-JX | 1.4 | 110 | 490 | water cooling |
| 6 | ZW-3.56/1.5-250-JX | 1.5 | 110 | 490 | water cooling |
| 7 | ZW-4.35/1.5-250D-JX | 1.5 | 132 | 595 | water cooling |
| 8 | ZW-5/1.5-250B-JX | 1.5 | 160 | 720 | water cooling |
| 9 | ZW-3.8/2-250-JX | 2 | 132 | 620 | water cooling |
| 10 | ZW-4.5/2-250D-JX | 2 | 160 | 750 | water cooling |
| 11 | ZW-4.95/2-250C-JX | 2 | 185 | 870 | water cooling |
| 12 | ZW-3.3/2.4-250-JX | 2.4 | 132 | 640 | water cooling |
| 13 | ZW-3.3/2.5-250B-JX | 2.5 | 132 | 645 | water cooling |
| 14 | ZW-3.7/2.5-250D-JX | 2.5 | 160 | 780 | water cooling |
| 15 | ZW-4.35/2.5-250B-JX | 2.5 | 185 | 900 | water cooling |
| 16 | ZW-2.5/3-250K-JX | 3 | 110 | 550 | water cooling |
| 17 | ZW-3/3-250-JX | 3 | 132 | 660 | water cooling |
| 18 | ZW-3.65/3-250B-JX | 3 | 160 | 800 | water cooling |
| 19 | ZW-4.25/3-250C-JX | 3 | 185 | 930 | water cooling |
| 20 | ZW-4.4/3-250A-JX | 3 | 200 | 1005 | water cooling |
| 21 | ZW-2.7/3.5-250A-JX | 3.5 | 132 | 680 | water cooling |
| 22 | ZW-3.2/3.5-250-JX | 3.5 | 160 | 830 | water cooling |
| 23 | ZW-2.1/4-250A-JX | 4 | 110 | 580 | water cooling |
| 24 | ZW-2.5/4-250F-JX | 4 | 132 | 705 | water cooling |
| 25 | ZW-3/4-250C-JX | 4 | 160 | 850 | water cooling |
| 26 | ZW-3.65/4-250E-JX | 4 | 185 | 985 | water cooling |
| 27 | ZW-1.45/5-250-JX | 5 | 90 | 500 | water cooling |
| 28 | ZW-1.9/5-250B-JX | 5 | 110 | 615 | water cooling |
| 29 | ZW-2.2/5-250E-JX | 5 | 132 | 740 | water cooling |
| 30 | ZW-2.76/5-250-JX | 5 | 160 | 895 | water cooling |
| 31 | ZW-3.3/5-250-JX | 5 | 200 | 1120 | water cooling |
| 32 | ZW-1.64/6-250-JX | 6 | 110 | 640 | water cooling |
| 33 | ZW-1.9/6-250B-JX | 6 | 132 | 770 | water cooling |
| 34 | ZW-2.5/6-250-JX | 6 | 185 | 1080 | mixed cooling |
| 35 | ZW-3.0/6-250C-JX | 6 | 200 | 1170 | water cooling |
| 36 | ZW-2.2/7-250-JX | 7 | 160 | 980 | water cooling |
| 37 | ZW-1.36/8-250-JX | 8 | 110 | 690 | water cooling |
| 38 | ZW-1.7/8-250-JX | 8 | 132 | 830 | water cooling |
| 39 | ZW-2.0/8-250D-JX | 8 | 160 | 1010 | water cooling |
| 40 | ZW-1.2/10-250-JX | 10 | 110 | 740 | water cooling |
| 41 | ZW-1.4/10-250A-JX | 10 | 132 | 890 | water cooling |
| 42 | ZW-1.91/10-250-JX | 10 | 185 | 1250 | mixed cooling |
| 43 | ZW-1.35/12-250-JX | 12 | 132 | 930 | water cooling |
| 44 | ZW-1.55/12-250-JX | 12 | 160 | 1130 | water cooling |
| 45 | ZW-1.45/14-250-JX | 14 | 160 | 1190 | water cooling |
| 46 | ZW-0.98/15-250B-JX | 15 | 110 | 830 | water cooling |
| 47 | ZW-1.0/16-250-JX | 16 | 132 | 1010 | water cooling |
| 48 | ZW-1.65/16-250-JX | 16 | 185 | 1440 | water cooling |
| 49 | ZW-0.94/20-250-JX | 20 | 132 | 1110 | mixed cooling |
| 50 | ZW-1.15/20-250-JX | 20 | 160 | 1350 | mixed cooling |
| 51 | ZW-1.3/20-250A-JX | 20 | 185 | 1570 | water cooling |

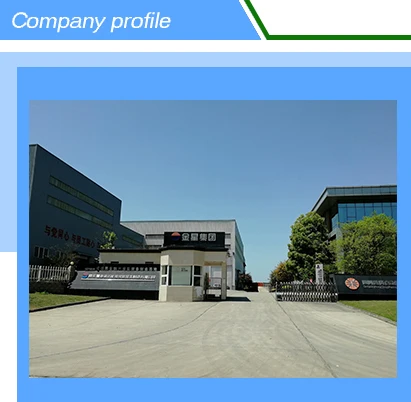

Company profile
 |  |
Sichuan Rongteng Automation Equipment Co., Ltd. Is the wholly-owned subsidiary of Sichuan Jinxing Clean Energy Equipment Holding Co., Ltd. We have been in natural gas industry since 1995. We specialize in designing and manufacturing the below products and services. Natural gas purification and treatment CNG, LNG, L-CNG filling station equipment CNG, LNG dispenser CNG compressor PLC control cabinet and explosion proof cabinet
view more >> |
R&D
Our R&D center is authorized as “national technology center”.Have acquired more than 100 patents.
The R&D team owns 180 personnel.Can provide solution and design for the natural gas and CNG industry. |  |

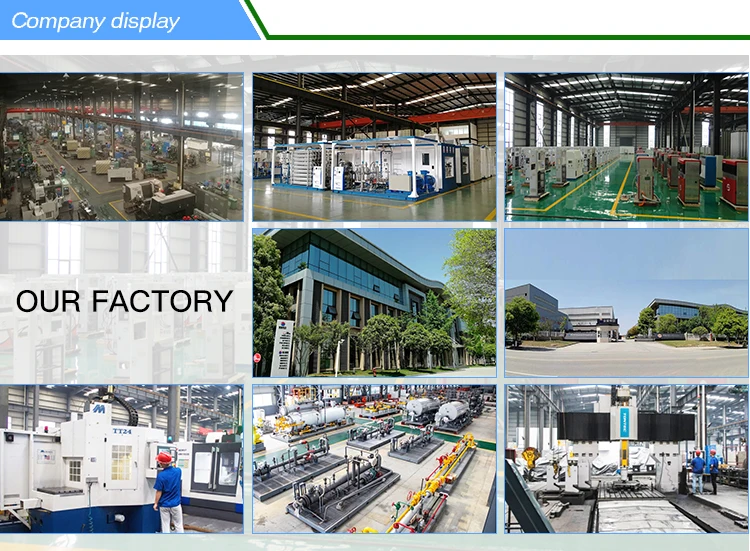

Company display

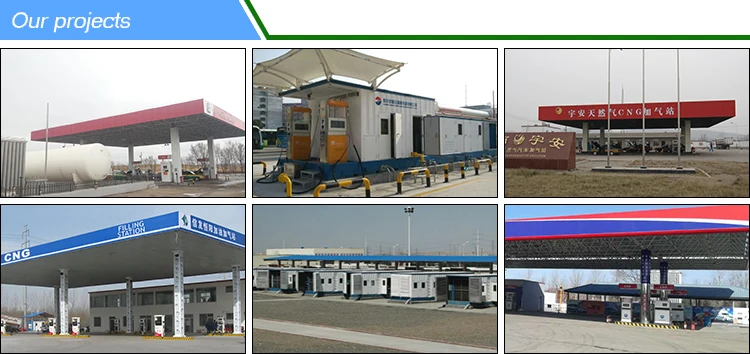

Our projects
Our cerficate
Are you factory or trade company?
- - - Yes, we are factory .
What's your delivery time?
- - - 60 days .
Can yoou customize the CNG gas station?
- - - Yes, We can. Let us know your requirements, we will present the best solution.
Do your factory have gained ISO9001:2008 certificate?
- - - Yes, we have.
How does your factory do regarding quality control?
- - - Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.
Do you have spare parts in stock?
- - - Yes , we have
How about your customer service and after-sales service?
- - - 24 hrs on-line service, engineers and oversea agent technical support .
