Титановая никелевая проволока из сплава памяти/проволока из Нитинола для ортодонтиков

Product Overview

Description

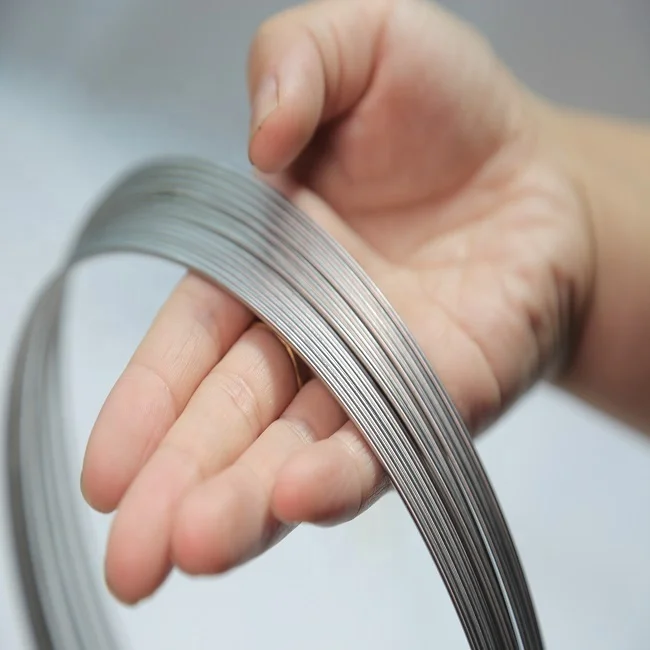

Titanium nickel shape memory alloy wire/nitinol alloy wire for  orthodontics

Production Description:

 Nitinol is A shape-memory alloy SMA is an alloy with features: shape memory character and super-elastic, SMA can "remember" its original shape and deformed  to its pre-deformed shape when heated.Nickle 55% Titanium 45% .Small changes in composition can significantly impact the properties of the material.

1. Grade: Ti-Ni-01/Ti-Ni-02/Ti-Ni-SS

2. standard: ASTM F 2063

3. Feature: Shape memory and superelastic

 Technical Parameter:

Product Name	0.5mm SMA superelastic Titanium nickel alloy Nitinol wires
Material	Titanium Nickel alloy
Standard	ASTM F2063

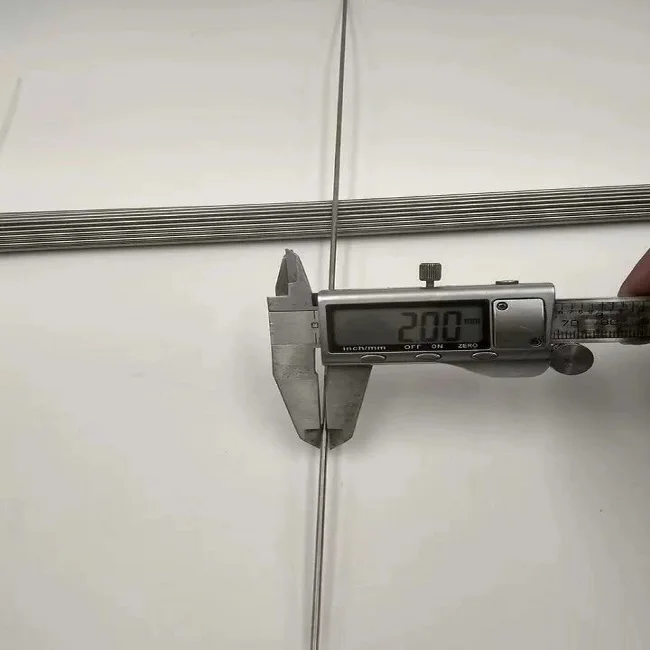

Diameter	DIA 0.1 mm--7mm
AF temperature range	As(f.a.) -25C ± 10C, active Af 0C As(f.a.) -15C ± 10C (most common), Active Af +5C As(f.a.) -15C ± 10C Redox, Active Af +5C As(f.a.) +20C ± 15C, Active Af +28C As(f.a.) +65C ± 20C, Active Af +70C As(f.a.) +95C ± 5C, Active Af > +80C
Application	Medical/Industry

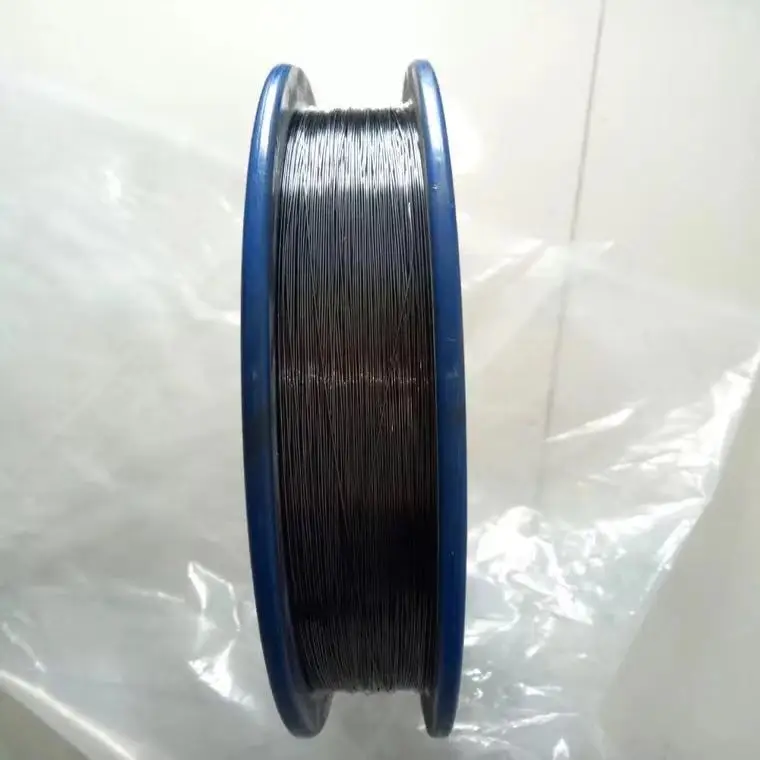

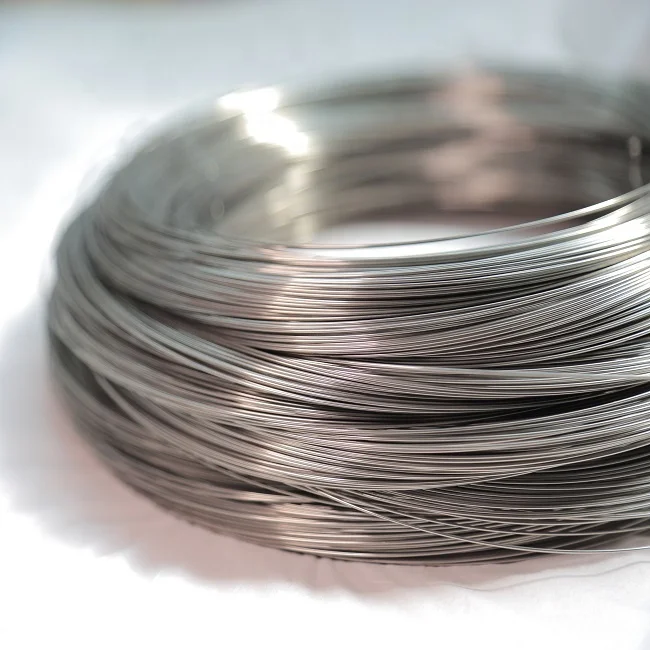

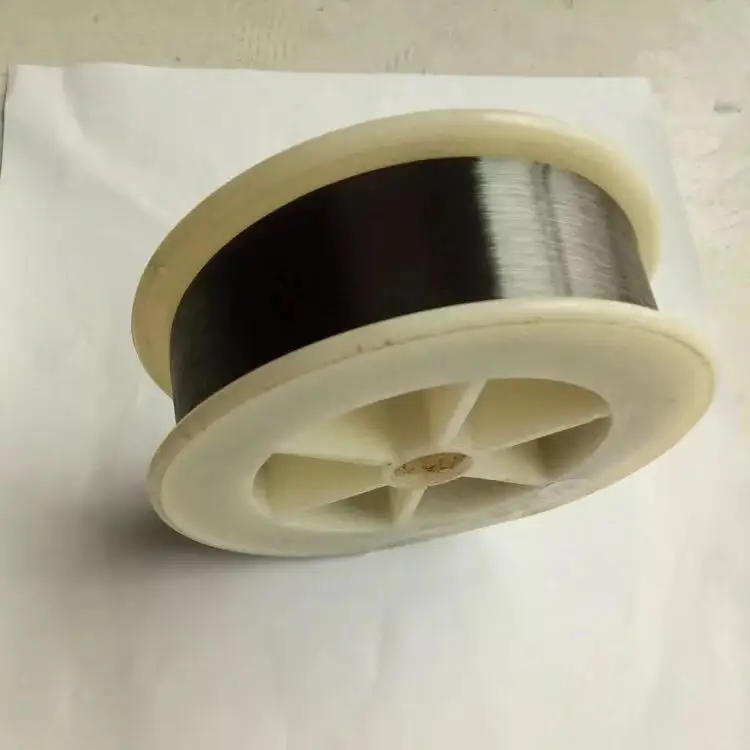

wire type	Spool or in coil
Lead time	3-5 days if in stock



Physical Properties of Nitinol

Density: 6.45gms/cc
Melting Temperature: 1240-1310° C
Resistivity (hi-temp state): 82 uohm-cm
Resistivity (lo-temp state): 76 uohm-cm
Thermal Conductivity: 0.1 W/cm-° C
Heat Capacity: 0.077 cal/gm-° C
Latent Heat: 5.78 cal/gm; 24.2 J/gm
Magnetic Susceptibility (hi-temp):3.8 uemu/gm
Magnetic Susceptibility (lo-temp): 2.5 uemu/gm



Mechanical Properties of Nitinol

Ultimate Tensile Strength: 754 - 960 MPa or 110 - 140 ksi
Typical Elongation to Fracture: 15.5 percent
Typical Yield Strength (hi-temp): 560 MPa, 80 ksi
Typical Yield Strength (lo-temp): 100 MPa, 15 ksi
Approximate Elastic Modulus (hi-tem): 75 GPa, 11 Mpsi
Approximate Elastic Modulus (lo-temp): 28 GPa, 4 Mpsi
Approximate Poisson's Ratio: 0.3



About Us:

Xian Ocean Material Technology Co.,Ltd. Is a professional supplier of kinds of nonferrous metals, our main products is tungsten, molybdenum, tantalum, niobium, titanium and nickel etc in form of sheet, plate, foil, strip, wire, rod, tube, machined parts etc, R&D alloy and new material as customer`s enquiry. Advanced technology and processing equipment, experienced technical personnel, strict quality control, to ensure product quality, our products are exported to Europe, America, southeast Asia and other countries,widely used in the fields of medical, aviation, military, industrial, etc.



Why Choose Us?

1. Over 10 years experiences in nonferrous and refractory metals industry, profeesional sales service online .



2. Strict quality control system and issue third party test report before ship to assurance high quality.



3. Customized as different enquiry or drawing, our advantage of kinds of nonstandard parts and new alloy material products.



4. Big inventory of normal size or standard parts and fast lead time.



5. Not only offer material but solution to help you choose the suitable material.



Related products:





Packing and Shipping:



 Plastic foam inside and plywood outside to protect the products.

1. TNT/ Fedex/UPS/DHL etc express door to door.

2. Air transport

3. Sea Transport

We will offer the best Transport as your enquiry, save your money and time.

If any quality problem, you can contact our sales-after department at the first time.





Our Certifications:

FAQ:

Q: Whats your products offered?

A:  We can offer tungsten, molybdenum, tantalum, niobium, titanium, nickel etc metal and alloy new material products.



Q. Whats your MOQ?

A: If the products in stock, small quantity is available, if no stock, MOQ depend on different products. we can send you similar size to test if acceptable.



Q: Can you customized as enquiry or drawing?

A: Yes we can customzied for you.



Q. Whats your lead time?

A: 5-7 days, if big quantity negotiation, try our best to save time for you based on high quality.



Q: Do you inspect the finished products before delivery?

A: All products will be inspection and with test report before delivery to guarantee qualified products for you.



Contact Us:



Contact us for more information if you are interested in our products.
