Product Description

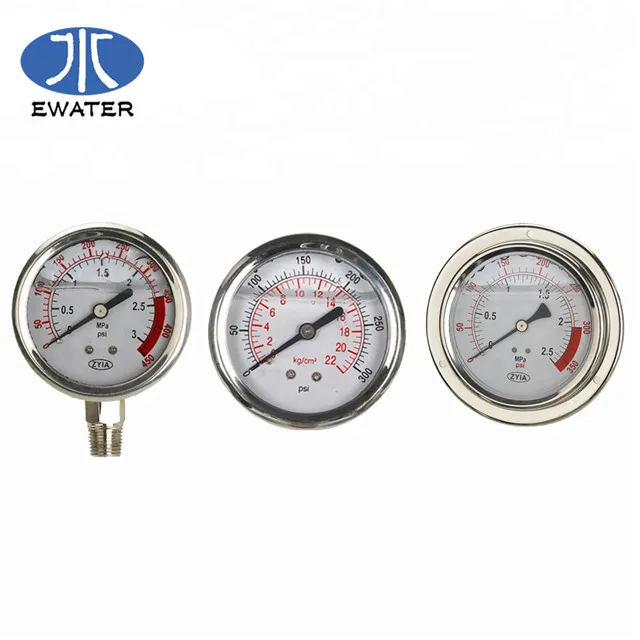

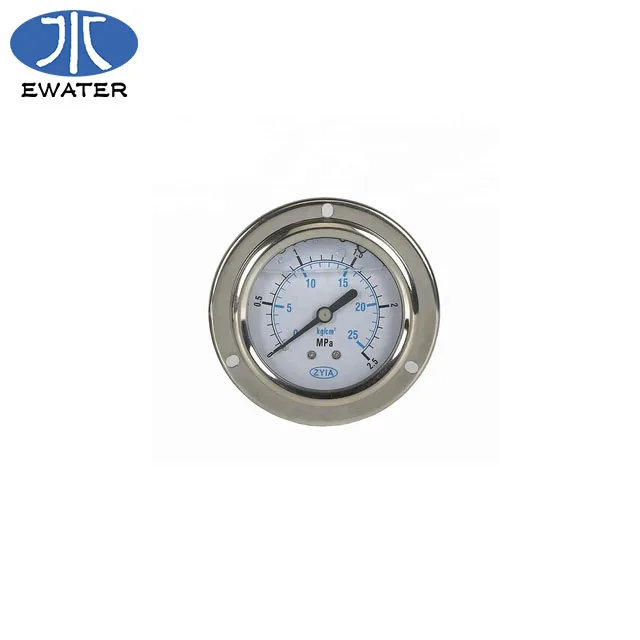

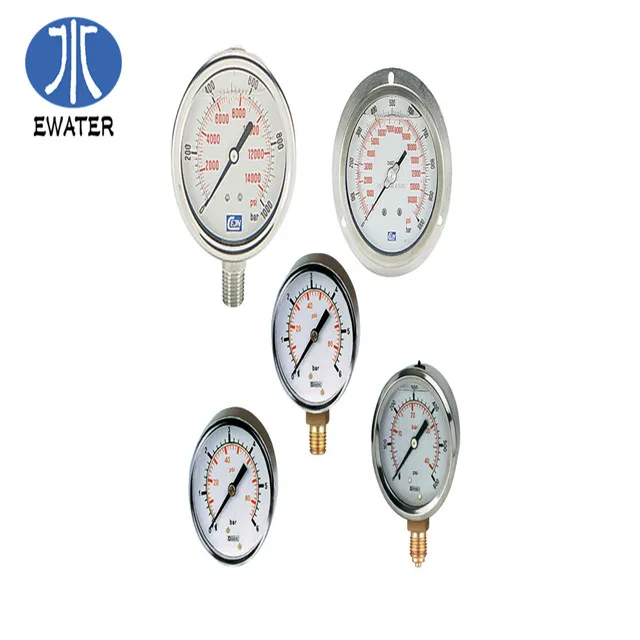

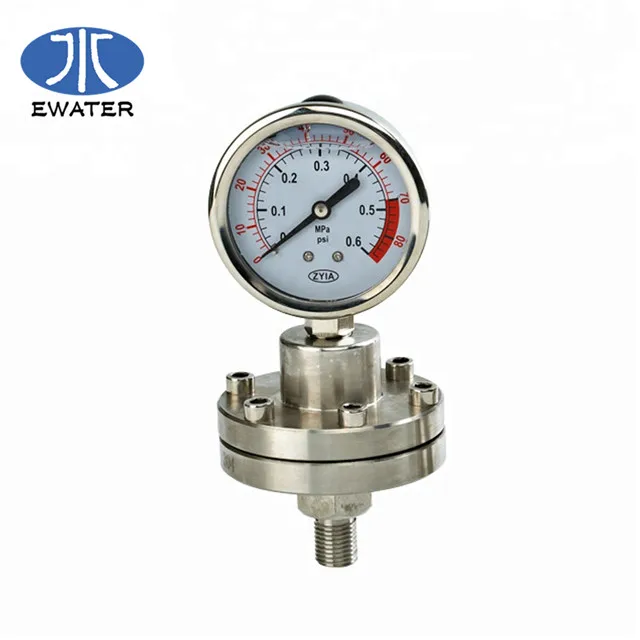

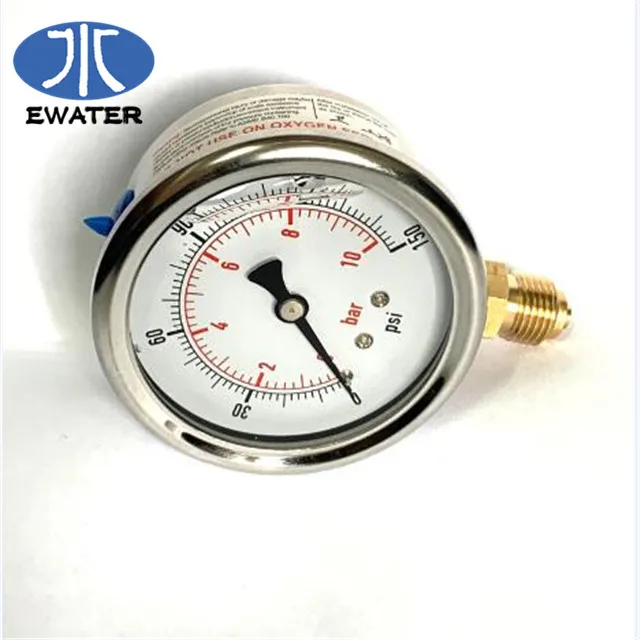

 YTN-Series liquid filed pressure gauge fill damping fluid damping fluid (silicone oil, glycerol) in the gauge and other measures


to ensure that it has excellent function of impact resistance and aseimatic. So it is safe and reliable, with stable performance and


long useful-life. It is apply to mechanical, chemical, metallury, mine. Electrical, measure the pressure of medium is non corrosive for


copper and alday. If measure the pressure of high corrosive medium, all material of pressure gauge must be stainless steel.


glycerine filled pressure gauge







































































Diameter


ModelInstallationMeasure Range(Mpa)Connection threadMaterial of CasingAccurancy
11/2"YTN-40bottom connection

0.1


0.16


0.25


0.4   0.6


1  1.6


2.5  4  6



G1/8"


ZG1/8"


Z1/8"


M10*1


SS304    ±2.5
YTN-40Zback connection
YTN-40ZTback connection with border
2" YTN-50bottom connection

0.1


0.16


0.25


0.4.   0.6


1  1.6


2.5  4  6   10  16  25  40



G1/8"


G1/4"


ZG1/8"


ZG1/4"


Z1/8"
Z1/4"


M14*1.5


SS304    ±2.5
 YTN-50Zback connection
 YTN-50ZTback connection with border
21/2"YTN-60bottom connection

0.1


0.16


0.25


0.4.   0.6


1  1.6


2.5  4  6   10  16  25  40   60




G1/8"


G1/4"


ZG1/8"


ZG1/4"


Z1/8"
Z1/4"


M14*1.5


SS304

 ±2.5








YTN-60Zback connection
YTN-60ZTback connection with border

Measurement Conversion: 1Mpa=10bar=10.2kg/cm³=145psi


Note: G=BSP   ZG=BSPT   Z=NPT

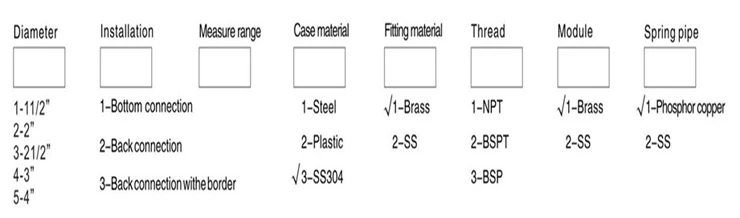

For Order


Please specify the model, specification and code


glycerine filled pressure gauge

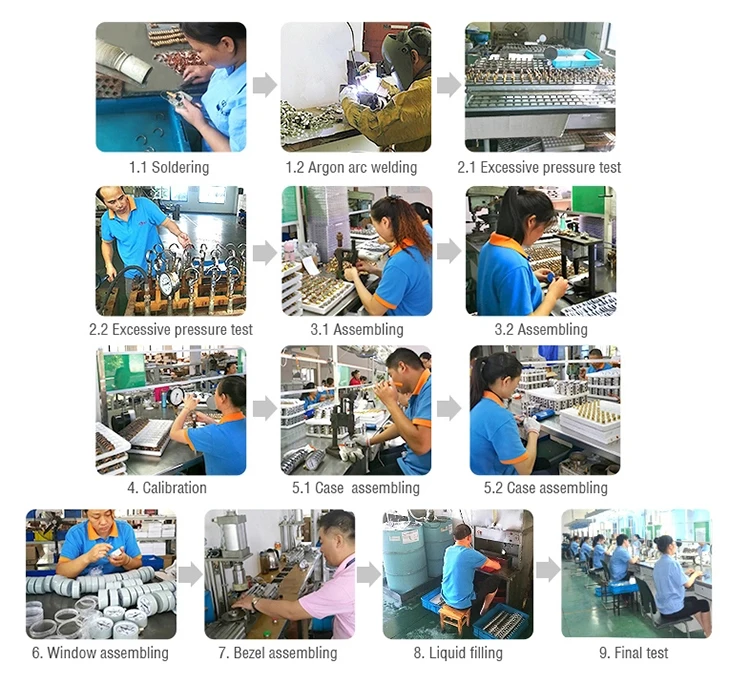

Production Flow



glycerine filled pressure gauge






Packaging & Shipping



glycerine filled pressure gauge







Certifications




OUR CERTIFICATES







glycerine filled pressure gauge
