Epoxy resin dispensing robot for AB Glue mixing and coating TH 2004D 2004AB1

1.The machine has automatic mixing and automatic dispensing function. Dispensing precision is high,speed is fast, and Position is accurate. Good stability can be 24 hours of continuous production.

2.Tianhao unique patented technology, completely avoid the matching accuracy mistakes by pressureratio.

3.Professional dispenses software combination of feed system and arm tuning control to achieve thesynchronization control.

4. XYZ with dual rail robotic arm, the Z-axis brake motors, greatly increased the stability of the equipmentand motion accuracy.

    √ Operation simple, install easy.

    √ Weight is light, good for shipping.

    √ CAD file directly change to the dispensing path

    √ Chinese/English edits programs interface

    √ Flexible power supply design for overseas use.

service Free

Help you seek the glue.

Free offer trial video for your sample.

Free training with machine.
Free offer accessories dispensing kit.

Save cost

One machine instead of three or four staff, reduce the

management cost, also can work for 24 hours.

Help your business

You can bring customers to visit your workshop,the equipment to produce customer
satisfaction products,then take good business for you

Specifications

ITEM	TH-2004D-206AB-300	TH-2004D-206AB-400	TH-2004D-206AB-500
X/Y/Z Work Range	300*300 *100mm	400*400*100mm	500*500*100mm
Standard	CE Approved
Repetitiveness	±0.01mm/Axis
I/O Signals	4 Inputs / 4 Outputs
Power Supply	AC110V/220V Internal conversion
Dimensions  (W x D x H) cm	65*55*65	75*64*65	84*75*78
Weight	40kgs	45kgs	53kgs

No	Name	ITEM	QTY
1	TH-2004D Robotic	TH-2004D	1pcs
2	Liquid dispenser	TH-206AB	1pcs
3	Dispensing signal line	3core-4core	1pcs
4	Dispenser fix frame	TH	1pcs
5	Teach pendant/fix frame	TH	1pcs
6	Teach pendant Cable line	TH	1pcs
7	Fix broad for valve	TH-1000J	1pcs
8	Valve	TH-1000J	1pcs
9	Mixer tube	TH	1pcs
10	Needle	TH	10pcs
11	POWER cord 220V	220V	2pcs
12	Air tube	6*4mm	1pcs
13	Tool	TH	1set
14	Jig	As sample	1set
15	Screw	TH	1set
16	Connect Drawing	TH	1set
17	Manual operation	TH	1set
18	Ex-work Report	TH	1set
19	Machinery certificate	TH	1pcs
20	Warranty card	TH	1pcs
21	CE certificate	TH	1pcs
22	Catalogue	TH	1pcs

Company Information

Company Name:	CIXI TIANHAO ELECTRIC TECHNIC CO.,LTD
ADD:	NO.789 Huchong Road cixi city zhejing china
Factory established time:	Augest.8.2001
Time of exports trades:	Jan.1.2006
Export right:	Have oneself right of import and export offer certificate of origin

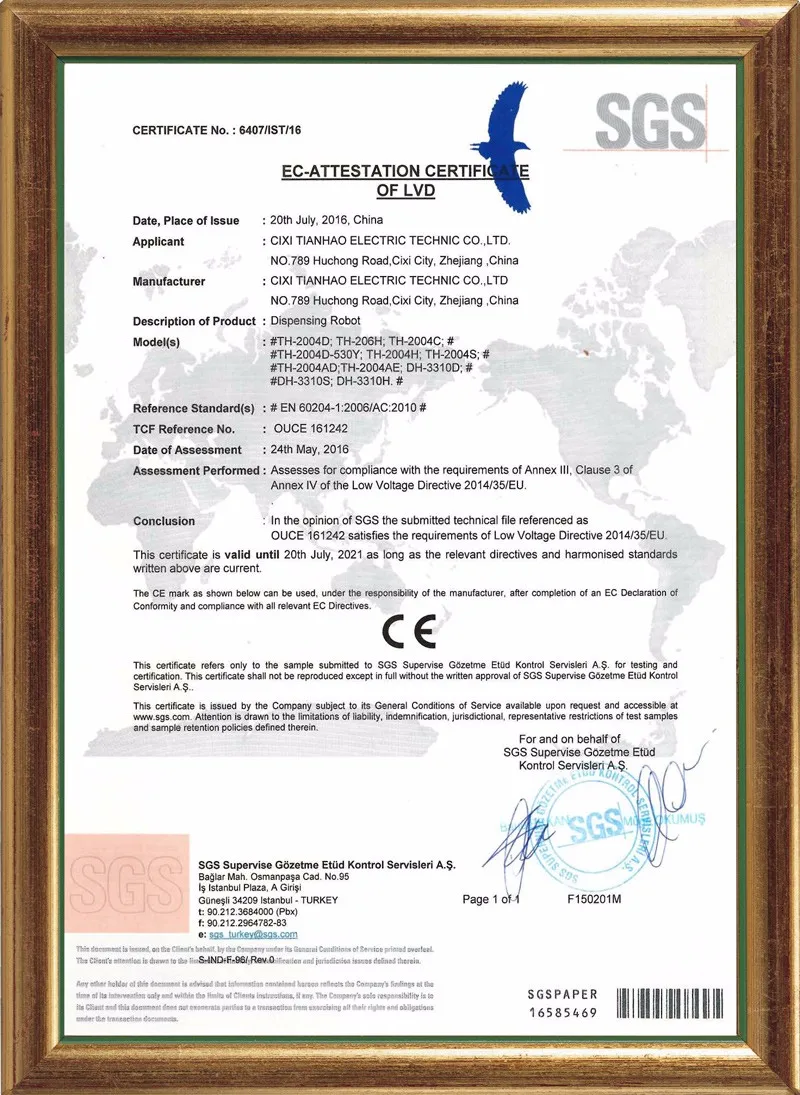

Certifications

Exhibition

Packing & Delivery

Packaging
Size	61 (L) * 55 (W) * 65(H) cm
Weight	40kgs
Packaging Details	The normal package is carton(Size: L*W*H). If container is too tigher,we will use pe film for packing or wooden box pack it according to customers special request.

FAQ
