100kN Underground Cable Pulling Machine Hydraulic Puller (62126971206)

Share on:


Price:RUB 765,102.00 - RUB 3,825,510.00
Price in USD:Details

Quantity:


Product Overview

Description

100kN Underground Cable Pulling Machine Hydraulic Puller



Hydraulic puller is suitable for laying underground transmission cables and optics fiber cables, it is driven by a diesel-hydraulic power unit that is completely enclosed within an area of coverage, limiting noise emissions.



Performance

Model GP100
Max pull force 100kN
Continuous pull effort 80kN
Max speed at Continuous pull 17m/min
Max speed 83m/min
Pull at max speed 15kN
Capstans 350x650mm
Maximum cable diameter 80 mm
Total weight 3350kg
Overall dimension (length*width*height) 4000*2200*1800mm





Engine

Diesel Yanmar Japan 49.2hp/36kw
Cooling system Water
Electrical system 12V





Main Configuration

Engine Yanmar Japan
Hydraulic motor Rexroth German
Hydraulic pump Danfoss
Hydraulic meter Wika German
Operating handle Bondioli & Pavesi Italy
Hydraulic valve Sun USA





Anti-twist Steel rope

D18mm    700m

We can customize the size and length as your request.



Configuration

Control panel with instruments for hydraulic system and engine.

A dynamometer used to check pull values

Hydraulic oil cooling system

In the case of over pull, the preset for maximum tension can stop the puller

The hydrostatic loop, which allows the puller to continue to change speed in two rotational modes, can operate only one command

Hydraulic emergency brake operates automatically at the center of the instruction bar or in the case of hydraulic failure (not suitable for lifting)

Mechanical front and rear stabilizer

Grounding connection point

Large channel steel capstan with anti-skid device



Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.



Additional Devices

Lighting system for the trailer

Swivel guide rope roller

Chassis, with damping shaft, tires, traction lever, Trailer for towing at max speed of 30 km/h

Digital speed and meter counter (extra charge)

Accessories for anchoring and lifting

The heat exchanger cools the oil in the hydraulic circuit

Rear tension roller with hydraulic drive







COMPANY PROFLIE
Established in 2016, Galaxy Power Industry Limited. is a manufacturer specialized in the research, development and production of Electric Power Machinery. We are a high-tech enterprise in China. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our products sell in Australia, Turkey, Mexico, Panama, Peru, Brazil, Egypt, Sudan, Kenya, Angola, Pakistan etc. Our products are also very popular and best-selling in china.
1. Main configurations of our machine are from Germany and USA Engine: American Cummins Main pump: German Rexroth Main motor: German Rexroth Speed reducer: German Rexroth Tail bracket hoisting motor: American Eton Hydraulic meter: German WIKA Operating handle: German Rexroth
2. We have one year quality guarantee. if internal components go wrong within one year, we will change another for free.
3. We can supply the specific components to the buyers with cost price after warranty period.

Underground Cable Pulling Machine

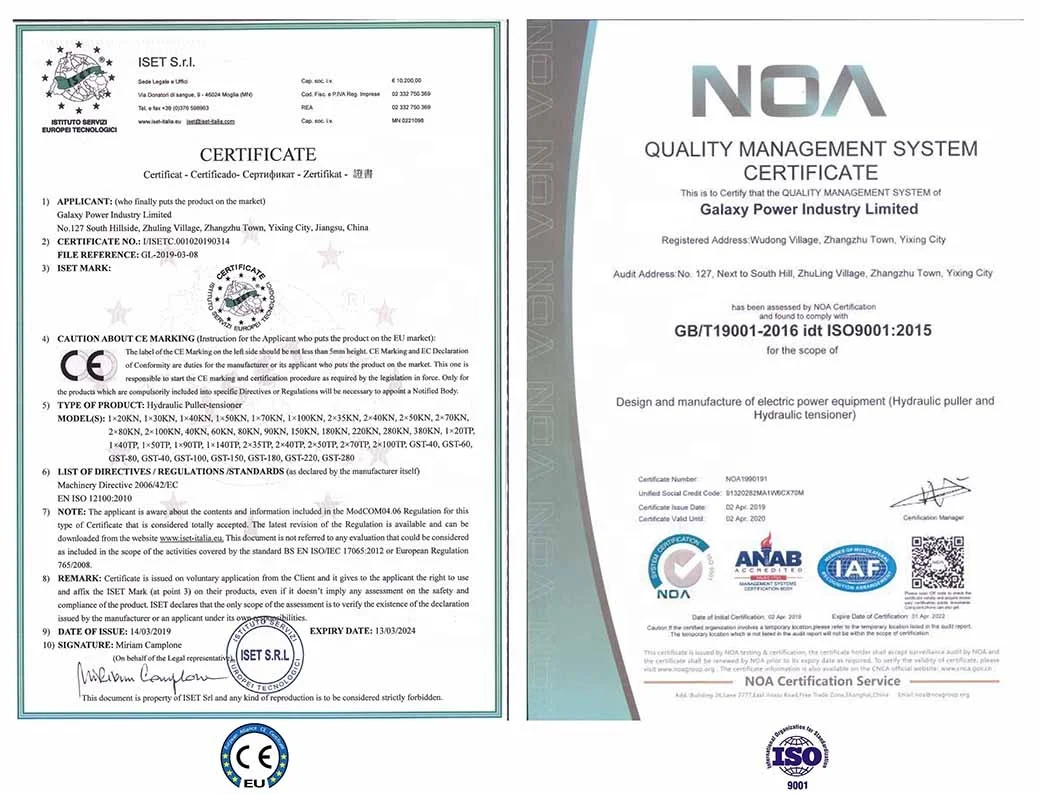

Certifications
