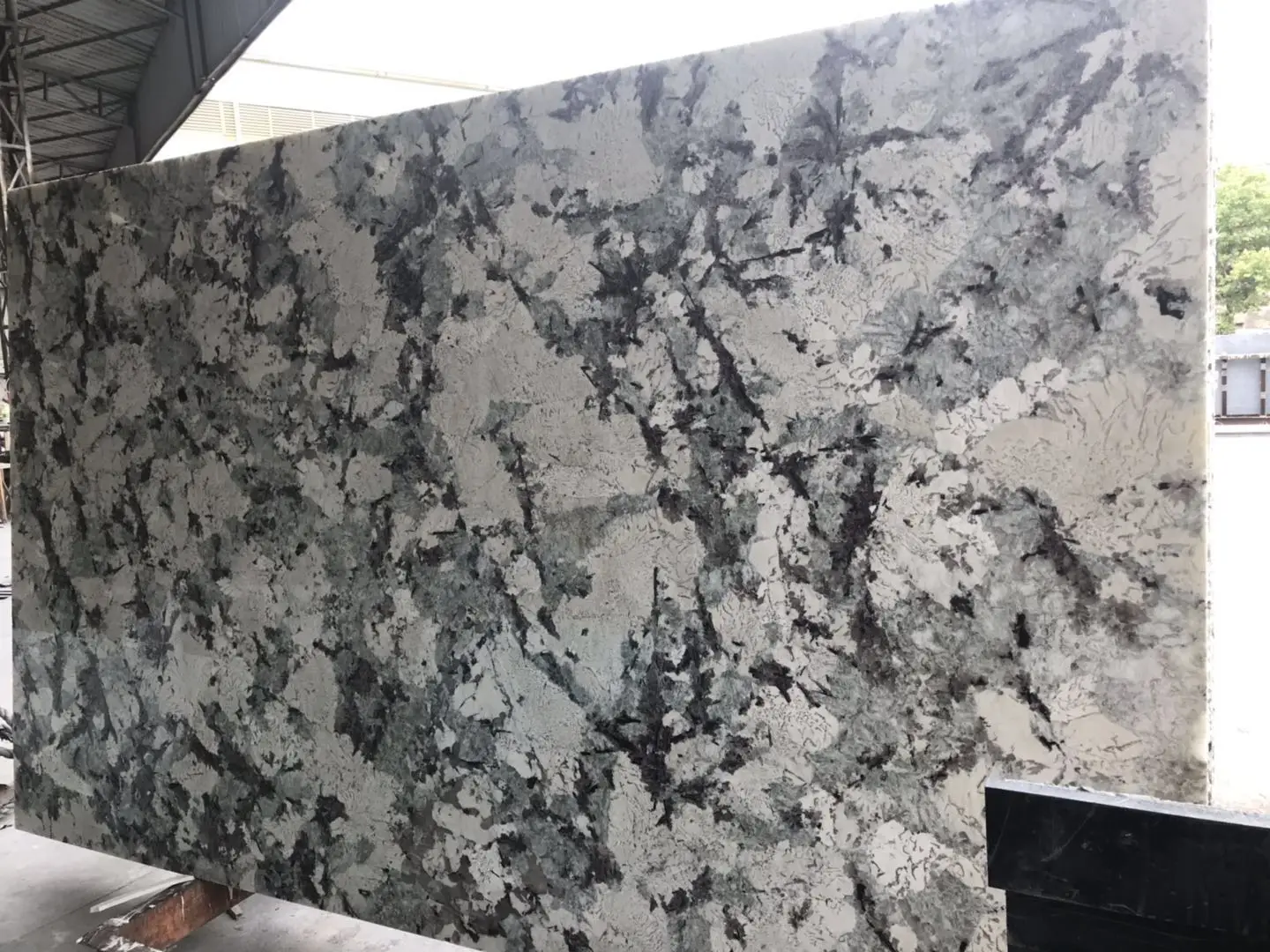

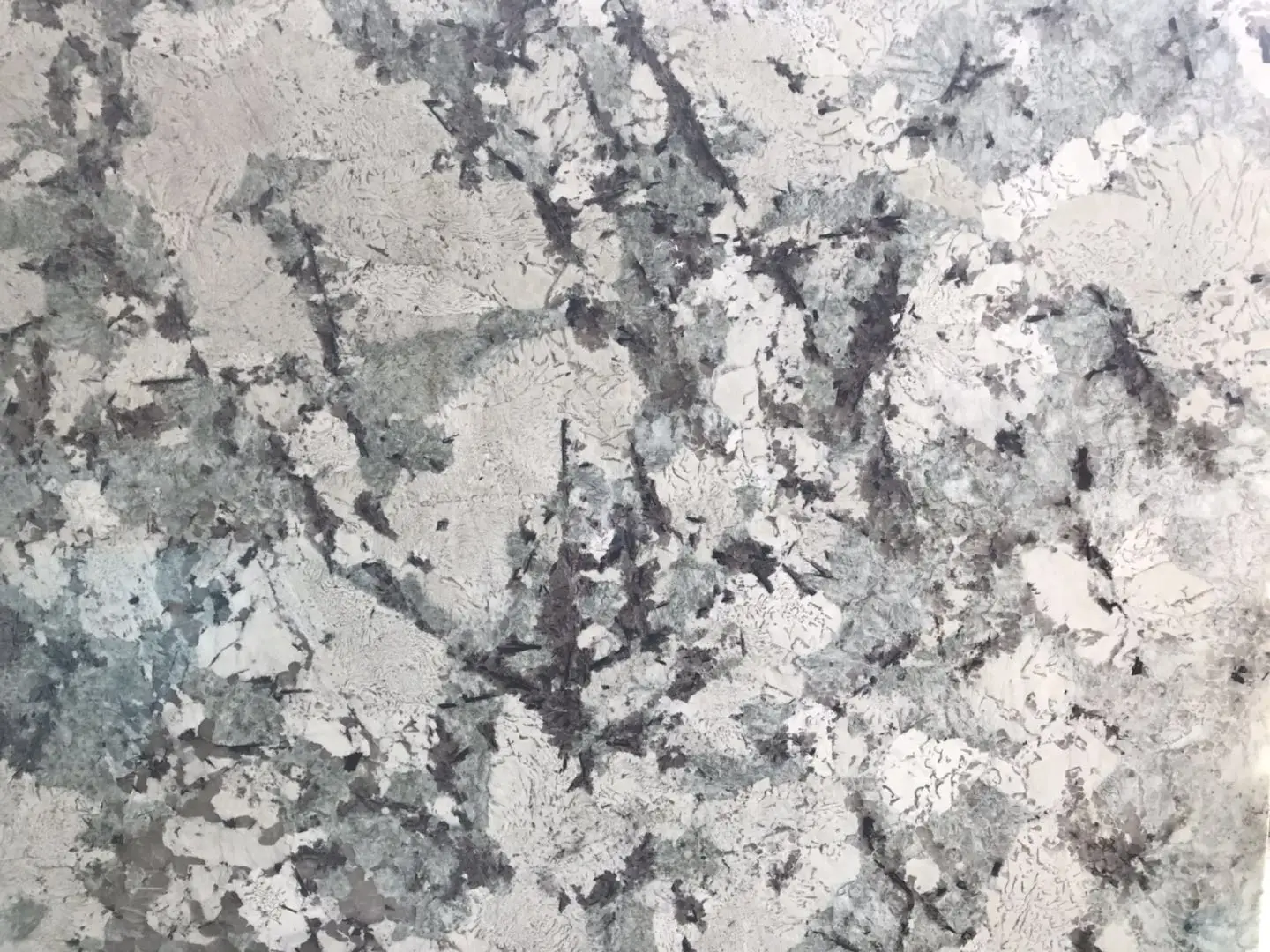

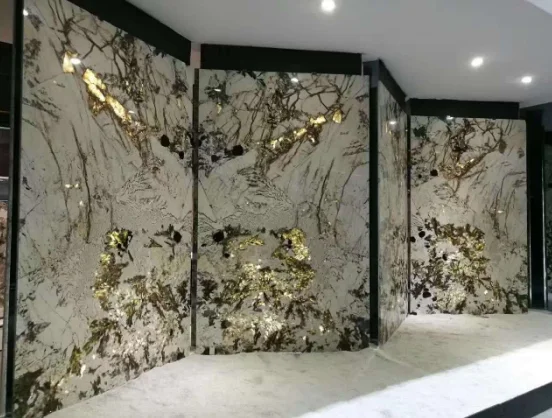

Snow mountain silver fox marble backlit translucent wall fiberglass honeycomb panels

Max Panel Size: 1500mm x 3000mm

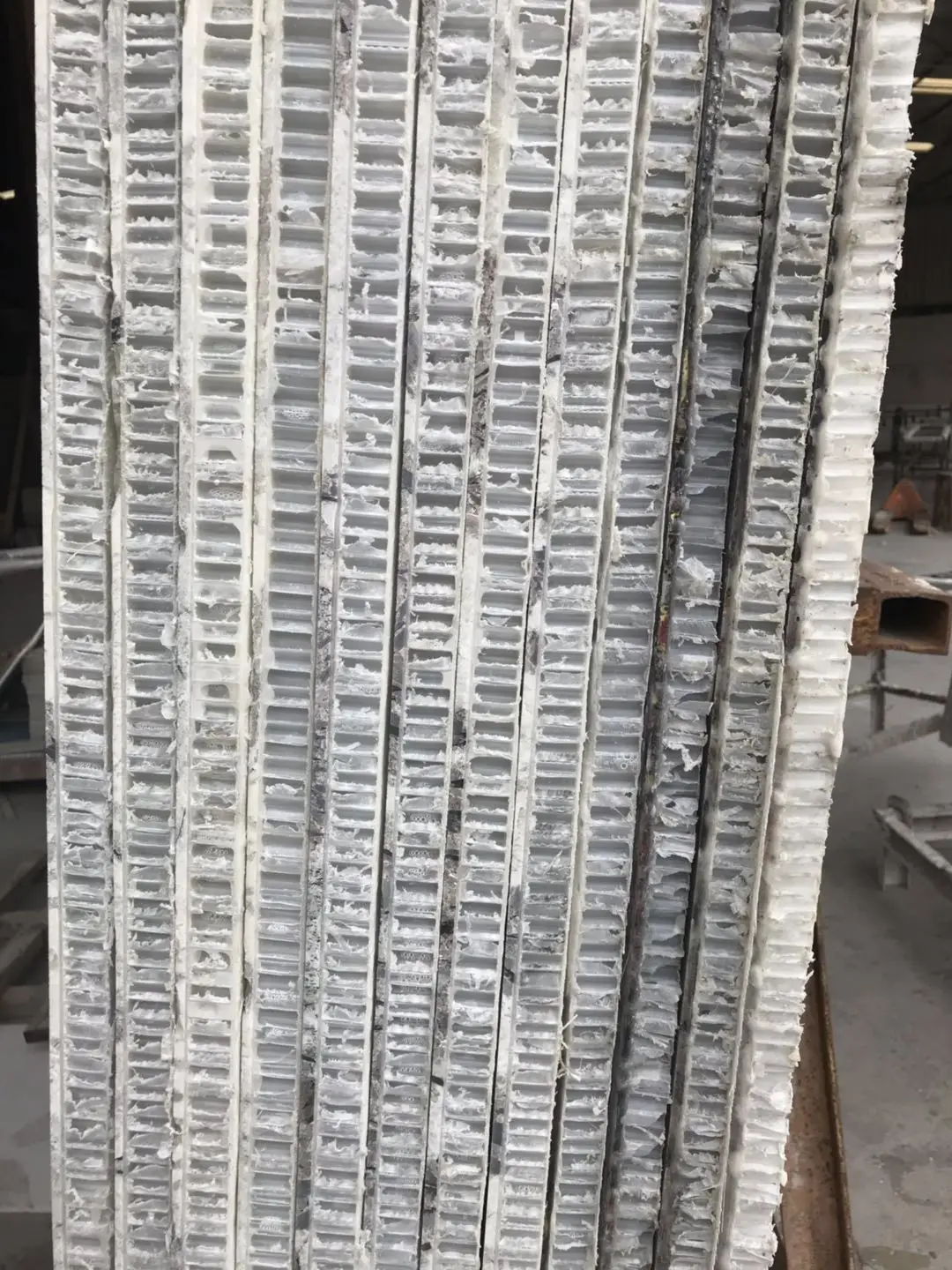

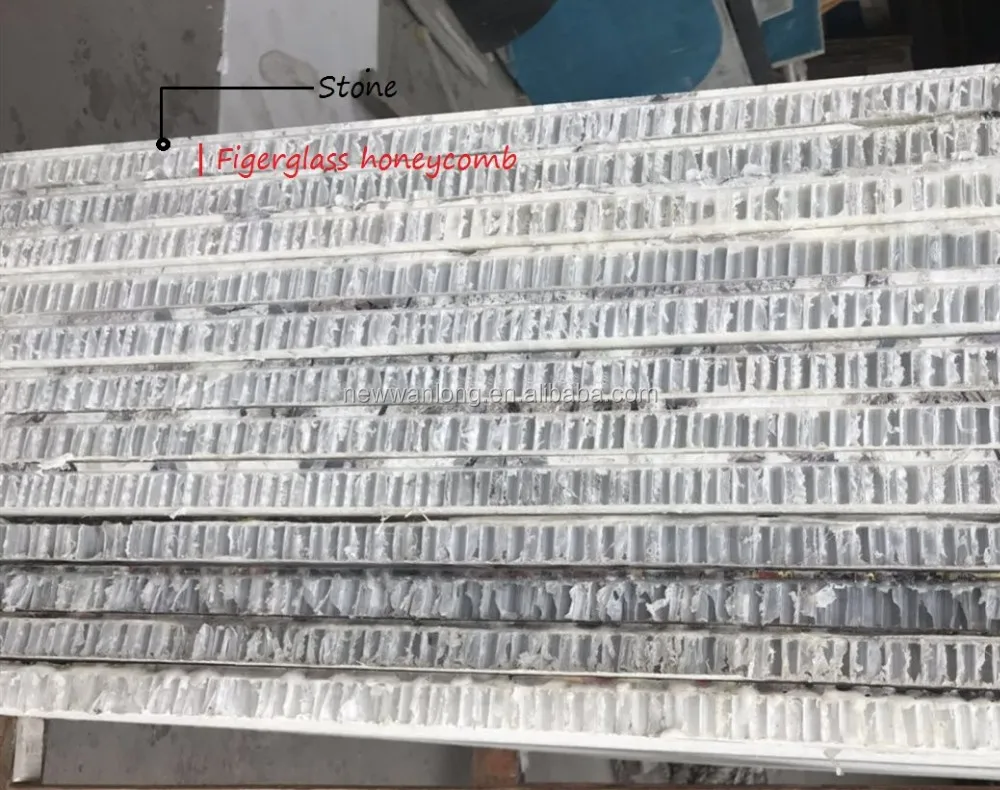

Composition: minimum 3-4mm stone veneer + 6mm ~ 50mm Fiberglass honeycomb substrate,
Weight: about 20Kg/m2
( subject to different stone materials and size)

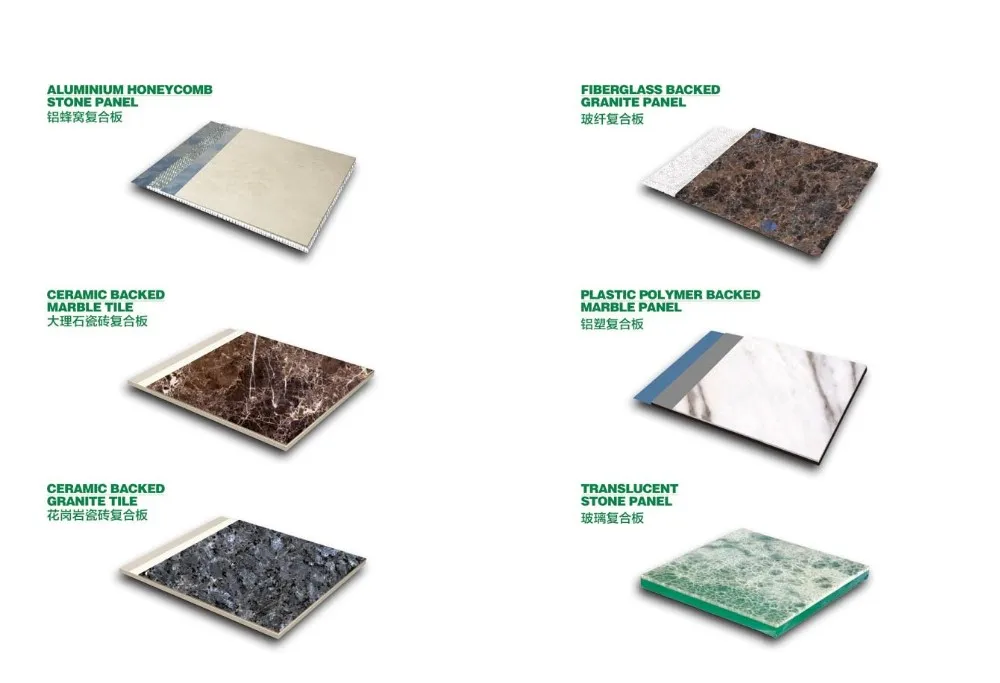

This architectural cladding panel is contructed using an aluminium honeycomb substrate and faced with a thin laminate of natural or artificial stone. Aluminium honeycomb was original developed for use in the aerospace industry for its combination of strength, durability and low weight.Our Natural stone honeycomb panels are composite panels made up of a thin natural solid stone veneer reinforced with an aluminum honeycomb backing.Natural stone veneer + Aluminum sheet / Fiber glass sheet + Aluminum honeycomb core + Aluminum sheet / Fiber glass sheet. Wanlong Stone has considerable advatages over traditional solid stone cladding. Lower Cost, Lower weight, Shorter programme, safer installation. Also, the panels can be formed curved either convex or concave.

1. Lightweight:70% less weight compared with 20mm thick dimensional stone;
Weighting round 8kg/m2 – 20kg/m2, Wanlong stone compostie panels provide remarkable savings in tranportaion(more pieces in one container), installation time, installation skil required, labour cost and strucutral requirements.
2. High impact strength:60 times greater than 30mm granite;
After reinforced by aluminum honeycomb grid, the composite panels' intensity of bending resistance, fracture resistance are improved obviously, lowering the damage rate of transportation, installation and using process.
3. Good hurricane resistant performance, wind load capacity and high intensity;
Due to their high intensity, our honeycomb stone panels can be flexed which makes it become one choice for seismic conditions ( such as earthquake areas).
4.Resistance to discoloration;
Compoisite panel can prevent discoloration, because it has stronger base, which separate water and corrosion matter. In such way, discoloration caused by contact of natural stone and wet air can be prevented.
5. No sweat! Convenient installation!

1)Surface Finishing
polished, honed, antique
2) Available Size
For tiles: 305×305mm(12"×12")
300×600mm(12"×24")
400×400mm(18"×18")
600×600mm(24"×24")
800x800mm(30"x30")
For slabs: 2400up×1200up×16/18/20/30/40mm
For countertops: 96"×36", 96"×25.5", 96"×16", 78"×36", 78"×25.5"
Thickness: 20,30mm or client thickness
For vanity tops: 25"×19"/22", 31"×19"/22", 37"×19"/22",
49"×19"/22",
Thickness: 3/4", 1.5" or client thickness
3) Usage

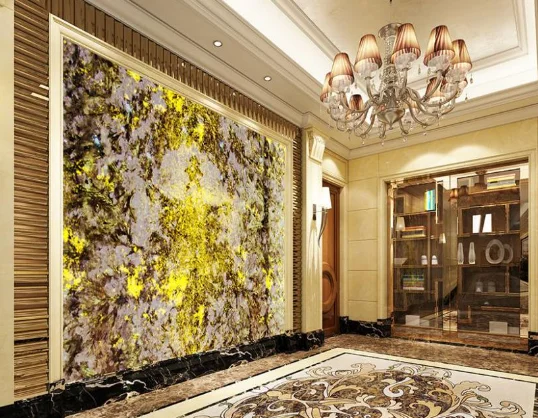

It can be use the inner decoration and outside decoration.
The inner decoration like the floor/wall tile of hall or hotel, granite countertop, granite windowsill, cut to size, and so on.
The outer decoration like fountain, granite sculpture, column, etc.
4) Packing
Inner packing:
1. For tiles: every 6~10 pieces are in one foam/paper box
2. For slabs: packed in strong wooden bundles
3. For countertops: pad with foamed plastics, then packed in fumigated wooden crates, reinforced with metal strapes outside
Out packing:
Seaworthy wooden crates
5) Advantages
It is hard, acid resist, corrosion resist, high temperature resist, cold resist and endurable. Its appearance and color can be maintained for more than a century.
