Product Overview

Description


EX3G all in one
\t
Model
\t
EX3G-43HA/HB
\t
EX3G-43(50)KHA/KHB
\t
EX3G-70KHA/KHB
\t
EX3G-100HA/HB
\t
Dimension
\t
134*102*30mm
\t
150*93*32mm
\t
226*163*35.6mm
\t
275*194*36mm
\t
Cutout size
\t
119*93mm
\t
143*86mm
\t
218*153mm
\t
261*180mm
\t
Power Consumption
\t
4-6W
\t
4-6W/5-7W
\t
6-7W
\t
6-8W
\t
HMI
\t
Features
\t
60K colors TP
\t
Display size
\t
97*56mm
\t
97*56/108*65mm
\t
154*87mm
\t
222*133mm
\t
Resolution(pixels)
\t
480*272
\t
43KHB:480*272
50KHB:800*480
\t
70KHA:1024*600
70KHB:800*480
\t
100HA:1024*600
100HB:800*480
\t
RAM
\t
64MB
\t
128MB
\t
ROM
\t
128MB
\t
Operation system
\t
HA/KHA:WINCE 7.0; HB/KHB: without system
\t
CPU
\t
HA/KHA:CORTEX A8 720MHz-1GHz;
HB/KHB:ARM9 216MHz
\t
HA/KHA:CORTEX A8 720MHz-1GHz;
HB/KHB:ARM9 288MHz
\t
COM port
\t
1 TP download port,1 USB port
\t
1 RS232 optional
\t
1 RS485 or RS232 optional
\t
Software
\t
CoolMayHMI V5.**(newest vesion pls see //coolmay.net)
\t
PLC
\t
Digital I/O
\t
Up to12DI/12DO
\t
Up to 30DI/30DO(At most 18 relay outputs)
\t
I/O level
\t
MT Output: NPN MR output: NO contact Input: Passive NPN, public terminal isolated
\t
Output type
\t
MR/MOS
Maximum load: MOS is 2A; MR is 5A
\t
MR/MT/MRT
Maximum load: MT is 500mA; MR is 5A
\t
High-speed counting
\t
EX3G-HA/KHA normally 5 single phase 100KHz,1channel 20KHz or 2 AB phase 60KHz,1 channel 10KHz;
EX3G-HB/KHB normally 6 single phase 20KHz or 3 AB phase 10KHz
\t
High-speed pulse
\t
EX3G-HA/KHA normally 8channels,Y0-Y3 is 100KHz,Y4-Y7 is 10KHz;
EX3G-HB/KHB normally 8 channels 10KHz
\t
Analog I/O
\t
AI: 0-10V/4-20mA/0-20mA/PT100/K type thermocouple/NTC10K/50K/100K etc.
\t
AO: 0-10V/0-5V/0-20mA/4-20mA or mixed
\t
At most 4AD/2DA
\t
At most 16AD/8DA
\t
COM port
\t
2 programming ports(1 MiniB type USB port,faster downloading speed;1 Rs232 port)
\t
1 RS485 optional
\t
1 Rs485,1 Rs232 or 2 Rs485, and CANbus optional
\t
Software
\t
Compatible with Mitsubishi GX Developer8.86 and WORKS 2
\t
Regular models:
EX3G-43HB/43KHB/50KHB-24MT/MOS(-4AD2DA-485P/232H)
EX3G-70HA/100HA-44MT/MR/MRT(-16AD8DA-485P/232H)
EX3G-70HA/100HA-60MT/MR/MRT(-4AD2DA-485P/232H)
485P/232P means 485/232 added in PLC; 485H/232H means 485/232 added in HMI

*EX3G-70HA/100HA: If with 30DI/30DO,the maximum analogs are 5AD/2DA;
If with 24DI/20DO,the maximum analogs are 16AD/8DA;

Detailed info.refer to:<Coolmay HMI/PLC All-in-on Programming Manual> <HMI/PLC All-in-one User Manual>
<CoolMay HMI User Manual>

Features.

1) Highly integrated with digital i/o, analog i/o, com ports etc.  Compact.

2) Various size in 4.3'',5'',7'',10.2''.

3) Ethernet port is available on 7inch and 10.2inch all in one.

4) Support Super password, safety.

5) Free programming software, abundant user documents.

6) OEM/ODM customized supported.

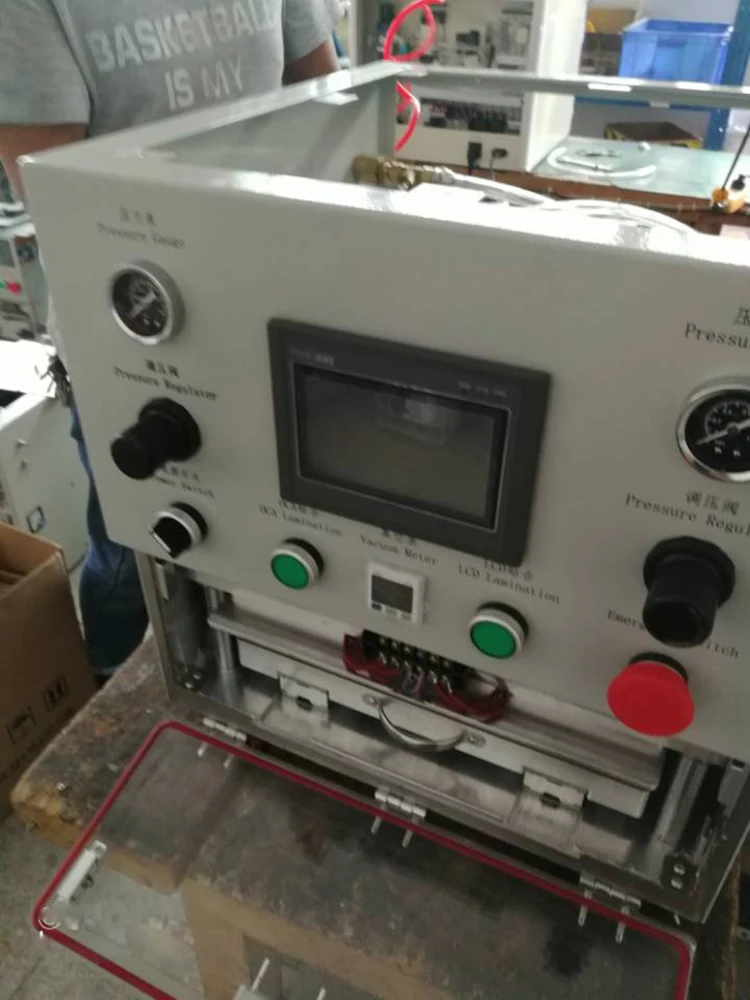

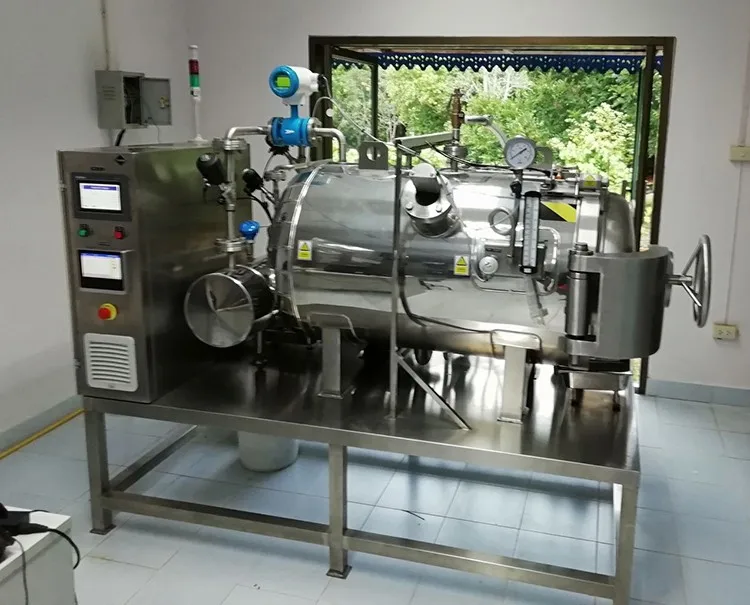

HMI PLC All in one Application.

HMI PLC all in one, different size display screen, higher resolution, intuitive graphical interface operation, easy to understand, and much improved efficiency, which not only reduces costs, but also increases output yield.

Coolmay HMI PLC all in one are mainly applied in: Environmental engineering, agriculture, forestry and animal husbandry (aquaculture), intelligent construction, rail transportation, vehile manufacturing, electronic manufacturing equipment, textile machinery, packaging machinery, printing and packaging, engineering machinery, HVAC machinery, plastic machinery, food machinery, AGV trolleys, air compressors, rubber and plastics machinery, etc.

Relative products.

Besides HMI PLC All in one, coolmay also support vfd and different modules for complete set.

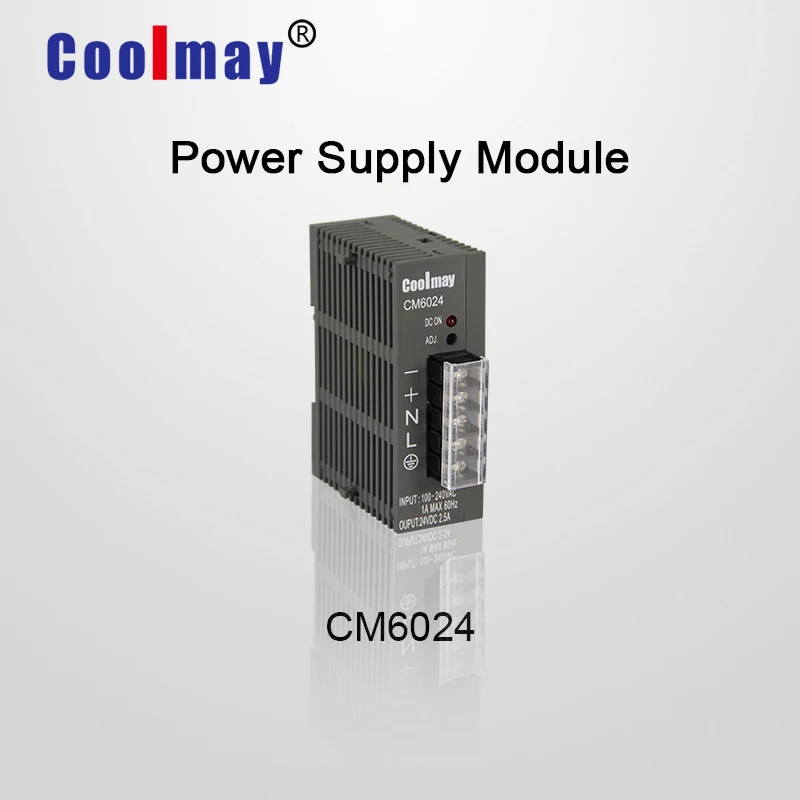

Power Supply.

DC24V 2.5A

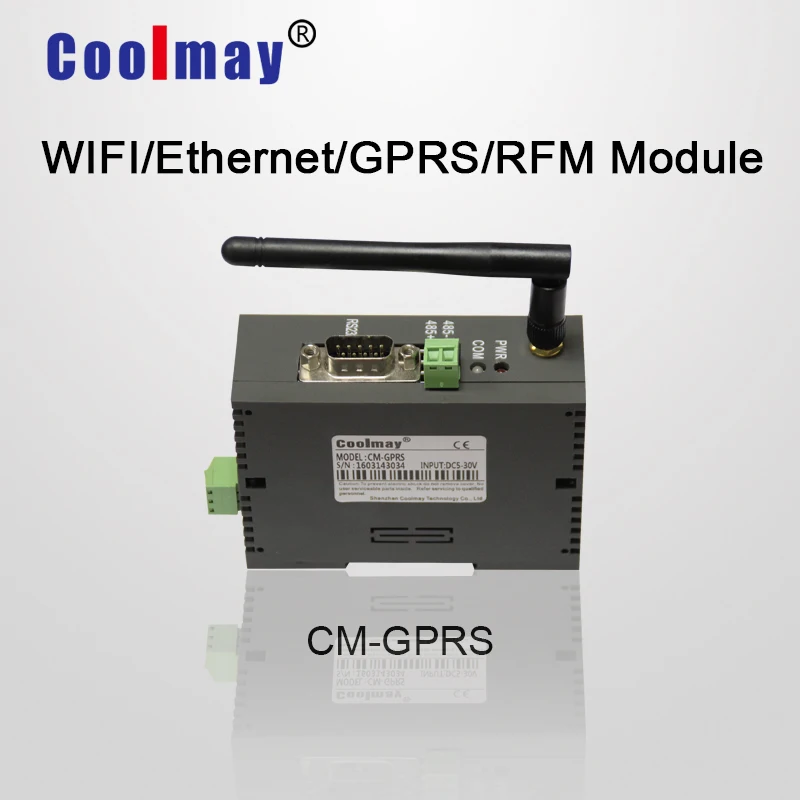

GPRS Module.

SMS message support

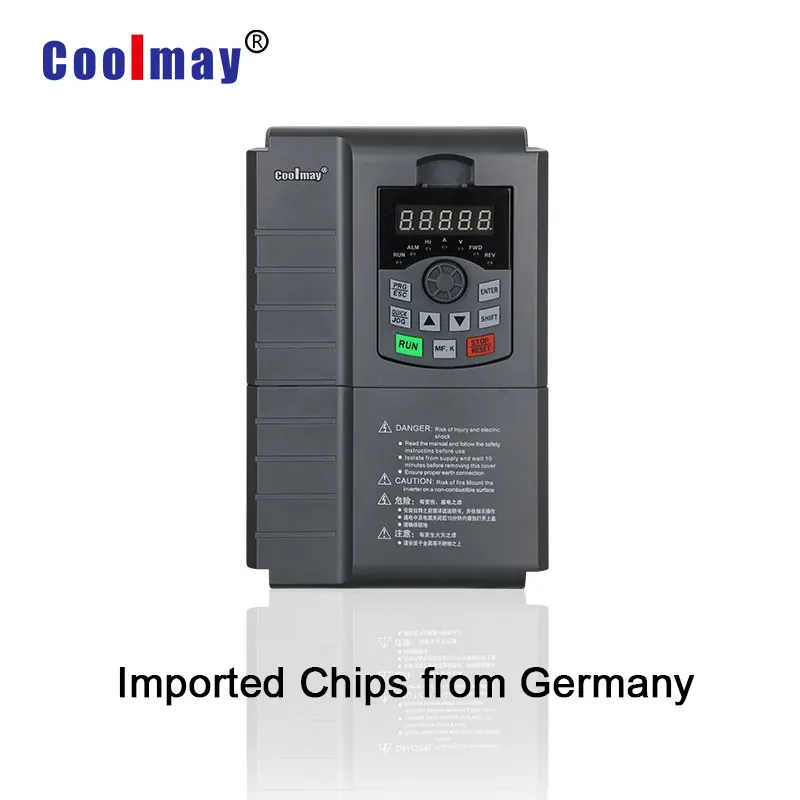

VFD Converters.

1hp 2hp 3hp 5hp etc converters

Packing & Delivery
Product Description
Detailed Images
Packing & Delivery

232 Programming cable


USB-232 Cable.


Packing, cable included.



Coolmay Culture.


Coolmay Members

Coolmay Customers

                         CE

Production line

Aging 36h at least


FAQ.

1,Are you a manufacturer or trade company?
We are both factory and trae company, we have engineers for study & design and workers for produce and operate etc, we could support you one-stop products and service.

2, What is your MOQ?
No MOQ Limits!
We support sample order, and could do products with & without Logo.

3, How to deal with the interrupt?
//www.coolmay.net/kindeditor/attached/file/20160722/20160722151620_6881.pdf

4, If I am not familiar with the operation, do you have a manual to help?
Our Software, User Manual and Programme case can be downloaded freely on our official website, or you could consult the sales for those documents.
Meantime, we have engineers team who could do help on your technician problem and give you useful solution.
